本文介绍如何使用弹性伸缩、消息服务和函数计算,将弹性扩张时创建的ECS实例自动添加到Redis实例的白名单。您可以作为参考,实现更多自动化操作。

背景信息

目前,弹性伸缩已经接入负载均衡、云数据库RDS等产品,但是暂未接入云数据库Redis。如果您将业务数据存储在Redis实例上,可能需要配置伸缩组内的ECS实例访问Redis实例。等待ECS实例创建完成后再逐个手动添加不仅费时费力,也容易出现失误,在维护大量实例时成本较高。

针对这种情况,您可以在伸缩组中创建生命周期挂钩,生命周期挂钩在弹性扩张时会自动向指定的MNS主题发送消息,然后通过函数计算中的MNS主题触发器,触发执行上传的代码,自动将ECS实例添加到Redis实例的白名单。

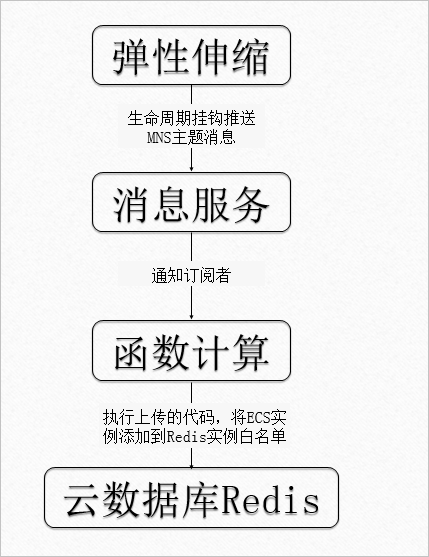

自动化管理实践-添加ECS实例到Redis白名单流程

准备工作

在操作前,请确保您已经开通云数据库Redis消息服务弹性伸缩函数计算

注意事项

  • 建议在相同地域创建消息服务主题、消息服务队列、函数计算服务、函数计算函数和Redis实例。
  • 本文以Java语言的形式给出示例代码,您可以根据业务需求,将此类最佳实践扩展到其它语言。

一、云数据库Redis操作步骤

  1. 登录云数据库Redis控制台
  2. 创建一台Redis实例,用于为自动创建的ECS实例提供数据库服务。
  3. 查看Redis实例的白名单,确定执行代码前的白名单状态。
    自动化管理实践-查看Redis实例白名单

二、消息服务操作步骤

  1. 登录消息服务控制台
  2. 创建一个MNS主题,用作执行函数的触发器。示例主题的名称为fc-trigger
    自动化管理实践-创建MNS主题消息
  3. 创建一个MNS队列,用作函数执行结果的接收器。示例队列的名称为fc-callback示例代码中通过QUEUE_NAME指定该队列,发送包含函数执行结果的消息。
    自动化管理实践-创建MNS队列消息

三、弹性伸缩操作步骤

  1. 登录弹性伸缩控制台
  2. 创建一个伸缩组,详细步骤请参见使用自定义伸缩配置创建伸缩组或者使用实例启动模板创建伸缩组
  3. 创建一个生命周期挂钩

    1. 适用的伸缩活动类型配置为弹性扩张活动,用于通知弹性扩张事件。
    2. 通知方式配置为MNS主题,与MNS队列相比,主题可以通知多个订阅者,执行多种操作。
    3. MNS主题配置为fc-trigger,用于在自动创建的ECS实例进入加入挂起中状态时执行代码,将ECS实例添加到云数据库Redis的白名单。
    4. 根据需要配置其它选项。

四、函数计算操作步骤

  1. 登录函数计算控制台
  2. 新建一个服务,用于承载需要执行的函数。示例服务的名称为as-hook-mns-fc-redis
    自动化管理实践-创建函数计算服务
  3. 在服务下新建函数,订阅MNS主题并上传代码。
    1. 函数模板页面中,选择空白函数
    2. 触发器配置页面中,选择MNS 主题触发器,然后根据需要配置其它选项。
      自动化管理实践-配置函数触发器
    3. 基础管理配置页面中,所在服务配置为as-hook-mns-fc-redis函数入口配置为fc.Example::handleRequest,然后根据需要配置其它选项。
      说明
      • 函数入口由代码决定,请根据实际情况配置。
      • 本文示例采用上传jar包,实现将自动创建的ECS实例添加到云数据库Redis的白名单。有关编程语言说明,请参见函数计算Java编程说明

      自动化管理实践-配置函数基础信息
      自动化管理实践-配置函数基础信息-函数入口
    4. 权限配置页面中,根据需要授予函数访问其它资源的权限,并授予消息服务调用函数的权限。
      说明 建议遵循权限最小化原则,仅授予必需的权限,防范潜在风险。

      自动化管理实践-配置权限-函数计算操作其它资源
      自动化管理实践-配置权限-调用函数
    5. 信息核对页面中,核对函数信息触发器信息,然后单击创建

执行效果

配置完成后,执行效果如下:

  1. 在满足弹性扩张的条件时,伸缩组触发伸缩活动,自动创建ECS实例。
  2. 生命周期挂钩挂起伸缩活动,同时发送消息到MNS主题。
  3. 函数计算中,MNS主题触发器触发函数执行过程,并将消息内容作为输入信息(包括ECS实例的ID等信息),执行Java代码。
  4. 代码执行时,会通过接口获取ECS实例的私网IP,然后将私网IP添加到Redis实例的白名单(default 分组)。
  5. 代码执行结果会发送到MNS队列fc-callback,您可以在消息服务控制台查看结果详情。下图消息中successtrue,表明ECS实例成功添加到了Redis实例的白名单。
    自动化管理实践-查看执行效果

您还可以继续消费MNS队列中的消息,比如获取successLifecycleHookIdLifecycleActionToken,编程提前结束生命周期挂钩。

上述最佳实践供您参考,您也在其它场景下通过多款产品实现自动化管理,从而更加灵活地管理伸缩组内的资源。

示例代码

示例代码仅供参考,请结合具体业务进行测试改造。主要功能涉及四个java文件,通过Maven管理,目录结构如下:

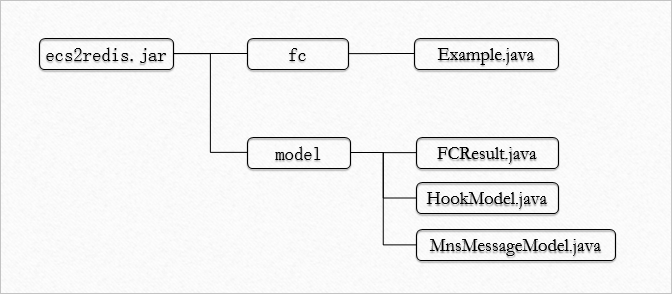

自动化管理实践-Jar包结构

Maven依赖如下:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.aliyun.fc.wujin</groupId>
    <artifactId>demo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-ecs</artifactId>
            <version>4.10.1</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun.fc.runtime</groupId>
            <artifactId>fc-java-core</artifactId>
            <version>1.0.0</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-core</artifactId>
            <version>3.2.6</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-r-kvstore</artifactId>
            <version>2.0.3</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.25</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>4.2.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>com.springsource.org.apache.commons.lang</artifactId>
            <version>2.6.0</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun.mns</groupId>
            <artifactId>aliyun-sdk-mns</artifactId>
            <version>1.1.8.4</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.1.0</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <appendAssemblyId>false</appendAssemblyId> <!-- 设置jar文件的文件名中不包含Assembly Id -->
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id> <!-- 用于匹配需要合并的执行目标 -->
                        <phase>package</phase> <!-- 设置在打包阶段执行jar文件合并操作 -->
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

Example.java代码如下:

package fc;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.TypeReference;
import com.aliyun.fc.runtime.Context;
import com.aliyun.fc.runtime.StreamRequestHandler;
import com.aliyun.mns.client.CloudAccount;
import com.aliyun.mns.client.CloudQueue;
import com.aliyun.mns.client.MNSClient;
import com.aliyun.mns.model.Message;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.ecs.model.v20140526.DescribeInstancesRequest;
import com.aliyuncs.ecs.model.v20140526.DescribeInstancesResponse;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.profile.DefaultProfile;
import com.aliyuncs.profile.IClientProfile;
import com.aliyuncs.r_kvstore.model.v20150101.DescribeSecurityIpsRequest;
import com.aliyuncs.r_kvstore.model.v20150101.DescribeSecurityIpsResponse;
import com.aliyuncs.r_kvstore.model.v20150101.ModifySecurityIpsRequest;
import model.FCResult;
import model.HookModel;
import model.MnsMessageModel;
import org.apache.commons.codec.binary.Base64;
import org.apache.commons.lang.StringUtils;
import org.springframework.util.CollectionUtils;

import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
public class Example implements StreamRequestHandler {

    /**
     * 专有网络类型,此参数不用变
     */
    private static final String  VPC_NETWORK                 = "vpc";

    private static final String  CHAR_SET                    = "UTF-8";

    /**
     * 接收input数组大小,4096通常够用
     */
    private static final Integer MAX_BYTE_LENGTH             = 4096;

    /**
     * REDIS 白名单默认分组
     */
    private static final String  DEFAULT_SECURITY_GROUP_NAME = "default";

    /**
     * REDIS 修改白名单的模式
     */
    private static final String  MODIFY_MODE_APPEND          = "Append";

    /**
     * MNS 客户端发送消息地址
     */
    private static final String  MNS_END_POINT               = "http://%s.mns.%s.aliyuncs.com/";

    /**
     * 待添加的REDIS实例ID,根据个人情况替换
     */
    private static final String  REDIS_ID                    = "";

    /**
     * 接收本次函数计算执行结果的队列名称,根据个人情况替换
     */
    private static final String  QUEUE_NAME                  = "wujin-fc-callback";

    /**
     * 阿里云账号UID,根据跟人情况替换
     */
    private static final Long    USER_ID                     = 1111111111111111111L;

    /**
     * 伸缩组 MNS FC 所属的region,根据个人情况替换
     */
    private static final String  REGION_ID                   = "cn-hangzhou";

    @Override
    public void handleRequest(InputStream inputStream, OutputStream outputStream, Context context) {
        FCResult result = new FCResult();
        String akId = context.getExecutionCredentials().getAccessKeyId();
        String akSecret = context.getExecutionCredentials().getAccessKeySecret();
        String securityToken = context.getExecutionCredentials().getSecurityToken();
        try {
            //获取MNS触发函数计算时输入的内容
            String input = readInput(inputStream);
            MnsMessageModel mnsMessageModel = JSON.parseObject(input,
                    new TypeReference<MnsMessageModel>() {
                    });
            if (mnsMessageModel == null) {
                result.setSuccess(false);
                result.setMessage("mnsMessageModel is null");
                sendMns(akId, akSecret, securityToken, result.toString());
                return;
            }
            HookModel contentModel = mnsMessageModel.getContent();
            if (contentModel == null) {
                result.setSuccess(false);
                result.setMessage("contentModel is null");
                sendMns(akId, akSecret, securityToken, result.toString());
                return;
            }
            IAcsClient client = buildClient(akId, akSecret, securityToken);
            //获取本次伸缩活动对应实例的私网IP
            List<String> privateIps = getInstancesPrivateIps(contentModel.getInstanceIds(), client);
            if (CollectionUtils.isEmpty(privateIps)) {
                result.setSuccess(false);
                result.setMessage("privateIps is empty");
                sendMns(akId, akSecret, securityToken, result.toString());
                return;
            }
            List<String> needAppendIps = filterPrivateIpsForAppend(privateIps, client);
            if (!CollectionUtils.isEmpty(needAppendIps)) {
                modifySecurityIps(client, needAppendIps);
                result.setLifecycleHookId(contentModel.getLifecycleHookId());
                result.setLifecycleActionToken(contentModel.getLifecycleActionToken());
                sendMns(akId, akSecret, securityToken, result.toString());
            }
        } catch (Exception ex) {
            result.setSuccess(false);
            result.setMessage(ex.getMessage());
            sendMns(akId, akSecret, securityToken, result.toString());
        }
    }

    /**
     * 构建请求 ECS Redis 接口客户端
     *
     * @param akId
     * @param akSecret
     * @param securityToken
     * @return
     */
    private IAcsClient buildClient(String akId, String akSecret, String securityToken) {
        IClientProfile clientProfile = DefaultProfile.getProfile(REGION_ID, akId, akSecret,
                securityToken);
        return new DefaultAcsClient(clientProfile);
    }

    /**
     * 将执行结果发送消息到MNS
     *
     * @param ak
     * @param aks
     * @param securityToken
     * @param msg
     */
    private void sendMns(String ak, String aks, String securityToken, String msg) {
        MNSClient client = null;
        try {
            CloudAccount account = new CloudAccount(ak, aks,
                    String.format(MNS_END_POINT, USER_ID, REGION_ID), securityToken);
            client = account.getMNSClient();
            CloudQueue queue = client.getQueueRef(QUEUE_NAME);
            Message message = new Message();
            message.setMessageBody(msg);
            queue.putMessage(message);
        } finally {
            if (client != null) {
                client.close();
            }
        }
    }

    /**
     * 过滤出需要添加到redis的私网IP
     *
     * @param privateIps 过滤以前的私网IP
     * @param client
     * @return
     * @throws ClientException
     */
    private List<String> filterPrivateIpsForAppend(List<String> privateIps, IAcsClient client)
            throws ClientException {
        List<String> needAppendIps = new ArrayList<>();
        if (CollectionUtils.isEmpty(privateIps)) {
            return needAppendIps;
        }
        DescribeSecurityIpsRequest request = new DescribeSecurityIpsRequest();
        request.setInstanceId(REDIS_ID);
        DescribeSecurityIpsResponse response = client.getAcsResponse(request);
        List<DescribeSecurityIpsResponse.SecurityIpGroup> securityIpGroups = response
                .getSecurityIpGroups();
        if (CollectionUtils.isEmpty(securityIpGroups)) {
            return privateIps;
        }
        for (DescribeSecurityIpsResponse.SecurityIpGroup securityIpGroup : securityIpGroups) {
            if (!securityIpGroup.getSecurityIpGroupName().equals(DEFAULT_SECURITY_GROUP_NAME)) {
                continue;
            }
            String securityIps = securityIpGroup.getSecurityIpList();
            if (securityIps == null) {
                continue;
            }
            String[] securityIpList = securityIps.split(",");
            List<String> existIps = Arrays.asList(securityIpList);
            if (CollectionUtils.isEmpty(existIps)) {
                continue;
            }
            for (String ip : privateIps) {
                if (!existIps.contains(ip)) {
                    needAppendIps.add(ip);
                }
            }
        }
        return privateIps;
    }

    /**
     * 修改REDIS实例DEFAULT分组私网IP白名单
     *
     * @param client
     * @param needAppendIps
     * @throws ClientException
     */
    private void modifySecurityIps(IAcsClient client, List<String> needAppendIps)
            throws ClientException {
        if (CollectionUtils.isEmpty(needAppendIps)) {
            return;
        }
        ModifySecurityIpsRequest request = new ModifySecurityIpsRequest();
        request.setInstanceId(REDIS_ID);
        String ip = StringUtils.join(needAppendIps.toArray(), ",");
        request.setSecurityIps(ip);
        request.setSecurityIpGroupName(DEFAULT_SECURITY_GROUP_NAME);
        request.setModifyMode(MODIFY_MODE_APPEND);
        client.getAcsResponse(request);
    }

    /**
     * 获取输入,并base64解码
     *
     * @param inputStream
     * @return
     * @throws IOException
     */
    private String readInput(InputStream inputStream) throws IOException {
        try {
            byte[] bytes = new byte[MAX_BYTE_LENGTH];
            int tmp;
            int len = 0;
            //循环读取所有内容
            while ((tmp = inputStream.read()) != -1 && len < MAX_BYTE_LENGTH) {
                bytes[len] = (byte) tmp;
                len++;
            }
            inputStream.close();
            byte[] act = new byte[len];
            System.arraycopy(bytes, 0, act, 0, len);
            return new String(Base64.decodeBase64(act), CHAR_SET);
        } finally {
            inputStream.close();
        }
    }

    /**
     * 获取实例列表对应的私网IP,并限制每次请求实例数量不超过100
     *
     * @param instanceIds 实例列表
     * @param client 请求客户端
     * @return
     * @throws Exception
     */
    public List<String> getInstancesPrivateIps(List<String> instanceIds, IAcsClient client)
            throws Exception {
        List<String> privateIps = new ArrayList<>();
        if (CollectionUtils.isEmpty(instanceIds)) {
            return privateIps;
        }
        int size = instanceIds.size();
        int queryNumberPerTime = 100;
        int batchCount = (int) Math.ceil((float) size / (float) queryNumberPerTime);
        //support 100 instance
        for (int i = 1; i <= batchCount; i++) {
            int fromIndex = queryNumberPerTime * (i - 1);
            int toIndex = Math.min(queryNumberPerTime * i, size);
            List<String> subList = instanceIds.subList(fromIndex, toIndex);
            DescribeInstancesRequest request = new DescribeInstancesRequest();
            request.setInstanceIds(JSON.toJSONString(subList));
            DescribeInstancesResponse response = client.getAcsResponse(request);
            List<DescribeInstancesResponse.Instance> instances = response.getInstances();
            if (CollectionUtils.isEmpty(instances)) {
                continue;
            }
            for (DescribeInstancesResponse.Instance instance : instances) {
                String privateIp = getPrivateIp(instance);
                if (privateIp != null) {
                    privateIps.add(privateIp);
                }
            }
        }
        return privateIps;
    }

    /**
     * 从 DescribeInstancesResponse.Instance 中解析出私网 IP
     *
     * @param instance DescribeInstancesResponse.Instance
     */
    private String getPrivateIp(DescribeInstancesResponse.Instance instance) {
        String privateIp = null;
        if (VPC_NETWORK.equalsIgnoreCase(instance.getInstanceNetworkType())) {
            DescribeInstancesResponse.Instance.VpcAttributes vpcAttributes = instance
                    .getVpcAttributes();
            if (vpcAttributes != null) {
                List<String> privateIpAddress = vpcAttributes.getPrivateIpAddress();
                if (!CollectionUtils.isEmpty(privateIpAddress)) {
                    privateIp = privateIpAddress.get(0);
                }
            }
        } else {
            List<String> innerIpAddress = instance.getInnerIpAddress();
            if (!CollectionUtils.isEmpty(innerIpAddress)) {
                privateIp = innerIpAddress.get(0);
            }
        }
        return privateIp;
    }
}

FCResult.java代码如下:

package model;

import com.alibaba.fastjson.JSON;

public class FCResult {

  private boolean success = true;

  private String  lifecycleHookId;

  private String  lifecycleActionToken;

  private String  message;

  public boolean isSuccess() {
      return success;
  }

  public void setSuccess(boolean success) {
      this.success = success;
  }

  public String getLifecycleHookId() {
      return lifecycleHookId;
  }

  public void setLifecycleHookId(String lifecycleHookId) {
      this.lifecycleHookId = lifecycleHookId;
  }

  public String getLifecycleActionToken() {
      return lifecycleActionToken;
  }

  public void setLifecycleActionToken(String lifecycleActionToken) {
      this.lifecycleActionToken = lifecycleActionToken;
  }

  public String getMessage() {
      return message;
  }

  public void setMessage(String message) {
      this.message = message;
  }

  @Override
  public String toString() {
      return JSON.toJSONString(this);
  }
}

HookModel.java代码如下:

package model;

import java.util.List;

public class HookModel {

    private String            lifecycleHookId;

    private String            lifecycleActionToken;

    private String            lifecycleHookName;

    private String            scalingGroupId;

    private String            scalingGroupName;

    private String            lifecycleTransition;

    private String            defaultResult;

    private String            requestId;

    private String            scalingActivityId;

    private List<String>      instanceIds;

    public String getLifecycleHookId() {
        return lifecycleHookId;
    }

    public void setLifecycleHookId(String lifecycleHookId) {
        this.lifecycleHookId = lifecycleHookId;
    }

    public String getLifecycleActionToken() {
        return lifecycleActionToken;
    }

    public void setLifecycleActionToken(String lifecycleActionToken) {
        this.lifecycleActionToken = lifecycleActionToken;
    }

    public String getLifecycleHookName() {
        return lifecycleHookName;
    }

    public void setLifecycleHookName(String lifecycleHookName) {
        this.lifecycleHookName = lifecycleHookName;
    }

    public String getScalingGroupId() {
        return scalingGroupId;
    }

    public void setScalingGroupId(String scalingGroupId) {
        this.scalingGroupId = scalingGroupId;
    }

    public String getScalingGroupName() {
        return scalingGroupName;
    }

    public void setScalingGroupName(String scalingGroupName) {
        this.scalingGroupName = scalingGroupName;
    }

    public String getLifecycleTransition() {
        return lifecycleTransition;
    }

    public void setLifecycleTransition(String lifecycleTransition) {
        this.lifecycleTransition = lifecycleTransition;
    }

    public String getDefaultResult() {
        return defaultResult;
    }

    public void setDefaultResult(String defaultResult) {
        this.defaultResult = defaultResult;
    }

    public String getRequestId() {
        return requestId;
    }

    public void setRequestId(String requestId) {
        this.requestId = requestId;
    }

    public String getScalingActivityId() {
        return scalingActivityId;
    }

    public void setScalingActivityId(String scalingActivityId) {
        this.scalingActivityId = scalingActivityId;
    }

    public List<String> getInstanceIds() {
        return instanceIds;
    }

    public void setInstanceIds(List<String> instanceIds) {
        this.instanceIds = instanceIds;
    }
}

MnsMessageModel.java代码如下:

package model;

public class MnsMessageModel {

    private String    userId;

    private String    regionId;

    private String    resourceArn;

    private HookModel content;

    public String getUserId() {
        return userId;
    }

    public void setUserId(String userId) {
        this.userId = userId;
    }

    public String getRegionId() {
        return regionId;
    }

    public void setRegionId(String regionId) {
        this.regionId = regionId;
    }

    public String getResourceArn() {
        return resourceArn;
    }

    public void setResourceArn(String resourceArn) {
        this.resourceArn = resourceArn;
    }

    public HookModel getContent() {
        return content;
    }

    public void setContent(HookModel content) {
        this.content = content;
    }
}
