通过服务网格ASM,可以将一个应用的服务组件部署在同VPC的多个集群上。本文以Bookinfo应用为例,介绍如何将该应用部署到包含两个集群的ASM实例。

前提条件

步骤一:修改集群的安全组名称

将两个集群对应的安全组名称修改为易于辨识的名称,本例中为m1c1-sg和m1c2-sg。

  1. 登录ECS管理控制台
  2. 在左侧导航栏,单击网络与安全 > 安全组
  3. 在顶部状态栏左上角处,选择地域。
  4. 安全组列表页面中,找到需要修改的安全组,单击操作列下的修改
  5. 在弹出的对话框中,修改安全组名称描述
  6. 单击确定

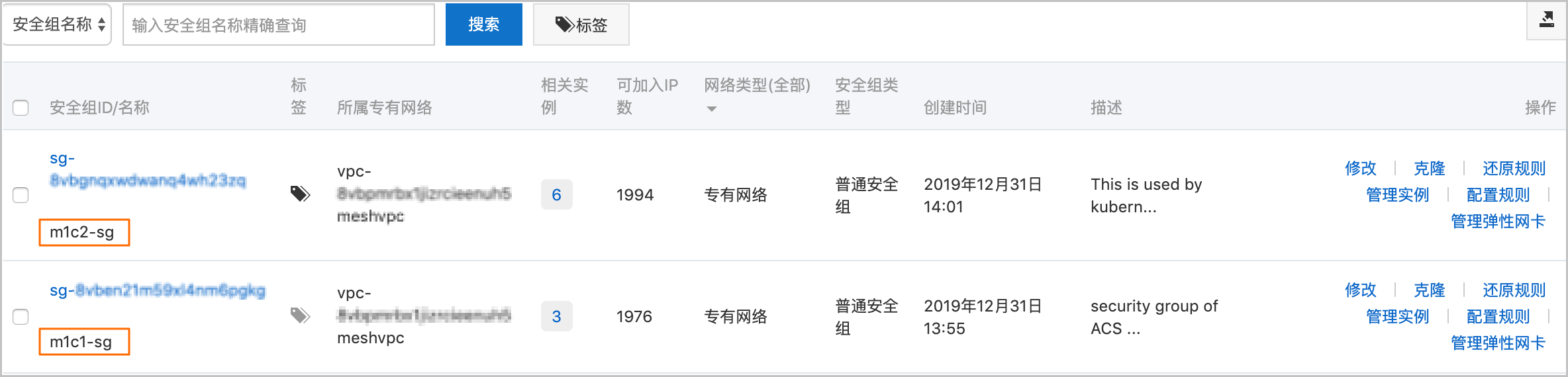

修改后的名称,如下图所示。修改安全组名称

步骤二:配置集群的互访联通性

为了使两个集群能够互相访问,需要为彼此添加安全组访问规则。

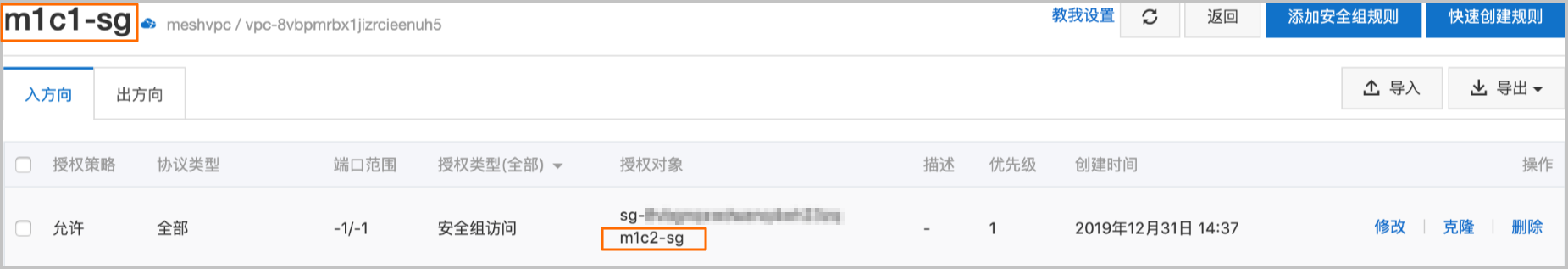

  1. 在m1c1-sg安全组配置界面,添加以m1c2-sg为授权对象的访问规则。详情请参见添加安全组规则在m1c1授权m1c2

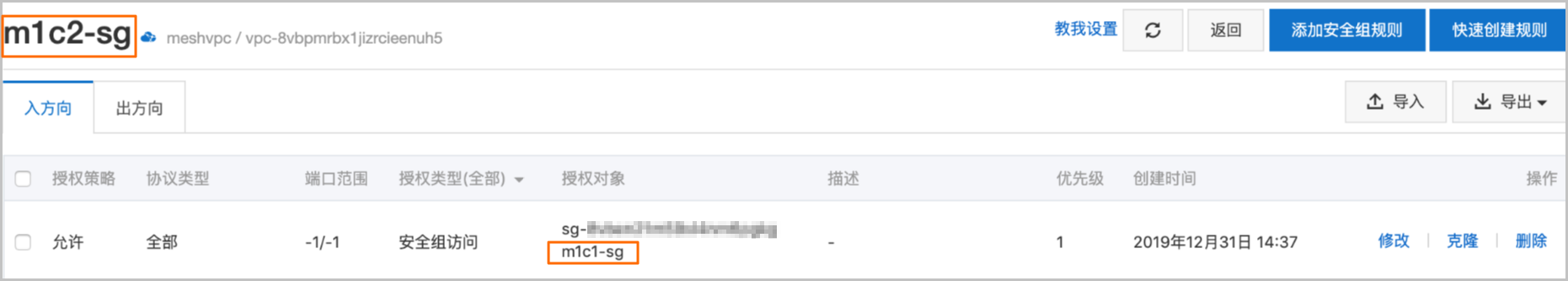

  2. 在m1c2-sg安全组规则配置界面,添加以m1c1-sg为授权对象的访问规则。在m2c1授权m1c1

步骤三:添加集群到ASM实例并部署集群的入口网关

将两个集群添加到ASM实例后,由于两个集群已实现访问互通,因此只需为一个集群部署入口网关。

  1. 将两个集群添加到ASM实例,详情请参见添加集群到 ASM 实例
  2. 为m1c1集群部署入口网关,详情请参见添加入口网关

步骤四:部署Bookinfo应用

为了演示ASM跨集群的应用部署能力,Bookinfo应用的不同微服务分别部署在两个集群上。

  1. 在m1c2中部署不包含review-v3 deployment的Bookinfo应用,详情请参见部署应用到 ASM 实例
    说明 Review-v3 deployment对应的功能是书评中显示红色星。
    对应的Yaml文件内容如下所示:
    ##################################################################################################
    # Details service
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: details
      labels:
        app: details
        service: details
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: details
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: bookinfo-details
      labels:
        account: details
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: details-v1
      labels:
        app: details
        version: v1
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: details
          version: v1
      template:
        metadata:
          labels:
            app: details
            version: v1
        spec:
          serviceAccountName: bookinfo-details
          containers:
          - name: details
            image: docker.io/istio/examples-bookinfo-details-v1:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    ---
    ##################################################################################################
    # Ratings service
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: ratings
      labels:
        app: ratings
        service: ratings
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: ratings
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: bookinfo-ratings
      labels:
        account: ratings
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: ratings-v1
      labels:
        app: ratings
        version: v1
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: ratings
          version: v1
      template:
        metadata:
          labels:
            app: ratings
            version: v1
        spec:
          serviceAccountName: bookinfo-ratings
          containers:
          - name: ratings
            image: docker.io/istio/examples-bookinfo-ratings-v1:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    ---
    ##################################################################################################
    # Reviews service
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: reviews
      labels:
        app: reviews
        service: reviews
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: reviews
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: bookinfo-reviews
      labels:
        account: reviews
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: reviews-v1
      labels:
        app: reviews
        version: v1
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: reviews
          version: v1
      template:
        metadata:
          labels:
            app: reviews
            version: v1
        spec:
          serviceAccountName: bookinfo-reviews
          containers:
          - name: reviews
            image: docker.io/istio/examples-bookinfo-reviews-v1:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: reviews-v2
      labels:
        app: reviews
        version: v2
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: reviews
          version: v2
      template:
        metadata:
          labels:
            app: reviews
            version: v2
        spec:
          serviceAccountName: bookinfo-reviews
          containers:
          - name: reviews
            image: docker.io/istio/examples-bookinfo-reviews-v2:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    # ---
    # apiVersion: apps/v1
    # kind: Deployment
    # metadata:
    #   name: reviews-v3
    #   labels:
    #     app: reviews
    #     version: v3
    # spec:
    #   replicas: 1
    #   selector:
    #     matchLabels:
    #       app: reviews
    #       version: v3
    #   template:
    #     metadata:
    #       labels:
    #         app: reviews
    #         version: v3
    #     spec:
    #       serviceAccountName: bookinfo-reviews
    #       containers:
    #       - name: reviews
    #         image: docker.io/istio/examples-bookinfo-reviews-v3:1.15.0
    #         imagePullPolicy: IfNotPresent
    #         ports:
    #         - containerPort: 9080
    ---
    ##################################################################################################
    # Productpage services
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: productpage
      labels:
        app: productpage
        service: productpage
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: productpage
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: bookinfo-productpage
      labels:
        account: productpage
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: productpage-v1
      labels:
        app: productpage
        version: v1
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: productpage
          version: v1
      template:
        metadata:
          labels:
            app: productpage
            version: v1
        spec:
          serviceAccountName: bookinfo-productpage
          containers:
          - name: productpage
            image: docker.io/istio/examples-bookinfo-productpage-v1:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    ---
  2. 在m1c1中部署review-v3以及rating service(review依赖的服务)。
    对应的YAML文件内容如下所示:
    ##################################################################################################
    # Reviews service
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: reviews
      labels:
        app: reviews
        service: reviews
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: reviews
    ---
    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: bookinfo-reviews
      labels:
        account: reviews
    ---
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: reviews-v3
      labels:
        app: reviews
        version: v3
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: reviews
          version: v3
      template:
        metadata:
          labels:
            app: reviews
            version: v3
        spec:
          serviceAccountName: bookinfo-reviews
          containers:
          - name: reviews
            image: docker.io/istio/examples-bookinfo-reviews-v3:1.15.0
            imagePullPolicy: IfNotPresent
            ports:
            - containerPort: 9080
    ---
    ##################################################################################################
    # Ratings service
    ##################################################################################################
    apiVersion: v1
    kind: Service
    metadata:
      name: ratings
      labels:
        app: ratings
        service: ratings
    spec:
      ports:
      - port: 9080
        name: http
      selector:
        app: ratings

步骤五:添加虚拟服务和Istio网关

  1. 在ASM实例的default命名空间下新建一个虚拟服务,名为bookinfo,详情请参见定义 Istio 资源
    对应的Yaml文件内容如下所示:
    apiVersion: networking.istio.io/v1alpha3
    kind: VirtualService
    metadata:
      name: bookinfo
    spec:
      hosts:
      - "*"
      gateways:
      - bookinfo-gateway
      http:
      - match:
        - uri:
            exact: /productpage
        - uri:
            prefix: /static
        - uri:
            exact: /login
        - uri:
            exact: /logout
        - uri:
            prefix: /api/v1/products
        route:
        - destination:
            host: productpage
            port:
              number: 9080
  2. 在ASM实例的default命名空间下新建一个Istio网关,名为bookinfo-gateway,详情参见定义 Istio 资源
    对应的Yaml文件内容如下所示:
    apiVersion: networking.istio.io/v1alpha3
    kind: Gateway
    metadata:
      name: bookinfo-gateway
    spec:
      selector:
        istio: ingressgateway # use istio default controller
      servers:
      - port:
          number: 80
          name: http
          protocol: HTTP
        hosts:
        - "*"

访问productpage页面,刷新页面时会轮流显示reviews的3个版本。虽然review-v3和其他服务不在同一个集群中,也可以正常显示。

(可选)步骤六:指定reviews总是用v3版本

通过定义目标规则和虚拟服务,可以定义Bookinfo应用的微服务部署策略。本例中将指定Bookinfo总是使用review v3版本。

  1. 在ASM实例的default命名空间下新建一个目标规则,名为reviews。
    Yaml文件的内容如下所示:
    apiVersion: networking.istio.io/v1alpha3
    kind: DestinationRule
    metadata:
      name: reviews
    spec:
      host: reviews
      subsets:
      - name: v1
        labels:
          version: v1
      - name: v2
        labels:
          version: v2
      - name: v3
        labels:
          version: v3
  2. 在 ASM 实例的 default 命名空间下新建一个虚拟服务,名为 reviews。
    对应的 Yaml 文件内容如下所示:
    apiVersion: networking.istio.io/v1alpha3
    kind: VirtualService
    metadata:
      name: reviews
    spec:
      hosts:
        - reviews
      http:
      - route:
        - destination:
            host: reviews
            subset: v3

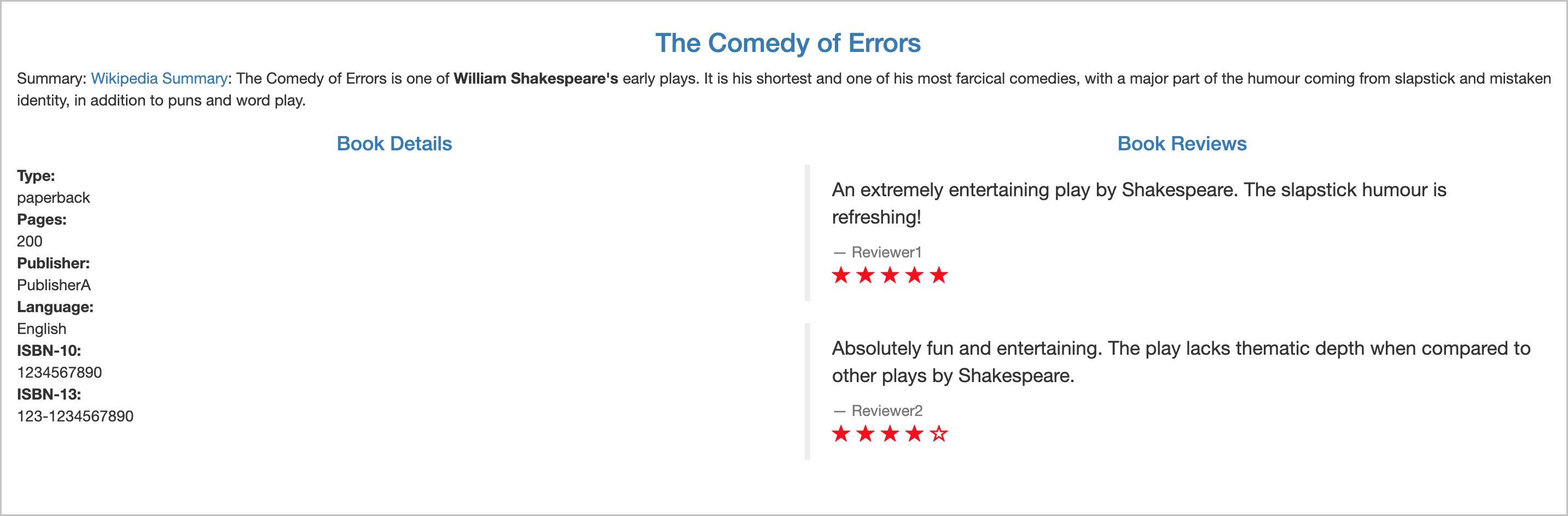

此时访问productpage页面,reviews将始终使用v3版本,即书评中为红色星。书评用红星
