介绍如何通过云监控API查看负载均衡实例的监控项和详细监控数据。

前提条件

已知负载均衡在云监控中设置报警的产品标签SLB。

背景信息

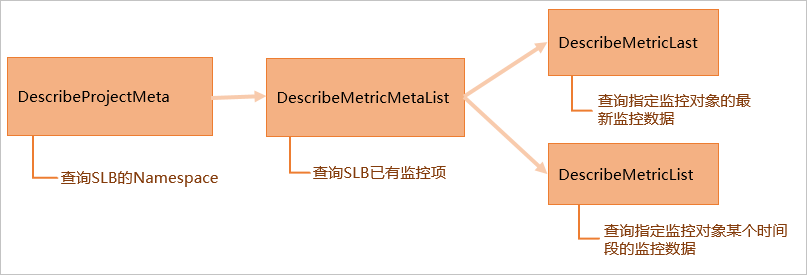

通过API查看监控数据流程,如下图所示。

流程

流程说明如下:

  1. 调用DescribeProjectMeta接口查询云监控中负载均衡的数据命名空间Namespace。
  2. 调用DescribeMetricMetaList接口查询云监控开放的时序类指标监控项描述或直接查看监控项说明,详情参见监控报警项说明
  3. 查看监控项。
    • 调用DescribeMetricLast接口查询负载均衡指定监控对象的最新监控数据。
    • 调用DescribeMetricList接口查询负载均衡指定时间段内监控对象的时序指标监控数据。

本文以查询实例ID为lb-bp1r92vzpemy099*****,已配置七层监听的负载均衡实例的Qps监控项为例。

DescribeProjectMeta

调用DescribeProjectMeta接口查询云监控中负载均衡的数据命名空间Namespace,详情请参见DescribeProjectMeta

  1. 将请求参数中报警产品标签过滤Labels的值设置为[{"name":"product","value":"SLB"}],其他参数保持默认值。
    请求示例:
    http(s)://[Endpoint]/?Action=DescribeProjectMeta
    &Labels=[{"name":"product","value":"SLB"}]
    &<公共请求参数>
  2. 根据返回参数,获取云监控中负载均衡数据命名空间Namespace的值为acs_slb_dashboard
    返回示例:
    {
        "PageSize": 30,
        "RequestId": "75B895A2-62A4-411E-871C-0EED97CC0D26",
        "PageNumber": 1,
        "Total": 1,
        "Resources": {
            "Resource": [
                {
                    "Description": "负载均衡",
                    "Labels": "[{\"name\":\"product\",\"value\":\"SLB\"},{\"name\":\"productCategory\",\"value\":\"slb\"},{\"name\":\"groupFlag\",\"value\":\"true\"},{\"name\":\"cnName\",\"value\":\"负载均衡\"},{\"name\":\"enName\",\"value\":\"Server Load Balancer\"}]",
                    "Namespace": "acs_slb_dashboard"
                }
            ]
        },
        "Code": 200,
        "Success": true
    }

DescribeMetricMetaList

调用DescribeMetricMetaList接口查询云监控开放的时序类指标监控项描述,详情请参见DescribeMetricMetaList

  1. 将请求参数中数据命名空间Namespace的值设置为acs_slb_dashboard,其他参数保持默认值。
    请求示例:
    http(s)://[Endpoint]/?Action=DescribeMetricMetaList
    &Namespace=acs_slb_dashboard
    &<公共请求参数>
  2. 根据返回参数,查看负载均衡的时序类指标监控项。可以查看本次示例中使用的监控项Qps是否存在。
    返回示例:
    {
        "TotalCount": 53,
        "RequestId": "789846B4-56FC-4681-998C-5B7DBDFBE28F",
        "Resources": {
            "Resource": [
                {
                    "MetricName": "ActiveConnection",
                    "Periods": "60,300",
                    "Description": "端口当前活跃连接数",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "DropConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "DropPacketRX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "DropPacketTX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "DropTrafficRX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "DropTrafficTX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "GroupTrafficRX",
                    "Periods": "60",
                    "Description": "",
                    "Dimensions": "groupId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"groupId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum,Sum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "GroupTrafficTX",
                    "Periods": "60",
                    "Description": "",
                    "Dimensions": "groupId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"groupId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum,Sum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "HeathyServerCount",
                    "Periods": "60,300",
                    "Description": "当前后端健康ECS实例个数",
                    "Dimensions": "userId,instanceId,port,vip",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InactiveConnection",
                    "Periods": "60,300",
                    "Description": "端口当前非活跃连接数",
                    "Dimensions": "userId,instanceId,port,protocol",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"port\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceActiveConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceDropConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceDropPacketRX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceDropPacketTX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceDropTrafficRX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceDropTrafficTX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"bits/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "bits/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceInactiveConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceMaxConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceMaxConnectionUtilization",
                    "Periods": "60,300",
                    "Description": "最大连接数使用率",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"%\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "%",
                    "Statistics": "Average,Maximum,Minimum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceNewConnection",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceNewConnectionUtilization",
                    "Periods": "60,300",
                    "Description": "新建连接数使用率",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"%\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "%",
                    "Statistics": "Average,Maximum,Minimum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstancePacketRX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstancePacketTX",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average,Minimum,Maximum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceQps",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/s\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/s",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceQpsUtilization",
                    "Periods": "60,300",
                    "Description": "QPS使用率",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"%\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "%",
                    "Statistics": "Average,Maximum,Minimum",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceRt",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"ms\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "ms",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceStatusCode2xx",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/Second",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceStatusCode3xx",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/Second",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceStatusCode4xx",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/Second",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                },
                {
                    "MetricName": "InstanceStatusCode5xx",
                    "Periods": "60,300",
                    "Description": "",
                    "Dimensions": "userId,instanceId",
                    "Labels": "[{\"name\":\"alertUnit\",\"value\":\"Count/Second\"},{\"name\":\"minAlertPeriod\",\"value\":\"60\"},{\"name\":\"metricCategory\",\"value\":\"instanceId\"},{\"name\":\"is_alarm\",\"value\":\"true\"}]",
                    "Unit": "Count/Second",
                    "Statistics": "Average",
                    "Namespace": "acs_slb_dashboard"
                }
            ]
        },
        "Code": 200,
        "Success": true
    }

DescribeMetricLast

调用DescribeMetricLast接口查询负载均衡指定监控对象的最新监控数据,本示例查看七层协议Qps的最新监控数据,详情请参见DescribeMetricLast

四层和七层协议的监控项和监控指标不同,详情请参见监控报警项说明

  1. 在请求参数中,设置查询Qps的参数。
    需要配置以下参数,其他参数可保持默认值。
    • MetricName:监控项名称,本示例设置为Qps
    • Dimensions:维度map,用于查询指定资源的监控数据,本示例设置为[{"instanceId":"lb-bp1r92vzpemy099f******"}]
    • Namespace:产品的数据命名空间,用于区分不同的产品,本示例设置为acs_slb_dashboard

    请求示例:

    http(s)://[Endpoint]/?Action=DescribeMetricLast
    &MetricName=Qps
    &Namespace=acs_slb_dashboard
    &Dimensions=[{"instanceId":"lb-bp1r92vzpemy099f******"}]
    &<公共请求参数>
  2. 根据返回参数,查看Qps的最新监控数据。
    返回示例:
    {
        "RequestId": "B0EED5A2-7FE2-4A0C-B5E9-3D961F86DC9D",
        "Period": "60",
        "Datapoints": "[{\"timestamp\":1586248680000,\"userId\":\"16884015959*****\",\"instanceId\":\"lb-bp1r92vzpemy099f*****\",\"port\":\"80\",\"protocol\":\"http\",\"vip\":\"121.43.**.**\",\"Average\":0}]",
        "Code": "200",
        "Success": true
    }

DescribeMetricList

调用DescribeMetricList接口查询负载均衡指定时间段内的时序指标监控数据,详情请参见DescribeMetricList

  1. 在请求参数中,设置查询指定时间内Qps的监控数据。
    需要配置以下参数,其他参数可保持默认值。
    • MetricName:监控项名称,本次示例设置为Qps
    • Namespace:产品的数据命名空间,用于区分不同的产品,本次示例设置为acs_slb_dashboard
    • Dimensions:维度map,用于查询指定资源的监控数据,本示例设置为[{"instanceId":"lb-bp1r92vzpemy099f******"}]
    • StartTime:开始时间,StartTime不能等于或大于EndTime,本次示例设置为2020-03-28 00:10:00

      支持格式:

      • Unix时间戳:从1970年1月1日开始所经过的秒数。
      • Format格式:YYYY-MM-DDThh:mm:ssZ。
    • EndTime:结束时间,支持的格式和StartTime一致,本次示例设置为2020-03-28 00:11:00

    请求示例:

    http(s)://[Endpoint]/?Action=DescribeMetricList
    &MetricName=Qps
    &Namespace=acs_slb_dashboard
    &Dimensions=[{"instanceId":"lb-bp1r92vzpemy099f******"}]
    &StartTime=2020-03-28 00:10:00
    &EndTime=2020-03-28 00:11:00
    &<公共请求参数>
  2. 根据返回参数,查看Qps在指定时间内的监控数据。
    返回示例:
    {
        "RequestId": "DFF0A853-0E37-4108-A9AF-5B3D609BD489",
        "Period": "60",
        "Datapoints": "[{\"timestamp\":1585325460000,\"userId\":\"168840159596****\",\"instanceId\":\"lb-bp1r92vzpemy099f******\",\"port\":\"80\",\"protocol\":\"http\",\"vip\":\"121.43.**.**\",\"Average\":0}]",
        "Code": "200",
        "Success": true
    }
