过去内存和存储产品一直受到密度、性能和成本的限制。AEP(Apache Pass),由Intel推出的一种PMEM(持久化内存是一类高性能、数据可持久、内存存储的统称)产品,通过经济地扩展内存容量,并增加对持久数据的低延迟访问,从而将一流的内存和存储特性集成于一个产品中。阿里云容器服务ACK支持使用AEP非易失性存储卷。本文介绍ACK中使用AEP非易失性存储的方式和使用示例。

AEP概述

近年来CPU技术发展迅速,单核CPU计算频率增加、多核CPU技术的出现让计算能力得到长足发展。相比之下,作为数据载体的存储介质,却没有跟上发展的速度:内存(DRAM)可以提供优异的访问性能,但掉电数据丢失,价格昂贵影响了对大容量内存使用场景,而非易失性存储(SSD、磁盘)在时延上无法满足极致性能计算的需求。为此业界一直在探索既能满足CPU计算性能要求、又能保证数据掉电不丢失属性的产品。

既兼顾非易失性存储,又接近内存的使用方式和速度的新型硬件Intel Optane DC Persistent Memory(Apache Pass - AEP )的发布标志持久化内存Persistent Memory(PMEM)技术已经进入成熟阶段,并开始进入到各种数据加速领域。

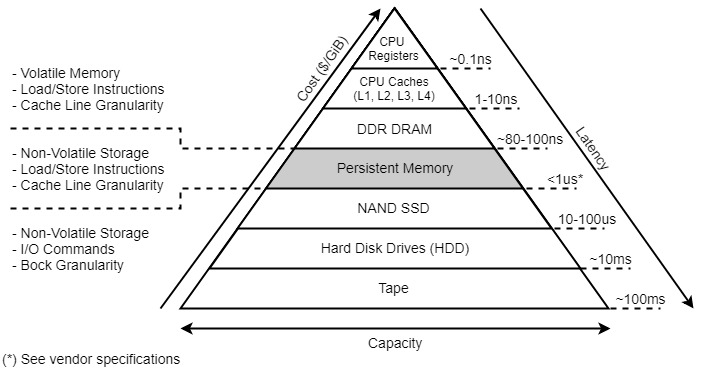

下图为AEP的PMEM(Persistent Memory)在存储层次结构中的位置。AEP

ACK中AEP非易失性存储卷的使用方式

目前ACK集群已经支持AEP设备的生命周期管理,通过Alibaba Cloud CSI Driver,您可以以声明式的方式对AEP资源进行分配、挂载、使用。

在ACK中,使用AEP非易失性存储卷的方式有以下两种:
  • PMEP-LVM方式(无侵入的块存储使用方式)

    您无需修改应用,直接声明即可使用。此方案的原则是把节点上PMEM资源统一成VolumeGroup,然后通过声明PVC类型和容量,使用PMEP-LVM。对无服务器化应用,CICD短生命周期高速临时存储,以及低延迟高吞吐的数据类应用,无需修改应用,即可实现IO性能的2~10倍的提升。

  • PMEM-直接内存(Direct Memory)访问方式

    为了达到极致的,可以媲美DRAM的访问性能,对应用的内存分配部分函数做有限的修改,可以实现对PMEM设备的直接访问。对内存数据库Redis、HANA等大内存低成本需求,同时满足对TB级别的DRAM和成本的诉求,降低了内存成本30%~50%。

说明

逻辑卷管理LVM方式:在ACK环境下,非易失性存储作为块存储或文件系统方式访问,无任何应用侵入和修改,读写性能相比SSD提升2~10倍。

直接内存方式:在ACK环境下,非易失性存储作为直接内存访问,需要修改应用适配PMEM SDK做内存分配的代码,达到接近内存访问的吞吐和时延。

表 1. PMEM和普通SSD对比
方式 碎片化 在线扩容 持久化 应用修改 时延 (4K/RW) 吞吐 (4K/RW) 单盘最大容量(ecs.ebmre6p.26xlarge)
PMEM-LVM 支持 10 us 10W 1536GB
PMEM-Direct 1.2 us 56W 768GB
SSD 支持 100 us 1W 32TB

插件部署

ACK对非易失性内存支持方案的系统组件包含:
  • CSI-Plugin:实现PMEM设备初始化,卷的具体创建、删除操作,实现挂载、卸载操作。
  • CSI-Provisioner:感知并发起卷的创建、删除操作。
  • CSI-Scheduler:容量调度 (ACK调度器内置)。
说明
在部署CSI-Plugin时,您需注意:
  • 在节点加上标签pmem.csi.alibabacloud.com后才会启用AEP设备自运维。
  • pmem.csi.alibabacloud.com: lvm表示此节点使用LVM方式提供PV卷。
  • pmem.csi.alibabacloud.com: direct表示此节点使用内存访问方式提供PV卷。
  1. 创建ACK集群。
    ACK集群中添加AEP的PMEM类型的ECS节点实例,例如:ecs.ebmre6p.26xlarge。有关创建集群的具体步骤请参见创建Kubernetes托管版集群
  2. 配置AEP的PMEM节点类型。
    您所添加的AEP节点需要配置上相应的标签,方可启用PMEM CSI的挂载能力。
    给节点添加以下Label。
    pmem.csi.alibabacloud.com/type: direct
    或:
    pmem.csi.alibabacloud.com/type: lvm
  3. 部署CSI PMEM插件。
    apiVersion: storage.k8s.io/v1beta1
    kind: CSIDriver
    metadata:
      name: localplugin.csi.alibabacloud.com
    spec:
      attachRequired: false
      podInfoOnMount: true
    ---
    kind: DaemonSet
    apiVersion: apps/v1
    metadata:
      name: csi-local-plugin
      namespace: kube-system
    spec:
      selector:
        matchLabels:
          app: csi-local-plugin
      template:
        metadata:
          labels:
            app: csi-local-plugin
        spec:
          tolerations:
            - operator: Exists
          serviceAccount: admin
          priorityClassName: system-node-critical
          hostNetwork: true
          hostPID: true
          containers:
            - name: driver-registrar
              image: registry.cn-hangzhou.aliyuncs.com/acs/csi-node-driver-registrar:v1.1.0
              imagePullPolicy: Always
              args:
                - "--v=5"
                - "--csi-address=/csi/csi.sock"
                - "--kubelet-registration-path=/var/lib/kubelet/csi-plugins/localplugin.csi.alibabacloud.com/csi.sock"
              env:
                - name: KUBE_NODE_NAME
                  valueFrom:
                    fieldRef:
                      apiVersion: v1
                      fieldPath: spec.nodeName
              volumeMounts:
                - name: plugin-dir
                  mountPath: /csi
                - name: registration-dir
                  mountPath: /registration

            - name: csi-localplugin
              securityContext:
                privileged: true
                capabilities:
                  add: ["SYS_ADMIN"]
                allowPrivilegeEscalation: true
              image: registry.cn-hangzhou.aliyuncs.com/acs/csi-plugin:v1.16.9.43-e89daa66-aliyun
              imagePullPolicy: "Always"
              args :
                - "--endpoint=$(CSI_ENDPOINT)"
                - "--v=5"
                - "--nodeid=$(KUBE_NODE_NAME)"
                - "--driver=localplugin.csi.alibabacloud.com"
              env:
                - name: KUBE_NODE_NAME
                  valueFrom:
                    fieldRef:
                      apiVersion: v1
                      fieldPath: spec.nodeName
                - name: CSI_ENDPOINT
                  value: unix://var/lib/kubelet/csi-plugins/localplugin.csi.alibabacloud.com/csi.sock
              volumeMounts:
                - name: pods-mount-dir
                  mountPath: /var/lib/kubelet
                  mountPropagation: "Bidirectional"
                - mountPath: /dev
                  mountPropagation: "HostToContainer"
                  name: host-dev
                - mountPath: /var/log/
                  name: host-log
          volumes:
            - name: plugin-dir
              hostPath:
                path: /var/lib/kubelet/csi-plugins/localplugin.csi.alibabacloud.com
                type: DirectoryOrCreate
            - name: registration-dir
              hostPath:
                path: /var/lib/kubelet/plugins_registry
                type: DirectoryOrCreate
            - name: pods-mount-dir
              hostPath:
                path: /var/lib/kubelet
                type: Directory
            - name: host-dev
              hostPath:
                path: /dev
            - name: host-log
              hostPath:
                path: /var/log/
      updateStrategy:
        rollingUpdate:
          maxUnavailable: 10%
        type: RollingUpdate

    kind: Deployment
    apiVersion: apps/v1
    metadata:
      name: csi-local-provisioner
      namespace: kube-system
    spec:
      selector:
        matchLabels:
          app: csi-local-provisioner
      replicas: 2
      template:
        metadata:
          labels:
            app: csi-local-provisioner
        spec:
          tolerations:
          - operator: "Exists"
          affinity:
            nodeAffinity:
              preferredDuringSchedulingIgnoredDuringExecution:
              - weight: 1
                preference:
                  matchExpressions:
                  - key: node-role.kubernetes.io/master
                    operator: Exists
          priorityClassName: system-node-critical
          serviceAccount: admin
          hostNetwork: true
          containers:
            - name: external-local-provisioner
              image: registry.cn-hangzhou.aliyuncs.com/acs/csi-provisioner:v1.6.0-b6f763a43-ack
              args:
                - "--csi-address=$(ADDRESS)"
                - "--feature-gates=Topology=True"
                - "--volume-name-prefix=disk"
                - "--strict-topology=true"
                - "--timeout=150s"
                - "--extra-create-metadata=true"
                - "--enable-leader-election=true"
                - "--leader-election-type=leases"
                - "--retry-interval-start=500ms"
                - "--v=5"
              env:
                - name: ADDRESS
                  value: /socketDir/csi.sock
              imagePullPolicy: "Always"
              volumeMounts:
                - name: socket-dir
                  mountPath: /socketDir
            - name: external-local-resizer
              image: registry.cn-hangzhou.aliyuncs.com/acs/csi-resizer:v0.3.0
              args:
                - "--v=5"
                - "--csi-address=$(ADDRESS)"
                - "--leader-election"
              env:
                - name: ADDRESS
                  value: /socketDir/csi.sock
              imagePullPolicy: "Always"
              volumeMounts:
                - name: socket-dir
                  mountPath: /socketDir/
          volumes:
            - name: socket-dir
              hostPath:
                path: /var/lib/kubelet/csi-plugins/localplugin.csi.alibabacloud.com
                type: DirectoryOrCreate

    apiVersion: storage.k8s.io/v1
    kind: StorageClass
    metadata:
        name: csi-pmem-direct
    provisioner: localplugin.csi.alibabacloud.com
    mountOptions:
    - dax
    parameters:
        volumeType: PMEM
        pmemType: "direct"
    reclaimPolicy: Delete
    volumeBindingMode: WaitForFirstConsumer
    allowVolumeExpansion: true

    ---
    apiVersion: storage.k8s.io/v1
    kind: StorageClass
    metadata:
        name: pmem-lvm
    provisioner: localplugin.csi.alibabacloud.com
    mountOptions:
    - dax
    parameters:
        volumeType: PMEM
        nodeAffinity: "true"
        pmemType: "lvm"
    reclaimPolicy: Delete
    volumeBindingMode: WaitForFirstConsumer
    allowVolumeExpansion: true



使用示例

创建块存储类型数据卷
  1. 创建PVC。
    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      annotations:
        volume.kubernetes.io/selected-node: cn-zhangjiakou.192.168.1.12
      name: pmem-lvm
    spec:
      accessModes:
      - ReadWriteOnce
      resources:
        requests:
          storage: 10Gi
      storageClassName: pmem-lvm

    为了定向将PVC调度到某个AEP节点,可以配置annotations: volume.kubernetes.io/selected-node

  2. 创建应用负载。
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: deployment-lvm
      labels:
        app: nginx-lvm
    spec:
      selector:
        matchLabels:
          app: nginx-lvm
      template:
        metadata:
          labels:
            app: nginx-lvm
        spec:
          containers:
          - name: nginx
            image: nginx:1.7.9
            command: ["sh", "-c"]
            args: ["sleep 10000"]
            volumeMounts:
              - name: pmem-pvc
                mountPath: "/data"
          volumes:
            - name: pmem-pvc
              persistentVolumeClaim:
                claimName: pmem-lvm
  3. 查看结果。
    kubectl get pvc
    pmem-lvm           Bound    disk-334cb6fa-fabd-4687-96dc-0d2b15564822   10Gi       RWO            pmem-lvm                  10m
    kubectl get pod
    NAME                                READY   STATUS    RESTARTS   AGE
    deployment-lvm-5bf65c7f76-jb6nl     1/1     Running   0          10m
    kubectl exec -ti deployment-lvm-5bf65c7f76-jb6nl sh
    df /data
    Filesystem                                                               1K-blocks  Used Available Use% Mounted on
    /dev/mapper/pmemvgregion0-disk--334cb6fa--fabd--4687--96dc--0d2b15564822  10255636 36888  10202364   1% /data

    可见已经动态创建了一个块存储数据卷,并挂载给Pod使用。

创建直接内存类型数据卷
  1. 创建PVC。
    apiVersion: v1
    kind: PersistentVolumeClaim
    metadata:
      annotations:
        volume.kubernetes.io/selected-node: cn-zhangjiakou.192.168.1.14
      name: pmem-direct
    spec:
      accessModes:
      - ReadWriteOnce
      resources:
        requests:
          storage: 9Gi
      storageClassName: pmem-direct

    为了定向将PVC调度到某个直接内存类型的AEP节点,可以配置annotations: volume.kubernetes.io/selected-node

  2. 创建应用负载。
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: deployment-direct
      labels:
        app: nginx-direct
    spec:
      selector:
        matchLabels:
          app: nginx-direct
      template:
        metadata:
          labels:
            app: nginx-direct
        spec:
          containers:
          - name: nginx
            image: nginx:1.7.9
            command: ["sh", "-c"]
            args: ["sleep 1000"]
            volumeMounts:
              - name: pmem-pvc
                mountPath: "/data"
          volumes:
            - name: pmem-pvc
              persistentVolumeClaim:
                claimName: pmem-direct
  3. 查看结果。
    kubectl get pvc pmem-direct
    NAME          STATUS   VOLUME                                      CAPACITY   ACCESS MODES   STORAGECLASS   AGE
    pmem-direct   Bound    disk-15c75a5d-469e-4dd7-b67e-6bdc489288a2   9Gi        RWO            pmem-direct    17m
    kubectl get pod
    NAME                                READY   STATUS    RESTARTS   AGE
    deployment-direct-64d448d96-9znfk   1/1     Running   0          17m
    kubectl exec -ti deployment-direct-64d448d96-9znfk sh
    df /data
    Filesystem     1K-blocks  Used Available Use% Mounted on
    /dev/pmem0       9076344 36888   9023072   1% /data

    可见已经动态创建了一个PMEM数据卷,并挂载给Pod使用。
