问题现象

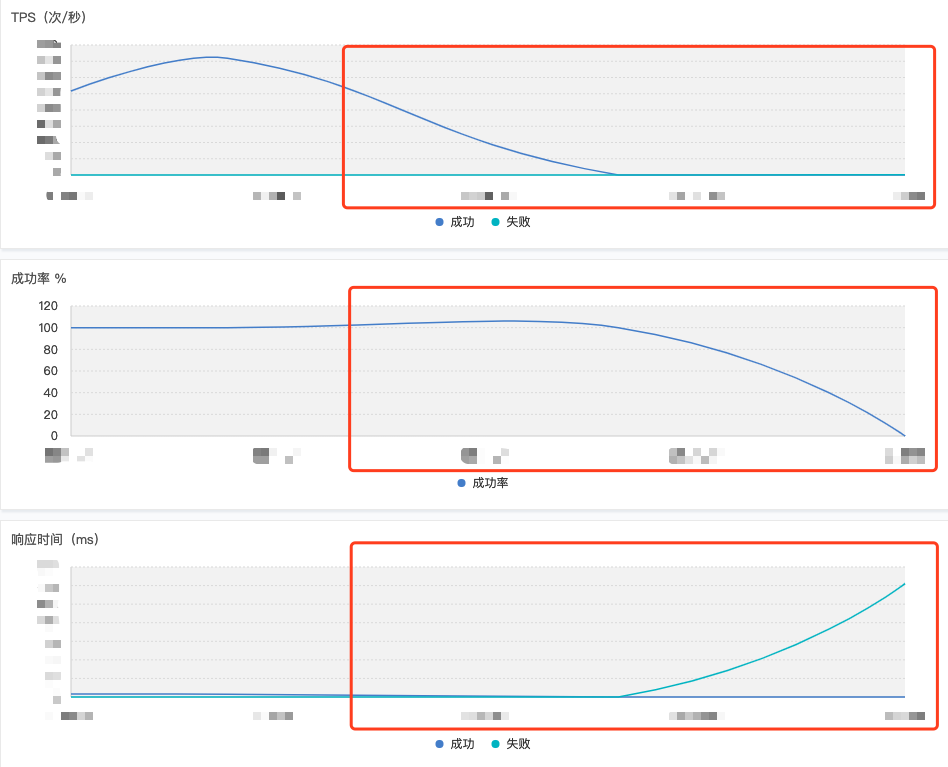

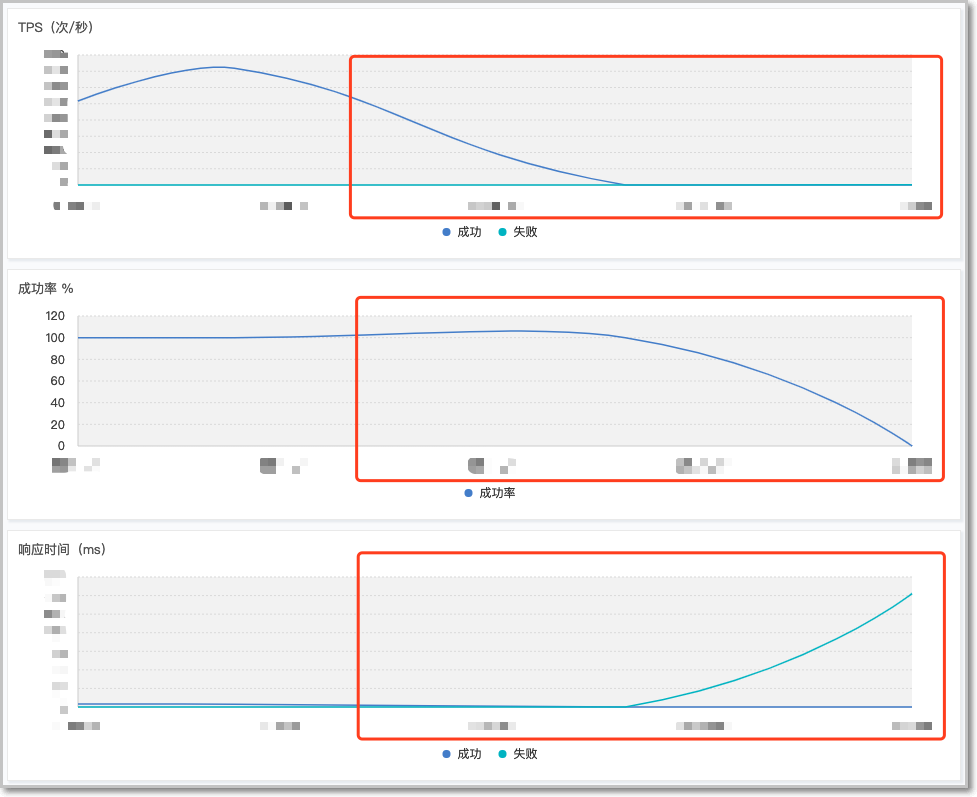

如果压测的是HTTPS接口,同时在压测进行过程中出现RT(响应时间)逐渐变高,TPS和成功率都有跌零或者相应的趋势。

pts_tps和成功率趋势图

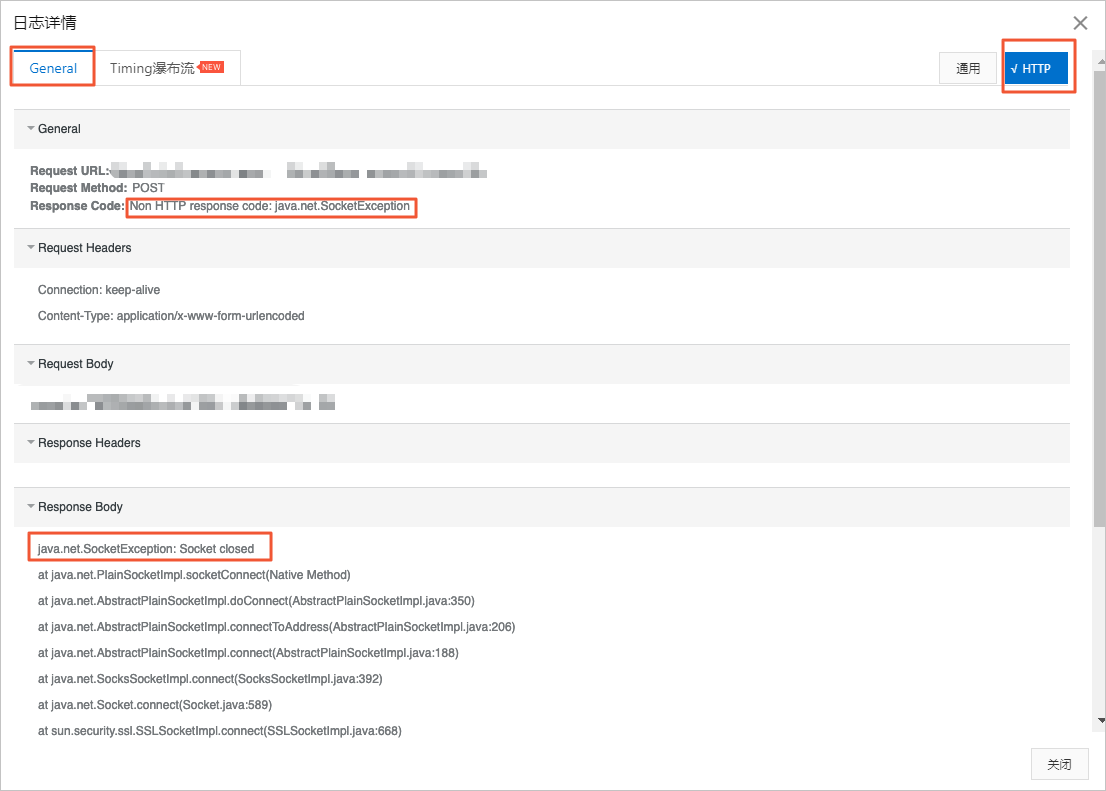

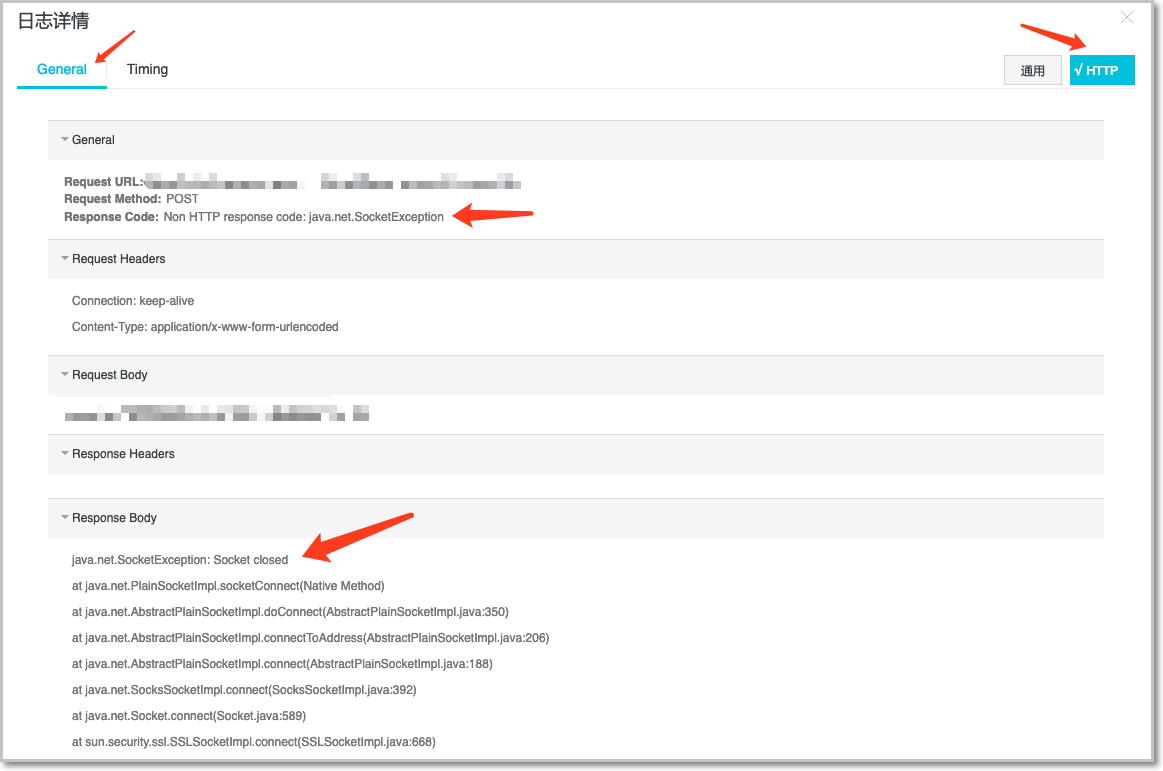

这时,单击压测报告右上角的查看采样日志,单击操作列的点击查看详情,打开采样日志看到的报错如下(选择HTTP模板更清晰)。

PTS日志详情查看

详细的文本参考如下。

java.net.SocketException: Socket closed
at java.net.PlainSocketImpl.socketConnect(Native Method)
at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
at java.net.Socket.connect(Socket.java:589)
at sun.security.ssl.SSLSocketImpl.connect(SSLSocketImpl.java:668)
at org.apache.http.conn.ssl.SSLSocketFactory.connectSocket(SSLSocketFactory.java:542)
at org.apache.http.conn.ssl.SSLSocketFactory.connectSocket(SSLSocketFactory.java:414)
at org.apache.jmeter.protocol.http.sampler.LazySchemeSocketFactory.connectSocket(LazySchemeSocketFactory.java:97)
at org.apache.http.impl.conn.DefaultClientConnectionOperator.openConnection(DefaultClientConnectionOperator.java:180)
at org.apache.jmeter.protocol.http.sampler.hc.ManagedClientConnectionImpl.open(ManagedClientConnectionImpl.java:318)
at org.apache.jmeter.protocol.http.sampler.MeasuringConnectionManager$MeasuredConnection.open(MeasuringConnectionManager.java:114)
at org.apache.http.impl.client.DefaultRequestDirector.tryConnect(DefaultRequestDirector.java:610)
at org.apache.http.impl.client.DefaultRequestDirector.execute(DefaultRequestDirector.java:445)
at org.apache.http.impl.client.AbstractHttpClient.doExecute(AbstractHttpClient.java:835)
at org.apache.http.impl.client.CloseableHttpClient.execute(CloseableHttpClient.java:83)
at org.apache.jmeter.protocol.http.sampler.HTTPHC4Impl.executeRequest(HTTPHC4Impl.java:695)
at org.apache.jmeter.protocol.http.sampler.HTTPHC4Impl.sample(HTTPHC4Impl.java:454)
at org.apache.jmeter.protocol.http.sampler.HTTPSamplerProxy.sample(HTTPSamplerProxy.java:74)
at org.apache.jmeter.protocol.http.sampler.HTTPSamplerBase.sample(HTTPSamplerBase.java:1189)
at org.apache.jmeter.protocol.http.sampler.HTTPSamplerBase.sample(HTTPSamplerBase.java:1178)
at org.apache.jmeter.threads.JMeterThread.executeSamplePackage(JMeterThread.java:498)
at org.apache.jmeter.threads.JMeterThread.processSampler(JMeterThread.java:424)
at org.apache.jmeter.threads.JMeterThread.run(JMeterThread.java:255)
at java.lang.Thread.run(Thread.java:766)

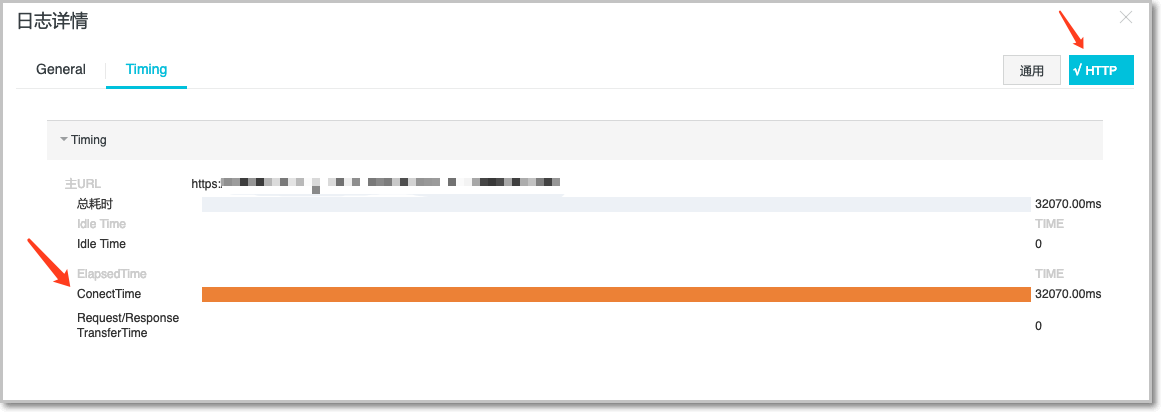

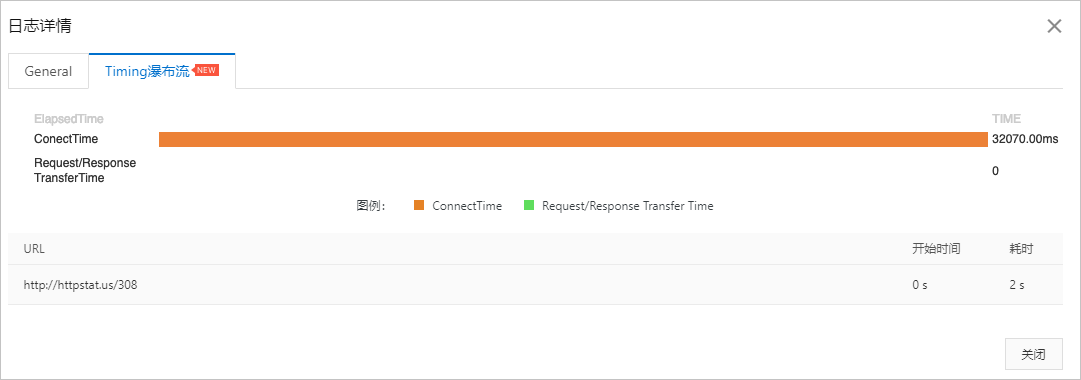

查看采样日志的Timing页签,可以看到时间都耗费在连接建立阶段。

查看采样日志的Timing页签

可能原因

引起java.net.SocketException: Socket closed错误的原因通常是未设置连接的超时时间。

解决方案

如果在HTTP Request Sampler的Basic里勾选了Use KeepAlive,那么建议在Advanced页签下。
  • Implementation选为HttpClient4
  • Connect设置一个10 ~ 60秒的值,作为连接空闲超时时间,避免由于没收到被压测端返回的Keep-Alive的Header而导致连接断开。
PTS-HTTP Request Sampler的Basic中高级配置

参考资料:https://wiki.apache.org/jmeter/JMeterSocketClosed
