快速搭建数字人视频生成接口

更新时间:2025-07-01 04:13:16

使用LivePortrait技术快速构建文本驱动的数字人视频生成API,实现AI数字人视频制作能力。

概述

本指南将帮助您:

  • 使用LivePortrait技术创建数字人视频工作流

  • 将工作流部署为可调用的API接口

  • 通过Python SDK集成到您的应用中

  • 实现从静态人像到动态视频的转换

预计完成时间: 25分钟 技术难度: 中级

前提条件

在开始之前,请确保您已:

  • 拥有阿里云账号并完成实名认证

  • 开通智作工坊服务

  • 安装Python 3.8+环境

  • 准备人像照片(推荐:清晰的正面照片)

  • 准备驱动视频(可选:表情、动作参考视频)

架构说明


步骤1:准备LivePortrait工作流

保存下面的内容到t2v.json 文件:

{
  "last_node_id": 199,
  "last_link_id": 31,
  "nodes": [
    {
      "id": 8,
      "type": "VHS_LoadVideo",
      "pos": {
        "0": 70,
        "1": 0
      },
      "size": [
        250,
        620
      ],
      "flags": {},
      "order": 0,
      "mode": 0,
      "inputs": [
        {
          "name": "meta_batch",
          "type": "VHS_BatchManager",
          "link": null,
          "label": "批次管理"
        },
        {
          "name": "vae",
          "type": "VAE",
          "link": null
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            21
          ],
          "shape": 3,
          "label": "图像"
        },
        {
          "name": "frame_count",
          "type": "INT",
          "links": null,
          "slot_index": 1,
          "shape": 3,
          "label": "帧计数"
        },
        {
          "name": "audio",
          "type": "AUDIO",
          "links": [
            31
          ],
          "slot_index": 2,
          "shape": 3,
          "label": "音频"
        },
        {
          "name": "video_info",
          "type": "VHS_VIDEOINFO",
          "links": null,
          "shape": 3,
          "label": "视频信息"
        }
      ],
      "properties": {
        "Node name for S&R": "VHS_LoadVideo"
      },
      "widgets_values": {
        "video": "_sp_auto_upload_01j7fhv11v4vmfydkhnpz8h67w.mp4",
        "force_rate": 0,
        "force_size": "Disabled",
        "custom_width": 512,
        "custom_height": 512,
        "frame_load_cap": 0,
        "skip_first_frames": 0,
        "select_every_nth": 1,
        "choose video to upload": "image",
        "videopreview": {
          "hidden": false,
          "paused": false,
          "params": {
            "filename": "_sp_auto_upload_01j7fhv11v4vmfydkhnpz8h67w.mp4",
            "type": "input",
            "format": "video/mp4",
            "frame_load_cap": 0,
            "skip_first_frames": 0,
            "force_rate": 0,
            "select_every_nth": 1
          },
          "muted": false
        }
      }
    },
    {
      "id": 196,
      "type": "LoadImage",
      "pos": {
        "0": 30,
        "1": 680
      },
      "size": {
        "0": 320,
        "1": 310
      },
      "flags": {},
      "order": 1,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            13
          ],
          "shape": 3,
          "label": "图像"
        },
        {
          "name": "MASK",
          "type": "MASK",
          "links": null,
          "shape": 3,
          "label": "遮罩"
        }
      ],
      "properties": {
        "Node name for S&R": "LoadImage"
      },
      "widgets_values": [
        "_sp_auto_upload_01j7fhtp8s3k82dyma6479jk9b.png",
        "image"
      ]
    },
    {
      "id": 165,
      "type": "ImageResizeKJ",
      "pos": {
        "0": 390,
        "1": 680
      },
      "size": {
        "0": 320,
        "1": 270
      },
      "flags": {},
      "order": 4,
      "mode": 0,
      "inputs": [
        {
          "name": "image",
          "type": "IMAGE",
          "link": 13,
          "label": "图像"
        },
        {
          "name": "get_image_size",
          "type": "IMAGE",
          "link": null,
          "label": "参考图像大小"
        },
        {
          "name": "width_input",
          "type": "INT",
          "link": null,
          "widget": {
            "name": "width_input"
          },
          "label": "宽度"
        },
        {
          "name": "height_input",
          "type": "INT",
          "link": null,
          "widget": {
            "name": "height_input"
          },
          "label": "高度"
        }
      ],
      "outputs": [
        {
          "name": "IMAGE",
          "type": "IMAGE",
          "links": [
            17,
            22
          ],
          "shape": 3,
          "label": "图像"
        },
        {
          "name": "width",
          "type": "INT",
          "links": null,
          "shape": 3,
          "label": "宽度"
        },
        {
          "name": "height",
          "type": "INT",
          "links": null,
          "shape": 3,
          "label": "高度"
        }
      ],
      "properties": {
        "Node name for S&R": "ImageResizeKJ"
      },
      "widgets_values": [
        512,
        512,
        "lanczos",
        true,
        2,
        0,
        0,
        "disabled"
      ]
    },
    {
      "id": 198,
      "type": "LivePortraitLoadMediaPipeCropper",
      "pos": {
        "0": 350,
        "1": 320
      },
      "size": {
        "0": 320,
        "1": 80
      },
      "flags": {},
      "order": 2,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "cropper",
          "type": "LPCROPPER",
          "links": [
            16
          ],
          "shape": 3,
          "label": "裁剪框架"
        }
      ],
      "properties": {
        "Node name for S&R": "LivePortraitLoadMediaPipeCropper"
      },
      "widgets_values": [
        "CUDA",
        true
      ]
    },
    {
      "id": 190,
      "type": "LivePortraitProcess",
      "pos": {
        "0": 1120,
        "1": 110
      },
      "size": {
        "0": 430,
        "1": 330
      },
      "flags": {},
      "order": 6,
      "mode": 0,
      "inputs": [
        {
          "name": "pipeline",
          "type": "LIVEPORTRAITPIPE",
          "link": 18,
          "label": "LivePortrait管线"
        },
        {
          "name": "crop_info",
          "type": "CROPINFO",
          "link": 19,
          "label": "裁剪信息"
        },
        {
          "name": "source_image",
          "type": "IMAGE",
          "link": 20,
          "label": "原图像"
        },
        {
          "name": "driving_images",
          "type": "IMAGE",
          "link": 21,
          "label": "驱动图像"
        },
        {
          "name": "opt_retargeting_info",
          "type": "RETARGETINGINFO",
          "link": null,
          "label": "重定向信息(可选)"
        }
      ],
      "outputs": [
        {
          "name": "cropped_image",
          "type": "IMAGE",
          "links": [
            23
          ],
          "shape": 3,
          "label": "裁剪图像"
        },
        {
          "name": "output",
          "type": "LP_OUT",
          "links": [
            24
          ],
          "shape": 3,
          "label": "LivePOrtrait输出"
        }
      ],
      "properties": {
        "Node name for S&R": "LivePortraitProcess"
      },
      "widgets_values": [
        false,
        0.03,
        true,
        1,
        "constant",
        "relative",
        0.000003,
        false,
        1
      ]
    },
    {
      "id": 191,
      "type": "LivePortraitComposite",
      "pos": {
        "0": 1600,
        "1": 130
      },
      "size": {
        "0": 360,
        "1": 90
      },
      "flags": {},
      "order": 7,
      "mode": 0,
      "inputs": [
        {
          "name": "source_image",
          "type": "IMAGE",
          "link": 22,
          "label": "原图像"
        },
        {
          "name": "cropped_image",
          "type": "IMAGE",
          "link": 23,
          "label": "裁剪图像"
        },
        {
          "name": "liveportrait_out",
          "type": "LP_OUT",
          "link": 24,
          "label": "LivePOrtrait输出"
        },
        {
          "name": "mask",
          "type": "MASK",
          "link": null,
          "label": "遮罩"
        }
      ],
      "outputs": [
        {
          "name": "full_images",
          "type": "IMAGE",
          "links": [
            14
          ],
          "shape": 3,
          "label": "图像"
        },
        {
          "name": "mask",
          "type": "MASK",
          "links": null,
          "shape": 3,
          "label": "遮罩"
        }
      ],
      "properties": {
        "Node name for S&R": "LivePortraitComposite"
      }
    },
    {
      "id": 189,
      "type": "LivePortraitCropper",
      "pos": {
        "0": 740,
        "1": 350
      },
      "size": {
        "0": 330,
        "1": 240
      },
      "flags": {},
      "order": 5,
      "mode": 0,
      "inputs": [
        {
          "name": "pipeline",
          "type": "LIVEPORTRAITPIPE",
          "link": 15,
          "label": "LivePortrait管线"
        },
        {
          "name": "cropper",
          "type": "LPCROPPER",
          "link": 16,
          "label": "裁剪框架"
        },
        {
          "name": "source_image",
          "type": "IMAGE",
          "link": 17,
          "label": "原图像"
        }
      ],
      "outputs": [
        {
          "name": "cropped_image",
          "type": "IMAGE",
          "links": [
            20
          ],
          "shape": 3
        },
        {
          "name": "crop_info",
          "type": "CROPINFO",
          "links": [
            19
          ],
          "shape": 3,
          "label": "裁剪信息"
        }
      ],
      "properties": {
        "Node name for S&R": "LivePortraitCropper"
      },
      "widgets_values": [
        512,
        2.3000000000000003,
        0,
        -0.125,
        0,
        "large-small",
        true
      ]
    },
    {
      "id": 168,
      "type": "VHS_VideoCombine",
      "pos": {
        "0": 1660,
        "1": 300
      },
      "size": [
        210,
        500
      ],
      "flags": {},
      "order": 8,
      "mode": 0,
      "inputs": [
        {
          "name": "images",
          "type": "IMAGE",
          "link": 14,
          "label": "图像"
        },
        {
          "name": "audio",
          "type": "AUDIO",
          "link": 31,
          "label": "音频"
        },
        {
          "name": "meta_batch",
          "type": "VHS_BatchManager",
          "link": null,
          "label": "批次管理"
        },
        {
          "name": "vae",
          "type": "VAE",
          "link": null
        }
      ],
      "outputs": [
        {
          "name": "Filenames",
          "type": "VHS_FILENAMES",
          "links": null,
          "shape": 3,
          "label": "文件名"
        }
      ],
      "properties": {
        "Node name for S&R": "VHS_VideoCombine"
      },
      "widgets_values": {
        "frame_rate": 30,
        "loop_count": 0,
        "filename_prefix": "LivePortrait/",
        "format": "video/h264-mp4",
        "pix_fmt": "yuv420p",
        "crf": 19,
        "save_metadata": true,
        "pingpong": false,
        "save_output": true,
        "videopreview": {
          "hidden": false,
          "paused": false,
          "params": {
            "filename": "_sp_auto_upload_https://sd-fc-prod.oss-cn-shanghai.aliyuncs.com/comfy%2Foutput%2FLivePortraitd869915d5e824dedaf9feed80af48eb4_00001-audio.mp4?Expires=1728618753&OSSAccessKeyId=LTAI****************&Signature=5tFC**************************",
            "format": "video/h264-mp4",
            "frame_rate": 30,
            "object_key": "comfy/output/LivePortraitd869915d5e824dedaf9feed80af48eb4_00001-audio.mp4",
            "subfolder": "",
            "type": "output"
          },
          "muted": false
        }
      }
    },
    {
      "id": 1,
      "type": "DownloadAndLoadLivePortraitModels",
      "pos": {
        "0": 80,
        "1": -150
      },
      "size": {
        "0": 320,
        "1": 80
      },
      "flags": {},
      "order": 3,
      "mode": 0,
      "inputs": [],
      "outputs": [
        {
          "name": "live_portrait_pipe",
          "type": "LIVEPORTRAITPIPE",
          "links": [
            15,
            18
          ],
          "shape": 3,
          "label": "LivePortrait管线"
        }
      ],
      "properties": {
        "Node name for S&R": "DownloadAndLoadLivePortraitModels"
      },
      "widgets_values": [
        "fp16",
        "human"
      ]
    }
  ],
  "links": [
    [
      13,
      196,
      0,
      165,
      0,
      "IMAGE"
    ],
    [
      14,
      191,
      0,
      168,
      0,
      "IMAGE"
    ],
    [
      15,
      1,
      0,
      189,
      0,
      "LIVEPORTRAITPIPE"
    ],
    [
      16,
      198,
      0,
      189,
      1,
      "LPCROPPER"
    ],
    [
      17,
      165,
      0,
      189,
      2,
      "IMAGE"
    ],
    [
      18,
      1,
      0,
      190,
      0,
      "LIVEPORTRAITPIPE"
    ],
    [
      19,
      189,
      1,
      190,
      1,
      "CROPINFO"
    ],
    [
      20,
      189,
      0,
      190,
      2,
      "IMAGE"
    ],
    [
      21,
      8,
      0,
      190,
      3,
      "IMAGE"
    ],
    [
      22,
      165,
      0,
      191,
      0,
      "IMAGE"
    ],
    [
      23,
      190,
      0,
      191,
      1,
      "IMAGE"
    ],
    [
      24,
      190,
      1,
      191,
      2,
      "LP_OUT"
    ],
    [
      31,
      8,
      2,
      168,
      1,
      "*"
    ]
  ],
  "groups": [],
  "config": {},
  "extra": {
    "ds": {
      "scale": 0.5559917313492244,
      "offset": [
        249.9019008932993,
        305.3913911427086
      ]
    }
  },
  "version": 0.4
}

工作流说明

节点

功能

输入要求

节点

功能

输入要求

LoadImage

加载人像照片

PNG/JPG格式,建议512x512像素

VHS_LoadVideo

加载驱动视频

MP4格式,包含面部表情/动作

LivePortraitModels

AI模型处理

自动下载和加载

VideoCombine

视频合成

输出最终数字人视频

步骤2:创建工作流

导入工作流

  1. 进入智作工坊控制台

  2. 点击新建工作流本地工作流文件导入



  3. 上传准备好的digital_human_workflow.json文件

  4. 等待工作流加载完成

    workflow (1)

参考输入:

人像照片

驱动视频

p874897 (1)

测试工作流

  1. 上传测试人像照片到LoadImage节点

  2. 上传测试驱动视频到VHS_LoadVideo节点

  3. 点击运行工作流验证效果

预期效果: 生成包含人像和表情动作的数字人视频

快速搭建数字人视频生成接口

步骤3:发布API接口

配置接口参数

输入参数设置

配置工作流对外暴露的参数:

参数名

节点路径

类型

描述

参数名

节点路径

类型

描述

portrait_image

LoadImage.image

File

人像照片文件

driving_video

VHS_LoadVideo.video

File

驱动视频文件

frame_rate

VideoCombine.frame_rate

Int

输出视频帧率(默认30)

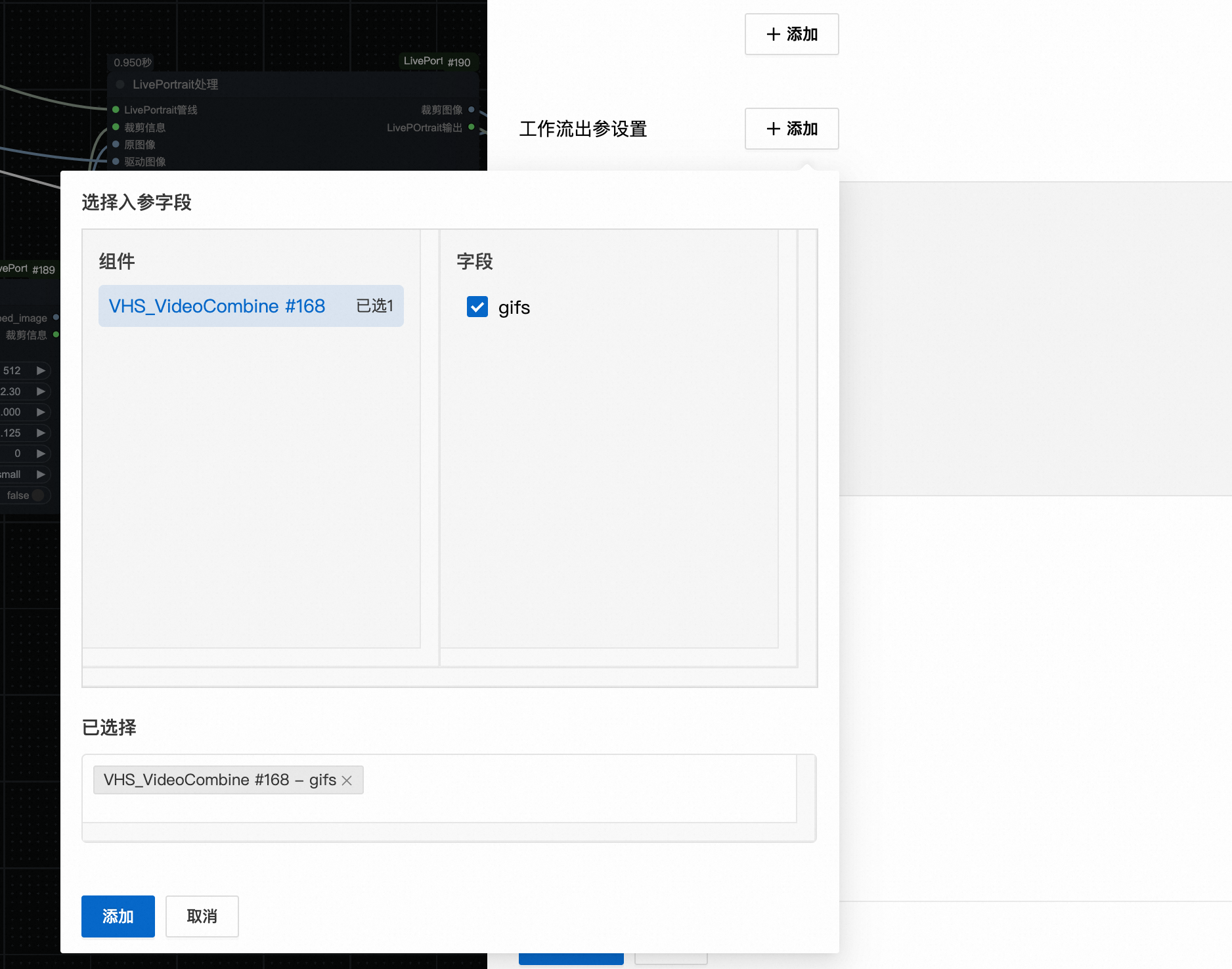

输出参数设置

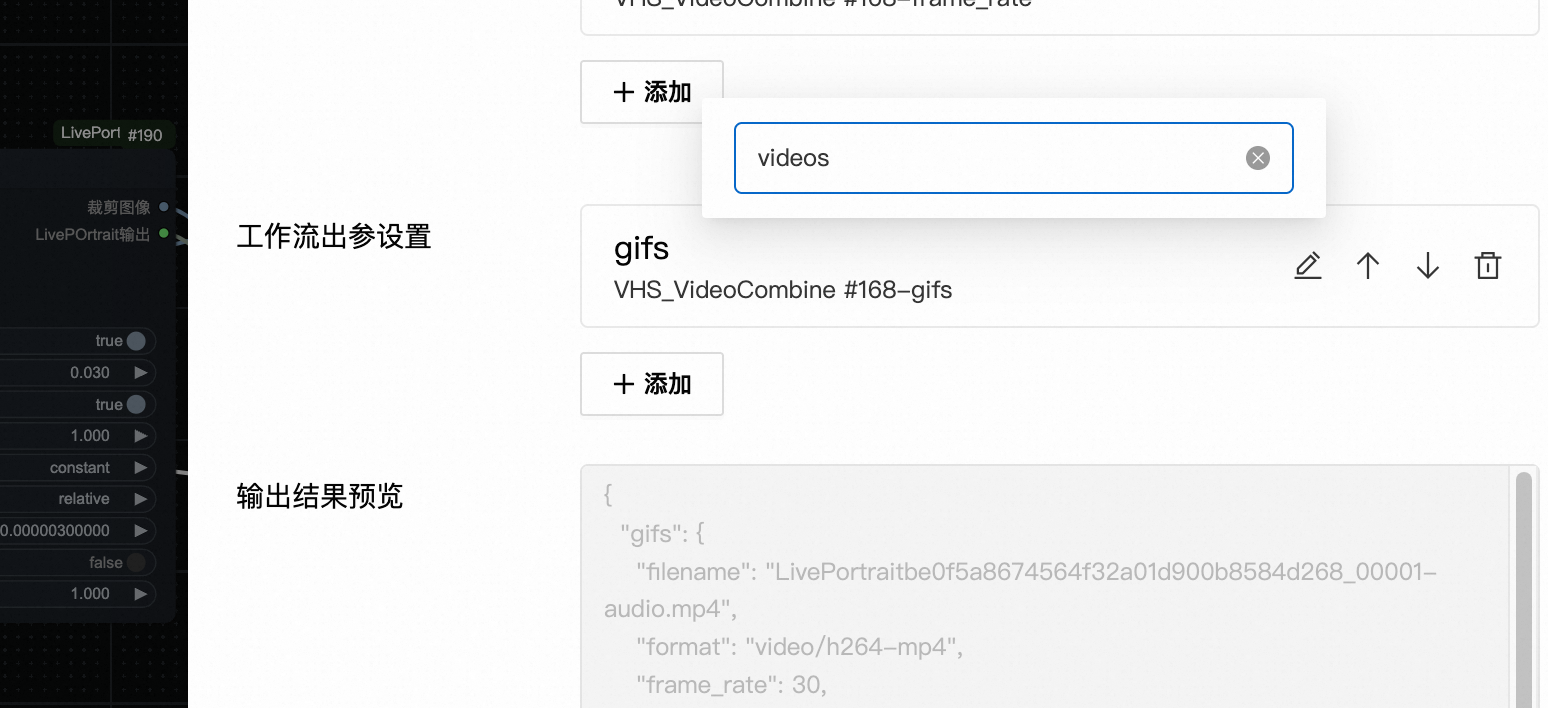

选择VideoCombine节点的输出作为API返回结果,将输出字段重命名为 videos

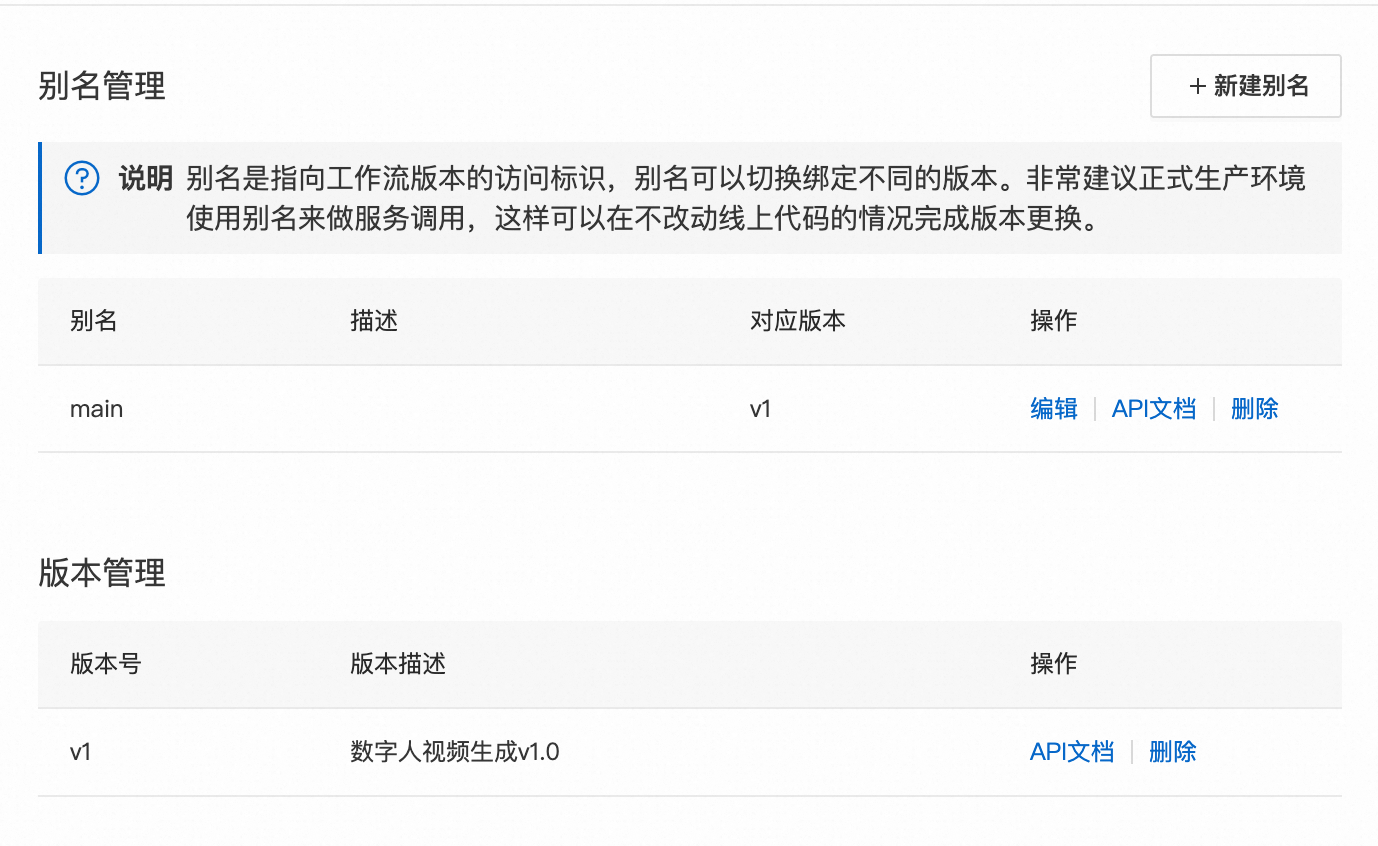

发布和版本管理

  1. 填写版本描述:数字人视频生成v1.0

  2. 点击提交发布


  3. 创建别名:main


  4. 记录工作流ID和别名供后续使用

步骤4:获取API凭据

  1. 接口发布之后,想要调用接口,需要先新建应用,使用应用的AKSK通过SDK调用。打开智作工坊控制台应用管理tab

  2. 点击右上角创建应用image

  3. 填写应用名称以及应用类型,点击确认image

  4. 确认后会自动跳转应用详情页,复制对应的AK、SK备用image

步骤5:Python SDK集成

环境配置

# 安装SDK
pip install speedpix

# 设置环境变量
export SPEEDPIX_APP_KEY="your-app-key"
export SPEEDPIX_APP_SECRET="your-app-secret"
export SPEEDPIX_ENDPOINT="https://openai.edu-aliyun.com"

基础实现

创建digital_human_generator.py

from speedpix import Client
import os
import time

# 初始化客户端
client = Client()

def generate_digital_human(portrait_path, driving_video_path, workflow_id, alias_id="digital_human_v1"):
    """
    生成数字人视频

    Args:
        portrait_path (str): 人像照片路径
        driving_video_path (str): 驱动视频路径
        workflow_id (str): 工作流ID
        alias_id (str): 工作流别名

    Returns:
        str: 生成的视频文件路径
    """
    print(f"开始生成数字人视频...")
    print(f"人像照片: {portrait_path}")
    print(f"驱动视频: {driving_video_path}")

    start_time = time.time()

    # 调用工作流
    result = client.run(
        workflow_id=workflow_id,
        input={
            "portrait_image": portrait_path,
            "driving_video": driving_video_path,
            "frame_rate": 30
        },
        alias_id=alias_id
    )

    # 保存生成的视频
    os.makedirs("output", exist_ok=True)
    timestamp = int(time.time())
    output_path = f"output/digital_human_{timestamp}.mp4"

    if 'videos' in result and result['videos']:
        result['videos']['url'].save(output_path)

        generation_time = time.time() - start_time
        print("生成成功!")
        print(f"输出文件: {output_path}")
        print(f"生成耗时: {generation_time:.2f}秒")

        return output_path
    else:
        raise Exception("未生成视频输出")

# 使用示例
if __name__ == "__main__":
    try:
        output_file = generate_digital_human(
            portrait_path="./portrait.png",
            driving_video_path="./driving_video.mp4",
            workflow_id="01jz1yvm3f7n9xc8kgbhmcf031",  # 替换为实际的工作流ID
            alias_id="main"
        )
        print(f"数字人视频已保存到: {output_file}")
    except Exception as e:
        print(f"生成失败: {e}")

步骤6:测试和验证

运行测试

# 测试生成
python digital_human_generator.py

# 检查输出
ls -la output/

预期输出

开始生成数字人视频...
人像照片: ./portrait.jpg
驱动视频: ./driving_video.mp4
生成成功!
输出文件: output/digital_human_1234567890.mp4
生成耗时: 45.67秒
数字人视频已保存到: output/digital_human_1234567890.mp4

性能优化和故障排除

常见问题

问题

解决方案

问题

解决方案

视频生成失败

确保人像为JPG/PNG,视频为MP4格式

面部识别错误

使用清晰的正面人像照片

生成时间过长

调整输入视频分辨率到512x512

简单调试

# 验证文件是否存在
import os
if not os.path.exists("./portrait.jpg"):
    print("人像照片不存在")
if not os.path.exists("./driving_video.mp4"):
    print("驱动视频不存在")

总结

通过本指南,您已经成功:

  • 部署了LivePortrait数字人视频生成工作流

  • 创建了可调用的API接口

  • 用最精简的Python代码实现数字人视频生成

相关资源

  • 本页导读
  • 概述
  • 前提条件
  • 架构说明
  • 步骤1:准备LivePortrait工作流
  • 工作流说明
  • 步骤2:创建工作流
  • 导入工作流
  • 测试工作流
  • 步骤3:发布API接口
  • 配置接口参数
  • 发布和版本管理
  • 步骤4:获取API凭据
  • 步骤5:Python SDK集成
  • 环境配置
  • 基础实现
  • 步骤6:测试和验证
  • 运行测试
  • 预期输出
  • 性能优化和故障排除
  • 常见问题
  • 简单调试
  • 总结
  • 相关资源
