断点续传下载是指客户端在从网络上下载资源时,由于某种原因中断下载。再次开启下载时可以从已下载完成的部分开始继续下载未完成的部分,从而节省时间和流量。

当我们在手机端使用视频软件下载视频时,下载期间网络模式从 Wifi 切换到移动网络,此时 App 默认都会中断下载。当再次切换到 Wifi 网络时,由用户手动重新开启下载任务,即开始断点续传下载。

执行断点续传下载操作时,效果图如下所示:

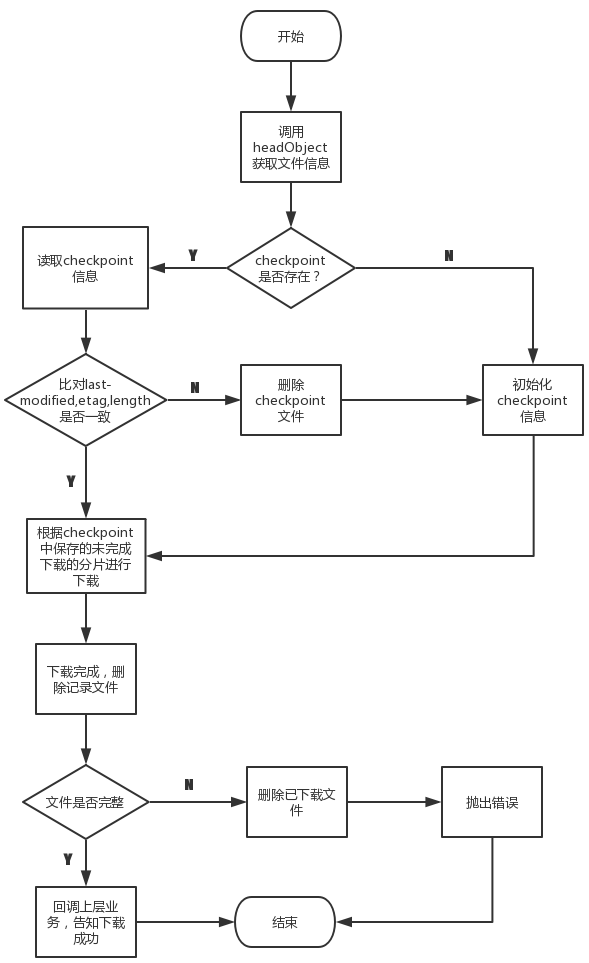

断点续传下载流程如下所示:

细节分析

  • HTTP1.1 中新增了 Range 头的支持,用于指定获取数据的范围。Range 的格式一般分为以下几种:
    • Range: bytes=100-: 从 101 bytes 之后开始传,一直传到最后。
    • Range: bytes=100-200: 指定开始到结束这一段的长度 。Range 是从 0 计数的,如果指定Range: bytes=100-200,则要求服务器从 101 字节开始传,一直到 201 字节结束。通常用于较大的文件分片传输,比如视频。
    • Range: bytes=-100 :表示范围没有指定开始位置,则要求服务器传递倒数 100 字节的内容,而不是从 0 开始的 100 字节。
    • Range: bytes=0-100, 200-300: 用于同时指定多个范围的内容,这种情况并不常见。
  • 断点续传下载时需要使用If-Match头来验证服务器上的文件是否发生变化,If-Match对应的是Etag的值。
  • 客户端发起请求时在 Header 中携带RangeIf-Match,OSS Server 收到请求后会验证 If-Match 中的 Etag 值。如果不匹配,则返回 412 precondition 状态码。
  • OSS Server 针对 GetObject 目前已支持RangeIf-MatchIf-None-MatchIf-Modified-SinceIf-Unmodified-Since,因此您可以在移动端实践 OSS 资源的断点续传下载功能。

具体实现

以iOS实现断点续传下载为例:
说明 以下代码仅供参考了解下载流程,不建议在生产项目中使用。如需下载,可自行实现或使用第三方开源的下载框架。
#import "DownloadService.h"
#import "OSSTestMacros.h"

@implementation DownloadRequest

@end

@implementation Checkpoint

- (instancetype)copyWithZone:(NSZone *)zone {
    Checkpoint *other = [[[self class] allocWithZone:zone] init];

    other.etag = self.etag;
    other.totalExpectedLength = self.totalExpectedLength;

    return other;
}

@end


@interface DownloadService()<NSURLSessionTaskDelegate, NSURLSessionDataDelegate>

@property (nonatomic, strong) NSURLSession *session;         //网络会话
@property (nonatomic, strong) NSURLSessionDataTask *dataTask;   //数据请求任务
@property (nonatomic, copy) DownloadFailureBlock failure;    //请求出错
@property (nonatomic, copy) DownloadSuccessBlock success;    //请求成功
@property (nonatomic, copy) DownloadProgressBlock progress;  //下载进度
@property (nonatomic, copy) Checkpoint *checkpoint;        //检查节点
@property (nonatomic, copy) NSString *requestURLString;    //文件资源地址,用于下载请求
@property (nonatomic, copy) NSString *headURLString;       //文件资源地址,用于head请求
@property (nonatomic, copy) NSString *targetPath;     //文件存储路径
@property (nonatomic, assign) unsigned long long totalReceivedContentLength; //已下载大小
@property (nonatomic, strong) dispatch_semaphore_t semaphore;

@end

@implementation DownloadService

- (instancetype)init
{
    self = [super init];
    if (self) {
        NSURLSessionConfiguration *conf = [NSURLSessionConfiguration defaultSessionConfiguration];
        conf.timeoutIntervalForRequest = 15;

        NSOperationQueue *processQueue = [NSOperationQueue new];
        _session = [NSURLSession sessionWithConfiguration:conf delegate:self delegateQueue:processQueue];
        _semaphore = dispatch_semaphore_create(0);
        _checkpoint = [[Checkpoint alloc] init];
    }
    return self;
}

+ (instancetype)downloadServiceWithRequest:(DownloadRequest *)request {
    DownloadService *service = [[DownloadService alloc] init];
    if (service) {
        service.failure = request.failure;
        service.success = request.success;
        service.requestURLString = request.sourceURLString;
        service.headURLString = request.headURLString;
        service.targetPath = request.downloadFilePath;
        service.progress = request.downloadProgress;
        if (request.checkpoint) {
            service.checkpoint = request.checkpoint;
        }
    }
    return service;
}

/**
 * head文件信息,取出来文件的etag和本地checkpoint中保存的etag进行对比,并且将结果返回
 */
- (BOOL)getFileInfo {
    __block BOOL resumable = NO;
    NSURL *url = [NSURL URLWithString:self.headURLString];
    NSMutableURLRequest *request = [[NSMutableURLRequest alloc]initWithURL:url];
    [request setHTTPMethod:@"HEAD"];

    NSURLSessionDataTask *task = [[NSURLSession sharedSession] dataTaskWithRequest:request completionHandler:^(NSData * _Nullable data, NSURLResponse * _Nullable response, NSError * _Nullable error) {
        if (error) {
            NSLog(@"获取文件meta信息失败,error : %@", error);
        } else {
            NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *)response;
            NSString *etag = [httpResponse.allHeaderFields objectForKey:@"Etag"];
            if ([self.checkpoint.etag isEqualToString:etag]) {
                resumable = YES;
            } else {
                resumable = NO;
            }
        }
        dispatch_semaphore_signal(self.semaphore);
    }];
    [task resume];

    dispatch_semaphore_wait(self.semaphore, DISPATCH_TIME_FOREVER);
    return resumable;
}

/**
 * 用于获取本地文件的大小
 */
- (unsigned long long)fileSizeAtPath:(NSString *)filePath {
    unsigned long long fileSize = 0;
    NSFileManager *dfm = [NSFileManager defaultManager];
    if ([dfm fileExistsAtPath:filePath]) {
        NSError *error = nil;
        NSDictionary *attributes = [dfm attributesOfItemAtPath:filePath error:&error];
        if (!error && attributes) {
            fileSize = attributes.fileSize;
        } else if (error) {
            NSLog(@"error: %@", error);
        }
    }

    return fileSize;
}

- (void)resume {
    NSURL *url = [NSURL URLWithString:self.requestURLString];
    NSMutableURLRequest *request = [[NSMutableURLRequest alloc]initWithURL:url];
    [request setHTTPMethod:@"GET"];

    BOOL resumable = [self getFileInfo];    // 如果resumable为NO,则证明不能断点续传,否则走续传逻辑。
    if (resumable) {
        self.totalReceivedContentLength = [self fileSizeAtPath:self.targetPath];
        NSString *requestRange = [NSString stringWithFormat:@"bytes=%llu-", self.totalReceivedContentLength];
        [request setValue:requestRange forHTTPHeaderField:@"Range"];
    } else {
        self.totalReceivedContentLength = 0;
    }

    if (self.totalReceivedContentLength == 0) {
        [[NSFileManager defaultManager] createFileAtPath:self.targetPath contents:nil attributes:nil];
    }

    self.dataTask = [self.session dataTaskWithRequest:request];
    [self.dataTask resume];
}

- (void)pause {
    [self.dataTask cancel];
    self.dataTask = nil;
}

- (void)cancel {
    [self.dataTask cancel];
    self.dataTask = nil;
    [self removeFileAtPath: self.targetPath];
}

- (void)removeFileAtPath:(NSString *)filePath {
    NSError *error = nil;
    [[NSFileManager defaultManager] removeItemAtPath:self.targetPath error:&error];
    if (error) {
        NSLog(@"remove file with error : %@", error);
    }
}

#pragma mark - NSURLSessionDataDelegate

- (void)URLSession:(NSURLSession *)session task:(NSURLSessionTask *)task
didCompleteWithError:(nullable NSError *)error {
    NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *)task.response;
    if ([httpResponse isKindOfClass:[NSHTTPURLResponse class]]) {
        if (httpResponse.statusCode == 200) {
            self.checkpoint.etag = [[httpResponse allHeaderFields] objectForKey:@"Etag"];
            self.checkpoint.totalExpectedLength = httpResponse.expectedContentLength;
        } else if (httpResponse.statusCode == 206) {
            self.checkpoint.etag = [[httpResponse allHeaderFields] objectForKey:@"Etag"];
            self.checkpoint.totalExpectedLength = self.totalReceivedContentLength + httpResponse.expectedContentLength;
        }
    }

    if (error) {
        if (self.failure) {
            NSMutableDictionary *userInfo = [NSMutableDictionary dictionaryWithDictionary:error.userInfo];
            [userInfo oss_setObject:self.checkpoint forKey:@"checkpoint"];

            NSError *tError = [NSError errorWithDomain:error.domain code:error.code userInfo:userInfo];
            self.failure(tError);
        }
    } else if (self.success) {
        self.success(@{@"status": @"success"});
    }
}

- (void)URLSession:(NSURLSession *)session dataTask:(NSURLSessionDataTask *)dataTask didReceiveResponse:(NSURLResponse *)response completionHandler:(void (^)(NSURLSessionResponseDisposition))completionHandler
{
    NSHTTPURLResponse *httpResponse = (NSHTTPURLResponse *)dataTask.response;
    if ([httpResponse isKindOfClass:[NSHTTPURLResponse class]]) {
        if (httpResponse.statusCode == 200) {
            self.checkpoint.totalExpectedLength = httpResponse.expectedContentLength;
        } else if (httpResponse.statusCode == 206) {
            self.checkpoint.totalExpectedLength = self.totalReceivedContentLength +  httpResponse.expectedContentLength;
        }
    }

    completionHandler(NSURLSessionResponseAllow);
}

- (void)URLSession:(NSURLSession *)session dataTask:(NSURLSessionDataTask *)dataTask didReceiveData:(NSData *)data {

    NSFileHandle *fileHandle = [NSFileHandle fileHandleForWritingAtPath:self.targetPath];
    [fileHandle seekToEndOfFile];
    [fileHandle writeData:data];
    [fileHandle closeFile];

    self.totalReceivedContentLength += data.length;
    if (self.progress) {
        self.progress(data.length, self.totalReceivedContentLength, self.checkpoint.totalExpectedLength);
    }
}

@end
以上示例代码展示的是从网络接收数据的处理逻辑,其中:
  • DownloadService 是下载逻辑的核心。
  • 在 URLSession:dataTask:didReceiveData 中将接收到的网络数据按照追加的方式写入到文件中,并更新下载进度。
  • 在 URLSession:task:didCompleteWithError 中判断下载任务是否完成,然后将结果返回给上层业务。
  • 在 URLSession:dataTask:didReceiveResponse:completionHandler 处理 Object 相关信息,比如 etag 用于断点续传时进行precheck,content-length 用于计算下载进度。
DownloadRequest 定义如下:
#import <Foundation/Foundation.h>

typedef void(^DownloadProgressBlock)(int64_t bytesReceived, int64_t totalBytesReceived, int64_t totalBytesExpectToReceived);
typedef void(^DownloadFailureBlock)(NSError *error);
typedef void(^DownloadSuccessBlock)(NSDictionary *result);

@interface Checkpoint : NSObject<NSCopying>

@property (nonatomic, copy) NSString *etag;     // 资源的etag值
@property (nonatomic, assign) unsigned long long totalExpectedLength;    //文件总大小

@end

@interface DownloadRequest : NSObject

@property (nonatomic, copy) NSString *sourceURLString;      // 用于下载的url

@property (nonatomic, copy) NSString *headURLString;        // 用于获取文件原信息的url

@property (nonatomic, copy) NSString *downloadFilePath;     // 文件的本地存储地址

@property (nonatomic, copy) DownloadProgressBlock downloadProgress; // 下载进度

@property (nonatomic, copy) DownloadFailureBlock failure;   // 下载成功的回调

@property (nonatomic, copy) DownloadSuccessBlock success;   // 下载失败的回调

@property (nonatomic, copy) Checkpoint *checkpoint;         // checkpoint,用于存储文件的etag

@end


@interface DownloadService : NSObject

+ (instancetype)downloadServiceWithRequest:(DownloadRequest *)request;

/**
 * 启动下载
 */
- (void)resume;

/**
 * 暂停下载
 */
- (void)pause;

/**
 * 取消下载
 */
- (void)cancel;

@end
上层业务调用如下:
- (void)initDownloadURLs {
    OSSPlainTextAKSKPairCredentialProvider *pCredential = [[OSSPlainTextAKSKPairCredentialProvider alloc] initWithPlainTextAccessKey:OSS_ACCESSKEY_ID secretKey:OSS_SECRETKEY_ID];
    _mClient = [[OSSClient alloc] initWithEndpoint:OSS_ENDPOINT credentialProvider:pCredential];

    // 生成用于get请求的带签名的url
    OSSTask *downloadURLTask = [_mClient presignConstrainURLWithBucketName:@"aliyun-dhc-shanghai" withObjectKey:OSS_DOWNLOAD_FILE_NAME withExpirationInterval:1800];
    [downloadURLTask waitUntilFinished];
    _downloadURLString = downloadURLTask.result;

    // 生成用于head请求的带签名的url
    OSSTask *headURLTask = [_mClient presignConstrainURLWithBucketName:@"aliyun-dhc-shanghai" withObjectKey:OSS_DOWNLOAD_FILE_NAME httpMethod:@"HEAD" withExpirationInterval:1800 withParameters:nil];
    [headURLTask waitUntilFinished];

    _headURLString = headURLTask.result;
}

- (IBAction)resumeDownloadClicked:(id)sender {
    _downloadRequest = [DownloadRequest new];
    _downloadRequest.sourceURLString = _downloadURLString;       // 设置资源的url
    _downloadRequest.headURLString = _headURLString;
    NSString *documentPath = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES).firstObject;
    _downloadRequest.downloadFilePath = [documentPath stringByAppendingPathComponent:OSS_DOWNLOAD_FILE_NAME];   //设置下载文件的本地保存路径

    __weak typeof(self) wSelf = self;
    _downloadRequest.downloadProgress = ^(int64_t bytesReceived, int64_t totalBytesReceived, int64_t totalBytesExpectToReceived) {
        // totalBytesReceived是当前客户端已经缓存了的字节数,totalBytesExpectToReceived是总共需要下载的字节数。
        dispatch_async(dispatch_get_main_queue(), ^{
            __strong typeof(self) sSelf = wSelf;
            CGFloat fProgress = totalBytesReceived * 1.f / totalBytesExpectToReceived;
            sSelf.progressLab.text = [NSString stringWithFormat:@"%.2f%%", fProgress * 100];
            sSelf.progressBar.progress = fProgress;
        });
    };
    _downloadRequest.failure = ^(NSError *error) {
        __strong typeof(self) sSelf = wSelf;
        sSelf.checkpoint = error.userInfo[@"checkpoint"];
    };
    _downloadRequest.success = ^(NSDictionary *result) {
        NSLog(@"下载成功");
    };
    _downloadRequest.checkpoint = self.checkpoint;

    NSString *titleText = [[_downloadButton titleLabel] text];
    if ([titleText isEqualToString:@"download"]) {
        [_downloadButton setTitle:@"pause" forState: UIControlStateNormal];
        _downloadService = [DownloadService downloadServiceWithRequest:_downloadRequest];
        [_downloadService resume];
    } else {
        [_downloadButton setTitle:@"download" forState: UIControlStateNormal];
        [_downloadService pause];
    }
}

- (IBAction)cancelDownloadClicked:(id)sender {
    [_downloadButton setTitle:@"download" forState: UIControlStateNormal];
    [_downloadService cancel];
}
说明 暂停或取消下载时均能从 failure 回调中获取 checkpoint。重启下载时可以将 checkpoint 传到 DownloadRequest,然后 DownloadService 将使用checkpoint 做一致性校验。
