为ASM实例添加入口网关后，您可以部署应用到该实例关联的集群。本文介绍如何将Bookinfo书评应用部署到ASM实例关联的ACK集群。

前提条件

已创建至少一个ASM实例，并添加至少一个ACK集群到该实例中。具体操作，请参见创建ASM实例和添加集群到ASM实例。
已通过Kubernetes命令行客户端kubectl连接到ASM实例中新添加的ACK集群。具体操作，请参见获取集群KubeConfig并通过kubectl工具连接集群。
已为ACK集群创建入口网关，使应用示例对外暴露访问。具体操作，请参见创建入口网关。

应用说明

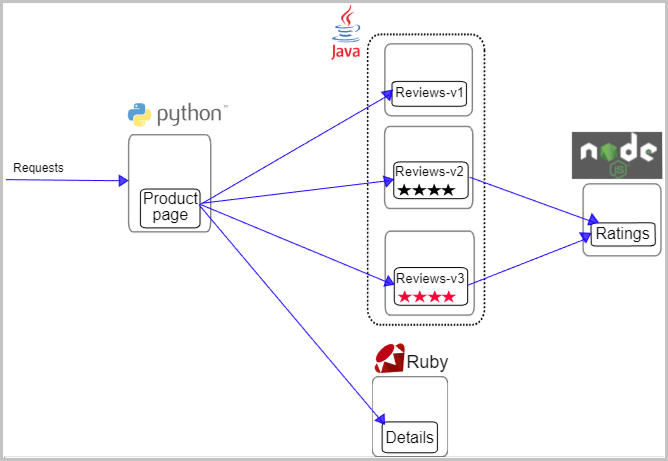

本文所使用应用示例是一个名为Bookinfo的书评应用。微服务架构如下图所示：

该应用由以下4个微服务构成：

Productpage：该微服务会调用Details和Reviews两个微服务，用来生成页面。
Details：该微服务包含了书籍的信息。
Reviews：该微服务包含了书籍相关的评论，同时会调用Ratings微服务。
Ratings：该微服务包含了由书籍评价组成的评级信息。

Reviews微服务有3个版本：

v1版本不会调用Ratings服务。
v2版本会调用Ratings服务，并使用1到5个黑色星形图标来显示评分信息。
v3版本会调用Ratings服务，并使用1到5个红色星形图标来显示评分信息。

操作步骤

为default命名空间启用Sidecar网格代理自动注入。具体操作，请参见启用自动注入。

使用以下内容创建bookinfo.yaml。

展开查看YAML内容

apiVersion: v1
kind: Service
metadata:
  name: details
  labels:
    app: details
    service: details
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: details
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-details
  labels:
    account: details
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: details-v1
  labels:
    app: details
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: details
      version: v1
  template:
    metadata:
      labels:
        app: details
        version: v1
    spec:
      serviceAccountName: bookinfo-details
      containers:
      - name: details
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-details-v1:1.19.1
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
---
##################################################################################################
# Ratings service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: ratings
  labels:
    app: ratings
    service: ratings
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-ratings
  labels:
    account: ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ratings-v1
  labels:
    app: ratings
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ratings
      version: v1
  template:
    metadata:
      labels:
        app: ratings
        version: v1
    spec:
      serviceAccountName: bookinfo-ratings
      containers:
      - name: ratings
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-ratings-v1:1.19.1
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
---
##################################################################################################
# Reviews service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: reviews
  labels:
    app: reviews
    service: reviews
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-reviews
  labels:
    account: reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v1
  labels:
    app: reviews
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v1
  template:
    metadata:
      labels:
        app: reviews
        version: v1
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-reviews-v1:1.19.1
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v2
  labels:
    app: reviews
    version: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v2
  template:
    metadata:
      labels:
        app: reviews
        version: v2
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-reviews-v2:1.19.1
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v3
  labels:
    app: reviews
    version: v3
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v3
  template:
    metadata:
      labels:
        app: reviews
        version: v3
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-reviews-v3:1.19.1
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
##################################################################################################
# Productpage services
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: productpage
  labels:
    app: productpage
    service: productpage
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-productpage
  labels:
    account: productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: productpage-v1
  labels:
    app: productpage
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: productpage
      version: v1
  template:
    metadata:
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "9080"
        prometheus.io/path: "/metrics"
      labels:
        app: productpage
        version: v1
    spec:
      serviceAccountName: bookinfo-productpage
      containers:
      - name: productpage
        image: registry-cn-hangzhou.ack.aliyuncs.com/acs/examples-bookinfo-productpage-v1:1.19.1
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
      volumes:
      - name: tmp
        emptyDir: {}
---

通过kubectl执行以下命令，将Bookinfo应用部署到ASM实例关联的集群中。
```
kubectl apply -f bookinfo.yaml
```
查看Bookinfo应用的部署情况。
1. 登录容器服务管理控制台，在左侧导航栏选择集群。
2. 在集群列表页面，单击目标集群名称，然后在左侧导航栏，选择工作负载 > 容器组。
3. 在容器组页面，从命名空间下拉列表中选择default，查看Bookinfo应用部署所对应的Pod信息。
  说明
  您可以单击对应Pod操作列的详情，查看Pod的详细信息。

后续操作

您可以创建网关规则和虚拟服务，通过ASM网关对服务进行访问，还可以创建目标规则，将流量按照比例路由到服务的不同版本。具体操作，请参见使用Istio资源实现版本流量路由。
