近些年来在数据分析领域,涌现出很多开源的技术方案,例如Presto、Spark、Impala等。此外,MySQL生态非常火热,但对于数据分析类场景,使用此类关系型数据库是否合适呢?AnalyticDB for PostgreSQL版基于业界标准的分析型测试集TPC-H进行了性能测试,希望从中能帮你找到答案。

TPC-H 简介

TPC-H(商业智能计算测试)是美国交易处理效能委员会(TPC,TransactionProcessing Performance Council) 组织制定的用来模拟决策支持类应用的一个测试集。目前在学术界和工业界普遍采用它来评价决策支持技术方面应用的性能。TPC-H是根据真实的生产运行环境来建模,模拟了一套销售系统的数据仓库。其共包含8个基本关系,数据量可设定从1G~3T不等。其基准测试共包含了22个查询,主要评价指标各个查询的响应时间,即从提交查询到结果返回所需时间。其测试结果可综合反映系统处理查询时的能力。详情参考TPCH Specification

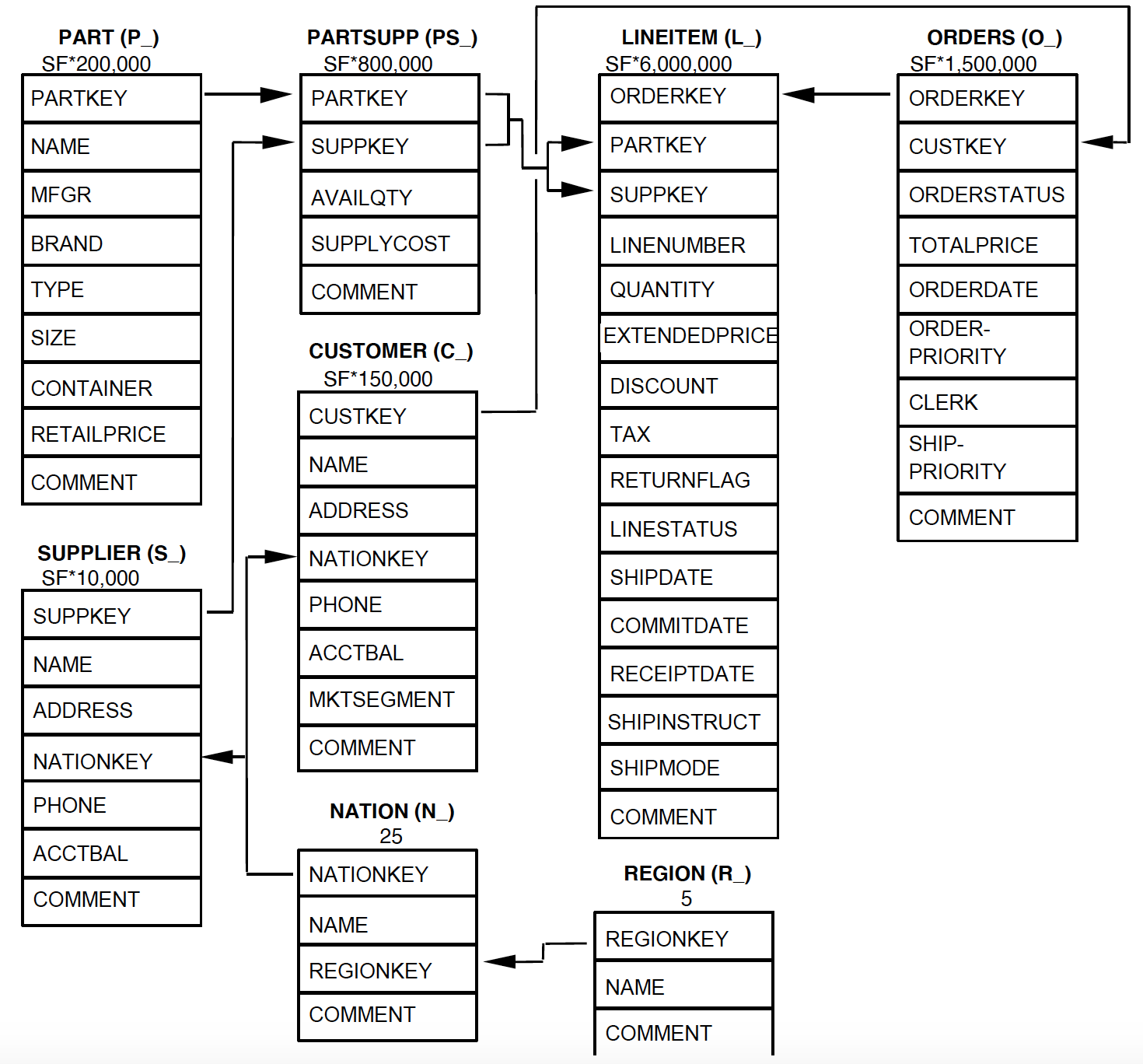

8张表逻辑关系

测试数据量的说明

数据量的大小对查询速度有直接的影响,TPC-H 中使用SF描述数据量,1SF 对应1GB 单位。1000SF,即1TB。1SF对应的数据量只是8个表的总数据量不包括索引等空间占用,准备数据时需预留更多空间。

AnalyticDB for PostgreSQL 6.0 规格选择

选择性价比适中的规格:

• ADB PG版 6.0 SSD存储+单节点4核+实例节点数32

• 使用官方标准TPC-H SQL

测试步骤

1. 开通一个ECS实例

准备一台ECS(建议规格:ecs.g6.4xlarge规格、CentOS系统、ESSD 2T数据盘,建议与AnalyticDB for PostgreSQL 6.0 实例用相同region和VPC网络),用于1T数据生成、数据上传/入库、客户端测试。

2. 开通一个AnalyticDB for PostgreSQL 6.0 实例

需要与ECS实例用相同区域、相同可用区和VPC网络。

3. 生成TPC-H 1T 测试数据

  • SSH进入到ECS实例,下载TPC-H dbgen代码,编译后dbgen目录生成 dbgen/qgen 执行程序
    git clone https://github.com/gregrahn/tpch-kit.git
    cd tpch-kit/dbgen
    make
• 生成1T数据,运行
./dbgen --help

• 查看如何生成,命令参考:

./dbgen -vf -s 1000

• 也可以并行生成分片文件,如下shell脚本参考(10个分片文件):

for((i=1;i<=10;i++));
do
   ./dbgen -s 1000 -S $i -C 10 -f &
done
• 处理生成的 tbl 文件,tbl文件每行最后会多1个'|',可以用seed命令将每行后面的'|'去掉,shell脚本参考:
sed -i 's/.$//' ./region.tbl &
sed -i 's/.$//' ./nation.tbl &
for((i=1;i<=10;i++));
do
    sed -i 's/.$//' ./lineitem.tbl.$i &
    sed -i 's/.$//' ./orders.tbl.$i &
    sed -i 's/.$//' ./customer.tbl.$i &
    sed -i 's/.$//' ./partsupp.tbl.$i &
    sed -i 's/.$//' ./part.tbl.$i &
    sed -i 's/.$//' ./supplier.tbl.$i &
done

建表

列存表适合向量计算、JIT架构。对大批量数据的访问和统计,效率更高。因此建表语句中使用了

  • AO列存表
  • 不开压缩
  • 设置复制表
create table nation (
    n_nationkey  integer not null,
    n_name       char(25) not null,
    n_regionkey  integer not null,
    n_comment    varchar(152))
with (appendonly=true, orientation=column)
distributed REPLICATED;

create table region (
    r_regionkey  integer not null,
    r_name       char(25) not null,
    r_comment    varchar(152))
with (appendonly=true, orientation=column)
distributed REPLICATED;

create table part (
    p_partkey     integer not null,
    p_name        varchar(55) not null,
    p_mfgr        char(25) not null,
    p_brand       char(10) not null,
    p_type        varchar(25) not null,
    p_size        integer not null,
    p_container   char(10) not null,
    p_retailprice DECIMAL(15,2) not null,
    p_comment     varchar(23) not null)
with (appendonly=true, orientation=column)
distributed by (p_partkey);

create table supplier (
    s_suppkey     integer not null,
    s_name        char(25) not null,
    s_address     varchar(40) not null,
    s_nationkey   integer not null,
    s_phone       char(15) not null,
    s_acctbal     DECIMAL(15,2) not null,
    s_comment     varchar(101) not null)
with (appendonly=true, orientation=column)
distributed by (s_suppkey);

create table partsupp (
    ps_partkey     integer not null,
    ps_suppkey     integer not null,
    ps_availqty    integer not null,
    ps_supplycost  DECIMAL(15,2)  not null,
    ps_comment     varchar(199) not null)
with (appendonly=true, orientation=column)
distributed by (ps_partkey);

create table customer (
    c_custkey     integer not null,
    c_name        varchar(25) not null,
    c_address     varchar(40) not null,
    c_nationkey   integer not null,
    c_phone       char(15) not null,
    c_acctbal     DECIMAL(15,2)  not null,
    c_mktsegment  char(10) not null,
    c_comment     varchar(117) not null)
with (appendonly=true, orientation=column)
distributed by (c_custkey);

create table orders (
    o_orderkey       bigint not null,
    o_custkey        integer not null,
    o_orderstatus    char(1) not null,
    o_totalprice     DECIMAL(15,2) not null,
    o_orderdate      date not null,
    o_orderpriority  char(15) not null,
    o_clerk          char(15) not null,
    o_shippriority   integer not null,
    o_comment        varchar(79) not null)
with (appendonly=true, orientation=column)
distributed by (o_orderkey);

create table lineitem (
    l_orderkey    bigint not null,
    l_partkey     integer not null,
    l_suppkey     integer not null,
    l_linenumber  integer not null,
    l_quantity    DECIMAL(15,2) not null,
    l_extendedprice  DECIMAL(15,2) not null,
    l_discount    DECIMAL(15,2) not null,
    l_tax         DECIMAL(15,2) not null,
    l_returnflag  char(1) not null,
    l_linestatus  char(1) not null,
    l_shipdate    date not null,
    l_commitdate  date not null,
    l_receiptdate date not null,
    l_shipinstruct char(25) not null,
    l_shipmode     char(10) not null,
    l_comment      varchar(44) not null)
with (appendonly=true, orientation=column)
distributed by (l_orderkey);

导入数据

准备工作就绪,可以开始导入数据了,导入数据有两种方式:

  • 通过 copy from导入
  • 通过OSS外表方式导入

下面分别介绍两种导入方法

COPY方式导入

SQL脚本参考:

\copy nation from '/data/tpch_1t/nation.tbl' DELIMITER '|';
\copy region from '/data/tpch_1t/region.tbl' DELIMITER '|';
\copy supplier from '/data/tpch_1t/supplier.tbl' DELIMITER '|';
\copy part from '/data/tpch_1t/part.tbl' DELIMITER '|';
\copy partsupp from '/data/tpch_1t/partsupp.tbl' DELIMITER '|';
\copy customer from '/data/tpch_1t/customer.tbl' DELIMITER '|';
\copy orders from '/data/tpch_1t/orders.tbl' DELIMITER '|';
\copy lineitem from '/data/tpch_1t/lineitem.tbl' DELIMITER '|';

tbl 路径以实际路径为准,导入shell脚本参考创建表的shell脚本(或psql进入数据库执行)。为提高导入效率(ECS网络带宽保障),可以把SQL拆开并发导入。

使用OSS外表方式导入数据

将生成的数据文件上传到oss
./ossutil64 cp -r <tbl文件目录> oss://<oss bucket>/<目录>/
               -i <AccessKey ID> -k <Access Key Secret>
               -e <EndPoint>

OSS外表文档参考: OSS数据导入AnalyticDB for PostgreSQL

创建OSS外部表的建表语句示例

create readable external table ext_nation ( n_nationkey int, n_name varchar(25), n_regionkey integer,
    n_comment varchar(152))
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/nation.tbl
    id=$AccessKey key=$AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;


create readable external table ext_region ( R_REGIONKEY int, R_NAME CHAR(25),R_COMMENT VARCHAR(152))
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/region.tbl
    id=$AccessKey key=$AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_lineitem ( l_orderkey bigint, l_partkey bigint, l_suppkey bigint,
  l_linenumber bigint, l_quantity double precision, l_extendedprice double precision,
  l_discount double precision, l_tax double precision, l_returnflag CHAR(1),
  l_linestatus CHAR(1), l_shipdate DATE, l_commitdate DATE, l_receiptdate DATE,
  l_shipinstruct CHAR(25), l_shipmode CHAR(10), l_comment VARCHAR(44))
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/lineitem.tbl
    id= $AccessKey key= $AccessKeySecret
    bucket=oss-y ') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_orders ( o_orderkey bigint , o_custkey bigint , o_orderstatus CHAR(1) ,
  o_totalprice double precision, o_orderdate DATE , o_orderpriority CHAR(15) , o_clerk CHAR(15) ,
  o_shippriority bigint , o_comment VARCHAR(79) )
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/orders.tbl
    id=$AccessKey key=$AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_part ( p_partkey bigint , p_name VARCHAR(55) , p_mfgr CHAR(25) ,
  p_brand CHAR(10) , p_type VARCHAR(25) , p_size bigint , p_container CHAR(10) ,
  p_retailprice double precision , p_comment VARCHAR(23) )
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/part.tbl
    id= $AccessKey key= $AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_partsupp ( ps_partkey bigint , ps_suppkey bigint ,
  ps_availqty bigint , ps_supplycost double precision , ps_comment VARCHAR(199) )
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/partsupp.tbl
    id= $AccessKey key= $AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_supplier ( s_suppkey bigint , s_name CHAR(25) ,
  s_address VARCHAR(40) , s_nationkey bigint , s_phone CHAR(15) , s_acctbal DECIMAL(15,2) ,
  s_comment VARCHAR(101) )
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/supplier.tbl
    id= $AccessKey key= $AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

CREATE readable external TABLE ext_customer ( c_custkey bigint , c_name VARCHAR(25) ,
  c_address VARCHAR(40) , c_nationkey bigint , c_phone CHAR(15) , c_acctbal double precision ,
  c_mktsegment CHAR(10) , c_comment VARCHAR(117) )
    location('oss://oss-cn-beijing.aliyuncs.com
    filepath=data/tpch_data_1000x/customer.tbl
    id= $AccessKey key= $AccessKeySecret
    bucket=oss-y') FORMAT 'TEXT' (DELIMITER '|' ) ;

从OSS外表写入TPC-H数据到AnalyticDB for PostgreSQL

insert into nation select * from ext_nation;
insert into region select * from ext_region;
insert into lineitem select * from ext_lineitem;
insert into orders select * from ext_orders;
insert into customer select * from ext_customer;
insert into part select * from ext_part;
insert into partsupp select * from ext_partsupp;
insert into supplier select * from ext_supplier;

至此 数据导入完毕,进入查询执行阶段

收集统计信息

analyze nation;
analyze region;
analyze lineitem;
analyze orders;
analyze customer;
analyze part;
analyze partsupp;
analyze supplier;

执行查询

使用如下shell脚本测试,也可以通过psql等其他客户端逐条执行查询SQL。具体的22条SQL语句见本文最后。

查询加速

特别的,AnalyticDB for PostgreSQL 6.0 的向量计算加速引擎,可大幅提升查询性能,在TPC-H场景下可提升1倍左右。

使用方法:

在session级别,修改参数 enable_odyssey为on,可开启加速引擎 。即执行如下SQL
set enable_odyssey = on;
如需关闭加速引擎,设置该参数为off。
set enable_odyssey = off;

如果使用如下脚本执行22条TPCH SQL,需要在每个Query文件开始出增加一行,set enable_odyssey = on;

执行全部查询,并记录每条耗时和总耗时
total_cost=0

for i in {1..22}
do
        echo "begin run Q${i}, query/q$i.sql , `date`"
        begin_time=`date +%s.%N`
        #psql -h ${实例连接地址} -p ${端口号} -U ${数据库用户} -f query/q${i}.sql > ./log/log_q${i}.out
        rc=$?
        end_time=`date +%s.%N`
        cost=`echo "$end_time-$begin_time"|bc`
        total_cost=`echo "$total_cost+$cost"|bc`
        if [ $rc -ne 0 ] ; then
              printf "run Q%s fail, cost: %.2f, totalCost: %.2f, `date`\n" $i $cost $total_cost
         else
              printf "run Q%s succ, cost: %.2f, totalCost: %.2f, `date`\n" $i $cost $total_cost
         fi
done

测试结果

各表数据量说明,1TB数据 (不含索引)
表名 数据条目数
customer 15000w
lineitem 5999989709
nation 25
orders 150000w
part 20000w
partsupp 80000w
region 5
supplier 1000w
执行时间统计
SQL运行总时长(单位:秒) 4core * 32节点 SSD型 4core * 32节点 SSD型 - 自研向量化引擎
Total 2179.85 1258.24
Q1 399.38 171.05
Q2 25.32 12.24
Q3 56.91 38.26
Q4 54.26 20.20
Q5 145.64 118.72
Q6 30.61 21.19
Q7 71.43 63.79
Q8 73.58 37.84
Q9 174.09 169.28
Q10 51.56 36.96
Q11 11.63 4.56
Q12 44.25 27.74
Q13 59.13 40.00
Q14 27.90 15.18
Q15 48.62 26.27
Q16 19.15 13.02
Q17 294.83 178.73
Q18 293.15 98.39
Q19 41.84 48.15
Q20 61.87 32.22
Q21 151.44 58.85
Q22 43.26 25.60

22个SQL

-- Q1
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    l_returnflag,
    l_linestatus,
    sum(l_quantity) as sum_qty,
    sum(l_extendedprice) as sum_base_price,
    sum(l_extendedprice * (1 - l_discount)) as sum_disc_price,
    sum(l_extendedprice * (1 - l_discount) * (1 + l_tax)) as sum_charge,
    avg(l_quantity) as avg_qty,
    avg(l_extendedprice) as avg_price,
    avg(l_discount) as avg_disc,
    count(*) as count_order
from
    lineitem
where
    l_shipdate <= date '1998-12-01' - interval '93 day'
group by
    l_returnflag,
    l_linestatus
order by
    l_returnflag,
    l_linestatus;

-- Q2
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    s_acctbal,
    s_name,
    n_name,
    p_partkey,
    p_mfgr,
    s_address,
    s_phone,
    s_comment
from
    part,
    supplier,
    partsupp,
    nation,
    region
where
    p_partkey = ps_partkey
    and s_suppkey = ps_suppkey
    and p_size = 23
    and p_type like '%STEEL'
    and s_nationkey = n_nationkey
    and n_regionkey = r_regionkey
    and r_name = 'EUROPE'
    and ps_supplycost = (
        select
            min(ps_supplycost)
        from
            partsupp,
            supplier,
            nation,
            region
        where
            p_partkey = ps_partkey
            and s_suppkey = ps_suppkey
            and s_nationkey = n_nationkey
            and n_regionkey = r_regionkey
            and r_name = 'EUROPE'
    )
order by
    s_acctbal desc,
    n_name,
    s_name,
    p_partkey
limit 100;

-- Q3
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    l_orderkey,
    sum(l_extendedprice * (1 - l_discount)) as revenue,
    o_orderdate,
    o_shippriority
from
    customer,
    orders,
    lineitem
where
    c_mktsegment = 'MACHINERY'
    and c_custkey = o_custkey
    and l_orderkey = o_orderkey
    and o_orderdate < date '1995-03-24'
    and l_shipdate > date '1995-03-24'
group by
    l_orderkey,
    o_orderdate,
    o_shippriority
order by
    revenue desc,
    o_orderdate
limit 10;

-- Q4
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    o_orderpriority,
    count(*) as order_count
from
    orders
where
    o_orderdate >= date '1996-08-01'
    and o_orderdate < date '1996-08-01' + interval '3' month
    and exists (
        select
            *
        from
            lineitem
        where
            l_orderkey = o_orderkey
            and l_commitdate < l_receiptdate
    )
group by
    o_orderpriority
order by
    o_orderpriority;

-- Q5
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    n_name,
    sum(l_extendedprice * (1 - l_discount)) as revenue
from
    customer,
    orders,
    lineitem,
    supplier,
    nation,
    region
where
    c_custkey = o_custkey
    and l_orderkey = o_orderkey
    and l_suppkey = s_suppkey
    and c_nationkey = s_nationkey
    and s_nationkey = n_nationkey
    and n_regionkey = r_regionkey
    and r_name = 'MIDDLE EAST'
    and o_orderdate >= date '1994-01-01'
    and o_orderdate < date '1994-01-01' + interval '1' year
group by
    n_name
order by
    revenue desc;

-- Q6
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    sum(l_extendedprice * l_discount) as revenue
from
    lineitem
where
    l_shipdate >= date '1994-01-01'
    and l_shipdate < date '1994-01-01' + interval '1' year
    and l_discount between 0.06 - 0.01 and 0.06 + 0.01
    and l_quantity < 24;

-- Q7
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    supp_nation,
    cust_nation,
    l_year,
    sum(volume) as revenue
from
    (
        select
            n1.n_name as supp_nation,
            n2.n_name as cust_nation,
            extract(year from l_shipdate) as l_year,
            l_extendedprice * (1 - l_discount) as volume
        from
            supplier,
            lineitem,
            orders,
            customer,
            nation n1,
            nation n2
        where
            s_suppkey = l_suppkey
            and o_orderkey = l_orderkey
            and c_custkey = o_custkey
            and s_nationkey = n1.n_nationkey
            and c_nationkey = n2.n_nationkey
            and (
                (n1.n_name = 'JORDAN' and n2.n_name = 'INDONESIA')
                or (n1.n_name = 'INDONESIA' and n2.n_name = 'JORDAN')
            )
            and l_shipdate between date '1995-01-01' and date '1996-12-31'
    ) as shipping
group by
    supp_nation,
    cust_nation,
    l_year
order by
    supp_nation,
    cust_nation,
    l_year;

-- Q8
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    o_year,
    sum(case
        when nation = 'INDONESIA' then volume
        else 0
    end) / sum(volume) as mkt_share
from
    (
        select
            extract(year from o_orderdate) as o_year,
            l_extendedprice * (1 - l_discount) as volume,
            n2.n_name as nation
        from
            part,
            supplier,
            lineitem,
            orders,
            customer,
            nation n1,
            nation n2,
            region
        where
            p_partkey = l_partkey
            and s_suppkey = l_suppkey
            and l_orderkey = o_orderkey
            and o_custkey = c_custkey
            and c_nationkey = n1.n_nationkey
            and n1.n_regionkey = r_regionkey
            and r_name = 'ASIA'
            and s_nationkey = n2.n_nationkey
            and o_orderdate between date '1995-01-01' and date '1996-12-31'
            and p_type = 'STANDARD BRUSHED BRASS'
    ) as all_nations
group by
    o_year
order by
    o_year;

-- Q9
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    nation,
    o_year,
    sum(amount) as sum_profit
from
    (
        select
            n_name as nation,
            extract(year from o_orderdate) as o_year,
            l_extendedprice * (1 - l_discount) - ps_supplycost * l_quantity as amount
        from
            part,
            supplier,
            lineitem,
            partsupp,
            orders,
            nation
        where
            s_suppkey = l_suppkey
            and ps_suppkey = l_suppkey
            and ps_partkey = l_partkey
            and p_partkey = l_partkey
            and o_orderkey = l_orderkey
            and s_nationkey = n_nationkey
            and p_name like '%chartreuse%'
    ) as profit
group by
    nation,
    o_year
order by
    nation,
    o_year desc;

-- Q10
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    c_custkey,
    c_name,
    sum(l_extendedprice * (1 - l_discount)) as revenue,
    c_acctbal,
    n_name,
    c_address,
    c_phone,
    c_comment
from
    customer,
    orders,
    lineitem,
    nation
where
    c_custkey = o_custkey
    and l_orderkey = o_orderkey
    and o_orderdate >= date '1994-08-01'
    and o_orderdate < date '1994-08-01' + interval '3' month
    and l_returnflag = 'R'
    and c_nationkey = n_nationkey
group by
    c_custkey,
    c_name,
    c_acctbal,
    c_phone,
    n_name,
    c_address,
    c_comment
order by
    revenue desc
limit 20;

-- Q11
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    ps_partkey,
    sum(ps_supplycost * ps_availqty) as value
from
    partsupp,
    supplier,
    nation
where
    ps_suppkey = s_suppkey
    and s_nationkey = n_nationkey
    and n_name = 'INDONESIA'
group by
    ps_partkey having
        sum(ps_supplycost * ps_availqty) > (
            select
                sum(ps_supplycost * ps_availqty) * 0.0001000000
            from
                partsupp,
                supplier,
                nation
            where
                ps_suppkey = s_suppkey
                and s_nationkey = n_nationkey
                and n_name = 'INDONESIA'
        )
order by
    value desc;

-- Q12
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    l_shipmode,
    sum(case
        when o_orderpriority = '1-URGENT'
            or o_orderpriority = '2-HIGH'
            then 1
        else 0
    end) as high_line_count,
    sum(case
        when o_orderpriority <> '1-URGENT'
            and o_orderpriority <> '2-HIGH'
            then 1
        else 0
    end) as low_line_count
from
    orders,
    lineitem
where
    o_orderkey = l_orderkey
    and l_shipmode in ('REG AIR', 'TRUCK')
    and l_commitdate < l_receiptdate
    and l_shipdate < l_commitdate
    and l_receiptdate >= date '1994-01-01'
    and l_receiptdate < date '1994-01-01' + interval '1' year
group by
    l_shipmode
order by
    l_shipmode;

-- Q13
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    c_count,
    count(*) as custdist
from
    (
        select
            c_custkey,
            count(o_orderkey)
        from
            customer left outer join orders on
                c_custkey = o_custkey
                and o_comment not like '%pending%requests%'
        group by
            c_custkey
    ) as c_orders (c_custkey, c_count)
group by
    c_count
order by
    custdist desc,
    c_count desc;

-- Q14
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    100.00 * sum(case
        when p_type like 'PROMO%'
            then l_extendedprice * (1 - l_discount)
        else 0
    end) / sum(l_extendedprice * (1 - l_discount)) as promo_revenue
from
    lineitem,
    part
where
    l_partkey = p_partkey
    and l_shipdate >= date '1994-11-01'
    and l_shipdate < date '1994-11-01' + interval '1' month;

-- Q15
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
create view revenue0 (supplier_no, total_revenue) as
    select
        l_suppkey,
        sum(l_extendedprice * (1 - l_discount))
    from
        lineitem
    where
        l_shipdate >= date '1997-10-01'
        and l_shipdate < date '1997-10-01' + interval '3' month
    group by
        l_suppkey;
select
    s_suppkey,
    s_name,
    s_address,
    s_phone,
    total_revenue
from
    supplier,
    revenue0
where
    s_suppkey = supplier_no
    and total_revenue = (
        select
            max(total_revenue)
        from
            revenue0
    )
order by
    s_suppkey;
drop view revenue0;

-- Q16
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    p_brand,
    p_type,
    p_size,
    count(distinct ps_suppkey) as supplier_cnt
from
    partsupp,
    part
where
    p_partkey = ps_partkey
    and p_brand <> 'Brand#44'
    and p_type not like 'SMALL BURNISHED%'
    and p_size in (36, 27, 34, 45, 11, 6, 25, 16)
    and ps_suppkey not in (
        select
            s_suppkey
        from
            supplier
        where
            s_comment like '%Customer%Complaints%'
    )
group by
    p_brand,
    p_type,
    p_size
order by
    supplier_cnt desc,
    p_brand,
    p_type,
    p_size;

-- Q17
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    sum(l_extendedprice) / 7.0 as avg_yearly
from
    lineitem,
    part
where
    p_partkey = l_partkey
    and p_brand = 'Brand#42'
    and p_container = 'JUMBO PACK'
    and l_quantity < (
        select
            0.2 * avg(l_quantity)
        from
            lineitem
        where
            l_partkey = p_partkey
    );

-- Q18
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    c_name,
    c_custkey,
    o_orderkey,
    o_orderdate,
    o_totalprice,
    sum(l_quantity)
from
    customer,
    orders,
    lineitem
where
    o_orderkey in (
        select
            l_orderkey
        from
            lineitem
        group by
            l_orderkey having
                sum(l_quantity) > 312
    )
    and c_custkey = o_custkey
    and o_orderkey = l_orderkey
group by
    c_name,
    c_custkey,
    o_orderkey,
    o_orderdate,
    o_totalprice
order by
    o_totalprice desc,
    o_orderdate
limit 100;

-- Q19
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    sum(l_extendedprice* (1 - l_discount)) as revenue
from
    lineitem,
    part
where
    (
        p_partkey = l_partkey
        and p_brand = 'Brand#43'
        and p_container in ('SM CASE', 'SM BOX', 'SM PACK', 'SM PKG')
        and l_quantity >= 5 and l_quantity <= 5 + 10
        and p_size between 1 and 5
        and l_shipmode in ('AIR', 'AIR REG')
        and l_shipinstruct = 'DELIVER IN PERSON'
    )
    or
    (
        p_partkey = l_partkey
        and p_brand = 'Brand#45'
        and p_container in ('MED BAG', 'MED BOX', 'MED PKG', 'MED PACK')
        and l_quantity >= 12 and l_quantity <= 12 + 10
        and p_size between 1 and 10
        and l_shipmode in ('AIR', 'AIR REG')
        and l_shipinstruct = 'DELIVER IN PERSON'
    )
    or
    (
        p_partkey = l_partkey
        and p_brand = 'Brand#11'
        and p_container in ('LG CASE', 'LG BOX', 'LG PACK', 'LG PKG')
        and l_quantity >= 24 and l_quantity <= 24 + 10
        and p_size between 1 and 15
        and l_shipmode in ('AIR', 'AIR REG')
        and l_shipinstruct = 'DELIVER IN PERSON'
    );

-- Q20
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    s_name,
    s_address
from
    supplier,
    nation
where
    s_suppkey in (
        select
            ps_suppkey
        from
            partsupp
        where
            ps_partkey in (
                select
                    p_partkey
                from
                    part
                where
                    p_name like 'magenta%'
            )
            and ps_availqty > (
                select
                    0.5 * sum(l_quantity)
                from
                    lineitem
                where
                    l_partkey = ps_partkey
                    and l_suppkey = ps_suppkey
                    and l_shipdate >= date '1996-01-01'
                    and l_shipdate < date '1996-01-01' + interval '1' year
            )
    )
    and s_nationkey = n_nationkey
    and n_name = 'RUSSIA'
order by
    s_name;

-- Q21
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
    s_name,
    count(*) as numwait
from
    supplier,
    lineitem l1,
    orders,
    nation
where
    s_suppkey = l1.l_suppkey
    and o_orderkey = l1.l_orderkey
    and o_orderstatus = 'F'
    and l1.l_receiptdate > l1.l_commitdate
    and exists (
        select
            *
        from
            lineitem l2
        where
            l2.l_orderkey = l1.l_orderkey
            and l2.l_suppkey <> l1.l_suppkey
    )
    and not exists (
        select
            *
        from
            lineitem l3
        where
            l3.l_orderkey = l1.l_orderkey
            and l3.l_suppkey <> l1.l_suppkey
            and l3.l_receiptdate > l3.l_commitdate
    )
    and s_nationkey = n_nationkey
    and n_name = 'MOZAMBIQUE'
group by
    s_name
order by
    numwait desc,
    s_name
limit 100;

-- Q22
-- 开启向量加速引擎,并设置开关变量为on
set enable_odyssey = on;
select
        cntrycode,
        count(*) as numcust,
        sum(c_acctbal) as totacctbal
from
        (
                select
                        substring(c_phone from 1 for 2) as cntrycode,
                        c_acctbal
                from
                        customer
                where
                        substring(c_phone from 1 for 2) in
                                ('13', '31', '23', '29', '30', '18', '17')
                        and c_acctbal > (
                                select
                                        avg(c_acctbal)
                                from
                                        customer
                                where
                                        c_acctbal > 0.00
                                        and substring(c_phone from 1 for 2) in
                                                ('13', '31', '23', '29', '30', '18', '17')
                        )
                        and not exists (
                                select
                                        *
                                from
                                        orders
                                where
                                        o_custkey = c_custkey
                        )
        ) as custsale
group by
        cntrycode
order by
        cntrycode;
