查询测试结果

更新时间:

本章节介绍查询测试的结果对比。本测试是在发挥数据最佳性能,并在没有任何数据写入的情况下测得的结果。在不同时间线规模的业务场景,或同时存在大量写入的场景下,或查询扫描的时间线和时间点更多时,查询性能可能会下降,建议在使用前结合自己的业务场景进行测试评估,本测试结果仅供参考。

查询的基础数据量

  • 设备数100

  • 每个设备每10秒上报101个测量值

  • 共上报1天的数据

查询样例

分别测试多种查询,queryType表示查询类型,分别介绍如下

  • 1-host-1-hr-raw: 查询1个小时数据,1个设备,查找所有的cpu.usage_user的值

select time, usage_user from cpu where (hostname = 'host_17') and time >=1514837782646 and time < 1514841382646 ;
  • 1-host-1-hr: 查询1个小时数据,1个设备,查找每分钟cpu.usage_user的最大值

select time, max(usage_user) as max_usage_user from cpu where (hostname = 'host_17') and time >=1514837782646 and time < 1514841382646 sample by 1m
  • 1-host-12-hr-raw: 查询12个小时数据,1个设备,查找所有的cpu.usage_user的值

select time, usage_user from cpu where (hostname = 'host_0') and time >=1514787382646 and time < 1514830582646;
  • 1-host-12-hr: 查询12小时数据,1个设备,查找每分钟cpu.usage_user的最大值

select time, max(usage_user) as max_usage_user from cpu where (hostname = 'host_0') and time >=1514787382646 and time < 1514830582646 sample by 1m ;
  • 1-host-latest: 随机查找1个设备的cpu.usage_user的最新值

select  time, latest(usage_user) as latest_usage_user from cpu where (hostname = 'host_50') sample by 0
  • 8-host-latest: 随机查找8个设备的cpu.usage_user的最新值

select  time, latest(usage_user) as latest_usage_user from cpu where (hostname = 'host_64' or hostname = 'host_80' or hostname = 'host_21' or hostname = 'host_5' or hostname = 'host_79' or hostname = 'host_47' or hostname = 'host_25' or hostname = 'host_18') sample by 0

测试性能指标说明

介绍该测试中查询的性能指标。

  • queryType: 参考上一节查询样例中的介绍

  • worker:查询的并发数量

  • qps:每秒执行完成的查询SQL数量

  • max_cpu: CPU的峰值百分比

  • max_mem: 内存的峰值百分比

测试结果

重要

下述查询的性能测试结果均是在时序引擎无其他工作负载的情况下单独测得。

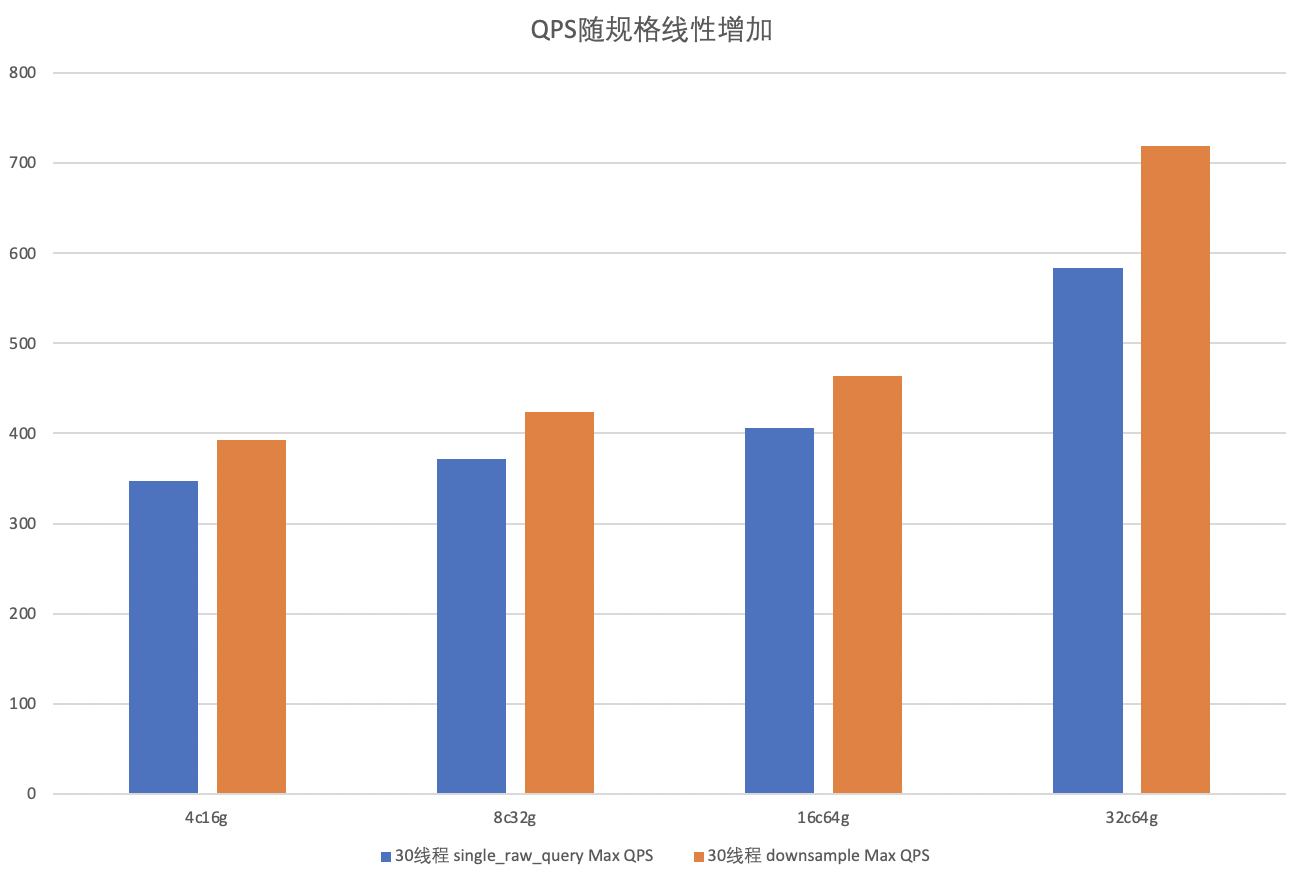

图 1. 并发为200的情况下,各个规格的3种查询下的QPS

图片 2

表 1. 集群1(4核16GB * 3节点)

queryType

worker

qps

max_cpu

max_mem

1-host-1-hr

16

1,420.96

86.95

48.08

1-host-1-hr

50

1,865.50

83.45

49.32

1-host-1-hr

100

1,887.00

81.71

48.95

1-host-1-hr

200

1,846.00

82.99

48.87

1-host-1-hr-raw

16

1,324.80

79.54

50.34

1-host-1-hr-raw

50

1,722.00

86.42

50.96

1-host-1-hr-raw

100

1,737.00

86.36

50.92

1-host-1-hr-raw

200

1,752.00

87.09

50.88

1-host-12-hr

16

497.44

86.77

48.81

1-host-12-hr

50

555.00

95.05

48.81

1-host-12-hr

100

571.00

94.97

48.90

1-host-12-hr

200

584.00

94.77

49.11

1-host-12-hr-raw

16

286.56

82.20

51.04

1-host-12-hr-raw

50

328.00

95.34

51.14

1-host-12-hr-raw

100

330.00

96.51

51.21

1-host-12-hr-raw

200

334.00

96.70

51.56

1-host-latest

16

1,025.12

81.79

49.34

1-host-latest

50

1,146.00

93.36

49.42

1-host-latest

100

1,144.00

92.41

49.36

1-host-latest

200

1,164.00

92.89

49.44

8-host-latest

16

175.20

96.65

49.64

8-host-latest

50

180.00

97.01

49.95

8-host-latest

100

181.00

96.59

50.05

8-host-latest

200

182.00

96.73

50.15

表 2. 集群2(8核32GB * 3节点)

queryType

worker

qps

max_cpu

max_mem

1-host-1-hr

16

2,426.56

79.45

31.83

1-host-1-hr

50

3,363.50

71.58

33.50

1-host-1-hr

100

3,530.00

73.80

35.44

1-host-1-hr

200

3,584.00

70.12

35.43

1-host-1-hr-raw

16

2,181.92

52.67

36.10

1-host-1-hr-raw

50

3,231.50

69.77

36.20

1-host-1-hr-raw

100

3,371.00

72.88

36.19

1-host-1-hr-raw

200

3,348.00

69.80

35.08

1-host-12-hr

16

877.44

59.57

35.66

1-host-12-hr

50

1,132.50

82.37

35.51

1-host-12-hr

100

1,145.00

84.10

35.55

1-host-12-hr

200

1,152.00

84.69

35.62

1-host-12-hr-raw

16

445.44

58.55

35.29

1-host-12-hr-raw

50

641.00

84.98

35.31

1-host-12-hr-raw

100

668.00

90.79

35.35

1-host-12-hr-raw

200

670.00

91.98

35.42

1-host-latest

16

1,785.44

51.20

35.80

1-host-latest

50

2,273.50

64.86

35.92

1-host-latest

100

2,280.00

64.97

35.82

1-host-latest

200

2,284.00

65.01

35.85

8-host-latest

16

439.04

85.04

35.98

8-host-latest

50

471.50

91.71

36.00

8-host-latest

100

472.00

92.42

36.08

8-host-latest

200

470.00

93.10

36.09

表 3. 集群3(16核64GB * 3节点)

queryType

worker

qps

max_cpu

max_mem

1-host-1-hr

16

3,287.84

49.77

25.83

1-host-1-hr

50

6,543.50

56.06

26.45

1-host-1-hr

100

7,713.00

59.81

26.48

1-host-1-hr

200

8,902.00

75.23

26.47

1-host-1-hr-raw

16

2,857.60

32.42

26.89

1-host-1-hr-raw

50

5,173.00

50.44

26.96

1-host-1-hr-raw

100

6,177.00

56.88

26.95

1-host-1-hr-raw

200

6,530.00

59.20

26.98

1-host-12-hr

16

1,148.48

38.69

26.52

1-host-12-hr

50

1,920.50

71.18

26.57

1-host-12-hr

100

2,181.00

82.79

26.62

1-host-12-hr

200

2,398.00

91.44

26.64

1-host-12-hr-raw

16

539.20

33.78

27.04

1-host-12-hr-raw

50

704.50

46.87

27.12

1-host-12-hr-raw

100

612.00

41.76

27.17

1-host-12-hr-raw

200

694.00

46.89

27.24

1-host-latest

16

2,141.60

40.24

26.69

1-host-latest

50

3,602.00

77.84

26.69

1-host-latest

100

4,098.00

91.87

26.72

1-host-latest

200

4,356.00

94.94

26.71

8-host-latest

16

541.28

81.87

26.77

8-host-latest

50

599.50

97.52

26.77

8-host-latest

100

648.00

97.85

26.88

8-host-latest

200

832.00

97.40

26.94

表 4. 集群4(32核128GB * 3节点)

queryType

worker

qps

max_cpu

max_mem

1-host-1-hr

16

3,543.04

24.25

28.33

1-host-1-hr

50

9,351.00

34.14

28.89

1-host-1-hr

100

12,567.00

46.42

28.92

1-host-1-hr

200

15,072.00

57.27

28.94

1-host-1-hr-raw

16

2,811.20

15.41

29.11

1-host-1-hr-raw

50

6,086.50

27.85

29.13

1-host-1-hr-raw

100

7,881.00

36.44

29.14

1-host-1-hr-raw

200

8,762.00

40.97

29.17

1-host-12-hr

16

1,394.24

18.85

28.91

1-host-12-hr

50

3,317.50

49.89

28.96

1-host-12-hr

100

4,160.00

67.13

28.96

1-host-12-hr

200

4,808.00

79.02

28.96

1-host-12-hr-raw

16

542.56

17.31

29.22

1-host-12-hr-raw

50

826.50

24.96

29.24

1-host-12-hr-raw

100

669.00

23.55

29.28

1-host-12-hr-raw

200

772.00

24.86

29.32

1-host-latest

16

2,600.00

16.04

28.97

1-host-latest

50

6,590.00

46.11

28.98

1-host-latest

100

8,516.00

65.60

28.99

1-host-latest

200

9,634.00

75.93

28.98

8-host-latest

16

949.12

55.91

29.03

8-host-latest

50

1,525.50

83.49

29.04

8-host-latest

100

1,710.00

93.16

29.06

8-host-latest

200

1,758.00

95.54

29.09
