本文介绍通过OpenTelemetry Python SDK将Python应用的Trace数据接入到日志服务的操作步骤。

前提条件

  • 已创建Trace实例。更多信息,请参见创建Trace实例
  • 已安装Python 3.7及以上版本。
  • 已在Python上安装OpenTelemetry Python SDK。
    如果未安装,可使用以下命令进行安装。
    pip install opentelemetry-api==1.1.0
    pip install opentelemetry-sdk==1.1.0
    pip install opentelemetry-exporter-otlp==1.1.0

接入流程

  1. 初始化OpenTelemetry Provider。
  2. 判断是否符合半自动接入条件。
    • 如果符合,则您可以使用半自动方式接入Trace数据。

      当半自动方式无法覆盖您的所有场景时,余下场景您需要使用手动方式接入Trace数据。

    • 如果不符合,则您可以使用手动方式接入Trace数据。

步骤1:初始化OpenTelemetry Provider

您可以通过如下代码完成OpenTelemetry Provider的初始化。其中,代码中的变量需根据实际情况替换。关于变量的详细说明,请参见表 1
注意 您需要在创建Traces、注册Metrics之前,完成OpenTelemetry Provider的初始化。
# For Opentelemetry
import socket
from opentelemetry import metrics
from opentelemetry import trace
from opentelemetry.exporter.otlp.metrics_exporter import OTLPMetricsExporter
from opentelemetry.exporter.otlp.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.metrics import MeterProvider
from opentelemetry.sdk.metrics.export import ConsoleMetricsExporter
from opentelemetry.sdk.metrics.export.controller import PushController
from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.sdk.trace.export import ConsoleSpanExporter
from opentelemetry.sdk.trace.export import SimpleSpanProcessor


class OpenTelemetrySLSProvider(object):

    def __init__(self, service="", version="", endpoint='stdout',
                 project=None, instance=None, access_key_id=None, access_key_secret=None):
        '''
        :param service: Your Application Service Name
        :param version: Your Application Version
        :param endpoint: console or https://sls_endpoint:10010
        :param project: SLS project
        :param instance: SLS OTEL InstanceId
        :param access_key_id: Aliyun AccesskeyId
        :param access_key_secret:  Aliyun AccesskeySecret
        '''
        self.sls_otel_endpoint = endpoint
        self.sls_otel_project = project
        self.sls_otel_akid = access_key_id
        self.sls_otel_aksecret = access_key_secret
        self.sls_otel_instanceid = instance
        self.local_mode = False
        if endpoint == "stdout":
            self.local_mode = True
            self.resource = Resource(attributes={
                "host.name": socket.gethostname(),
                "service.name": service,
                "service.version": version})
        else:
            self.resource = Resource(attributes={
                "host.name": socket.gethostname(),
                "service.name": service,
                "service.version": version,
                "sls.otel.project": self.sls_otel_project,
                "sls.otel.akid": self.sls_otel_akid,
                "sls.otel.aksecret": self.sls_otel_aksecret,
                "sls.otel.instanceid": self.sls_otel_instanceid
            })

    def initTracer(self):
        trace.set_tracer_provider(TracerProvider(resource=self.resource))
        if self.local_mode:
            trace.get_tracer_provider().add_span_processor(SimpleSpanProcessor(ConsoleSpanExporter()))
        else:
            otlp_exporter = OTLPSpanExporter(endpoint=self.sls_otel_endpoint)
            trace.get_tracer_provider().add_span_processor(BatchSpanProcessor(otlp_exporter))

    def initMetric(self, interval=30):
        metrics.set_meter_provider(MeterProvider(resource=self.resource))
        if self.local_mode:
            metric_exporter = ConsoleMetricsExporter()
        else:
            metric_exporter = OTLPMetricsExporter(endpoint=self.sls_otel_endpoint)

        meter = metrics.get_meter(__name__)
        PushController(meter, metric_exporter, interval)
        return meter

# debug mode
#sls_ot_provider = OpenTelemetrySLSProvider(service="example", version="v0.1.0")

# write to sls
sls_ot_provider = OpenTelemetrySLSProvider(service="${service}", version="${version}",
                                         endpoint='${endpoint}',
                                         project="${project}",
                                         instance="${instance}",
                                         access_key_id="${access-key-id}",
                                         access_key_secret="${access-key-secret}"
                                         )
表 1. 变量说明
变量 说明 示例
${service} 服务名。根据您的实际场景取值即可。 payment
${version} 服务版本号。建议按照va.b.c格式定义。 v0.1.2
${endpoint} 接入地址,格式为https://${project}.${region-endpoint}:Port,其中:
  • ${project}:日志服务Project名称。
  • ${region-endpoint}:Project访问域名,支持公网和阿里云内网(经典网络、VPC)。更多信息,请参见服务入口
  • Port:网络端口,固定为10010。
说明
  • 如果配置为stdout,即endpoint='stdout',表示将数据打印到标准输出。
  • 如果配置为空值,表示不上传Trace数据到日志服务。
https://test-project.cn-hangzhou.log.aliyuncs.com:10010
${project} 日志服务Project名称。 test-project
${instance} Trace服务实例名称。 test-traces
${access-key-id} 阿里云账号AccessKey ID。

建议您使用只具备日志服务Project写入权限的RAM用户的AccessKey(包括AccessKey ID和AccessKey Secret)。授予RAM用户向指定Project写入数据权限的具体操作,请参见授权。如何获取AccessKey的具体操作,请参见访问密钥

${access-key-secret} 阿里云账号AccessKey Secret。

建议您使用只具备日志服务Project写入权限的RAM用户的AccessKey。

步骤2:接入数据

您可以通过半自动或手动方式接入Trace数据到日志服务。OpenTelemetry Python SDK提供多种类型的instrumentation包,支持常用框架的半自动埋点,如果您使用的是指定的instrumentation包,则支持通过半自动方式接入数据。

  • 半自动埋点
    此处以flask和requests为例。
    1. 安装instrumentation包。
      pip install opentelemetry-instrumentation-flask
      pip install opentelemetry-instrumentation-requests
    2. 运行代码。

      如下代码中的变量需根据实际情况替换。更多信息,请参见表 1

      # flask-example-1.py

      # for flask
      import flask
      import requests

      # for Opentelemetry instrumentation
      import socket
      from opentelemetry.instrumentation.flask import FlaskInstrumentor
      from opentelemetry.instrumentation.requests import RequestsInstrumentor

      # For Opentelemetry
      from opentelemetry import metrics
      from opentelemetry import trace
      from opentelemetry.exporter.otlp.metrics_exporter import OTLPMetricsExporter
      from opentelemetry.exporter.otlp.trace_exporter import OTLPSpanExporter
      from opentelemetry.sdk.metrics import MeterProvider
      from opentelemetry.sdk.metrics.export import ConsoleMetricsExporter
      from opentelemetry.sdk.metrics.export.controller import PushController
      from opentelemetry.sdk.resources import Resource
      from opentelemetry.sdk.trace import TracerProvider
      from opentelemetry.sdk.trace.export import BatchSpanProcessor
      from opentelemetry.sdk.trace.export import ConsoleSpanExporter
      from opentelemetry.sdk.trace.export import SimpleSpanProcessor


      class OpenTelemetrySLSProvider(object):

          def __init__(self, service="", version="", endpoint='stdout',
                       project=None, instance=None, access_key_id=None, access_key_secret=None):
              '''
              :param service: Your Application Service Name
              :param version: Your Application Version
              :param endpoint: console or https://sls_endpoint:10010
              :param project: SLS project
              :param instance: SLS OTEL InstanceId
              :param access_key_id: Aliyun AccesskeyId
              :param access_key_secret:  Aliyun AccesskeySecret
              '''
              self.sls_otel_endpoint = endpoint
              self.sls_otel_project = project
              self.sls_otel_akid = access_key_id
              self.sls_otel_aksecret = access_key_secret
              self.sls_otel_instanceid = instance
              self.local_mode = False
              if endpoint == "stdout":
                  self.local_mode = True
                  self.resource = Resource(attributes={
                      "host.name": socket.gethostname(),
                      "service.name": service,
                      "service.version": version})
              else:
                  self.resource = Resource(attributes={
                      "host.name": socket.gethostname(),
                      "service.name": service,
                      "service.version": version,
                      "sls.otel.project": self.sls_otel_project,
                      "sls.otel.akid": self.sls_otel_akid,
                      "sls.otel.aksecret": self.sls_otel_aksecret,
                      "sls.otel.instanceid": self.sls_otel_instanceid
                  })

          def initTracer(self):
              trace.set_tracer_provider(TracerProvider(resource=self.resource))
              if self.local_mode:
                  trace.get_tracer_provider().add_span_processor(SimpleSpanProcessor(ConsoleSpanExporter()))
              else:
                  otlp_exporter = OTLPSpanExporter(endpoint=self.sls_otel_endpoint)
                  trace.get_tracer_provider().add_span_processor(BatchSpanProcessor(otlp_exporter))

          def initMetric(self, interval=30):
              metrics.set_meter_provider(MeterProvider(resource=self.resource))
              if self.local_mode:
                  metric_exporter = ConsoleMetricsExporter()
              else:
                  metric_exporter = OTLPMetricsExporter(endpoint=self.sls_otel_endpoint)

              meter = metrics.get_meter(__name__)
              PushController(meter, metric_exporter, interval)
              return meter


      # write to sls
      sls_ot_provider = OpenTelemetrySLSProvider(service="${service}", version="${version}",
                                               endpoint='${endpoint}',
                                               project="${project}",
                                               instance="${instance}",
                                               access_key_id="${access-key-id}",
                                               access_key_secret="${access-key-secret}"
                                               )
      # for console debug
      #sls_ot_provider = OpenTelemetrySLSProvider(service="example", version="v0.1.0")

      sls_ot_provider.initTracer()
      sls_ot_provider.initMetric()

      # flask init
      app = flask.Flask(__name__)

      # instrumentation init
      FlaskInstrumentor().instrument_app(app)
      RequestsInstrumentor().instrument()

      @app.route("/")
      def hello():
          tracer = trace.get_tracer(__name__)
          with tracer.start_as_current_span("request_server"):
              requests.get("http://www.taobao.com")
          return "hello"


      app.run(debug=True, port=5000)

  • 手动埋点

    运行如下代码,其中代码中的变量需根据实际情况替换。关于代码的详细说明,请参见表 1

    # ot-manual-example.py
    import time

    # For Opentelemetry
    import socket
    from opentelemetry import metrics
    from opentelemetry import trace
    from opentelemetry.exporter.otlp.metrics_exporter import OTLPMetricsExporter
    from opentelemetry.exporter.otlp.trace_exporter import OTLPSpanExporter
    from opentelemetry.sdk.metrics import MeterProvider
    from opentelemetry.sdk.metrics.export import ConsoleMetricsExporter
    from opentelemetry.sdk.metrics.export.controller import PushController
    from opentelemetry.sdk.resources import Resource
    from opentelemetry.sdk.trace import TracerProvider
    from opentelemetry.sdk.trace.export import BatchSpanProcessor
    from opentelemetry.sdk.trace.export import ConsoleSpanExporter
    from opentelemetry.sdk.trace.export import SimpleSpanProcessor


    class OpenTelemetrySLSProvider(object):

        def __init__(self, service="", version="", endpoint='stdout',
                     project=None, instance=None, access_key_id=None, access_key_secret=None):
            '''
            :param service: Your Application Service Name
            :param version: Your Application Version
            :param endpoint: console or https://sls_endpoint:10010
            :param project: SLS project
            :param instance: SLS OTEL InstanceId
            :param access_key_id: Aliyun AccesskeyId
            :param access_key_secret:  Aliyun AccesskeySecret
            '''
            self.sls_otel_endpoint = endpoint
            self.sls_otel_project = project
            self.sls_otel_akid = access_key_id
            self.sls_otel_aksecret = access_key_secret
            self.sls_otel_instanceid = instance
            self.local_mode = False
            if endpoint == "stdout":
                self.local_mode = True
                self.resource = Resource(attributes={
                    "host.name": socket.gethostname(),
                    "service.name": service,
                    "service.version": version})
            else:
                self.resource = Resource(attributes={
                    "host.name": socket.gethostname(),
                    "service.name": service,
                    "service.version": version,
                    "sls.otel.project": self.sls_otel_project,
                    "sls.otel.akid": self.sls_otel_akid,
                    "sls.otel.aksecret": self.sls_otel_aksecret,
                    "sls.otel.instanceid": self.sls_otel_instanceid
                })

        def initTracer(self):
            trace.set_tracer_provider(TracerProvider(resource=self.resource))
            if self.local_mode:
                trace.get_tracer_provider().add_span_processor(SimpleSpanProcessor(ConsoleSpanExporter()))
            else:
                otlp_exporter = OTLPSpanExporter(endpoint=self.sls_otel_endpoint)
                trace.get_tracer_provider().add_span_processor(BatchSpanProcessor(otlp_exporter))

        def initMetric(self, interval=30):
            metrics.set_meter_provider(MeterProvider(resource=self.resource))
            if self.local_mode:
                metric_exporter = ConsoleMetricsExporter()
            else:
                metric_exporter = OTLPMetricsExporter(endpoint=self.sls_otel_endpoint)

            meter = metrics.get_meter(__name__)
            PushController(meter, metric_exporter, interval)
            return meter


    # write to sls
    sls_ot_provider = OpenTelemetrySLSProvider(service="${service}", version="${version}",
                                               endpoint='${endpoint}',
                                               project="${project}",
                                               instance="${instance}",
                                               access_key_id="${access-key-id}",
                                               access_key_secret="${access-key-secret}"
                                               )

    # for console debug
    #sls_ot_provider = OpenTelemetrySLSProvider(service="example", version="v0.1.0")

    # Trace Example
    sls_ot_provider.initTracer()
    tracer = trace.get_tracer(__name__)

    with tracer.start_as_current_span("foo"):
        print("Hello world!")

    # Metric Example
    meter = sls_ot_provider.initMetric(1)
    requests_counter = meter.create_counter(
        name="requests",
        description="number of requests",
        unit="1",
        value_type=int,
    )

    labels = {"environment": "staging"}
    requests_counter.add(25, labels)

    time.sleep(60)

常见问题

如何检查是否正确安装OpenTelemetry SDK?

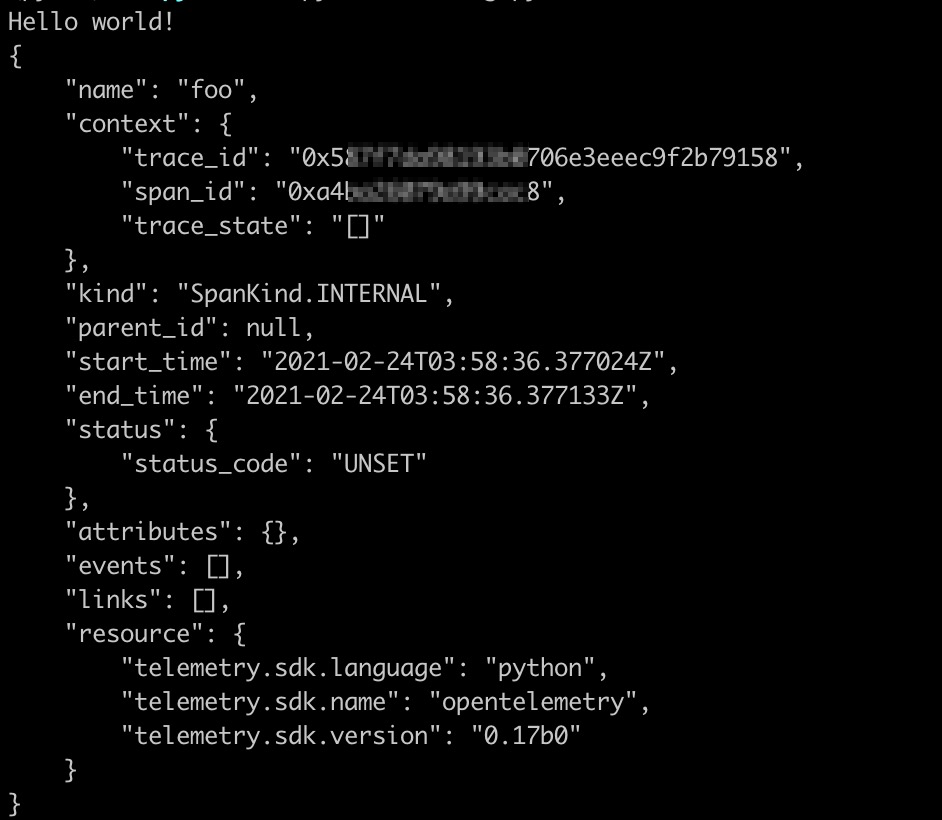

以如下代码为例,将如下代码保存为tracing.py,执行tracing.py命令,如果正常输出则表示Python OpenTelemetry相关的基础依赖安装正确。

# tracing-example-1.py
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
    ConsoleSpanExporter,
    SimpleSpanProcessor,
)

trace.set_tracer_provider(TracerProvider())
trace.get_tracer_provider().add_span_processor(
    SimpleSpanProcessor(ConsoleSpanExporter())
)

tracer = trace.get_tracer(__name__)

with tracer.start_as_current_span("foo"):
    print("Hello world!")
python trace

后续步骤
