iOS SDK 接入
本文是iOS客户端SDK 集成说明文档。
1. 概述
官网下载SDK后进行解压,解压后包含：
IDaaSDoraemonSDK.framework（安全认证静态库）
具体认证服务SDK
2. 前期准备
2.1 准备工作
如果应用开启了手机号认证服务, 请确保终端设备已经开启4G网络（联通、移动支持3G网络, 但接口耗时会增加），手机号认证授权之后,联通电信可立即使用, 移动需等待10分钟后使用。
2.2 运行demo工程

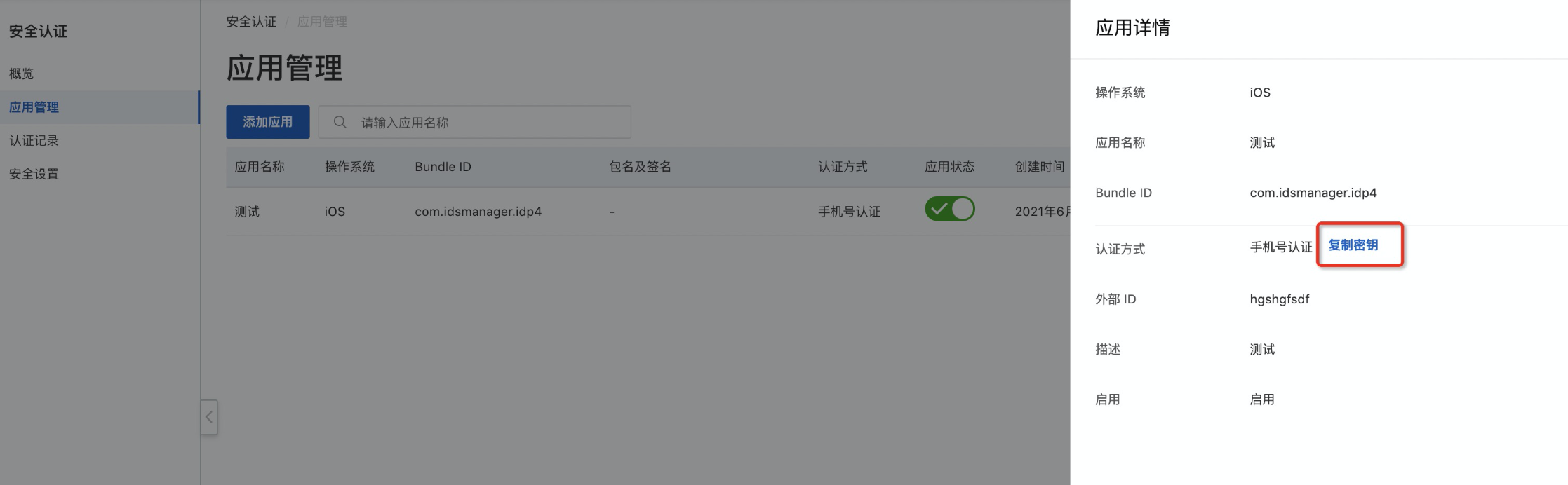

解压后包含DoraemonDemo工程, 需要将bundleID 、应用密钥、服务密钥（手机号认证）修改为创建应用后获取的值。
2.3 搭建开发环境
应用必须运行在iOS 9.0+平台上。
2.3.1 添加主库
Targets->General->Linked Frameworks and Libraries 中添加主库IDaaSDoraemonSDK.framework
如果应用授权了认证方式,添加额外的认证方式主库：
Targets->General->Linked Frameworks and Libraries 中添加主库ATAuthSDK.framework，
YTXMonitor.framework, YTXOperators.framework,ATAuthSDK.bundle.
2.3.2 Target->BuildSettings设置
Targets->BuildSettings 中 ， Other Linker Flags增加-ObjC，⼀定要添加此选项，注意是⼤写C，不是⼩写c，否则⼯程运⾏会crash！
3. 手机号认证SDK 方法说明
3.1 主类IDaaSDoraemonManager接⼝简介
3.1.1 获取认证实例（sharedInstance）
/**
* 函数名：sharedInstance
* @param ⽆
* 返回：获取该类的单例实例对象
*/
+ (instancetype _Nonnull )sharedInstance; 3.1.2 获取SDK版本号（getVersion）
/**
* 函数名：getVersion
* @param ⽆
* 返回：字符串，sdk版本号
*/
- (NSString *_Nonnull)getVersion;3.1.3 初始化应用支持的认证服务-(SDKInitWithApplicationExternalId)
/**
* 安全认证服务初始化
* @param applicationExternalId 应用外部ID
* @param appKey 应用密钥
* @param complete 结果回调到主线程
*/
-(void)SDKInitWithApplicationExternalId:(NSString *)applicationExternalId appKey:(NSString *)appKey complete:(void (^)(NSDictionary *resultDic))complete;3.1.4 获取应用授权token
此接口需要开发者调用服务端SDK的获取应用授权Token接口,回传给移动端SDK
/** 获取token */
@property (nonatomic,copy) NSDictionary *(^fetchAccessTokenCallBack)(NSString *mobileExtendParamsJson, NSString *mobileExtendParamsJsonSign);3.1.5 手机号认证：一键登录、本机号码校验（UI自定义）
/**

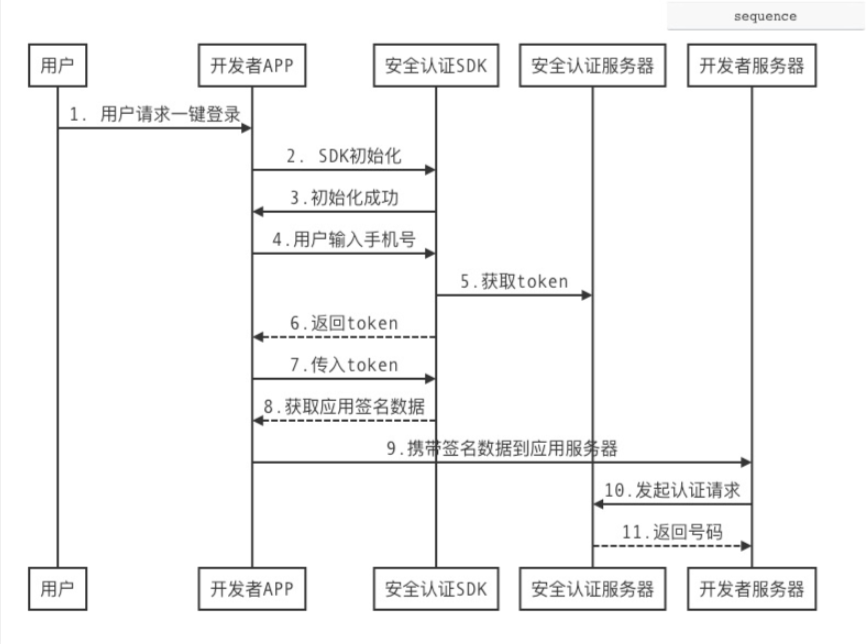

* 手机号认证：支持一键登录、本机号码校验
* @param userId 用户ID（必填）
* @param action DoraemonAuthTypeVerifyToken、DoraemonAuthTypeLoginToken
* @param options UI界面展示的配置或其他额外配置
*/
-(void)SDKAuthenticateWithUserId:(NSString *)userId action:(DoraemonAuthType)action options:(UIControlOptions *)options complete:(void (^)(NSDictionary *resultDic))complete;3.1.6 手机号认证：一键登录、本机号码校验（UI默认）
/**

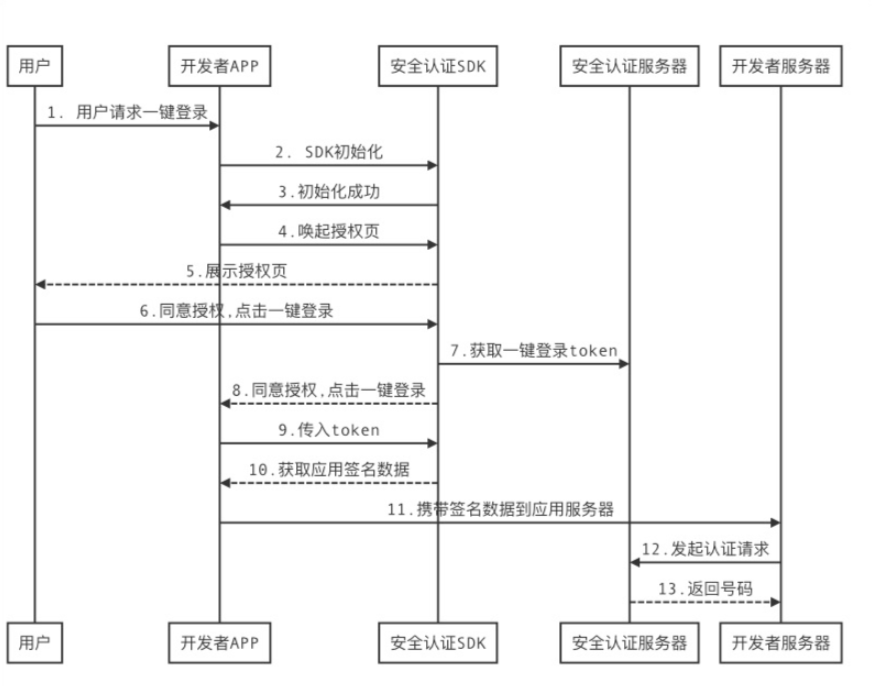

* 手机号认证-一键登录,快速认证,UI默认
* @param userId 用户ID（必填）
* @param controller 控制器
*/
-(void)SDKAuthenticatesWithUserId:(NSString *)userId controller:(UIViewController *)controller complete:(void (^)(NSDictionary *resultDic))complete;4. SDK demo 接入示例
4.1 获取应用授权token示例
[IDaaSDoraemonManager sharedInstance].fetchAccessTokenCallBack = ^NSDictionary *(NSString *mobileExtendParamsJson, NSString *mobileExtendParamsJsonSign) {
HKLog(@"mobileExtendParamsJson--- %@",mobileExtendParamsJson);
HKLog(@"mobileExtendParamsJsonSign--- %@",mobileExtendParamsJsonSign);
//App服务端调用FetchAccessToken返回的数据库
NSDictionary *dic = @{
@"access_token":@"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6ImJiY2Q1NzVjNDJlMjhiZDJmYjM0NGNmNWRiZjY3MWE2Z0xaYnlIYVJZNEwifQ.eyJhdWQiOlsiZG9yYWVtb25fYXBpX3Jlc291cmNlIl0sImdyYW50X3R5cGUiOiJjbGllbnRfY3JlZGVudGlhbHMiLCJfX3BhcmFtZXRlcnNfXyI6eyJfX2NsaWVudCQkYXBwT3NfXyI6ImlPUyIsIl9fY2xpZW50JCR1c2VySWRfXyI6ImxpbmJhb3dlaSIsImdyYW50X3R5cGUiOiJjbGllbnRfY3JlZGVudGlhbHMiLCJfX2NsaWVudCQkYXBwSWRfXyI6ImNvbS5pZHNtYW5hZ2VyLmlkcDQiLCJfX2NsaWVudCQkYXBwbGljYXRpb25FeHRlcm5hbElkX18iOiJBMDAwMDAwMDMiLCJfX2NsaWVudCQkZGV2aWNlVW5pcXVlSWRfXyI6IjBGRTE3NTU2LTg5NTYtNDY4MC1BNkNELUIzMUVBOUM0MDcyOSJ9LCJzY29wZSI6WyJyZWFkIl0sIl9fZXh0ZW5zaW9uc19fIjp7fSwiZXhwIjoxNjM3ODkzODMwLCJqdGkiOiI2NGVmNDY0MS1jMGYwLTQ2MWItOGFjNC00YzNhYmY4OTg3NTYiLCJjbGllbnRfaWQiOiI2NGJjMzhmZGI3NmY4MjE3MDEwMjlmZjRhZjAwNTI5OWdzQ2RtRVM2VXp2In0.D_Fp7nGwC7a-FxGIr9lrPbn37qxRtNwLGSV94KaGnW8",
@"refresh_token":@"refresh_token",
@"expires_in":@86399
};
return dic;
};4.2 本机号码登录唤起授权页
__weak typeof(self) weakSelf = self;
TXCustomModel *model = [weakSelf buildCustomModel:NO];
model.supportedInterfaceOrientations = YES;
UIControlOptions *options = [[UIControlOptions alloc]init];
options.controller = weakSelf;
options.customModel = model;
options.timeOut = 3.0;
[[IDaaSDoraemonManager sharedInstance]SDKAuthenticateWithAuthMethod:@"PHONE_VERIFICATION" action:DoraemonAuthTypeLoginToken userId:@"12313" options:options complete:^(NSDictionary *resultDic) {
NSString *code = [resultDic objectForKey:@"code"];
if ([PNSCodeLoginControllerPresentSuccess isEqualToString:code]) {
HKLog(@"弹起授权页成功");
} else if ([PNSCodeLoginControllerClickCancel isEqualToString:code]) {
HKLog(@"点击了授权页的返回");
} else if ([PNSCodeLoginControllerClickChangeBtn isEqualToString:code]) {
HKLog(@"点击切换其他登录方式按钮");
} else if ([PNSCodeLoginControllerClickLoginBtn isEqualToString:code]) {
if ([[resultDic objectForKey:@"isChecked"] boolValue] == YES) {
HKLog(@"点击了登录按钮，check box选中，SDK内部接着会去获取登录Token");
} else {
HKLog(@"点击了登录按钮，check box选中，SDK内部不会去获取登录Token");
}
} else if ([PNSCodeLoginControllerClickCheckBoxBtn isEqualToString:code]) {
HKLog(@"点击check box");
} else if ([PNSCodeLoginControllerClickProtocol isEqualToString:code]) {
HKLog(@"点击了协议富文本");
} else if ([AuthSuccess isEqualToString:code]) {
//点击登录按钮获取登录Token成功回调
HKLog(@"token %@",resultDic);
}

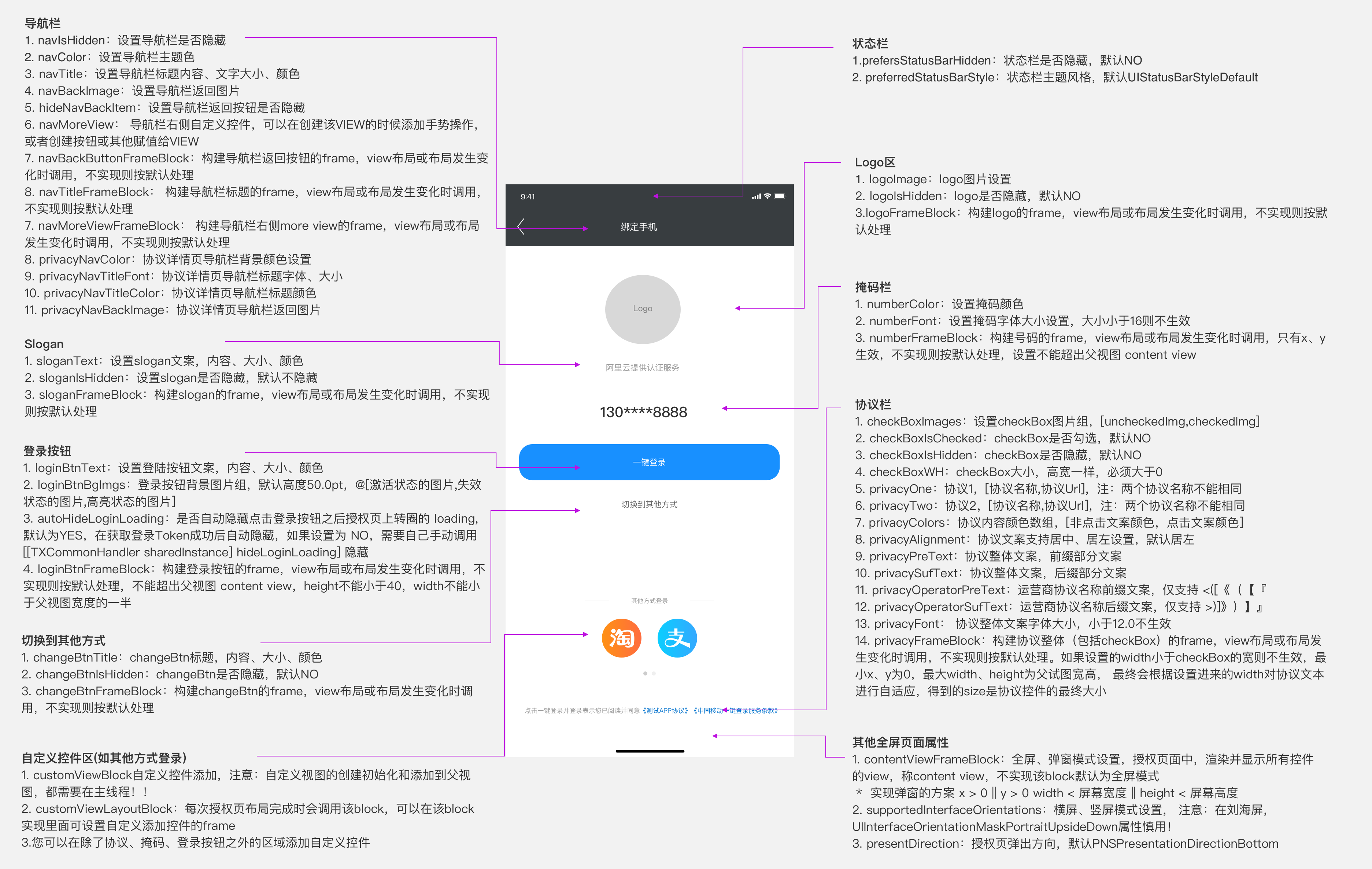

}];4.3 授权页全屏模式，横竖屏切换
TXCustomModel *model = [[TXCustomModel alloc] init];
model.navColor = UIColor.orangeColor;
model.navTitle = [[NSAttributedString alloc] initWithString:@"本机号码登录（全屏）" attributes:@{NSForegroundColorAttributeName : UIColor.whiteColor,NSFontAttributeName : [UIFont systemFontOfSize:20.0]}];
//model.navIsHidden = NO;
model.navBackImage = [UIImage imageNamed:@"icon_nav_back_light"]; //model.hideNavBackItem = NO;
UIButton *rightBtn = [UIButton buttonWithType:UIButtonTypeSystem];
[rightBtn setTitle:@"更多" forState:UIControlStateNormal];
model.navMoreView = rightBtn;
model.privacyNavColor = UIColor.orangeColor;
model.privacyNavBackImage = [UIImage imageNamed:@"icon_nav_back_light"];
model.privacyNavTitleFont = [UIFont systemFontOfSize:20.0];
model.privacyNavTitleColor = UIColor.whiteColor;
model.logoImage = [UIImage imageNamed:@"taobao"];
//model.logoIsHidden = NO;
//model.sloganIsHidden = NO;
model.sloganText = [[NSAttributedString alloc] initWithString:@"本机号码登录slogan文案" attributes:@{NSForegroundColorAttributeName : UIColor.orangeColor,NSFontAttributeName : [UIFont systemFontOfSize:16.0]}];
model.numberColor = UIColor.orangeColor;
model.numberFont = [UIFont systemFontOfSize:30.0];
model.loginBtnText = [[NSAttributedString alloc] initWithString:@"本机号码登录" attributes:@{NSForegroundColorAttributeName : UIColor.whiteColor,NSFontAttributeName : [UIFont systemFontOfSize:20.0]}];
//model.autoHideLoginLoading = NO;
//model.privacyOne = @[@"《隐私1》",@"https://www.taobao.com/"];
//model.privacyTwo = @[@"《隐私2》",@"https://www.taobao.com/"];
model.privacyColors = @[UIColor.lightGrayColor, UIColor.orangeColor];
model.privacyAlignment = NSTextAlignmentCenter;
model.privacyFont = [UIFont fontWithName:@"PingFangSC-Regular" size:13.0];
model.privacyOperatorPreText = @"《";
model.privacyOperatorSufText = @"》";
//model.checkBoxIsHidden = NO;
model.checkBoxWH = 17.0;
model.changeBtnTitle = [[NSAttributedString alloc] initWithString:@"切换到其他方式" attributes:@{NSForegroundColorAttributeName : UIColor.orangeColor,NSFontAttributeName : [UIFont systemFontOfSize:18.0]}];
//model.changeBtnIsHidden = NO;
//model.prefersStatusBarHidden = NO;
model.preferredStatusBarStyle = UIStatusBarStyleLightContent;
//model.presentDirection = PNSPresentationDirectionBottom;
//授权页默认控件布局调整
//model.navBackButtonFrameBlock =
//model.navTitleFrameBlock =
model.navMoreViewFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
CGFloat width = superViewSize.height;
CGFloat height = width;
return CGRectMake(superViewSize.width - 15 - width, 0, width, height);
};
model.loginBtnFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
frame.origin.y = 20;
return frame;
}
return frame;
};
model.sloganFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
return CGRectZero; //横屏时模拟隐藏该控件
} else {
return CGRectMake(0, 140, superViewSize.width, frame.size.height);
}
};
model.numberFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
frame.origin.y = 140;
}
return frame;
};
model.loginBtnFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
frame.origin.y = 185;
}
return frame;
};
model.changeBtnFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
return CGRectZero; //横屏时模拟隐藏该控件
} else {
return CGRectMake(10, frame.origin.y, superViewSize.width - 20, 30);
}
};
//model.privacyFrameBlock =
//添加自定义控件并对自定义控件进行布局
__block UIButton *customBtn = [UIButton buttonWithType:UIButtonTypeCustom];
[customBtn setTitle:@"这是一个自定义控件" forState:UIControlStateNormal];
[customBtn setBackgroundColor:UIColor.redColor];
customBtn.frame = CGRectMake(0, 0, 230, 40);
model.customViewBlock = ^(UIView * _Nonnull superCustomView) {
[superCustomView addSubview:customBtn];
};
model.customViewLayoutBlock = ^(CGSize screenSize, CGRect contentViewFrame, CGRect navFrame, CGRect titleBarFrame, CGRect logoFrame, CGRect sloganFrame, CGRect numberFrame, CGRect loginFrame, CGRect changeBtnFrame, CGRect privacyFrame) {
CGRect frame = customBtn.frame;
frame.origin.x = (contentViewFrame.size.width - frame.size.width) * 0.5;
frame.origin.y = CGRectGetMinY(privacyFrame) - frame.size.height - 20;
frame.size.width = contentViewFrame.size.width - frame.origin.x * 2;
customBtn.frame = frame; };
// 横竖屏切换
model.supportedInterfaceOrientations = UIInterfaceOrientationMaskAllButUpsideDown;
// 仅支持竖屏
model.supportedInterfaceOrientations = UIInterfaceOrientationMaskPortrait;
// 仅支持横屏
model.supportedInterfaceOrientations = UIInterfaceOrientationMaskLandscape; 4.4 授权页弹窗模式，支持横竖屏切换
TXCustomModel *model = [[TXCustomModel alloc] init];
model.alertCornerRadiusArray = @[@10, @10, @10, @10];
//model.alertCloseItemIsHidden = YES;
model.alertTitleBarColor = UIColor.orangeColor;
model.alertTitle = [[NSAttributedString alloc] initWithString:@"本机号码登录（弹窗）" attributes:@{NSForegroundColorAttributeName : UIColor.whiteColor, NSFontAttributeName : [UIFont systemFontOfSize:20.0]}];
model.alertCloseImage = [UIImage imageNamed:@"icon_close_light"];
model.privacyNavColor = UIColor.orangeColor;
model.privacyNavBackImage = [UIImage imageNamed:@"icon_nav_back_light"];
model.privacyNavTitleFont = [UIFont systemFontOfSize:20.0];
model.privacyNavTitleColor = UIColor.whiteColor;
model.logoImage = [UIImage imageNamed:@"taobao"];
//model.logoIsHidden = NO;
//model.sloganIsHidden = NO;
model.sloganText = [[NSAttributedString alloc] initWithString:@"本机号码登录slogan文案" attributes:@{NSForegroundColorAttributeName : UIColor.orangeColor,NSFontAttributeName : [UIFont systemFontOfSize:16.0]}];
model.numberColor = UIColor.orangeColor;
model.numberFont = [UIFont systemFontOfSize:30.0];
model.loginBtnText = [[NSAttributedString alloc] initWithString:@"本机号码登录" attributes:@{NSForegroundColorAttributeName : UIColor.whiteColor, NSFontAttributeName : [UIFont systemFontOfSize:20.0]}];
//model.autoHideLoginLoading = NO;
//model.privacyOne = @[@"《隐私1》",@"https://www.taobao.com/"]; //model.privacyTwo = @[@"《隐私2》",@"https://www.taobao.com/"];
model.privacyColors = @[UIColor.lightGrayColor, UIColor.orangeColor]; model.privacyAlignment = NSTextAlignmentCenter;
model.privacyFont = [UIFont fontWithName:@"PingFangSC-Regular" size:13.0];
model.privacyOperatorPreText = @"《";
model.privacyOperatorSufText = @"》";
//model.checkBoxIsHidden = NO;
model.checkBoxWH = 17.0;
model.changeBtnTitle = [[NSAttributedString alloc] initWithString:@"切换到其他方式" attributes:@{NSForegroundColorAttributeName : UIColor.orangeColor,NSFontAttributeName : [UIFont systemFontOfSize:18.0]}]; //model.changeBtnIsHidden = NO;
//model.prefersStatusBarHidden = NO;
//model.preferredStatusBarStyle = UIStatusBarStyleDefault;
//model.presentDirection = PNSPresentationDirectionBottom;
CGFloat ratio = MAX(TX_SCREEN_WIDTH, TX_SCREEN_HEIGHT) / 667.0;
//实现该block，并且返回的frame的x或y大于0，则认为是弹窗谈起授权页
model.contentViewFrameBlock = ^CGRect(CGSize screenSize, CGSize contentSize, CGRect frame) {
CGFloat alertX = 0;
CGFloat alertY = 0;
CGFloat alertWidth = 0;
CGFloat alertHeight = 0;
if ([self isHorizontal:screenSize]) {
alertX = ratio * TX_Alert_Horizontal_Default_Left_Padding;
alertWidth = screenSize.width - alertX * 2;
alertY = (screenSize.height - alertWidth * 0.5) * 0.5;
alertHeight = screenSize.height - 2 * alertY;
} else {
alertX = TX_Alert_Default_Left_Padding * ratio;
alertWidth = screenSize.width - alertX * 2;
alertY = TX_Alert_Default_Top_Padding * ratio;
alertHeight = screenSize.height - alertY * 2;
}
return CGRectMake(alertX, alertY, alertWidth, alertHeight);
};
//授权页默认控件布局调整
//model.alertTitleBarFrameBlock =
//model.alertTitleFrameBlock =
//model.alertCloseItemFrameBlock =
model.logoFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
return CGRectZero;
//横屏时模拟隐藏该控件
} else {
frame.origin.y = 10;
return frame;
}
};
model.sloganFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
return CGRectZero;
//横屏时模拟隐藏该控件
} else {
frame.origin.y = 110;
return frame;
}
};
model.numberFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
frame.origin.y = 20;
frame.origin.x = (superViewSize.width * 0.5 - frame.size.width) * 0.5 + 18.0;
} else {
frame.origin.y = 140;
}
return frame;
};
model.loginBtnFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
frame.origin.y = 60;
frame.size.width = superViewSize.width * 0.5;
//登录按钮最小宽度是其父视图的一半，再小就不生效了
} else {
frame.origin.y = 180;
}
return frame;
};
model.changeBtnFrameBlock = ^CGRect(CGSize screenSize, CGSize superViewSize, CGRect frame) {
if ([self isHorizontal:screenSize]) {
return CGRectZero; //横屏时模拟隐藏该控件
} else {
return CGRectMake(10, 240, superViewSize.width - 20, 30);
}
};
//model.privacyFrameBlock =
//添加自定义控件并对自定义控件进行布局
__block UIButton *customBtn = [UIButton buttonWithType:UIButtonTypeCustom];
[customBtn setTitle:@"这是一个自定义控件" forState:UIControlStateNormal];
[customBtn setBackgroundColor:UIColor.redColor];
model.customViewBlock = ^(UIView * _Nonnull superCustomView) { [superCustomView addSubview:customBtn]; };
model.customViewLayoutBlock = ^(CGSize screenSize, CGRect contentViewFrame, CGRect navFrame, CGRect titleBarFrame, CGRect logoFrame, CGRect sloganFrame, CGRect numberFrame, CGRect loginFrame, CGRect changeBtnFrame, CGRect privacyFrame) {
CGFloat padding = 15;
CGFloat x = 0;
CGFloat y = 0;
CGFloat width = 0;
CGFloat height = 0;
if ([self isHorizontal:screenSize]) {
x = CGRectGetMaxX(loginFrame) + padding;
y = padding;
width = contentViewFrame.size.width - x - padding;
height = CGRectGetMinY(privacyFrame) - y - padding;
} else {
x = padding;
y = MAX(CGRectGetMaxY(changeBtnFrame), CGRectGetMaxY(loginFrame)) + padding;
width = contentViewFrame.size.width - 2 * x;
height = CGRectGetMinY(privacyFrame) - y - padding;
}
customBtn.frame = CGRectMake(x, y, width, height);
};
// 横竖屏切换
model.supportedInterfaceOrientations =UIInterfaceOrientationMaskAllButUpsideDown;
// 仅支持竖屏
model.supportedInterfaceOrientations = UIInterfaceOrientationMaskPortrait;
// 仅支持横屏
model.supportedInterfaceOrientations = UIInterfaceOrientationMaskLandscape; 4.5 本机号码校验用例
UIControlOptions *options = [[UIControlOptions alloc]init];
options.phoneNumber = @"176*****806";
[[IDaaSDoraemonManager sharedInstance]SDKAuthenticateWithAuthMethod:@"PHONE_VERIFICATION" action:DoraemonAuthTypeVerifyToken userId:@"12313" options:options complete:^(NSDictionary *resultDic) {
HKLog(@"token %@",resultDic);
}];java5. 手机号认证授权页面说明
5.1 全屏授权页面设计规范（支持横竖屏，以竖屏示意）
5.2 弹窗授权页面设计规范（支持横竖屏，以竖屏示意）
6. iOS常见问题
1. 初始化接口checkEnvAvailableWithComplete一直返回NO
排查顺序：1、手机sim卡是否被激活或欠费；2、手机设备蜂窝数据是否开启；3、App的网络权限是否开启；4、设备是否有代理；用户开启VPN后一键登录的时候可能联通号码出现源IP错误，或者电信号码出现800008错误，移动号码出现103111错误，请关闭VPN之后或者打开飞行模式再关闭之后再重试。5、云控制台上是否创建了方案号；6、创建方案号中的bundleId一定要与项目中使用的保持一致；7，设备时间设置是否非标准，不能修改手机时间戳提前或延期；8，是否调用了setAuthSDKInfo接口；9，最后再提供bundleId给我们进行查询日志。
2. 移动卡出现crash【[UAReachability reachableType]: unrecognized selector sent to instance】
在主工程中Project -> Edit Active Target -> Build Setting -> Other Linker Flags中添加-all_load标记，前提也要添加-ObjC，即两者都要添加。
3. 登录token存在失败吗？
肯定存在的，如果是偶现，可以理解，因为比如网络波动导致网关断开、网络不可用、供应商服务端异常，业务方服务端异常等因素有关；如果是持续出现，一般需要运营商协助排查。
4. 本机号码登录服务一般只4G或者4G+Wifi情况下，如果是3G、2G会怎么样？
中国移动支持2G/3G/4G、中国联通支持3G/4G、中国电信支持4G，但2G和3G网络下接口请求失败或超时概率稍高。
5. 经常超时怎么办？
首先确认sim卡不欠费，再确认手机网络是否正常，通过Safari打开某个网址验证为准。其次确认超时时间是否设置正确，单位是s。 2G和3G网络下接口请求失败或超时概率稍高。 切换网络时，设置网络不稳定，会较大概率出现超时。
