服务端授权

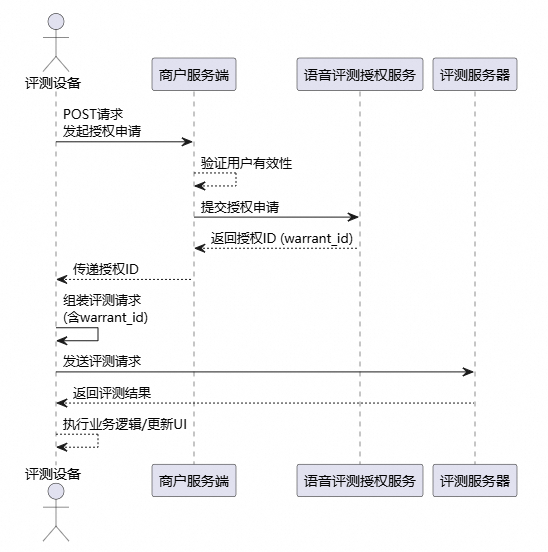

语音评测授权与请求流程

1. 评测设备发起授权申请

   • 评测设备通过向商户服务端发送POST请求来进行评测前的授权申请。

2. 商户服务端验证并申请授权

   • 商户服务端在接收到评测设备的请求后，首先验证用户的有效性。

   • 验证通过后，商户服务端接着向语音评测授权服务提交授权申请。

3. 获取授权ID

   • 语音评测授权服务处理完申请后，会返回一个授权ID (warrant_id) 给商户服务端。这个授权ID可以在有效期内多次使用。

4. 授权ID传递给评测设备

   • 商户服务端收到授权ID后，将其返回给最初的评测设备。

5. 组装并发送评测请求

   • 评测设备根据评测请求接口的要求，组织好JSON格式的数据包。

   • 使用获得的授权ID等信息，评测设备向评测服务器发起正式的评测请求。

6. 接收评测结果

   • 评测服务器对接收到的请求进行处理，并以JSON数据格式返回评测结果给评测设备。

7. 业务呈现

   • 最后，评测设备基于从评测服务器获取到的结果，执行相应的业务逻辑或用户界面更新，完成整个流程。

鉴权接口请求

请求地址

  测试环境
    https://ginger-trial.api.cloud.ssapi.cn/auth/authorize
  通用正式环境
    https://api.cloud.ssapi.cn/auth/authorize
    https://gate-01.api.cloud.ssapi.cn/auth/authorize
    https://gate-02.api.cloud.ssapi.cn/auth/authorize
    https://gate-03.api.cloud.ssapi.cn/auth/authorize
  钉钉云正式环境（非钉钉云请勿使用）
    https://dingtalk-ginger.api.cloud.ssapi.cn/auth/authorize

请求方法

请求参数

签名（request_sign）生成规则

将 appid、timestamp、user_id、user_client_ip、app_secret按照参数名升序排序之后拼接为queryString，然后进行MD5。示例请见下方

返回参数

错误码

示例

请求授权

curl

curl -X POST \
  https://api.cloud.ssapi.cn/auth/authorize \
  -F "appid=your_appid" \
  -F "timestamp=$(date +%s)" \
  -F "user_id=your_user_id" \
  -F "user_client_ip=your_client_ip" \
  -F "request_sign=your_request_sign" \
  -F "warrant_available=7200"

请注意替换上面的参数为实际值，$(date +%s)为获取实时的时间戳。

授权响应

{
  "code": 0,
  "message": "success",
  "data": {
    "warrant_id": "5aec3959f4130352bf067fd21f019",
    "expire_at": 1525430617,
    "timestamp": "1525423417",
    "user_data": {
      "user_id": "HCWAS"
    }
  }
}

请求授权时的签名逻辑示例

PHP

$data = ['appid' => $app_id, 'timestamp' => $timestamp, 'user_id' => $user_id, 'user_client_ip' => $user_client_ip, 'app_secret' => $app_secret];
ksort($data);

$data_kv = [ ];

foreach ($data as $k => $v) {
  array_push($data_kv, $k.'='.$v);
}
$sign_string = implode('&', $data_kv);
$new_sign = md5($sign_string);

JAVA

import java.security.MessageDigest;
import java.util.*;

// Java版本的签名生成代码
Map<String, Object> data = new HashMap<>();
data.put("appid", app_id);
data.put("timestamp", timestamp);
data.put("user_id", user_id);
data.put("user_client_ip", user_client_ip);
data.put("app_secret", app_secret);

List<Map.Entry<String, Object>> list = new ArrayList<>(data.entrySet());
Collections.sort(list, Map.Entry.comparingByKey());

StringBuilder signString = new StringBuilder();
for (Map.Entry<String, Object> entry : list) {
    signString.append(entry.getKey()).append("=").append(entry.getValue().toString()).append("&");
}

String sign = signString.toString().substring(0, signString.length() - 1); // 移除最后一个多余的"&"

try {
    MessageDigest md = MessageDigest.getInstance("MD5");

    byte[ ] digest = md.digest(sign.getBytes());

    StringBuilder hexString = new StringBuilder();

    for (byte b : digest) {
        hexString.append(String.format("%02x", b));
    }

    String newSign = hexString.toString(); // MD5后的签名
} catch (Exception e) {
    e.printStackTrace();
}

Python

from hashlib import md5

def generate_signature(app_id, timestamp, user_id, user_client_ip, app_secret):
  """
  根据给定的参数生成签名字符串。
  """
  params = {'appid': app_id, 'timestamp': str(timestamp),'user_id': user_id, 'user_client_ip': user_client_ip,'app_secret': app_secret}
  sorted_params = dict(sorted(params.items()))
  query_string = '&'.join([f"{k}={v}" for k, v in sorted_params.items()])
  signature = md5(query_string.encode()).hexdigest()
  return signature

# 示例
app_id = 'a111'
timestamp = 1603885321
user_id = 'w9egtDf3PMAOaxZVGSlQUip12no6WCvu'
user_client_ip = '111.111.XXX.XXX'
app_secret = 'wHkC1SMmDLrVO86vcydG2ax4oPYuqiIh'

print(generate_signature(app_id, timestamp, user_id, user_client_ip, app_secret))```

完整版本示例

包含从环境变量读取密钥、地址轮询、签名、获取到授权等整套逻辑

GO 语言

package main

import (
	"bytes"
	"crypto/md5"
	"encoding/hex"
	"encoding/json"
	"fmt"
	"io"
	"mime/multipart"
	"net/http"
	"os"
	"sort"
	"time"
)

func main() {
	appId := os.Getenv("APP_ID")
	appSecret := os.Getenv("APP_SECRET")
	timestamp := fmt.Sprintf("%d", time.Now().Unix())
	userClientIp := "172.26.1.61" // 替换为实际客户端的公网 IP 地址
	userID := "dummyUserId"       // 替换为实际用户 ID

	signature := generateSignature(appId, timestamp, userID, userClientIp, appSecret)
	fmt.Printf("signature=%s\n\n", signature)


	urls := [ ]string{

		//测试环境
		"http://ginger-trial.api.cloud.ssapi.cn:8080/auth/authorize",
		//正式环境
		//"https://api.cloud.ssapi.cn/auth/authorize",
		//"https://gate-01.api.cloud.ssapi.cn/auth/authorize",
		//"https://gate-02.api.cloud.ssapi.cn/auth/authorize",
		//"https://gate-03.api.cloud.ssapi.cn/auth/authorize",
	}
	for _, url := range urls {
		respBody, err := requestAuthorization(url, appId, timestamp, userID, userClientIp, signature)
		if err == nil {

			fmt.Println("Authorization Done")
			// 构建包含授权ID的 JSON 字符串
			var result struct {
				Code int    `json:"code"`
				Msg  string `json:"msg"`
				Data struct {
					WarrantId string `json:"warrant_id"`
					ExpireAt  int64  `json:"expire_at"`
				} `json:"data"`
			}

			// 解析 JSON 数据

			if err := json.NewDecoder(bytes.NewBuffer([ ]byte(respBody))).Decode(&result); err == nil {

				// 打印解析后的数据
				fmt.Printf("状态码: %d\n", result.Code)
				fmt.Printf("状态描述: %s\n", result.Msg)
				fmt.Printf("授权ID: %s\n", result.Data.WarrantId)
				fmt.Printf("授权ID过期时间: %d\n", result.Data.ExpireAt)
			} else {
				// 处理解析错误
				fmt.Printf("解析JSON失败: %v\n", err)
				// 输出 resp.Body 内容作为字符串
				fmt.Printf("响应体内容:%s;;;\n", respBody)
			}
			break
		}
		time.Sleep(time.Second * 2) // 轮询间隔时间
	}
}

func generateSignature(appId, timestamp, userId, userClientIp, appSecret string) string {
	data := map[string]string{
		"appid":          appId,
		"timestamp":      timestamp,
		"user_id":        userId,
		"user_client_ip": userClientIp,
		"app_secret":     appSecret,
	}


	var keys [ ]string

	for key := range data {
		keys = append(keys, key)
	}
	sort.Strings(keys)

	var buf bytes.Buffer
	for _, key := range keys {
		buf.WriteString(key + "=" + data[key] + "&")
	}
	buf.Truncate(buf.Len() - 1) // 删除最后一个多余的"&"

	hash := md5.New()

	hash.Write([ ]byte(buf.String()))


	return hex.EncodeToString(hash.Sum(nil))
}

func requestAuthorization(url, appId, timestamp, userID, clientIp, signature string) (string, error) {
	body := &bytes.Buffer{}
	writer := multipart.NewWriter(body)

	_ = writer.WriteField("appid", appId)
	_ = writer.WriteField("timestamp", timestamp)
	_ = writer.WriteField("user_id", userID)
	_ = writer.WriteField("user_client_ip", clientIp)
	_ = writer.WriteField("request_sign", signature)
	_ = writer.WriteField("warrant_available", "7200")

	err := writer.Close()
	if err != nil {
		return "", err
	}

	req, _ := http.NewRequest("POST", url, body)
	req.Header.Set("Content-Type", writer.FormDataContentType())

	client := &http.Client{}
	resp, err := client.Do(req)
	if err != nil || resp.StatusCode != http.StatusOK {
		return "", err
	}
	bodyBytes, _ := io.ReadAll(resp.Body)
	fmt.Printf("响应体内容:%s;;;\n", string(bodyBytes))
	return string(bodyBytes), err
}

Python语言

import os
import time

import requests
from hashlib import md5

# 获取环境变量中的敏感信息
app_id = os.getenv('APP_ID')
app_secret = os.getenv('APP_SECRET')

# 其他必要参数
timestamp = int(time.time())
user_id = 'your_user_id'
user_client_ip = '192.168.0.1'


# 签名生成函数
def generate_signature(app_id, timestamp, user_id, user_client_ip, app_secret):
    params = {
        'appid': app_id,
        'timestamp': str(timestamp),
        'user_id': user_id,
        'user_client_ip': user_client_ip,
        'app_secret': app_secret
    }

    sorted_params = dict(sorted(params.items()))
    query_string = '&'.join(f'{k}={v}' for k, v in sorted_params.items())
    return md5(query_string.encode()).hexdigest()


signature = generate_signature(app_id, timestamp, user_id, user_client_ip, app_secret)

# 请求URL列表
urls = [
    #
    'http://trial.cloud.ssapi.cn:8080/auth/authorize',
    # 正式环境
    # 'https://api.cloud.ssapi.cn/auth/authorize',
    # 'https://gate-01.api.cloud.ssapi.cn/auth/authorize',
    # 'https://gate-02.api.cloud.ssapi.cn/auth/authorize',
    # 'https://gate-03.api.cloud.ssapi.cn/auth/authorize'
]

# 发送请求并处理响应
for url in urls:
    response = requests.post(
        url=url,
        data={
            'appid': app_id,
            'timestamp': str(timestamp),
            'user_id': user_id,
            'user_client_ip': user_client_ip,
            'request_sign': signature,
            'warrant_available': '7200'
        },
        headers={'Content-Type': 'application/x-www-form-urlencoded'}
    )

    if response.status_code == 200:
        print("原始结果：" + str(response.content))
        result = response.json()

        if result['code'] == 0:
            print(f"warrant_id: {result['data']['warrant_id']}")
            print(f"过期时间: {result['data']['expire_at']}")

            break

JAVA语言

请先引入以下Maven依赖

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.78</version>
</dependency>

package com.alibaba.edu.efec.demo;

import com.alibaba.fastjson.JSONObject;

import java.io.IOException;
import java.net.HttpURLConnection;
import java.net.URL;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.security.MessageDigest;
import java.util.*;

public class TestGetWarrant {


    public static void main(String[ ] args) throws IOException {

        // 获取环境变量中的敏感信息
        String app_id = System.getenv("APP_ID");
        String app_secret = System.getenv("APP_SECRET");

        // 其他必要参数
        long timestamp = System.currentTimeMillis() / 1000L;
        String user_id = "your_user_id";
        String user_client_ip = "192.168.0.1";

        // 签名生成函数
        String signature = generateSignature(app_id, timestamp, user_id, user_client_ip, app_secret);

        // 请求URL列表
        List<String> urls = Arrays.asList(
                "http://trial.cloud.ssapi.cn:8080/auth/authorize"
                // 正式环境
                // "https://api.cloud.ssapi.cn/auth/authorize",
                // "https://gate-01.api.cloud.ssapi.cn/auth/authorize",
                // "https://gate-02.api.cloud.ssapi.cn/auth/authorize",
                // "https://gate-03.api.cloud.ssapi.cn/auth/authorize"
        );

        // 发送请求并处理响应
        for (String urlStr : urls) {
            try {
                HttpURLConnection connection = (HttpURLConnection) new URL(urlStr).openConnection();
                connection.setRequestMethod("POST");
                connection.setDoOutput(true);
                connection.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");

                Map<String, Object> params = new HashMap<>();
                params.put("appid", app_id);
                params.put("timestamp", timestamp);
                params.put("user_id", user_id);
                params.put("user_client_ip", user_client_ip);
                params.put("request_sign", signature);
                params.put("warrant_available", "7200");

                StringBuilder postData = new StringBuilder();
                for (Map.Entry<String, Object> param : params.entrySet()) {
                    if (postData.length() != 0) postData.append('&');
                    postData.append(param.getKey());
                    postData.append('=');
                    postData.append(URLEncoder.encode(String.valueOf(param.getValue()), StandardCharsets.UTF_8.toString()));
                }


                byte[ ] postDataBytes = postData.toString().getBytes(StandardCharsets.UTF_8);

                connection.getOutputStream().write(postDataBytes);

                int status = connection.getResponseCode();

                if (status == 200) {
                    Scanner scanner = new Scanner(connection.getInputStream(), String.valueOf(StandardCharsets.UTF_8));
                    StringBuilder body = new StringBuilder();
                    while (scanner.hasNextLine()) {
                        String line = scanner.nextLine();
                        System.out.println(line);
                        body.append(line);
                    }
                    scanner.close();

                    // 解析JSON响应
                    JSONObject json = JSONObject.parseObject(body.toString());
                    if (json.getInteger("code") == 0) {
                        System.out.println("warrant_id: " + json.getJSONObject("data").getString("warrant_id"));
                        System.out.println("过期时间: " + json.getJSONObject("data").getString("expire_at"));

                        break;
                    }


                } else {
                    throw new RuntimeException("Failed : HTTP error code : " + status);
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }

    private static String generateSignature(String app_id, long timestamp, String user_id, String user_client_ip, String app_secret) {
        Map<String, String> params = new TreeMap<>();
        params.put("appid", app_id);
        params.put("timestamp", Long.toString(timestamp));
        params.put("user_id", user_id);
        params.put("user_client_ip", user_client_ip);
        params.put("app_secret", app_secret);

        StringBuilder queryString = new StringBuilder();
        for (Map.Entry<String, String> entry : params.entrySet()) {
            if (queryString.length() > 0) {
                queryString.append("&");
            }
            queryString.append(entry.getKey()).append("=").append(entry.getValue());
        }

        MessageDigest digest;
        try {
            digest = MessageDigest.getInstance("MD5");

            byte[ ] hash = digest.digest(queryString.toString().getBytes(StandardCharsets.UTF_8));

            StringBuilder hexString = new StringBuilder();
            for (byte b : hash) {
                String hex = Integer.toHexString(0xff & b);
                if (hex.length() == 1) hexString.append('0');
                hexString.append(hex);
            }
            return hexString.toString();
        } catch (Exception ex) {
            throw new RuntimeException(ex);
        }
    }
}
