查看失败原因

您可以通过查看集群的创建事件来查看集群创建失败的原因。

登录 ROS 管理控制台

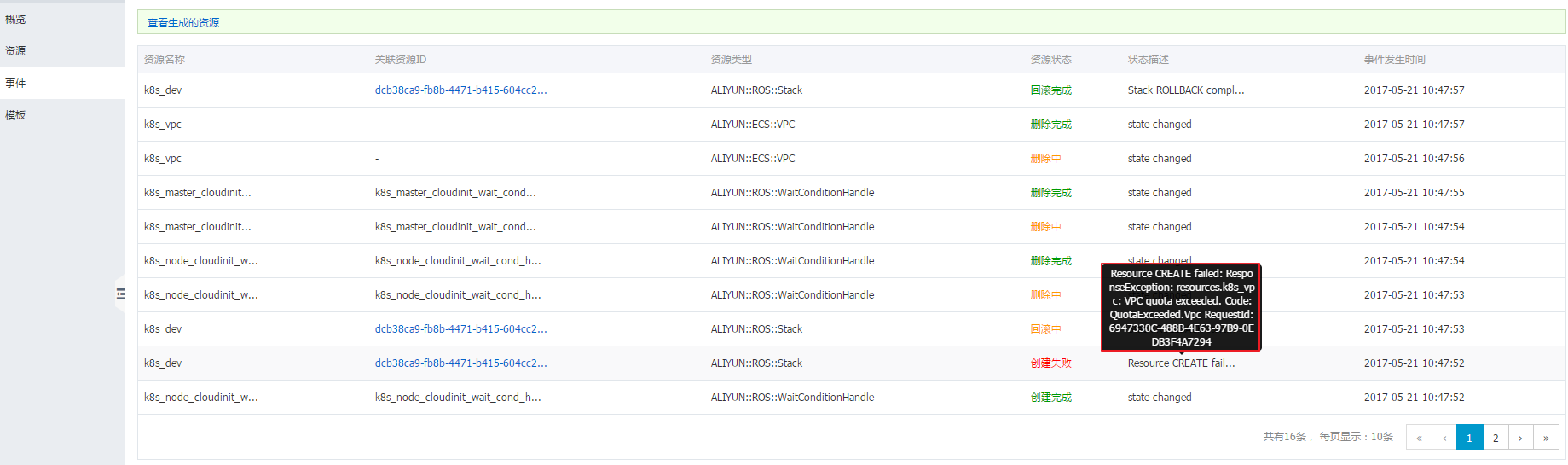

选择集群所在的地域,选择所需的集群并单击右侧的 管理,单击左侧导航栏中的 事件 ,将鼠标移动到失败事件上查看具体的失败报错信息。


上图中的报错信息显示由于 VPC 达到配额导致集群创建失败。

失败异常码及解决方法

  • Resource CREATE failed: ResponseException: resources.k8s_SNat_Eip: Elastic IP address quota exceeded Code: QuotaExceeded.Eip

    解决方法:释放多余的 EIP 或者提交 VPC 工单提高 EIP 限额。

  • Resource CREATE failed: ResponseException: resources.k8s_master_slb_internet: The maximum number of SLB instances is exceeded. Code: ORDER.QUANTITY_INVALID

    解决方法:释放多余的 SLB 实例或者提交 SLB 工单提高 SLB 限额。

  • Resource CREATE failed: ResponseException: resources.k8s_vpc: VPC quota exceeded. Code: QuotaExceeded.Vpc

    解决方法:释放多余的 VPC 或者提交 VPC 工单提高 VPC 限额。

  • Status Code: 403 Code: InvalidResourceType.NotSupported Message: This resource type is not supported;

    解决方法:ECS 没有库存或者类型不支持,请选择其他 ECS 规格重试。

  • Resource CREATE failed: ResponseException: resources.k8s_master_1: The specified image does not support cloud-init. Code: ImageNotSupportCloudInit

    解决方法:使用自定义镜像创建集群,自定义镜像必须是基于最新的 CentOS 镜像。

  • Resource CREATE failed: ResponseException: resources.k8s_nodes: The resource is out of stock in the specified zone. Please try other types, or choose other regions and zones. Code: OperationDenied.NoStock

    解决方法:当前所选实例规格已售罄,请选择其他可用区或实例规格。

  • Resource CREATE failed: ResponseException: resources.k8s_NAT_Gateway: A route entry already exists, which CIDR is '0.0.0.0/0' Code: RouterEntryConflict.Duplicated

    解决方法:当前 VPC 路由表内已存在默认路由,请移除默认路由,或取消勾选为专有网络创建 SNAT后重试。

  • Resource CREATE failed: ResponseException: resources.KubernetesWorkerRole: The number of role is limited to 200. Code: LimitExceeded.Role

    解决方法:RAM 角色数量已达到配额限制,请清理部分角色或提交 RAM 工单提高配额。

  • Resource CREATE failed: ResponseException: resources.k8s_NAT_Gateway: The Account failed to create order. Code: OrderFailed

    解决方法:下单失败,请提交工单咨询。

  • Resource CREATE failed: ResponseException: resources.k8s_master_1: This operation is forbidden by Aliyun RiskControl system. Code: Forbidden.RiskControl

    解决方法:您的账户出现异常,详情请联系客服

  • Resource CREATE failed: ResponseException: resources.k8s_master_slb_internet: Your account does not have enough balance. Code: PAY.INSUFFICIENT_BALANCE

    解决方法:创建按量付费实例需要您账户余额大于100元,请先充值。

  • Resource CREATE failed: ResponseException: resources.k8s_nodes: Your account does not have enough balance. Code: InvalidAccountStatus.NotEnoughBalance

    解决方法:创建按量付费实例需要您账户余额大于100元,请先充值。

  • Resource CREATE failed: WaitConditionFailure: resources.k8s_node_cloudinit_wait_cond: See output value for more details.

    解决方法:配置集群出错,请稍后重试或提交工单咨询。

  • Resource CREATE failed: WaitConditionTimeout: resources.k8s_master1_cloudinit_wait_cond: 0 of 2 received:

    解决方法:配置集群出错,请稍后重试或提交工单咨询。

  • Resource CREATE failed: ResponseException: resources.k8s_master_1: The request processing has failed due to some unknown error. Code: UnknownError

    解决方法:未知错误,请稍后重试或提交工单咨询。

  • Resource CREATE failed: ResponseException: resources.k8s_nodes: The request processing has failed due to some unknown error. Code: UnknownError

    解决方法:未知错误,请稍后重试或提交工单咨询。
