On Alibaba Cloud Linux 3, network packet loss can occur when a container's memory is exhausted. This document explains why this happens and provides two mitigation methods.
Problem description

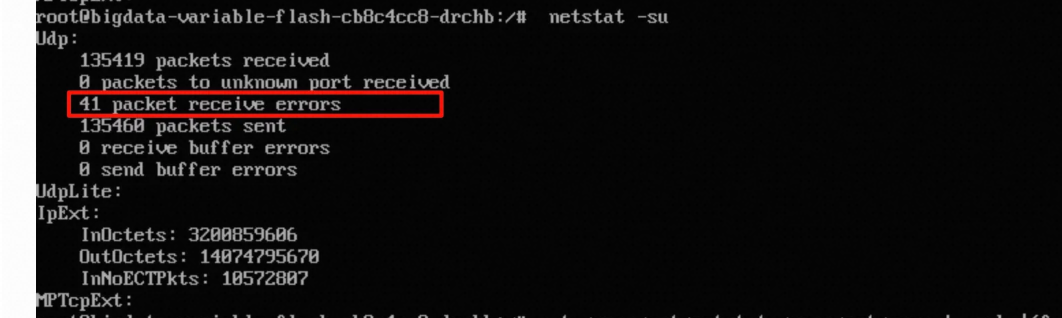

When an application container's memory is exhausted on Alibaba Cloud Linux 3, the container may experience network packet loss, as shown in the following example:
Cause
The Linux kernel allocates memory for network packets using a non-blocking approach within a software interrupt context. Because the kernel cannot wait for memory to become available in this context, it must either allocate immediately or fail.
When a container's memory is exhausted, the kernel does not reclaim the container's reclaimable cache in the software interrupt context. Because the allocation cannot block and no cache is reclaimed, the allocation fails, which causes packet loss.
Scope
All kernel versions of Alibaba Cloud Linux 3.
Solution
This is not a kernel issue and no patch is available. Use one of the following methods to address the problem.
Choose a solution
| Method 1: Enable async background reclaim | Method 2: Upgrade to Alibaba Cloud Linux 4 | |
|---|---|---|
| How it works | Asynchronously reclaims the Memory Control Group (Memcg) cache before memory is exhausted | Allows the kernel to request memory from the system's reserved pool when a container's memory is exhausted |
| Disruption | No OS upgrade required | Requires upgrading the operating system |
| When to use | Container memory pressure is frequent but an OS upgrade is not feasible | Long-term fix when an OS upgrade is acceptable |
| Limitation | Cache reclaim may not converge fast enough under heavy memory pressure | The allocation succeeds only if the reserved memory is enough |
Method 1: Enable asynchronous background reclaim for Memcg
Enable the asynchronous background reclaim for Memcg feature to dynamically reclaim cache before memory exhaustion occurs.
This feature reclaims cache at the Memcg level.
Method 2: Upgrade to Alibaba Cloud Linux 4
Upgrade to Alibaba Cloud Linux 4. In later versions of the Linux kernel, memory for network packets is still allocated in a non-blocking manner, but the kernel can request memory from the system's reserved pool. The allocation succeeds if the reserved memory is enough.
