Configure a usage cap for Alibaba Cloud CDN-CDN(CDN)-阿里云帮助中心

Configure a usage cap to limit the bandwidth, traffic, or HTTPS requests for an accelerated domain name. This prevents unexpected charges caused by traffic spikes or malicious attacks.

Background

When you use Alibaba Cloud CDN to accelerate your services, you may encounter the following issues:

Sudden traffic surges: Your website or application traffic can spike due to trending topics or other events, causing CDN bandwidth or traffic to far exceed normal levels and resulting in high costs.
Malicious traffic attacks: Your services are targeted by a CC attack or DDoS attack. Attackers generate a massive volume of requests or consume significant bandwidth, disrupting your operations and causing major financial losses.

To help you control costs and manage risks, Alibaba Cloud CDN provides the usage cap feature. You can set a threshold for the bandwidth, traffic, or number of HTTPS requests for an accelerated domain name. When usage in a statistical period reaches your configured threshold, CDN automatically takes the domain name offline to suspend acceleration and prevent further costs.

Feature overview

The usage cap feature includes three modes: bandwidth cap, traffic cap, and HTTPS requests cap. When a cap rule is triggered, the domain name is automatically taken offline. The service resumes after the specified unblocking time.

Traffic cap

Monitors accumulated traffic for a domain name over a specified period. The cap is triggered when the total traffic exceeds your threshold. This mode is ideal for the pay-by-traffic billing model.

Parameter	Description
Statistical period	The period over which traffic usage is accumulated and compared with the threshold. Valid values: Every 5 minutes, Every hour, Before 24:00 of the current day, or This month.
Threshold	The maximum total traffic allowed within one statistical period. If the accumulated traffic exceeds this threshold, the domain name is taken offline. Value range: 1 MB to 10,000 TB.
Unblocking time	The wait time before the domain name is automatically brought back online after the cap is triggered.

Bandwidth cap

Monitors the bandwidth of a domain name. The cap is triggered when bandwidth exceeds your threshold. This mode is ideal for the pay-by-peak-bandwidth billing model, as it controls the upper limit of your billable bandwidth.

Parameter	Description
Threshold	The bandwidth cap for the domain name. If the bandwidth within a statistical period exceeds this threshold, the domain name is taken offline. Value range: 1 Mbit/s to 1 Tbit/s.
Unblocking time	The wait time before the domain name is automatically brought back online after the cap is triggered. Valid values: 5 minutes, 1 hour, 1 day, 1 month, or Never.

HTTPS requests cap

Monitors the accumulated number of HTTPS requests for a domain name over a specified period. The cap is triggered when the total requests exceed your threshold. This mode is useful for controlling HTTPS request costs within a fixed budget.

Parameter	Description
Statistical period	The period over which the number of HTTPS requests is accumulated and compared with the threshold. Valid values: Every 5 minutes, Every hour, Before 24:00 of the current day, or This month.
Threshold	The maximum total number of HTTPS requests allowed within one statistical period. If the accumulated requests exceed this threshold, the domain name is taken offline. Value range: 1 million to 10 billion requests.
Unblocking time	The wait time before the domain name is automatically brought back online after the cap is triggered.

Usage notes

Monitoring data latency: Usage monitoring data has a latency of about 10 minutes. The system takes the domain name offline about 10 minutes after usage reaches the threshold. You are billed for all traffic, bandwidth, and requests consumed during this delay.
Careful threshold evaluation: When a usage cap is triggered, the domain name goes offline and all CDN requests fail. To avoid disrupting normal operations, set a reasonable threshold based on historical usage data and expected growth.
Automatic unblocking logic: After a domain name is taken offline by a usage cap, the system starts a countdown based on the unblocking time you configured. The system brings the domain name back online when the countdown ends, even if you manually brought it online earlier. To keep the domain name offline permanently after a cap is triggered, delete the usage cap configuration.
Deleting a configuration vs. disabling the switch: A usage cap policy remains active as long as its configuration record exists. Disabling the switch does not stop the policy from being enforced. To completely remove a usage limit, go to the usage cap configuration page and delete the corresponding configuration.

Procedure

On the Domain Names page, find the domain name that you want to manage and click Manage in the Actions column.
In the domain's navigation pane, click Traffic Throttling.
On the Usage Cap tab, select the cap policy that you want to configure.
Click Modify Configuration and select a suitable statistical period, threshold, and unblocking time. For more information about the parameters, see Feature overview.
Click OK. The cap rule is created and takes effect immediately.

To delete an existing cap configuration, on the Usage cap tab, find the cap policy (Traffic Cap, Bandwidth Cap, or HTTPS Requests Cap) that you want to remove and click Delete. In the confirmation dialog box, click OK. The cap configuration is then deleted, and the system no longer enforces a limit for that usage metric.

Important

You must delete the corresponding cap configuration record to ensure the usage limit is completely removed.

Offline behavior and recovery

When a domain name is taken offline because a usage cap is triggered:

DNS resolution for the domain name may point to an invalid address, such as offline.*.kunlun*.com, or return a 614 status code. As a result, your website becomes inaccessible.
In the list of domain names in the CDN console, the status of the domain name changes to Disabled.

You can restore the service in either of the following ways:

Wait for automatic recovery: The system starts a countdown based on your configured unblocking time. The domain name is brought back online when the countdown ends.
Manually enable the domain name: To restore service sooner, find the domain name in the CDN console and click the Actions button in the Actions column.

Note

If you want the domain name to remain offline after a cap is triggered, delete the usage cap configuration.

FAQ

Bandwidth exceeding the cap

Usage incurred during this delay, including traffic, bandwidth, and requests, is billed normally. The following examples illustrate this:

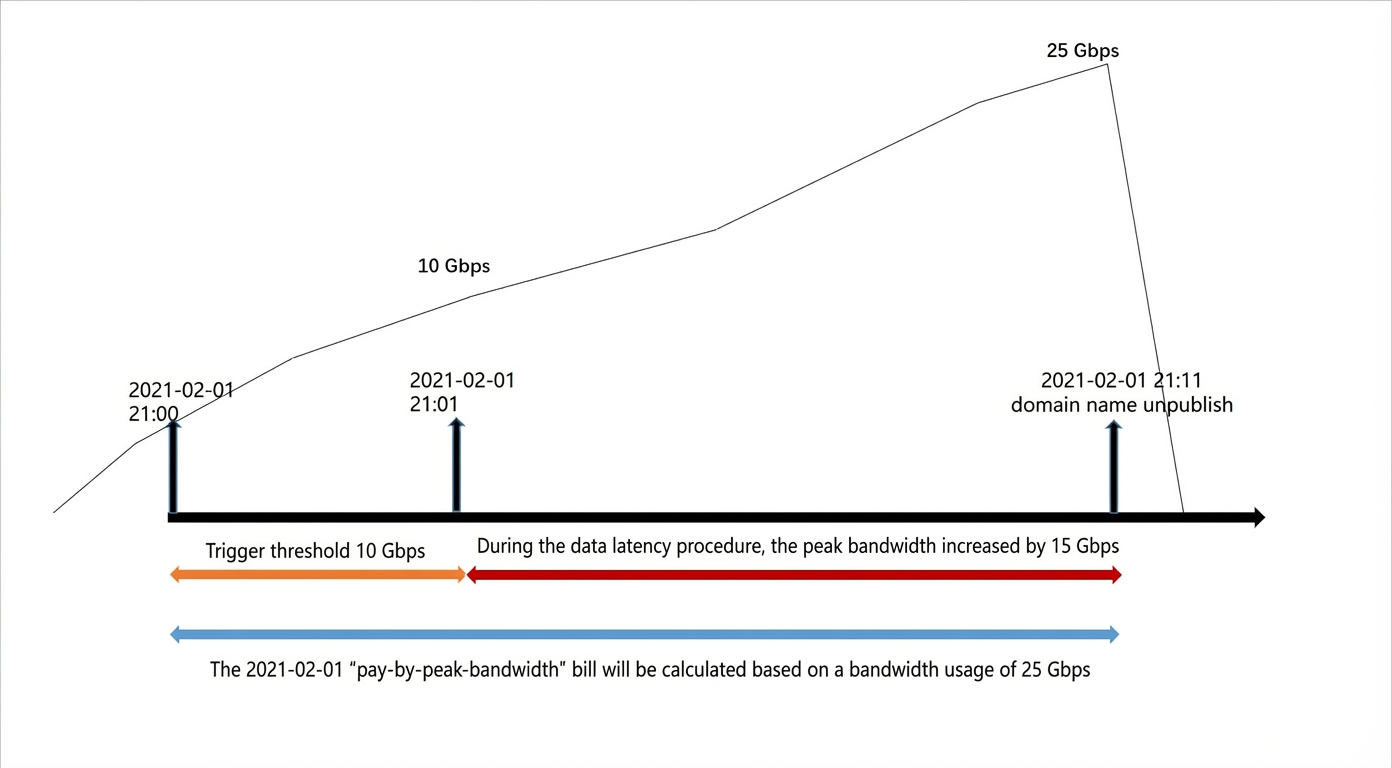

Example 1 (pay-by-peak-bandwidth):
Customer A uses the pay-by-peak-bandwidth billing method, adds only the domain name example.com, and enables the bandwidth cap feature. The bandwidth cap is set to 10 Gbps.
Between 21:00 and 21:01 on February 1, 2021, the bandwidth suddenly surges past 10 Gbps. Due to the monitoring delay, the domain name is not taken offline until around 21:11. During this delay, the peak bandwidth reaches 25 Gbps. As a result, the pay-by-peak-bandwidth bill for February 1, 2021, is calculated based on the recorded peak bandwidth of 25 Gbps.

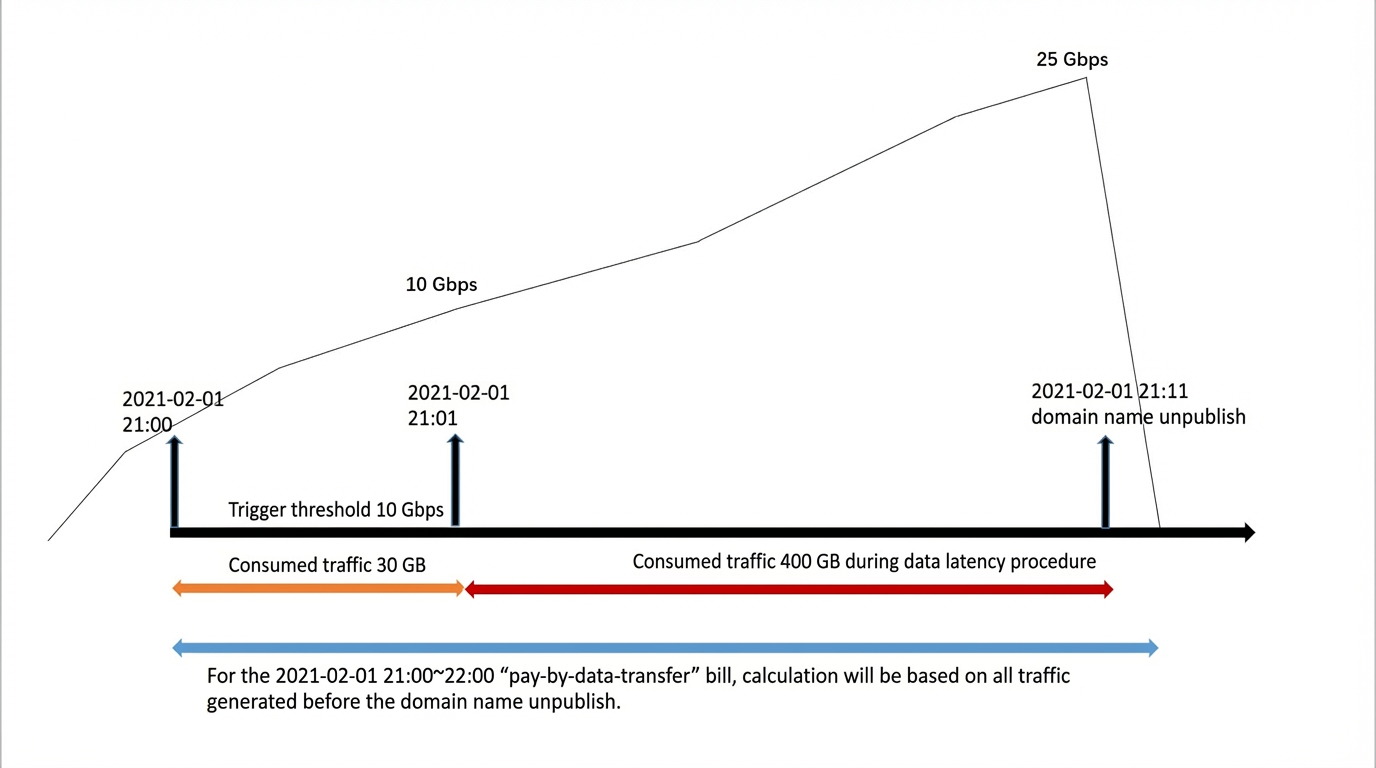

Example 2 (pay-by-traffic):
Customer B uses the pay-by-traffic billing method, adds only the domain name example.com, and enables a bandwidth cap for the domain name. The bandwidth cap is set to 10 Gbps.
Between 21:00 and 21:01 on February 1, 2021, the bandwidth suddenly surges past 10 Gbps, consuming 30 GB of traffic. Due to the monitoring delay, the domain name is not taken offline until around 21:11. During the delay, an additional 400 GB of traffic is consumed. All traffic that is generated by example.com before it is taken offline is included in the pay-by-traffic bill for the 21:00 to 22:00 period on February 1, 2021.

Domain remains offline

If your domain name is still offline after you delete or disable a usage cap configuration, check the following possible causes:

Conflict with legacy bandwidth cap rules: Your domain name may have legacy bandwidth cap rules (alert rules in CloudMonitor) configured. When a legacy rule is triggered, it also takes the domain name offline. Legacy rules cannot be modified and can only be deleted. Go to the CloudMonitor console to check for and delete any legacy bandwidth cap rules. Retain only the new usage cap configuration.
The usage cap configuration was not completely deleted: Confirm that you have deleted the usage cap configuration instead of only disabling it.
The domain name requires manual enabling: After a domain name is taken offline, you must manually enable it in the CDN console or wait for the configured unblocking time to be reached before access is restored.

Per-IP limits

No. The usage cap feature applies to the total usage for a domain name, not to individual IP addresses. To implement rate limiting for specific client IPs, use the WAF frequency control feature of Edge Security Acceleration (ESA).

Limits for a single IP

No, usage caps apply to an entire domain name. To control access from individual client IPs, use the WAF frequency control feature in Edge Security Acceleration (ESA), which can block requests from an IP that exceed a frequency threshold, returning a 403 status code.

Troubleshooting frequent offline issues

If your CDN domain name is frequently taken offline or suddenly becomes inaccessible, follow these steps to troubleshoot the issue:

Check the usage cap configuration: Log on to the CDN console. On the Domain Names page, find the target domain name, click Manage, and then navigate to the Traffic Throttling > Usage Cap page. Check whether a bandwidth, traffic, or HTTPS requests cap policy is configured and whether a threshold has been triggered. You can also check operation records to confirm whether a cap has been triggered.
Check for legacy bandwidth cap rules: Check whether legacy bandwidth cap rules (CloudMonitor alert rules) are in conflict with the new usage cap policies.
Investigate abnormal traffic: If you suspect an abnormal traffic attack, you can view offline logs in the console or enable Operations Reports to analyze Top IP and Top Referer sources. If you identify abnormal IP addresses, you can configure an IP blacklist/whitelist. If traffic is being consumed by malicious requests with an empty referer, you can configure referer anti-leech. For more advanced protection, consider upgrading to ESA.

Avoiding overage charges

CDN does not support stopping service when a resource plan is exhausted. The system automatically switches to pay-as-you-go billing, which cannot be directly disabled.

To avoid high pay-as-you-go charges after your resource plan is exhausted:

Configure a usage cap: Set a reasonable bandwidth or traffic threshold. When usage reaches the threshold, the domain name is taken offline to prevent further charges.
Set alerts for your resource plan: Configure an alert for when your resource plan drops to a specific remaining amount, such as 10 GB, so you can take timely action. Note that resource plan alerts may be delayed. You might incur overage charges before you receive a notification.

Setting a reasonable threshold

There is no universal default threshold. You must determine a reasonable threshold based on your actual business scale. Follow these steps:

Log on to the CDN console. In the left-side navigation pane, choose Usage to view your usage data for the last seven days.
Use your historical peak usage as a baseline and add a buffer. This helps prevent normal services from being suspended due to a low threshold.
The reference range for the threshold varies based on the business type:
- For small and medium-sized websites, the hourly traffic typically ranges from a few gigabytes to tens of gigabytes.
- For high-traffic services such as video streaming and file downloads, the traffic may reach the terabyte level.

Important

If the threshold is set too low, normal traffic can trigger the cap and take the domain name offline, making it inaccessible to all users. Evaluate the threshold based on actual business data.

Viewing offline records

You can view offline records in the following ways:

Log on to the CDN console, go to domain name management, find the target domain name, and then navigate to the Traffic Throttling page to view the current configurations and status of each cap policy.
To view detailed operation records, including the specific time when the domain name was disabled and the cause, go to the operation audit console to query CDN-related operational events.

Pricing and impact

The usage cap feature, including bandwidth cap, traffic cap, and HTTPS requests cap, is free of charge.

When the usage of a domain name within a statistical period exceeds your threshold, CDN stops accelerating the domain name and takes it offline. All requests to the domain name are blocked, making the website unavailable. This prevents high costs by suspending the service.

After the domain name is taken offline, it is automatically restored based on your configured unblocking time. To restore the service sooner, manually enable the domain name on the Domain Names page of the CDN console.
