This topic describes how to obtain a token from the three major carriers in China and describes the interaction flow.

Interaction flow

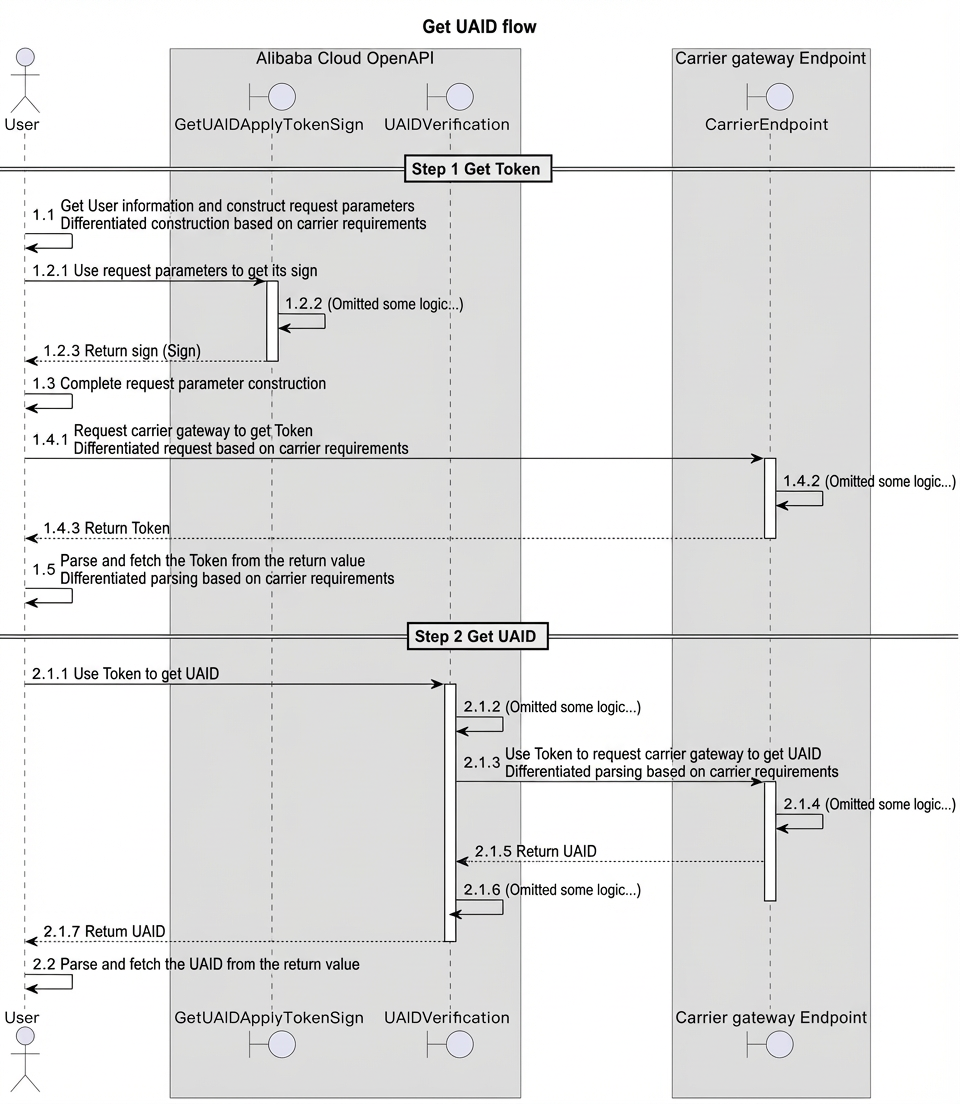

The following figure shows the process for China Mobile, China Unicom, and China Telecom users to obtain a token.

Token acquisition methods

Obtaining a token for mobile users

Communication protocol	Method	Access address
HTTPS+application/Json	POST	https://msg.cmpassport.com/h5/getMobile

Request parameters

Parameter	Description	Sample value
traceId	The external serial number. This must be the same as the value of the OutId input parameter for the `GetUAIDApplyTokenSign` operation.	mfawsxtcmyplwzpayzzvdvbsowxmkynr
appId	Use `300012406312`.	300012406312
sign	Obtain this by calling the `GetUAIDApplyTokenSign` operation.	2c61b3c58ffbeed97461e31be4fd931a
msgId	The external serial number. This must be the same as the value of the OutId input parameter for the `GetUAIDApplyTokenSign` operation.	redbyxsdetddwaaffajcwwapspykftzx
businessType	Use `3`.	3
version	Use `1.0`.	1.0
timestamp	The system time when the request message is sent, accurate to the millisecond. This must be the same as the value and format of the Time input parameter for the `GetUAIDApplyTokenSign` operation.	20201125101540980

Response parameters

Parameter	Description	Example
appId	Corresponds to the AppId in the request message.	300012406312
msgId	Corresponds to the msgId in the request message.	redbyxsdetddwaaffajcwwapspykftzx
timestamp	The system time when the response message is sent.	20201125101607932
resultCode	The return code of the API.	103000
resultDesc	Process Status Code	Success
token	Returned on success. The identity.	H5HTTPS4187AE9743AFCB14F8D99B9D65ED9E01

Obtain a token for China Unicom users

For China Unicom users, obtaining a token is a two-step process. The API supports calls in JSON and JSONP formats.

Step 1: Obtain the authentication server address

Communication protocol	Method	Access address
HTTPS + application/Json	GET	https://nisportal.10010.com:9001/api

Request parameters

Parameter	Description	Example
appid	Use `1554778161153`.	1554778161153
callback	The name of the JSONP callback function. This parameter is required only when you use the `jsonp` format.	callbackFunction

Response parameters

Parameter name	Description	Example
authurl	The authentication server address.	https://enrichgw.10010.com/d93222629f52ec79

Step 2: Obtain the token

Communication protocol	Method	Access address
HTTPS + application/Json	GET	${authurl}+"/api"

Request parameters

Parameter name	Description	Example
appid	Use `1554778161153`.	1554778161153
callback	The name of the JSONP callback function. This parameter is required only when you use the `jsonp` format.	callbackFunction

Response parameters

Parameter name	Description	Example
province	The province ID.	1
code	The authentication code. A 32-character string.	7nHS1nggx2WP613750206700RN6oiRN1

The value of the code parameter is the token.

Obtain a token for China Telecom users

Communication protocol

Method

Access address

HTTPS+application/x-www-form-urlencoded;

charset=UTF-8

GET

https://id6.me/gw/preuniq.do

Request parameters

Parameter Name	Description	Example
clientType	The client type. This must be the same as the value of the `ClientType` input parameter for the `GetUAIDApplyTokenSign` operation. Enumeration values: Android: 30100 iOS: 30300 H5: 20200 WEB: 10010	30100
appId	Use `9390188202`.	9390188202
format	The request format. This must be the same as the value of the `Format` input parameter for the `GetUAIDApplyTokenSign` operation. Enumeration values: json jsonp	jsonp
sign	Obtain this by calling the `GetUAIDApplyTokenSign` operation.	D63C166FA19E1996EF********09C6A5397C10B4
paramKey	The ciphertext of key A. Key A is a 16-character random string generated by the access client. `paramKey = RSA1024("${Key A}", "${China Telecom Account Platform Public Key}")`. The padding pattern is `RSA/ECB/PKCS1Padding`. Download the China Telecom RSA public key.	paramKey=1D7C25EB8B0B8B4CB3CF8DC60628F6549******786B0AF1FEF93FA1335057A35BF5F0B39A3867EAA9BE14B3898****8B01DE34965060445B6E1F66401D714650E4AB161CD6DCF4A72****3B856F22A192B8B0C39D7A55B961062E68C89C928894F119B25******7C548355FE9DB82852EB93C939F2200B48CD17
paramStr	The ciphertext of the private request parameters. `paramStr = AES("timeStamp=${timeStamp}&callback=${callback}", "${Key A}")`. The padding pattern is `AES/CBC/PKCS5Padding`, and the initialization vector is `0000000000000000`. timeStamp is a timestamp accurate to the millisecond. It corresponds to the value of the Time input parameter for the `GetUAIDApplyTokenSign` operation, but the format is different. Example: `1697791988302`. callback is the callback method used for the `jsonp` format. This is required only when format is set to `jsonp`.	140******95AF8E138B94754CB4CF83BA6FB******52B258BFDFD38BF233
version	Use `1.1`.	1.1

Response parameters

Parameter	Description	Example
result		10000
msg		success
data	The encrypted response data. `data = AES(Response Result, Key A)`. Use Key A to perform AES decryption (AES/CBC/PKCS5Padding).	a35336711c70456cb883f4f224e9a259
accessCode	The decrypted response data. Obtain the value of `accessCode`.	H5HTTPS4187AE9743AFCB14F8D99B9D65ED9E01
