Get container configuration recommendations with resource profiling

Billing

ack-koordinator is free to install and use. However, additional charges may apply in the following scenarios:

• After installation, ack-koordinator requests two ACS general-purpose pods. You can configure the resource requests for each module when you install the component.

• By default, ack-koordinator exposes monitoring metrics for features such as resource profiling in Prometheus format. If you enable the Enables Prometheus metrics for ACK-Koordinator option during configuration and use Managed Service for Prometheus, these metrics are considered custom metrics and will incur charges. The fees depend on factors such as your cluster size and the number of applications. Before enabling this feature, review the Billing documentation for Managed Service for Prometheus to understand the free quota and billing policy for custom metrics. Use Query the amount of observable data and bills to monitor and manage your resource usage.

Requirements

Use resource profiling in the console

Step 1: Enable resource profiling

1. Log on to the ACS console. In the left navigation pane, click Clusters.

2. On the Clusters page, click the name of the target cluster. In the left navigation pane, choose Cost Suite > Cost Optimization.

3. On the Cost Optimization page, click the Resource Profiling tab. Then, in the Resource Profiling section, follow the on-screen instructions to enable the feature.

   • Install or update the component: Follow the on-screen instructions to install or update the ack-koordinator component. You must install the ack-koordinator component the first time you use resource profiling.

   • Profiling configuration: If this is your first time using resource profiling, select Default Settings to define the scope after the component is installed or updated. You can modify the settings later by clicking Profiling Configuration in the console.

4. Click Enable Resource Profiling to open the Resource Profiling page.

Step 2: Configure resource profiling

1. On the Cost Optimization page, click the Resource Profiling tab, and then click Profiling Configuration.

   You can choose between Global Configuration and Custom Configuration modes. The Global Configuration mode is the default recommendation during component installation. You can modify the mode and parameters here. After you complete the configuration, click OK to apply the changes.

   Global configuration (recommended)

   The Global Configuration mode enables resource profiling for all workloads but excludes the arms-prom and kube-system namespaces by default. In the Profiling Configuration dialog box, click the Global Configuration or Custom Configuration tab and set the parameters.

   Parameter	Description	Values
   Excluded Namespace	Specifies the namespaces where resource profiling is disabled. These are typically namespaces for system components. The final scope is the intersection of the enabled namespaces and workload types.	You can select one or more existing namespaces in the cluster. By default, kube-system and arms-prom are selected.
   Workload Type	Specifies the workload types to profile. The final scope is the intersection of the enabled namespaces and workload types.	Kubernetes-native workloads are supported, including Deployment, StatefulSet, and DaemonSet. You can select multiple types.
   CPU/memory resource buffer	The safety buffer used to generate resource profile recommendations. For more information, see the description below.	The value must be a non-negative number. Three common buffer percentages are provided: 70%, 50%, and 30%.

   Custom configuration

   The Custom Configuration mode enables resource profiling only for workloads in specific namespaces. If your cluster is large (for example, with more than 1,000 nodes) or you want to enable resource profiling for only a subset of workloads, you can use this mode to specify the scope as needed. In the Profiling Configuration dialog box, click the Custom Configuration tab, configure the following parameters, and then click OK.

   Parameter	Description	Values
   Enabled namespaces	The namespaces for which to enable resource profiling. The final scope is the intersection of the enabled namespaces and workload types.	You can select one or more existing namespaces in the cluster.
   Workload type	The types of workloads for which to enable resource profiling. The final scope is the intersection of the enabled namespaces and workload types.	The supported Kubernetes-native workloads are Deployment, StatefulSet, and DaemonSet. You can select multiple types.
   CPU/memory resource buffer	The safety buffer used to generate resource profile recommendations. For more information, see the description below.	The value must be a non-negative number. Three common buffer percentages are provided: 70%, 50%, and 30%.

   Note

   Resource consumption buffer: When estimating application capacity (for example, QPS), administrators typically do not plan for 100% physical resource utilization. This accounts for both physical resource limitations, such as hyper-threading, and the application's need to reserve resources for peak loads. The console suggests a downgrade when the gap between the profile value and the original resource request exceeds the specified buffer. For information about the algorithm, see the description of profile recommendations in the application profile overview.

Step 3: View the profile overview

1. After you configure the resource profiling policy, you can view the resource profile of each workload on the Resource Profiling page.

   To ensure accurate results, the system must collect at least 24 hours of data. When you use resource profiling for the first time, a message on the page indicates Time remaining for data collection: 24 hours. Because newly created profiles have limited data, we recommend waiting for at least one day to ensure the workload runs stably and that data covering both peak and off-peak traffic is collected.

2. The following table provides an overview of the profile and describes each column.

   Note

   A hyphen (-) in the following table indicates that the item is not applicable.

   Column	Description	Values	Filterable
   Workload name	The name of the workload (Name).	-	Yes. You can search for a workload by its exact name in the search bar at the top.
   Namespace	The namespace of the workload (Namespace).	-	Yes. By default, the kube-system namespace is excluded from the filter conditions.
   Workload type	The type of the workload.	Valid values: Deployment, DaemonSet, and StatefulSet.	Yes. By default, all types are selected.
   CPU request	The CPU request for the workload's Pods.	-	No
   Memory request	The memory request for the workload's Pods.	-	No
   Profile data status	The status of the workload's resource profile.	Collecting: The resource profile has just been created and has limited data. When you first use this feature, we recommend waiting for at least one day to ensure the workload runs stably and data covering both peak and off-peak traffic is collected. Normal: The resource profile has been generated. Workload Deleted: The corresponding workload has been deleted. The system automatically deletes the profile result after a retention period.	No
   CPU profile, memory profile	Right-sizing recommendations for the workload's original resource request. The recommendations are based on the profile value, original resource request, and the configured resource buffer.	The values include Upgrade, Downgrade, and Maintain. The percentage indicates the deviation magnitude, calculated by the formula: Abs(Profile Value - Original Request) / Original Request.	Yes. By default, the filter includes Upgrade and Downgrade.
   Creation time	The time when the profile result was created.	-	No
   Change resource configuration	After evaluating the profile results and recommendations, click Change Resource Configuration to upgrade or downgrade resources. For more information, see Step 5: Change application resource specifications.	-	No

   Note

   Alibaba Cloud resource profiling generates a profile value for each container's resource specification. The console suggests actions, such as an upgrade or downgrade, by comparing the profile value (Recommend), the original resource request (Request), and the configured resource buffer (Buffer). If a workload has multiple containers, the suggestion is based on the container with the largest deviation. The calculation logic is as follows.

   • If the profile value (Recommend) is greater than the original resource request (Request), the container is consistently using more resources than requested. This poses a stability risk, and you should increase the resource specification promptly. The console displays an "Upgrade" suggestion.

   • If the profile value (Recommend) is less than the original resource request (Request), the container may have some degree of resource waste, and you can reduce the resource specification. This decision must also consider the configured resource buffer.

     1. Calculate the target resource specification (Target) based on the profile value and the configured buffer: Target = Recommend * (1 + Buffer)

     2. Calculate the deviation (Degree) of the target specification from the original request: Degree = 1 - Request / Target

     3. The system generates a CPU and memory suggestion based on the profile value and the deviation (Degree). If the absolute value of Degree is greater than 0.1, the console suggests a "Downgrade" recommendation.

   • In other cases, the suggested action for the application resource specification is Maintain, which means no immediate adjustment is needed.

Step 4: View profile details

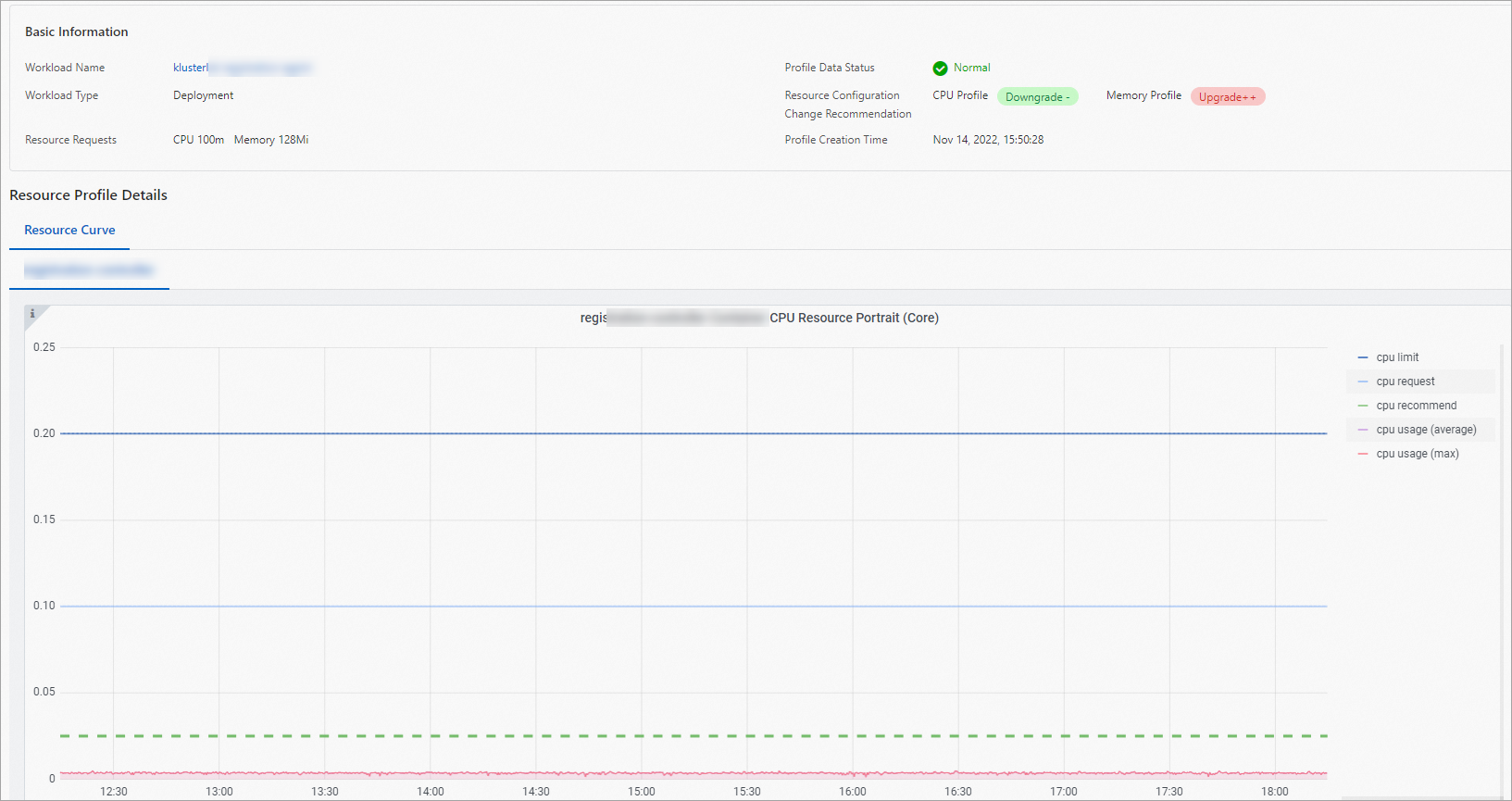

1. On the Resource Profiling page, click a workload name to go to its Resource Profile Details page.

   The details page includes three sections: basic workload information, resource profile curves for each container, and a panel for changing the application's resource specifications. As shown in the preceding figure, the following table describes the metrics for these curves, using CPU as an example.

   Curve name	Description
   cpu limit	The CPU resource limit of the container.
   cpu request	The CPU resource request of the container.
   cpu recommend	The recommended CPU resource value for the container based on its profile.
   cpu usage (average)	The average CPU usage across all container replicas in the workload.
   cpu usage (max)	The maximum CPU usage among all container replicas in the workload.

Step 5: Change resource specifications

Use resource profiling with the CLI

Step 1: Enable resource profiling

1. Create a file named recommendation-profile.yaml with the following content to enable resource profiling for your workloads.

   You can create a RecommendationProfile custom resource (CR) to enable resource profiling for a workload and get resource configuration recommendations for its containers. A RecommendationProfile CR lets you define the scope by namespace and workload type. The feature applies only to workloads that match both criteria.

   apiVersion: autoscaling.alibabacloud.com/v1alpha1
   kind: RecommendationProfile
   metadata:
     # The name of the object. For non-namespaced objects, do not specify a namespace.
     name: profile-demo
   spec:
     # The workload types for which to enable resource profiling.
     controllerKind:
     - Deployment
     # The namespaces for which to enable resource profiling.
     enabledNamespaces:
     - default

   The following table describes the parameters.

   Parameter	Type	Description
   metadata.name	String	The name of the object. Since RecommendationProfile objects are non-namespaced, you do not need to specify a namespace.
   spec.controllerKind	String	The workload types for which to enable resource profiling. Valid values: Deployment, StatefulSet, and DaemonSet.
   spec.enabledNamespaces	String	The namespaces for which to enable resource profiling.

2. Run the following command to apply the profile:

   kubectl apply -f recommendation-profile.yaml

3. Create a file named cpu-load-gen.yaml with the following content.

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: cpu-load-gen
     labels:
       app: cpu-load-gen
   spec:
     replicas: 2
     selector:
       matchLabels:
         app: cpu-load-gen-selector
     template:
       metadata:
         labels:
           app: cpu-load-gen-selector
       spec:
         containers:
         - name: cpu-load-gen
           image: registry.cn-zhangjiakou.aliyuncs.com/acs/slo-test-cpu-load-gen:v0.1
           command: ["cpu_load_gen.sh"]
           imagePullPolicy: Always
           resources:
             requests:
               cpu: 8 # The CPU request for this application is 8 cores.
               memory: "1Gi"
             limits:
               cpu: 12
               memory: "2Gi"

4. Run the following command to deploy the cpu-load-gen application.

   kubectl apply -f cpu-load-gen.yaml

5. Run the following command to get the resource configuration recommendations.

   kubectl get recommendations -l \
     "alpha.alibabacloud.com/recommendation-workload-apiVersion=apps-v1, \
     alpha.alibabacloud.com/recommendation-workload-kind=Deployment, \
     alpha.alibabacloud.com/recommendation-workload-name=cpu-load-gen" -o yaml

   Note

   For accurate results, wait at least 24 hours for sufficient data collection.

   ack-koordinator generates a resource recommendation for each enabled workload and stores it in a Recommendation CR. The following example shows the Recommendation CR for the cpu-load-gen workload.

   apiVersion: autoscaling.alibabacloud.com/v1alpha1
   kind: Recommendation
   metadata:
     labels:
       alpha.alibabacloud.com/recommendation-workload-apiVersion: apps-v1
       alpha.alibabacloud.com/recommendation-workload-kind: Deployment
       alpha.alibabacloud.com/recommendation-workload-name: cpu-load-gen
     name: f20ac0b3-dc7f-4f47-b3d9-bd91f906****
     namespace: recommender-demo
   spec:
     workloadRef:
       apiVersion: apps/v1
       kind: Deployment
       name: cpu-load-gen
   status:
     recommendResources:
       containerRecommendations:
       - containerName: cpu-load-gen
         target:
           cpu: 4742m
           memory: 262144k
         originalTarget: # This is an intermediate result from the resource profiling algorithm. We recommend that you do not use it directly.
          # ...

   For easy retrieval, the Recommendation CR is created in the same namespace as the workload. It includes labels for the workload's API version, type, and name. The following table describes these labels.

   Label key	Description	Example
   alpha.alibabacloud.com/recommendation-workload-apiVersion	The API version of the workload. Forward slashes (/) are replaced with hyphens (-) to comply with Kubernetes label syntax.	app-v1 (originally app/v1)
   alpha.alibabacloud.com/recommendation-workload-kind	The type of the workload, such as Deployment or StatefulSet.	Deployment
   alpha.alibabacloud.com/recommendation-workload-name	The name of the workload. In compliance with Kubernetes label specifications, the name cannot exceed 63 characters.	cpu-load-gen

   The resource profiling results for each container are stored in status.recommendResources.containerRecommendations. The following table describes the fields.

   Parameter	Description	Format	Example
   containerName	The name of the container.	string	cpu-load-gen
   target	The resource profiling results, including recommendations for CPU and memory.	map[ResourceName]resource.Quantity	cpu: 4742m memory: 262144k
   originalTarget	Contains an intermediate result from the resource profiling algorithm. Do not use this value directly.	-	-

   Note

   The minimum recommended CPU is 0.025 core and the minimum recommended memory is 250 MB per container.

   Comparing the declared resources in the cpu-load-gen application with the profiling results shows that the CPU request is overprovisioned. You can reduce the request to save cluster resources.

   Category	Original configuration	Recommended configuration
   CPU	8 cores	4.742 cores

(Optional) Step 2: View results in Prometheus

# The CPU resource profile for a container in the specified workload.
koord_manager_recommender_recommendation_workload_target{exported_namespace="$namespace", workload_name="$workload", container_name="$container", resource="cpu"}
# The memory resource profile for a container in the specified workload.
koord_manager_recommender_recommendation_workload_target{exported_namespace="$namespace", workload_name="$workload", container_name="$container", resource="memory"}

FAQ

Resource profiling algorithm

Application requirements

Resource profiling works best for online services.

The recommendations from resource profiling prioritize meeting the container's resource demands, ensuring that most usage patterns are covered. However, for offline applications, such as batch processing tasks, the primary goal is often overall throughput, and a certain level of resource contention is acceptable to improve cluster-wide utilization. For these applications, the recommendations may seem conservative. Additionally, critical system components are often deployed in an active/standby configuration with multiple replicas. The standby replica remains idle for long periods, and its low resource usage can skew the algorithm's accuracy. For these scenarios, you should adjust the recommendations based on your specific needs. Keep an eye on future product updates for improvements in these areas.

Using recommended values

Evaluate the recommendations against your business needs. The values from resource profiling summarize your application's current resource demand. You should use these values as a baseline and adjust them as needed. For example, you might need to reserve extra capacity to handle traffic spikes or to support seamless zone-disaster recovery. In these cases, you need to add a resource buffer. Similarly, if your application is resource-sensitive and cannot run smoothly on a host with high load, you may need to increase the resource specifications above the recommended values.

Unexpected recommendations

The values generated by resource profiling are the raw recommendations from the algorithm. When you apply these changes through the console, Container Service for Kubernetes (ACK) normalizes the resource specifications based on different compute classes. For more information, see Resource specifications. This normalization can result in a final specification that differs slightly from the one you entered.

Self-managed Prometheus integration

The Koordinator Manager module of the ack-koordinator component exposes the resource profiling metrics as an HTTP endpoint in Prometheus format. You can run the following command to get the Pod IP address and then access the endpoint to view the metrics.

# Run the following command to get the Pod IP address.
$ kubectl get pod -A -o wide | grep koord-manager
# Sample output. The actual output may vary.
kube-system   ack-koord-manager-5479f85d5f-7xd5k                         1/1     Running            0                  19d   192.168.12.242   cn-beijing.192.168.xx.xxx   <none>           <none>
kube-system   ack-koord-manager-5479f85d5f-ftblj                         1/1     Running            0                  19d   192.168.12.244   cn-beijing.192.168.xx.xxx   <none>           <none>
# Run the following command to view the metrics. Note that Koordinator Manager runs in a dual-replica active/standby mode, and data is available only from the active Pod.
# For the IP address and port, refer to the Deployment configuration of the Koordinator Manager module.
# Before you run the command, make sure the host where you run it can communicate with the cluster's container network.
$ curl -s http://192.168.12.244:9326/all-metrics | grep koord_manager_recommender_recommendation_workload_target
# Sample output. The actual output may vary.
# HELP koord_manager_recommender_recommendation_workload_target Recommendation of workload resource request.
# TYPE koord_manager_recommender_recommendation_workload_target gauge
koord_manager_recommender_recommendation_workload_target{container_name="xxx",namespace="xxx",recommendation_name="xxx",resource="cpu",workload_api_version="apps/v1",workload_kind="Deployment",workload_name="xxx"} 2.406
koord_manager_recommender_recommendation_workload_target{container_name="xxx",namespace="xxx",recommendation_name="xxx",resource="memory",workload_api_version="apps/v1",workload_kind="Deployment",workload_name="xxx"} 3.861631195e+09

After the ack-koordinator component is installed, it automatically creates Service and ServiceMonitor objects for the corresponding Pods.

Prometheus supports multiple data collection methods. If you use a self-managed Prometheus, refer to its official documentation for configuration. Use the preceding process for debugging. After debugging is complete, you can configure a Grafana dashboard as described in Step 2: (Optional) View the results in Prometheus.

Delete results and rules

The profiling results and rules are stored in the Recommendation and RecommendationProfile CustomResourceDefinitions (CRDs), respectively. Run the following commands to delete all results and rules.

# Delete all profiling results.
kubectl delete recommendation -A --all
# Delete all profiling rules.
kubectl delete recommendationprofile -A --all

Authorize RAM users

The authorization system for Container Compute Service (ACS) uses a two-layer model: RAM authorization for infrastructure resources and Role-Based Access Control (RBAC) authorization for the ACK cluster itself. For more information about the authorization system, see Authorization best practices. To grant a RAM user permissions to use the resource profiling feature in a cluster, follow these best practices:

1. RAM authorization

   Use your primary account to log on to the RAM console and grant the built-in system policy AliyunAccReadOnlyAccess (read-only) to the RAM user. For more information, see Attach system policies.

2. RBAC authorization

   After you complete RAM authorization, you also need to grant the RAM user the developer role or a higher-level RBAC role in the target cluster. For more information, see Configure RBAC permissions for RAM users or roles.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: recommendation-clusterrole
rules:
- apiGroups:
  - autoscaling.alibabacloud.com
  resources:
  - '*'
  verbs:
  - '*'
