How to develop custom input and output components-Dataphin(Dataphin)-阿里云帮助中心

Prerequisites

Single click Download dependency package to download the dependency package.
Add the plugin.center.base-0.0.1-SNAPSHOT.jar from the downloaded file to your Maven private repository.

Background information

Before you use custom components, create an offline custom source type and the corresponding data source.

Create an RDBMS type offline custom source type. The system automatically generates input and output components in the open directory of the integrated pipeline component library.
For other database types, create the offline custom source type. The system generates the corresponding input components and output components in the component library's open directory based on the uploaded read plug-in and write plug-in.

Procedure

Step 1: Prepare the JAR files for the read/write plug-ins

Maven dependencies are as follows:

<dependency>
  <groupId>com.alibaba.dt.pipeline</groupId>
  <artifactId>plugin.center.base</artifactId>
  <version>0.0.1-SNAPSHOT</version>
</dependency>

The code example of the read plug-in file is as follows.

package demo;

import com.alibaba.dt.pipeline.plugin.center.base.Reader;
import com.alibaba.dt.pipeline.plugin.center.base.RecordSender;
import com.alibaba.dt.pipeline.plugin.center.conf.Configuration;
import com.alibaba.dt.pipeline.plugin.center.element.*;
import com.alibaba.dt.pipeline.plugin.center.record.Record;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.List;
import java.util.Random;
import java.util.stream.Collectors;
import java.util.stream.IntStream;


public class ReaderDemo extends Reader {

    public static final String DS_KEY = "demo_ds";

    public static final String TASK_INDEX = "taskIndex";

    public static final String USER_KEY = "user_param";

    public static class Job extends Reader.Job {
        private static final Logger logger = LoggerFactory.getLogger(Job.class);

        Configuration jobConfig;

        @Override
        public void init() {
            logger.info("job init");

            this.jobConfig = super.getPluginJobConf();
            String value = jobConfig.getString(USER_KEY, "default_value");
            String ds = jobConfig.getString(DS_KEY, "default_ds");
            logger.info("user_param:{} ds:{}", value, ds);
        }

        @Override
        public void prepare() {
            super.prepare();
            logger.info("job prepare");
        }

        @Override
        public List<Configuration> split(int i) {
            logger.info("job split:{}", i);
            return IntStream.range(0, i).boxed().map(x -> {
                Configuration tmpConfiguration = jobConfig.clone();
                tmpConfiguration.set(TASK_INDEX, x);
                return tmpConfiguration;
            }).collect(Collectors.toList());
        }

        @Override
        public void post() {
            super.post();
            logger.info("job post");
        }

        @Override
        public void destroy() {
            logger.info("job destroy");
        }
    }


    public static class Task extends Reader.Task {
        private static final Logger logger = LoggerFactory.getLogger(Task.class);

        private Configuration taskConfig;
        private int index;
        private RowMeta rowMeta;

        @Override
        public void init() {

            this.taskConfig = super.getPluginJobConf();

            index = taskConfig.getInt(TASK_INDEX, -1);
            logger.info("task init:{}", index);
        }

        @Override
        public void prepare() {
            super.prepare();
            logger.info("task prepare");
        }

        @Override
        public void startRead(RecordSender recordSender) {
            logger.info("task start");

            Random random = new Random();


            for(int i = 0; i < 10; i++) {
                Record record = recordSender.createRecord();
                record.addColumn(new LongColumn(i));
                record.addColumn(new StringColumn("name_" + i));
                record.addColumn(new DoubleColumn(random.nextDouble()));
                recordSender.sendToWriter(record);
                logger.info("read record:{}", i);
            }
        }

        @Override
        public RowMeta getInputRowMeta(){
            logger.info("task column meta");
            rowMeta = new RowMeta();


            ColumnMeta columnMeta1 = new ColumnMeta();
            columnMeta1.setName("id");
            columnMeta1.setType(Column.Type.LONG);
            rowMeta.addColumnMeta(columnMeta1);

            ColumnMeta columnMeta2 = new ColumnMeta();
            columnMeta2.setName("name");
            columnMeta2.setType(Column.Type.STRING);
            rowMeta.addColumnMeta(columnMeta2);

            ColumnMeta columnMeta3 = new ColumnMeta();
            columnMeta3.setName("score");
            columnMeta3.setType(Column.Type.DOUBLE);
            rowMeta.addColumnMeta(columnMeta3);

            return rowMeta;
        }

        @Override
        public void post() {
            super.post();
            logger.info("task post");
        }

        @Override
        public void destroy() {
            logger.info("task destroy");

        }
    }
}

The code example of the write plug-in file is as follows.

package demo;

import com.alibaba.dt.pipeline.plugin.center.base.RecordReceiver;
import com.alibaba.dt.pipeline.plugin.center.base.Writer;
import com.alibaba.dt.pipeline.plugin.center.conf.Configuration;
import com.alibaba.dt.pipeline.plugin.center.record.Record;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.List;
import java.util.stream.Collectors;
import java.util.stream.IntStream;

public class WriterDemo extends Writer {

    public static final String DS_KEY = "demo_ds";

    public static final String TASK_INDEX = "taskIndex";

    public static final String USER_KEY = "user_param";

    public static class Job extends Writer.Job {
        private static final Logger logger = LoggerFactory.getLogger(Job.class);

        Configuration jobConfig;

        @Override
        public void init() {
            logger.info("job init");

            this.jobConfig = super.getPluginJobConf();
            String value = jobConfig.getString(USER_KEY, "default_value");
            String ds = jobConfig.getString(DS_KEY, "default_ds");
            logger.info("user_param:{} ds:{}", value, ds);
        }

        @Override
        public void prepare() {
            super.prepare();
            logger.info("job prepare");
        }

        @Override
        public List<Configuration> split(int i) {
            logger.info("job split:{}", i);
            return IntStream.range(0, i).boxed().map(x -> {
                Configuration tmpConfiguration = jobConfig.clone();

                tmpConfiguration.set(TASK_INDEX, x);
                return tmpConfiguration;
            }).collect(Collectors.toList());
        }

        @Override
        public void post() {
            super.post();
            logger.info("job post");
        }

        @Override
        public void destroy() {
            logger.info("job destroy");
        }
    }

    public static class Task extends Writer.Task {
        private static final Logger logger = LoggerFactory.getLogger(Task.class);

        private Configuration taskConfig;
        private int index;

        @Override
        public void init() {

            this.taskConfig = super.getPluginJobConf();

            index = taskConfig.getInt(TASK_INDEX, -1);
            logger.info("task init:{}", index);
        }

        @Override
        public void prepare() {
            super.prepare();
            logger.info("task prepare");
        }

        @Override
        public void startWrite(RecordReceiver recordReceiver) {
            logger.info("task start");

            Record record;
            while ((record = recordReceiver.getFromReader()) != null) {
                logger.info("======: " + record.toString());
            }
        }

        @Override
        public void post() {
            super.post();
            logger.info("task post");
        }

        @Override
        public void destroy() {
            logger.info("task destroy");

        }
    }
}

Step 2: Create other database types of offline custom source types

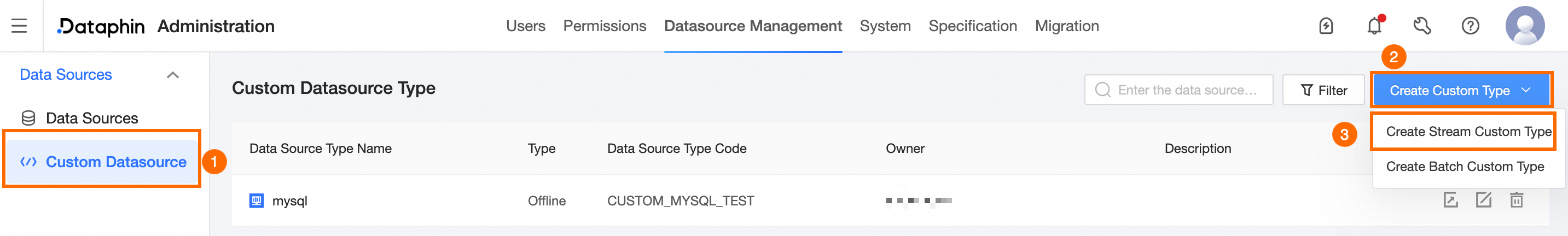

On the Dataphin home page, single click the top menu bar Management Center > Datasource Management.
In the left-side navigation pane, single click Custom Source Types.
On the Custom Source Types page, single click Create Custom Source Type and choose Create Offline Custom Source Type from the dropdown menu.

On the Create Offline Custom Source Type page, configure the parameters as follows:

Parameter		Description
Basic Configuration	Type	Select Other Database.
	Name	Enter the name of the custom component. The name can contain Chinese characters, English letters (case-sensitive), underscores (_), and digits, up to 64 characters in length. The name can contain Chinese characters, English letters (case-sensitive), underscores (_), and digits, with a maximum length of 64 characters.
	Type Code	A unique identifier for the component used by the backend. This value cannot be changed after creation. It must consist of English letters (case-sensitive), digits, and underscores (_), and cannot start with a digit. The type code can contain only English letters (case-sensitive), digits, and underscores (_), and must not begin with a digit.
	Data Source JSON	Enter the data source JSON code and upload the read/write plug-ins. The JSON code defines the configuration items of the data source, as shown below: Enter the JSON code for the data source to define its configuration items. The following example shows the code structure: [ { "columnName": "url", "columnType": "NORMAL", "text": { "zh_CN": "链接地址", "en_US": "address", "zh_TW": "鏈接地址" }, "placeholder": { "zh_CN": "请输入链接地址", "en_US": "input address", "zh_TW": "請輸入鏈接地址" } }, { "columnName": "username", "columnType": "NORMAL", "text": { "zh_CN": "用户名", "en_US": "username", "zh_TW": "用戶名" }, "placeholder": { "zh_CN": "请输入用户名", "en_US": "input username", "zh_TW": "請輸入用戶名" } }, { "columnName": "password", "columnType": "ENCRYPT", "text": { "zh_CN": "密码", "en_US": "password", "zh_TW": "密碼" }, "placeholder": { "zh_CN": "请输入密码", "en_US": "input password", "zh_TW": "請輸入密碼" } } ] The JSON fields are described as follows: columnName: The parameter name. columnType: The parameter type, either NORMAL or ENCRYPT. Password-type parameters must use ENCRYPT. placeholder: The placeholder text displayed in the input box, in three languages. If not specified, the input box is empty. text: The display name of the parameter, in three languages.
Resource Configuration	Read/write Plug-ins	Select the plug-in type to configure, enter the corresponding ClassName (class name of the plug-in), and upload the plug-in files prepared in Step 1. The plug-in files must be in .jar format and must not exceed 50MB. Note At least one read or write plug-in is required. After the read plug-in and write plug-in are configured, the corresponding input plug-in and output plug-in are generated.
Description Information	Description	A brief description of the custom data source, up to 128 characters.

Click Create.
