arc-column-charts

Chart style

An arc column chart is a type of column chart in the mobile component. Compared with the basic column chart, an arc column chart can more intuitively display the differences between a variety of data in a limited screen space.

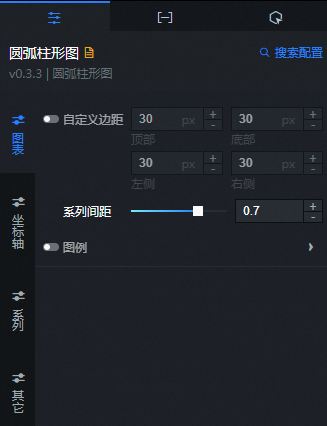

Configuration Panel

• Search Configuration: Click Search Configuration in the upper-right corner of the Configuration panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for to quickly locate the configuration items. Fuzzy match is supported. For more information, see Search configuration items.

• Chart name

  • Custom Margins: the distance between the column chart area and the four boundaries of the widget. The default unit is px. You can click the icon to specify whether to use custom margins.

  • Series Spacing: the ratio of the distance between column chart in each series. Valid values: 0 to 1.

  • Legend: the legend style of the arc column chart. You can click the icon to display or hide the legend.

    Parameter	Description
    Click to filter	If you turn on the switch, when the widget is configured with multiple series data, use a mobile device in the preview or publish state of the widget, and click a legend of a series in the widget to switch the current series to the selected or unselected state, thus filtering and displaying data of different series in the visualization application. If you turn off the switch, data of different series cannot be filtered and displayed, and legend data of all series is displayed at the same time.
    No Color Selected	The legend color of each series when it is not selected.
    Layout	The layout style of the legend. You can adjust the position and alignment of the legend layout.
    Marker shape	The shape of the legend. Valid values: Round and Square.
    Text	The text style of the legend. Font Size: the size of the legend text. Text weight: the weight of the legend text. Color: the color of the legend text. Alignment: the alignment of the legend text. You can select Center, Left, or Right.

• Coordinate Axis: You can select Radial Axis or Angular Axis.

  • Radial axis

    • Radius

      Parameter	Description
      Outer radius	The distance from the outermost side of the ring to the center of the axis. The value is the proportion of the component height. Valid values: 0 to 1.
      Inner radius	The distance from the innermost side of the ring to the center of the axis. The value is the proportion of the component height. The value ranges from 0 to 1.

    • Display: If the switch is turned on, the radial axis pattern of the component is visible. If the switch is turned off, the radial axis pattern of the component is invisible.

    • Type: the type of radial axis data. Valid values: Category and Time.

      Note

      If the data format and specified data types are not consistent, the widget is displayed abnormally.

      Parameter	Description
      Category Type	Data of category types such as character and string is supported.
      Time Type	The data of the time type needs to be configured data format.

    • Scale Quantity: the number of scales on the inner radial axis of the assembly.

    • Leave White: the ratio of the space between the two ends of the radial axis. Valid values: 0 to 1.

    • Axis Label: the style of the radial axis label. You can click the icon to display or hide the axis label.

      Parameter	Description
      Display Format	The display format of the data. This field is valid only when the data type is Time.
      Label Offset	The up and down displacement distance of the radial axis label, in px.
      Text	The font size, text weight, color, and alignment of the radial axis label text.

    • Grid: the style of the radial axis grid lines. You can click the icon to control the visibility of the radial axis grid lines.

      Parameter	Description
      Type	The type of the grid line. Valid value: Arc Grid and Line Grid.
      Mode	The style of the radial axis grid line, including the color, width, and shape of the grid line. You can select Solid, Dashed, or Dotted.

    • Axis: the style of the radial axis. You can click the icon to control the visualization of the radial axis.

      Parameter	Description
      Color	The color of the radial shaft axis.
      Width	The value of the width of the radial shaft axis.
      Linetype	The line shape of the radial axis. You can select solid, dashed, or dotted.

    • Tick mark: the style of the radial axis tick mark. You can click the icon to show or hide the radial axis tick mark.

      Parameter	Description
      Color	The color of the radial axis tick marks.
      Linetype	The line shape of the scale mark on the radial axis. Valid values: Solid, Dashed, and Dotted.
      Width	The value for the width of the radial axis tick marks.
      Length	The length value of the radial axis tick marks.

  • Angle Axis

    • Angle: the start and end angles of the widget.

    • Display: If you turn on the switch, the angle axis style in the widget is visible. If you turn off the switch, the angle axis style in the widget is invisible.

    • Number of Scales: the number of scales on the angle axis of the widget.

    • Scale Optimization: If you turn on the switch, the scale of the angle axis in the widget is automatically optimized. If you turn off the switch, you must specify the maximum and minimum values for the angle axis in the widget.

    • Leave White: the ratio of blank spaces between the two ends of the angle axis. Valid values: 0 to 1.

    • Axis Label: the style of the axis label of the widget. You can click the icon to display or hide the axis label.

      Parameter	Description
      Display Format	The display format of the angle axis label. Valid values: Original, 11 (integer), 11.1 (floating point), and 11.11 (floating point).
      Label Offset	The up-down displacement distance of the angle axis label. Unit: px.
      Text	The font size, text weight, color, and alignment style of the angle axis label text.

    • Grid: the style of the grid lines on the angle axis. You can click the icon to specify whether to display the grid lines on the angle axis.

      Parameter	Description
      Color	The color of the angle axis grid lines.
      Width	The width value of the angle axis grid line.
      Linetype	The shape of the angle axis grid line. You can select Solid, Dashed, or Dotted.

    • Axis: the style of the angle axis. You can click the icon to display the angle axis.

      Parameter	Description
      Color	The color of the angle shaft axis.
      Width	The width value of the angle shaft axis.
      Linetype	The line shape of the angle axis. Valid values: Solid, Dashed, and Dotted.

    • Tick mark: the style of the tick mark on the angle axis. You can click the icon to display the tick mark on the angle axis.

      Parameter	Description
      Color	The color of the angle axis tick marks.
      Linetype	The line shape of the scale mark on the angle axis. You can select solid lines, dashed lines, or dotted lines.
      Width	The width value of the angle axis tick marks.
      Length	The length value of the angle axis tick marks.

• Edition

  data series: Click the or icon on the right to add or delete a data series. Click the or icon on the right to configure the arrangement style of multiple data series. Click the icon to copy the selected data series configuration and add a data series with the same configuration.

  Column Style: the style of the column in the series.

  Parameter	Description
  Color	The color of the column.
  Width	The width value of the column.

• Remarks

  • Easing Animation: the animation effect style of the chart. You can click the icon to enable or disable the animation effect.

    Parameter	Description
    Easing Effect	The easing effect of animation. The system provides a variety of common easing effects for you to choose from.
    Entry Animation Duration	The duration of the first animation rendered by the component. Unit: ms.
    Update the animation duration	The duration of the animation when the component data is updated. Unit: ms.

  • dialog box: The style of the dialog box that appears when you mouse over or click a column on a preview or publish page. You can click the icon to turn the dialog box effect on or off.

    Parameter	Description
    Series Name	dialog box the font size and name color of the displayed series names.
    Value	dialog box the font size and color of the displayed values.
    Background Box	The background box style of the dialog box. Fillet: the fillet size of the dialog box background frame. Unit: pixels. When the value is 0, there is no rounded corner, and the background box is square. The larger the setting value, the larger the radian value of the rounded corner. Color: The background color of the dialog box.

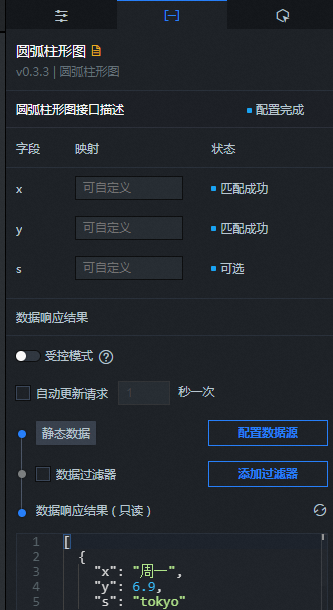

Data dashboard

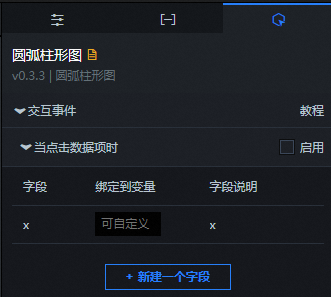

Interactive Panel

Select the Enable check box to enable interactions between widgets. When you click a column of an arc column chart, a data request is triggered, a callback value is thrown, and data of different columns is dynamically loaded. By default, the x value in the data is returned. For more information, see Component interaction configuration.

Blueprint Interaction

1. In the canvas editor, right-click a widget in the layer pane and select Export to Blueprint Editor.

2. Click the icon in the upper-left corner of the page.

3. In Blueprint Editor, click the Arc Column Chart widget in the Import Nodes pane. You can view the parameters of the Arc Column Chart widget on the canvas, as shown in the following figure.

   • Event

     Event	Description
     When the arc column chart interface description request is completed	The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
     When the arc column chart interface description request fails	The event that is returned when a data interface request fails (such as network problems or interface errors) and is processed by the filter. The event also throws the processed JSON data. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
     When a data item is clicked	The event that is raised when a column of the column chart is clicked, along with the data item corresponding to the column.

   • Action

     Action	Description
     Description of the request arc column chart operation	This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if the API data source is https://api.test and the data passed to the Request Arc Column Description action is { id: '1'}, the final request interface is https://api.test?id=1.
     Import Circular Column Chart Interface Description	After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.
