Carousel Label layer (v4.x)

Chart style

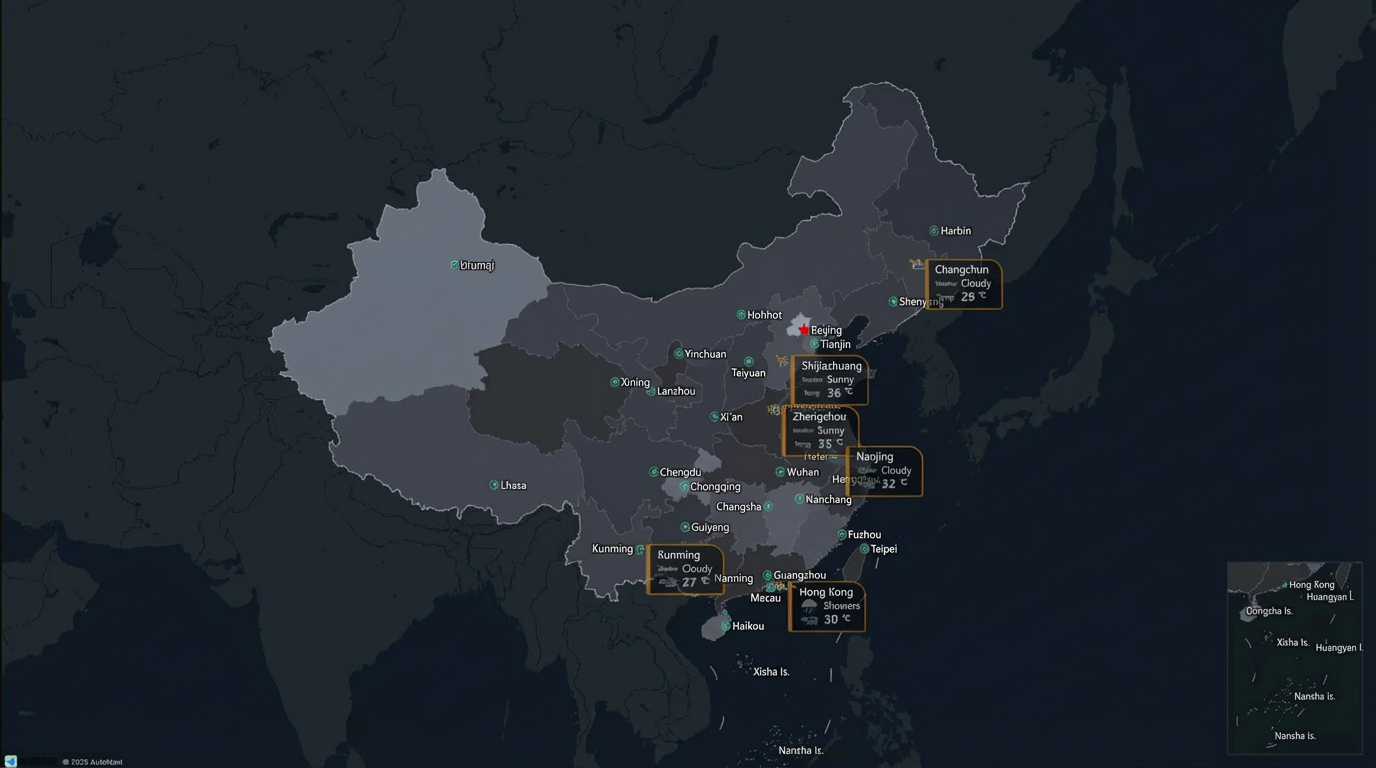

The Carousel Label layer is a sub-widget of Basic Flat Map 4.0 that uses rotating icons to display label information at geographic locations. You can configure icon size, shape, and carousel effects independently.

Style panel

• Search Configuration: Click the icon in the upper-right corner of the Style panel to search for configuration items by name. Fuzzy matching is supported. Search for a configuration item.

• Quick Styles: Provides preset styles for the Carousel Label layer. Select a style that suits your scenario.

• General: Configure general settings for the Carousel Label layer.

  Parameter	Description
  Visibility Level	The visibility level of the Carousel Label layer. The layer is visible only within the specified level range.
  Opacity	The opacity of the Carousel Label layer, ranging from 0 to 100%. A larger value makes the layer more opaque.

• Graphic: Configure the icon appearance for the Carousel Label layer.

  Parameter	Description
  Icon Shape	The icon shape in the label. Select a built-in icon from the drop-down list, enter an image URL to use a remote image, or click the icon to upload a local image.
  Icon Size	The width and height of the icon, ranging from 0 to 200 px.
  Icon Offset	The horizontal and vertical offset of the icon within the label, ranging from -200 to 200 px.

• Animation: Configure the carousel effect for the Carousel Label layer.

  Parameter	Description
  Carousel Order	The carousel playback order: Random or Sequential.
  Carousel Count	The number of labels displayed per carousel cycle, ranging from 0 to 50.
  Carousel Duration	The duration of each carousel cycle, including Enter Duration (0 to 5 seconds), Dwell Duration (1 to 500 seconds), and Exit Duration (0 to 5 seconds).
  Carousel Cache	The number of cached items during carousel playback, ranging from 0 to 100. Click the icon to the left of Carousel Cache to enable or disable caching.

• Label: Configure the label style for the Carousel Label layer.

  Parameter	Description
  Relative Offset	The horizontal and vertical offset of the label, ranging from -200 to 200 px.
  Content Style	The content style of the labels. Row Style: Click the or icon to add or delete a style. Click the or icon to rearrange styles. Click the icon to duplicate a style. Row Field: The field name for the row content, which must match a field in the data panel. Field Style: The font, size, color, and weight of the row field. Field Prefix: The content, spacing, font, size, color, and weight of the prefix. Click the icon to the left of Field Prefix to show or hide the Field Prefix style. Field Suffix: The content, spacing, font, size, color, and weight of the suffix. Click the icon to the left of Field Suffix to show or hide the Field Suffix style. Max Width: The maximum width of a single line in the label, in px. Overflowing text is handled by the Text Overflow setting. Text Overflow: How overflowing text is displayed: Truncate or Wrap. Truncate: Hides text that exceeds the boundary, providing a compact overview in limited space. Wrap: Moves text to the next line when it exceeds the boundary, ensuring full content is displayed. Line Height Ratio: The line height ratio of the label, ranging from 1 to 5. Content Outline: The outline color and thickness for the label content. Click the icon to the left of Content Outline to show or hide the Content Outline settings. Content Shadow: The shadow color, blur, and X/Y offset for the label content. Click the icon to the left of Content Shadow to control the visibility of Content Shadow.
  Background Style	Configure the label background style. Click the icon to the left of Background Style to show or hide the Background Style options. Background Type: The label background type: Vector or Image. Background Color: The label background color. Available only when Background Type is set to Vector. Border Style: The line type, width, and color of the label border. Available only when Background Type is set to Vector. Border Radius: The corner radius of the label, in px. Available only when Background Type is set to Vector. Image Template: The background image template. Available only when Background Type is set to Image. Opacity: The background image opacity, ranging from 0 to 100. Available only when Background Type is set to Image. Background Shadow: The shadow color, blur, and X/Y offset for the label background. Content Margin: The margin between the content and the top, bottom, left, and right edges of the label.

Data Source panel

Advanced panel

Configure interaction events or associate global variables for filter interactions between widgets. Configure widget interactions.

Blueprint Interaction

1. Click the icon in the upper-left corner of the page to go to the Blueprint page.

2. On the Layer Node tab, add the current widget to the main canvas.

3. View the Blueprint configuration parameters.

   Note

   Click the icon in the anchor point area on the right to view event and action parameter tooltips.

   • Events

     Event	Description
     When Data Is Updated	Triggered when the data response changes, returning the updated data.
     When Data Request Status Changes	Triggered when the data request status changes. The callback parameter is the current status. For a data example, see the Data Response section on the Data Source tab in the widget's configuration panel in the canvas editor.
     Component Loaded	Triggered after the data API request returns and the data is processed by the filter. The processed data is returned in JSON format. For a data example, see the Data Source tab's Data Response section in the widget's configuration panel in the canvas editor.
     When a Label Is Clicked	Triggered when a label is clicked, returning the label data.
     When Label Carousel Appears	Triggered when the label carousel appears, returning the label data.

   • Actions

     Action	Description
     Import data	Processes data in the required format and imports it to redraw the component without a new server request. For a data example, see the Data Response area on the Data Source tab in the component's configuration panel in the canvas editor.
     Request data	Sends a new data request to the server. Data from upstream processing nodes or layer nodes is passed as parameters. For example, if a single-point column chart has its API data source set to https://api.test and the data passed to the Request data action is { id: '1'}, the final request URL is https://api.test?id=1.
     Refresh carousel	Refreshes the carousel. No parameters are required.
     Toggle visibility	The Toggle Visibility, Show, and Hide actions do not require parameters by default. You can add animation configurations as needed. See the data example. { // Animation type. Optional values: appear|fade|slideToUp. The default is fade. If left blank, there is no animation. "animationType": "fade", // Animation duration. The default is 1000 ms. "animationDuration": 1000, // Animation curve. Optional values: linear|easeInOutQuad|easeInOutExpo. The default is linear. "animationEasing": "linear" }
     Show
     Hide
     Update component configuration	Dynamically updates the component's style configuration. In the Style panel, click Copy configuration to clipboard to get the configuration data. Then, in a data processing node in the Blueprint Editor, modify the field values as needed.
