Column Layer

Chart style

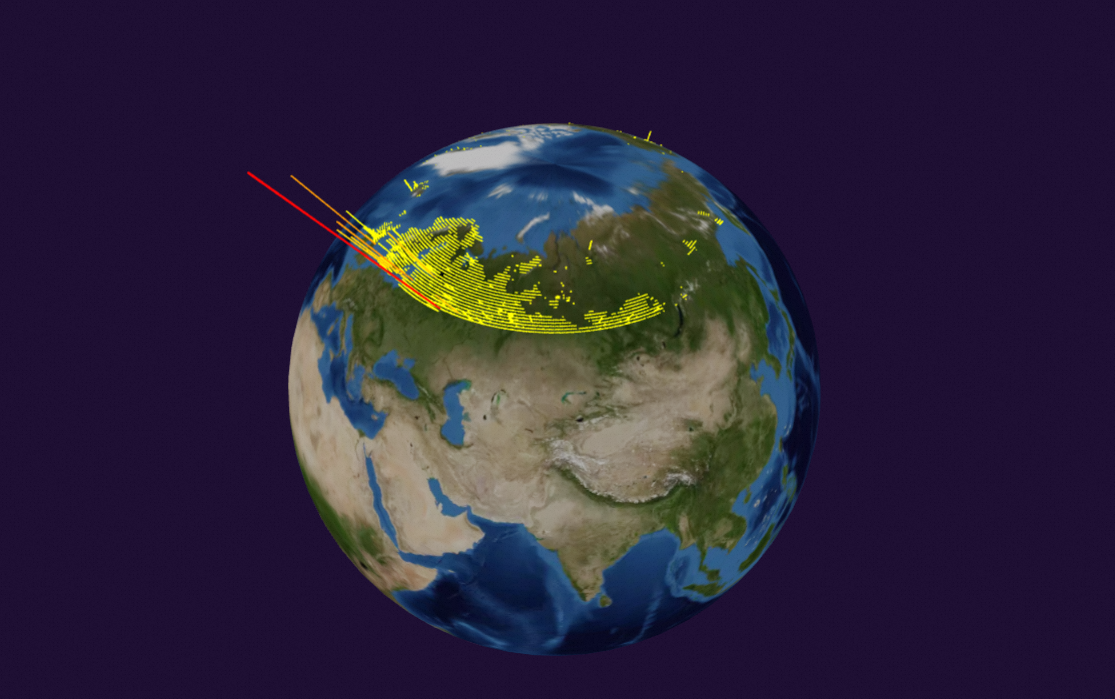

The column layer is a subcomponent of the 3D earth that supports independent style configurations, including column shape, radius, and color.

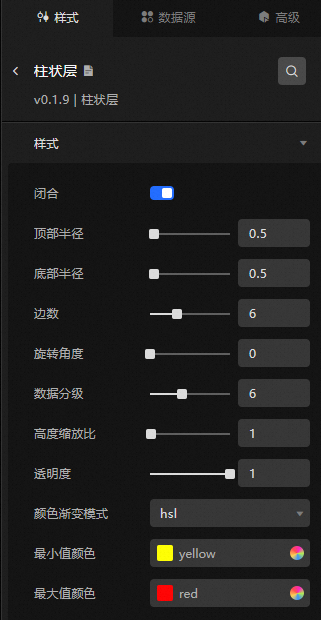

Style Panel

• Search Configuration: Click the Search configuration items icon in the upper-right corner of the Style panel. In the Search Configuration panel, enter the name of the configuration items that you want to search for and locate the configuration items. Fuzzy match is supported. For more information, see Search configuration items.

• Style: the style of the column layer.

  Metric	description
  Closed	Turn on the switch to render solid columns. Turn off the switch to render hollow columns.
  Top radius	The radius of the top of the column.
  Bottom radius	The radius of the bottom of the column.
  Number of edges	The number of sides of the column.
  Rotation Angle	The rotation angle of the column.
  Sensitivity level of sensitive data	The number of color gradations for the column layer. The minimum color and maximum color settings determine the color of each column based on point distribution. Note The color between the Maximum and Minimum values is displayed based on the value of the value field.
  Height zoom ratio	The scaling ratio of the column height. Valid values: 0.01 to 100.
  Transparency	The transparency of the column.
  Color gradient mode	The color interpolation method for the gradient. Valid values: lch, lab, and hsl.
  Minimum Color	The color assigned to the lowest point value. For more information, see color picker description.
  Maximum Color	The color assigned to the highest point value. For more information, see color picker instructions.

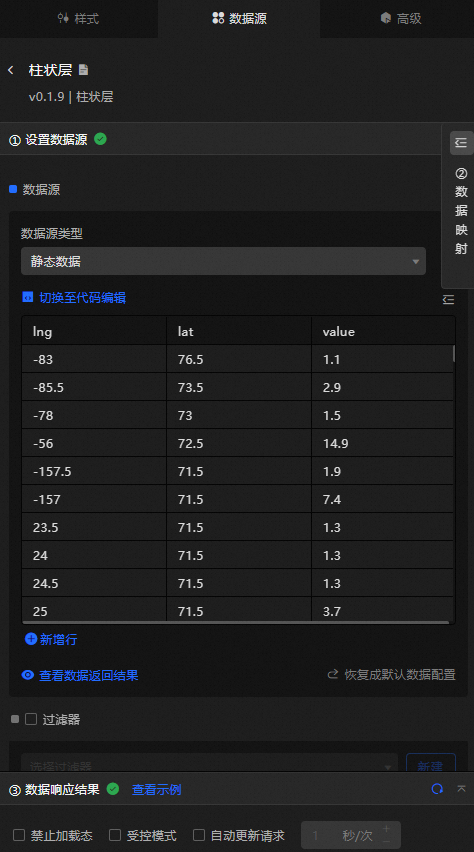

Data Sources panel

Advanced Panel

This widget does not support interaction events.

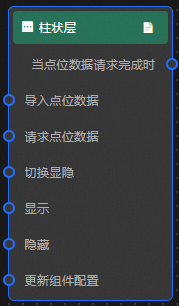

Blueprint Interaction

1. Click the icon in the upper-left corner to go to the Blueprint page.

2. On the Layer Nodes tab, add the widget to the main canvas.

3. View blueprint configuration parameters.

   • Event

     Event	Description
     When the point data request is completed	Triggered after the point data request is returned and processed by the filter. The processed JSON data is included in the event payload. For data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel.

   • Action

     Action	Description
     Request point data	Re-requests data from the server. Data from an upstream data processing node or layer node is passed as a parameter. For example, if the API data source is https://api.test and the data passed to the request point data action is { id: '1'}, the final request URL is https://api.test?id=1.
     Import point data	Imports pre-processed data directly into the widget for rendering without making a new server request. For data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel.
     Switch Display /Display	Specifies whether to show or hide a widget. No parameters are required.
     Display	Display the widget. For more information, see Data example. { "animationType": "",// The animation method. Valid value: fade. If you do not specify this parameter, no animation is generated. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Hide	Hide the component. For more information, see Data example. { "animationType": "",// The animation method. Valid value: fade. If you do not specify this parameter, no animation is generated. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Update component configurations	Dynamically updates widget style configurations. In the Style panel, click Copy Configuration to Clipboard to obtain the configuration data, then modify the style field in the data processing node of Blueprint Editor.
