decoration-bar

Chart style

The decoration bar is a media widget that adds a customizable decorative element to a data dashboard or a dashboard module.

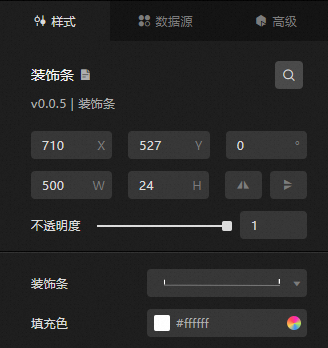

Style Panel

• Search Configuration: Click the icon in the upper-right corner of the Style panel to search for a configuration item by name. Fuzzy match is supported. For more information, see Search configuration items.

  • Size: the width and height of the widget. Unit: pixels.

  • Positioning: the x-axis and y-axis coordinates of the widget, in pixels. X-coordinate is the pixel distance from the upper-left corner of the widget to the left border of the canvas. Y-coordinate is the pixel distance from the upper-left corner of the widget to the upper border of the canvas.

  • Rotate: rotates the widget around its center. Unit: degrees.

    • Enter the rotation angle directly in the spin box, or click the plus sign (+) or minus sign (-) to adjust the value.

    • Click the icon to flip the widget style.

    • Click the icon to flip the widget style.

  • Opacity: valid values: 0 to 1. A value of 0 hides the widget. A value of 1 fully displays the widget. Default value: 1.

• Decorative Strip: Select the style of the decorative strip.

• Fill Color: the fill color of the decorative strip.

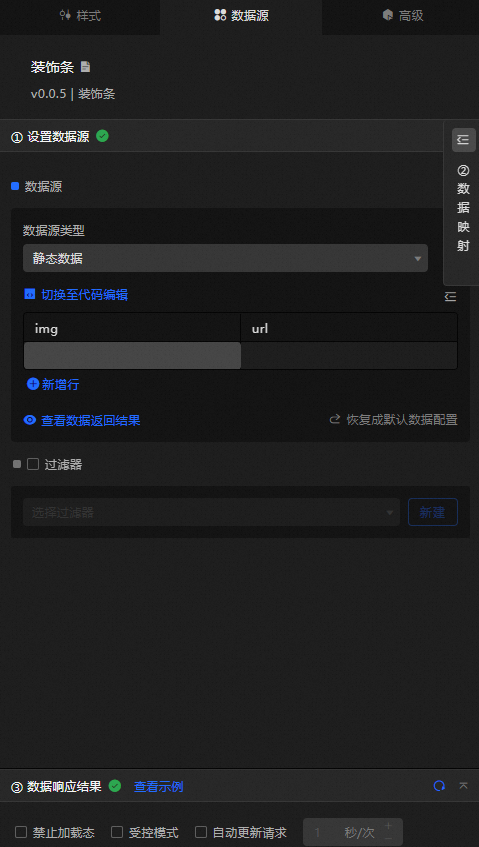

Data Sources panel

Advanced Panel

This widget does not support interaction events.

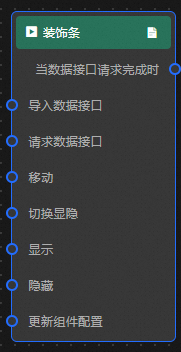

Blueprint Interaction

1. Click the icon in the upper-left corner to go to the Blueprint page.

2. On the Layer Nodes tab, add the widget to the main canvas.

3. View blueprint configuration parameters.

   • Event

     Event	Notes
     When the data interface request is completed	Triggered after a data interface request is returned and processed by a filter. The event carries the processed JSON data. For specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.

   • Action

     Action	Notes
     Import data	Imports pre-processed data into the widget for redrawing without re-requesting data from the server. For specific data examples, see the Data Response Result section of the Data Source tab in the right-side configuration panel of the canvas editor.
     Request Data Interface	Re-requests data from the server. Data sent by an upstream data processing node or layer node is used as a parameter. For example, if the API data source is https://api.test and the data passed to the request data interface is { id: '1'}, the final request interface is https://api.test?id=1.
     Move	Moves the widget to a specified location. See the following data example: { // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to. "positionType": "to", // The location, which is indicated by the x and y coordinates. "attr": { "x": 0, "y": 0 }, // The animation type. "animation": { "enable": false, // The duration in which animation is displayed. "animationDuration": 1000, // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo. "animationEasing": "linear" } }
     Switch Display /Display	Toggles whether the widget is displayed or hidden. No parameters are required.
     Display	Displays the widget. See the following data example: { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Hide	Hides the widget. See the following data example: { "animationType": "",// The animation method. Valid value: fade. If you do not set this parameter, no animation is available. "animationDuration": 1000,// The animation delay. Unit: ms. "animationEasing": ""// animation curve }
     Update component configurations	Dynamically updates widget style configurations. In the Style panel, click Copy Configuration to Clipboard to obtain the widget configuration data. Then, modify the style field for the data processing node in Blueprint Editor.
