Configure the color, intensity, and position of the directional light layer.

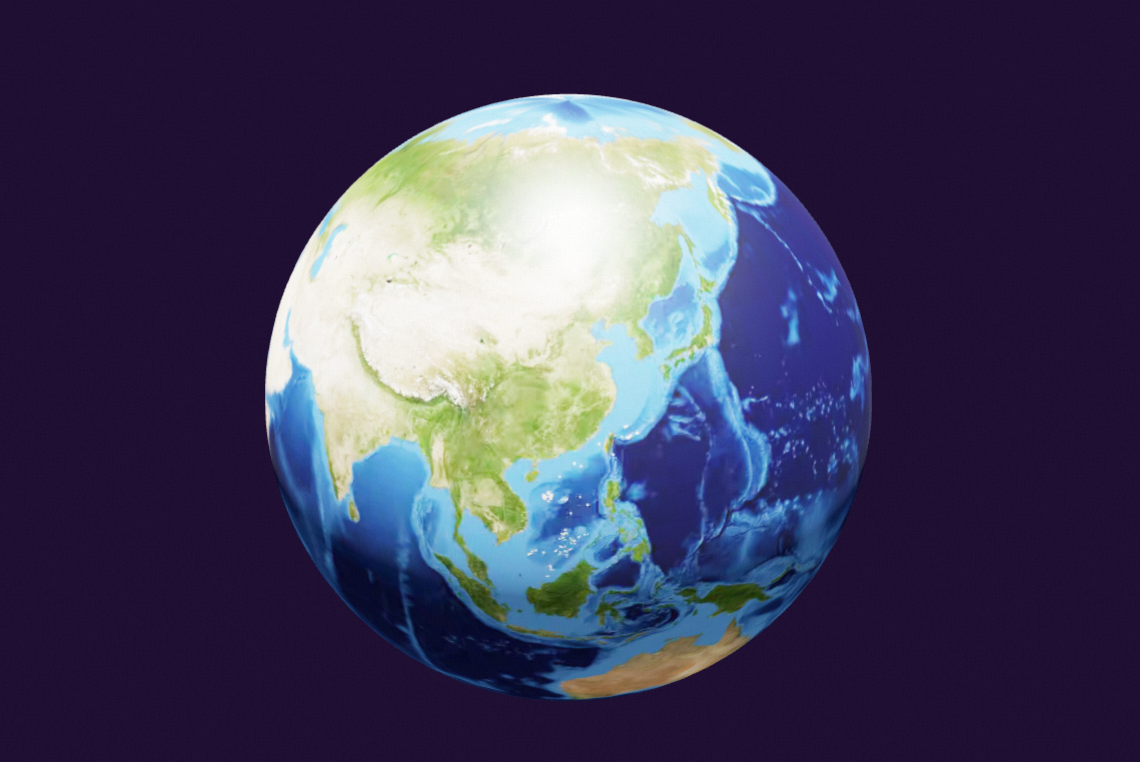

Chart style
The directional light layer is a 3D Earth component that simulates sunlight on the globe. You can independently adjust its color, intensity, and position.

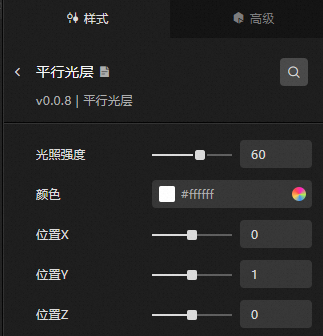

Style panel
-
Search Configuration: Click the Style icon
in the upper right corner of the panel to enter the name of the configuration item you wish to locate in the search field. The system supports fuzzy matching. For more information, see Search configuration item. -
Light Intensity: The brightness of the directional light. Valid values: 0 to 100.
-
Color: The color of the directional light. For more information, see the color picker instructions.
-
Position X, Position Y, Position Z: The coordinates of the directional light in the right-hand coordinate system, along the X, Y, and Z axes.
Data source panel
No data configuration is required for this component.
Advanced panel
No interaction events are available for this component.
Blueprint interaction
-
To access the Blueprint page, click the
icon in the upper left corner. -
In the Layer Node tab, add the component to the main canvas.
-
Review the blueprint configuration parameters.
-
Event: None.
-
Action
Action
Description
Toggle Visibility
Show or hide the component. No parameters are required.
Show
Display the component. For reference, see the data example.
{ "animationType": "",//Animation type. Optional value: fade. No animation if not filled. "animationDuration": 1000,//Animation latency in ms. "animationEasing": ""//Animation curve }Hide
Hide the component. For reference, see the data example.
{ "animationType": "",//Animation type. Optional value: fade. No animation if not filled. "animationDuration": 1000,//Animation latency in ms. "animationEasing": ""//Animation curve }Update Component Configuration
Dynamically update the component style. Click Copy Configuration To Clipboard in the Style panel to obtain the configuration data, and then modify the style field values in the data processing node on the blueprint editor page.
-
