DataWorks DataStudio enables you to add data push nodes to a workflow and supports five push methods: simple push, merge push, script push, conditional push, and MaxCompute data push. This tutorial demonstrates each method.

Background

You can add a data push node to a DataWorks business process. After data is processed by the business process, the node runs a simple query to fetch the results. Based on task scheduling, the node then delivers the data to destinations such as DingTalk, Lark, WeCom, Microsoft Teams, or email.

Approach

Add a node to prepare test data for subsequent push workflows.
Add data query, assignment, and other data processing nodes to process and query the test data.
Note
You can adapt the nodes for preparing test data and processing queries to your business needs. This tutorial uses a MySQL node to demonstrate how to push data.
Add a data push node to receive the output parameters from the data query node. It then pushes the data, which is passed as context parameters, to DingTalk, Lark, WeCom, Microsoft Teams, or email.

Push methods

This tutorial covers five methods for using data push nodes in a workflow: Simple Push, Combined Push, Script-based Push, Conditional Push, and MaxCompute Data Push.

Simple Push: An upstream workflow runs a SQL query and passes the results to a data push node using Input and Output Parameters.
Combined Push: Multiple upstream workflows run SQL queries and pass their results to a single data push node using Input and Output Parameters.
Script-based Push: An upstream Assignment Node processes data using a script and then passes the results to a push node using Input and Output Parameters. For more information, see Assignment node.
Conditional Push: An upstream workflow uses a Branch Node to evaluate data against configured conditions and passes qualifying data to a data push node using Input and Output Parameters. For more information, see Branch node.
MaxCompute Data Push: Pushes data from a MaxCompute data source. You can use an assignment node to query MaxCompute and then push the results.

Prerequisites

Before you begin, ensure you have the following:

An activated DataWorks service. For details, see Activate the DataWorks service.
A DataWorks workspace. For details, see Create a workspace.
An ApsaraDB RDS for MySQL instance and a MySQL data source in your workspace. For details, see Data source management.
A MaxCompute data source in your workspace. For details, see Associate a MaxCompute computing resource.
Note
This tutorial uses a MySQL data source and a MaxCompute data source as examples. You can add other types of data sources based on your business needs.
A serverless resource group. Only serverless resource groups can run data push nodes. To purchase and use one, see Use serverless resource groups.

Limitations

The data push feature has the following limits:
- For DingTalk, the data size cannot exceed 20 KB.
- For Lark, the data size cannot exceed 20 KB and images must be smaller than 10 MB.
- For WeCom, each chatbot can send no more than 20 messages per minute.
- For Microsoft Teams, the data size cannot exceed 28 KB.
- For email, each data push task supports only one email body. For additional limits, refer to the SMTP limitations of your email service.
The data push feature is available only in DataWorks workspaces in the following regions: China (Hangzhou), China (Shanghai), China (Beijing), China (Zhangjiakou), China (Shenzhen), China (Chengdu), China (Hong Kong), Singapore, Malaysia (Kuala Lumpur), US (Silicon Valley), US (Virginia), and Germany (Frankfurt).

Preparation

Create a workflow

Log on to the DataWorks console. In the top navigation bar, select the desired region. In the left-side navigation pane, choose Data Development and O&M > Data Development. On the page that appears, select the desired workspace from the drop-down list and click Go to Data Development.
In the Data Studio panel, right-click Workflow and select Create Workflow. Enter a name for the workflow. In this example, name the workflow Data Push Demo.

Create nodes

After you create the Data Push Demo workflow, double-click the workflow name to open the workflow canvas. Based on the push method you need from the table below, click to create the corresponding nodes. Name the nodes that you create exactly as specified in the table.

Push method	Node name	Node type	Description
Conditional Push	`Query Last Month's Total Sales`	MySQL node	Queries last month's total sales from the test data and passes the result as a context parameter to the branch node.
	`Check Sales Target Compliance`	Branch Node	Receives the output parameter from the MySQL node, evaluates it against a condition and, based on the outcome, routes the data as context parameters to different MySQL nodes.
	`Last Month Sales Target Met`	MySQL node	Receives the 'target met' output parameter from the branch node, queries the corresponding data, and passes the result as a context parameter to the Data Push node.
	`Last Month Sales Target Not Met`	MySQL node	Receives the 'target not met' output parameter from the branch node, queries the corresponding data, and passes the result as a context parameter to the Data Push node.
	`Push Top 3 Categories (Target Met)`	Data Push node	Receives the 'target met' output parameter and pushes the data from the input context parameter to the destination.
	`Push Bottom 3 Categories (Target Not Met)`	Data Push node	Receives the 'target not met' output parameter and pushes the data from the input context parameter to the destination.
Script-based Push	`Query Last Week's Sales Data`	MySQL node	Queries last week's total sales for the top three categories and passes the result as a context parameter to the assignment node.
	`Organize Top 3 Sales List`	Assignment Node	Uses Python to receive the output parameter from the MySQL node, convert it into a list, and pass the list as a context parameter to the Data Push node.
	`Push Last Week's Top 3 Categories`	Data Push node	Receives the list from the assignment node and pushes it to the destination.
Combined Push	`Query Yesterday's Total Sales`	MySQL node	Queries yesterday's total sales and sales growth from the test data and passes the results as context parameters to the Data Push node. The node for querying yesterday's total sales can also be used for yesterday's total sales in a simple data push.
	`Query Yesterday's Sales Growth`	MySQL node
	`Push Yesterday's Total Sales and Growth`	Data Push node	Receives output parameters from two MySQL nodes simultaneously and pushes the data from the input context parameters to the destination.
Simple Push	`Query Yesterday's Total Sales`	MySQL node	Queries yesterday's total sales from the test data and passes the result as a context parameter to the Data Push node.
Simple Push	`Push Yesterday's Total Sales`	Data Push node	Receives the output parameter from the MySQL node and pushes the data from the input context parameter to the destination.

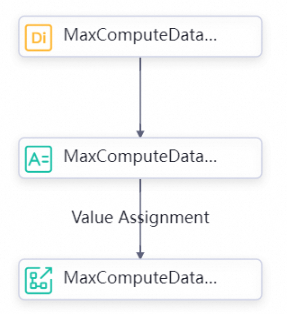

MaxCompute Data Push	`Sync MySQL Data to ODPS`	Batch Synchronization node	Uses Data Integration to synchronize data from MySQL to an ODPS data source.
	`Query ODPS Data`	Assignment Node	Queries data from the ODPS data source and passes the result as a context parameter to the Data Push node.
	`Push ODPS Data`	Data Push node	Receives the query result from the assignment node and pushes it to the destination.

Prepare data

This tutorial demonstrates how to use a data push node with a simple orders table. Follow these steps to create the table and populate it with test data. Skip this section if you do not need test data.

Create a test table

Log on to the DataWorks console. In the top navigation bar, select the desired region. In the left-side navigation pane, choose Data Development and O&M > Data Development. On the page that appears, select the desired workspace from the drop-down list and click Go to Data Development.
In the left-side navigation pane, click the icon to open the Ad Hoc Query page. Hover over the icon and select Create > MySQL to open a new ad hoc query tab.
- Node Type: MySQL.
- Path: Ad Hoc Query.
- Name: Create a test data table.
Run the following SQL statement to create the orders table:

CREATE TABLE orders (
     order_id INT NOT NULL AUTO_INCREMENT,
     category VARCHAR(100) NOT NULL, -- Product category
     sales DOUBLE NOT NULL, -- Order sales amount
     datetime DATETIME NOT NULL, -- Order time
     PRIMARY KEY (order_id),
     INDEX (category)
);

Create a stored procedure

The following stored procedure generates random order data for the past two months.

Note

Create the stored procedure in a MySQL client.

DELIMITER $$

CREATE PROCEDURE InsertOrders(IN num_orders INT)
BEGIN
  DECLARE v_category VARCHAR(100);
  DECLARE v_sales DOUBLE;
  DECLARE v_datetime DATETIME;
  DECLARE v_category_list VARCHAR(255);
  DECLARE v_index INT;
  DECLARE i INT DEFAULT 0;

  -- Define a comma-separated string of categories
  SET v_category_list = 'Electronics,Books,Home & Kitchen,Fashion,Toys,Baby,Computers,Electronics,Games,Garden,Clothing,Grocery,Health,Jewelry,Kids';
  -- Get the total number of categories
  SET v_index = ROUND((RAND() * (CHAR_LENGTH(v_category_list) - CHAR_LENGTH(REPLACE(v_category_list, ',', '')) + 1)));

  WHILE i < num_orders DO
    -- Generate a random index to select a category
    SET v_index = FLOOR(1 + (RAND() * (CHAR_LENGTH(v_category_list) - CHAR_LENGTH(REPLACE(v_category_list, ',', '')) + 1)));
    -- Extract a random category from the list
    SET v_category = SUBSTRING_INDEX(SUBSTRING_INDEX(v_category_list, ',', v_index), ',', -1);

    -- Generate a random sales amount between 1,000 and 30,000
    SET v_sales = 1000 + FLOOR(RAND() * 29000);

    -- Generate a random datetime within the last two months
    SET v_datetime = NOW() - INTERVAL FLOOR(RAND() * 61) DAY;

    -- Insert the new random order into the orders table
    INSERT INTO orders (category, sales, datetime) VALUES (v_category, v_sales, v_datetime);

    SET i = i + 1;
  END WHILE;
END$$

DELIMITER ;

Write test data

After you create the stored procedure, run the CALL statement to populate the orders table with random data.

-- Call the stored procedure to insert a specific number of random orders
CALL InsertOrders(1000); -- This inserts 1,000 random orders

Configure the push flow

DataWorks offers several deployment methods to suit your business logic: conditional deployment, script-based deployment, merged deployment, simple deployment, and MaxCompute data deployment. This tutorial uses MySQL to demonstrate the methods for various data sources and provides a specific example for deploying data from MaxCompute.

Conditional data push

Step 1: Build the push workflow

Double-click the Data_Push_Demo workflow to open the workflow canvas. Connect the nodes in sequence to create a conditional data push workflow as shown in the figure below. The workflow routes data from the Query_Last_Month_Sales_Total node to the Check_Sales_Target node. The Check_Sales_Target node then splits the flow into a "compliant" branch (which includes the Last_Month_Sales_Target_Met and Push_Top_3_Categories_Target_Met nodes) and a "non-compliant" branch (which includes the Last_Month_Sales_Target_Not_Met and Push_Bottom_3_Categories_Target_Not_Met nodes).

Step 2: Configure the SQL query node

Configure the SQL query node to query the test data. The query result is passed as an output parameter (outputs) to the downstream branch node using Input and Output Parameters.

Double-click the Query_Last_Month_Sales_Total node and enter the following SQL code.

-- Calculate the total sales for the previous month
SELECT SUM(sales) AS sales_amount
FROM orders
WHERE datetime BETWEEN DATE_FORMAT(CURRENT_DATE - INTERVAL 1 MONTH, '%Y-%m-01 00:00:00') AND DATE_FORMAT(LAST_DAY(CURRENT_DATE - INTERVAL 1 MONTH), '%Y-%m-%d 23:59:59');

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select your serverless resource group.
- Upstream Nodes: Select Add Root Node.
- Output Parameters: Under Input and Output Parameters, click Add assignment parameter next to Output Parameters to add an output parameter to pass the query result to the downstream node.

Step 3: Configure the branch node

In a branch node, within the Input and Output Parameters, you use the Input Parameters to obtain the outputs output parameter from an upstream SQL query node. The node then performs a conditional judgment and uses the Output Parameters to output the data that meets the condition.

Double-click the Check_Sales_Target node. Click Add Branch to create two branches, one for "compliant" and one for "non-compliant". Configure them as follows.

Parameter	Compliant branch	Non-compliant branch
Condition	`${inputs[0][0]}>=500000`	`${inputs[0][0]}<500000`
Associated Node Output	Compliant	Non-compliant
Description	Last month's total sales are compliant.	Last month's total sales are non-compliant.

Note

The expression [0][0] is a two-dimensional array reference to locate the specific data point for the condition.

When the upstream node is an SQL query node, use a two-dimensional array to locate the conditional data in the parameter.
When the upstream node is a Python node, use a one-dimensional array.

Double-click to open the Condition Check node. On the right, click Scheduling Settings and configure the following settings in the dialog box that appears.

Parameter type		Description
Schedule	Scheduling Frequency	`Day`
	Scheduling Time	`08:00`
	Rerun	Reruns are allowed after successful and failed runs.
Resource Group	Resource Group for Scheduling	Select your serverless resource group. Note The first time you use a data push node, you must submit a ticket to upgrade the scheduling resource group.
Output Name of Current Node		After you configure the branches, the output names are automatically parsed and added here. The Output Name must match the Associated Node Output defined for the branch.
Input and Output Parameters	Input Parameters	Parameter name: `inputs` Value Source: From the upstream node `Query last month's total sales`, select the output parameter `outputs`.
Input and Output Parameters	Output Parameters	The system adds `outputs` by default.

After configuration, click the icon to save the Check_Sales_Target node.

Step 4: Configure branch SQL nodes

In this tutorial, the branch SQL query node is divided into two nodes, Last_Month_Sales_Target_Met_Data and Last_Month_Sales_Target_Not_Met_Data. You need to output the context parameters of the Branch Node to the Last_Month_Sales_Target_Met_Data node and Last_Month_Sales_Target_Not_Met_Data node. Then, use the Output Parameters of the Input and Output Parameters to output the SQL query result from the branch node to the corresponding target-met and target-not-met Data Push nodes.

Double-click the Last_Month_Sales_Target_Met node and the Last_Month_Sales_Target_Not_Met node to open their editors, and then enter the following SQL code for each.

Last month sales target met

SET @all_cat_sales_volume_month := 0.0;
SELECT SUM(sales) INTO @all_cat_sales_volume_month FROM orders WHERE datetime BETWEEN DATE_FORMAT(CURRENT_DATE - INTERVAL 1 MONTH, '%Y-%m-01 00:00:00') AND DATE_FORMAT(LAST_DAY(CURRENT_DATE - INTERVAL 1 MONTH), '%Y-%m-%d 23:59:59');

-- Create a temporary table
CREATE TEMPORARY TABLE IF NOT EXISTS temp_array (
  category VARCHAR(255),
  sales DOUBLE,
  all_cat_sales_volume_month DOUBLE
);
-- Query and write to the temporary table
INSERT INTO temp_array (category, sales, all_cat_sales_volume_month) SELECT category, SUM(sales) AS amount, @all_cat_sales_volume_month FROM orders WHERE datetime BETWEEN DATE_FORMAT(CURRENT_DATE - INTERVAL 1 MONTH, '%Y-%m-01 00:00:00') AND DATE_FORMAT(LAST_DAY(CURRENT_DATE - INTERVAL 1 MONTH), '%Y-%m-%d 23:59:59') GROUP BY category ORDER BY amount DESC limit 3;
-- Query the data for the top three compliant categories
SELECT category, sales, all_cat_sales_volume_month FROM temp_array;

Last month sales target not met

SET @all_cat_sales_volume_month := 0.0;
SELECT SUM(sales) INTO @all_cat_sales_volume_month FROM orders WHERE datetime BETWEEN DATE_FORMAT(CURRENT_DATE - INTERVAL 1 MONTH, '%Y-%m-01 00:00:00') AND DATE_FORMAT(LAST_DAY(CURRENT_DATE - INTERVAL 1 MONTH), '%Y-%m-%d 23:59:59');

-- Create a temporary table
CREATE TEMPORARY TABLE IF NOT EXISTS temp_array (
  category VARCHAR(255),
  sales DOUBLE,
  all_cat_sales_volume_month DOUBLE
);

-- Query and write to the temporary table
INSERT INTO temp_array (category, sales, all_cat_sales_volume_month) SELECT category, SUM(sales) AS amount, @all_cat_sales_volume_month FROM orders WHERE datetime BETWEEN DATE_FORMAT(CURRENT_DATE - INTERVAL 1 MONTH, '%Y-%m-01 00:00:00') AND DATE_FORMAT(LAST_DAY(CURRENT_DATE - INTERVAL 1 MONTH), '%Y-%m-%d 23:59:59') GROUP BY category ORDER BY amount ASC limit 3;

-- Query the data for the bottom three non-compliant categories
SELECT category, sales, all_cat_sales_volume_month FROM temp_array;

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select your serverless resource group.
- Parent Nodes: The workflow was created in Step 1: Build the push workflow, so verify that the upstream dependency is correct.
  - For the Last_Month_Sales_Target_Met node, the upstream node output name must be Compliant.
  - For the Last_Month_Sales_Target_Not_Met node, the upstream node output name must be Non-compliant.
- Output Parameters: Under Input and Output Parameters, click Add assignment parameter next to Output Parameters to add an output parameter.
Click the icon to save the Last_Month_Sales_Target_Met and Last_Month_Sales_Target_Not_Met nodes.

Step 5: Configure the branch data push nodes

You need to create two data push nodes. For each node, in the Input and Output Parameters, configure the Input Parameters to obtain the outputs parameter from the Last_Month_Sales_Target_Met_Data and Last_Month_Sales_Target_Not_Met_Data branch SQL query nodes, respectively. Then, use these parameters in the Body and push them to their respective targets.

Double-click the Push_Top_3_Categories_Target_Met and Push_Bottom_3_Categories_Target_Not_Met nodes. In the node editor, click Scheduling Settings and configure the following in the Scheduling Settings pane.

Parameter type		Value	Illustration
Scheduling Parameter	Parameter name	`curdate`
Scheduling Parameter	Parameter Value	`$[yyyymmddhh:mi:ss]`
Schedule	Scheduling Frequency	`Day`
	Scheduling Time	`08:00` Note This tutorial uses 08:00 as an example to ensure the data is pushed to the destination at 08:00. You can configure a different time as needed.
	Rerun	Reruns are allowed after successful and failed runs.
Resource Group	Resource Group for Scheduling	Select your serverless resource group. Note The first time you use a data push node, you must submit a ticket to upgrade the scheduling resource group.
Input and Output Parameters	Input Parameters	Click Add to add an input parameter: Parameter Name: `inputs`. Value Source: In the `Push Top 3 Sales Goal Categories` node, select the output parameter `outputs` of the `Last Month's Sales Goal Data` node. In the `Push Bottom Three Underperforming Categories` node, select the output parameter `outputs` from the `Last Month's Underperforming Sales Data` node.	`Push_Top_3_Categories_Target_Met` node `Push_Bottom_3_Categories_Target_Not_Met` node

After configuring the Scheduling Settings, configure the data push content as follows.

Destination: From the Destination drop-down list, select your target. If your target is not listed, click Create Destination at the bottom of the list to create it.

Parameter	Description
Type	Supports DingTalk, Lark, WeCom, Microsoft Teams, and Email.
Object	Enter a custom name based on your business needs.
Webhook	Obtain the webhook URL for DingTalk, Lark, WeCom, or Microsoft Teams chatbots, or the SMTP details for Email, from the respective platform. Note For information on how to get a DingTalk chatbot webhook, see How do I obtain the access_token for an enterprise internal application chatbot? in FAQ. For information on how to get a Lark chatbot webhook, see Configure a Lark webhook trigger. For information on how to get a WeCom chatbot webhook, see Group Chatbot Configuration Guide. For information on how to get a Microsoft Teams webhook, see Create incoming webhooks with workflows for Microsoft Teams.

Title: Push_Top_3_Categories_Target_Met and Push_Bottom_3_Categories_Target_Not_Met.
Body: Configure as needed. For details, see Configure the push content.
Note
In the body, you can reference input parameters from the upstream SQL query node by using its returned field names as placeholders.
- Example for Push_Top_3_Categories_Target_Met
- Example for Push_Bottom_3_Categories_Target_Not_Met

After configuration, click the icon to save the Push_Top_3_Categories_Target_Met and Push_Bottom_3_Categories_Target_Not_Met nodes.

Step 6: Test the conditional push workflow

After you configure the conditional push workflow, test it before you submit and deploy it.

Double-click to open the Data_Push_Demo workflow page.
Select the Query Last Month's Total Sales node, right-click and select Run current node and its downstream nodes, and wait for the run to complete.
Note
If a task fails, right-click the failed node and select View Log to view the log.

Script data push

Step 1: Build the workflow

Double-click theDataPushDemo workflow to open the workflow canvas. Connect theSalesAmountPreWeek,Top3CategoryList, andTop3CategoriesPreWeek nodes in sequence to create a script data push workflow.

Step 2: Configure the SQL query node

You can configure an SQL query node to query test data and use Input and Output Parameters to generate the output parameter outputs for the SQL query node. This allows you to pass the SQL query result to an assignment node.

Double-click theSalesAmountPreWeek node to open its editor, and enter the following SQL code.

-- Query the top three categories by sales from the previous week
SELECT category, SUM(sales) AS amount
FROM orders
WHERE datetime BETWEEN DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 WEEK), '%Y-%m-%d 00:00:00') AND DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 DAY), '%Y-%m-%d 23:59:59')
GROUP BY category ORDER BY amount DESC limit 3;

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select your serverless resource group.
- Upstream Nodes: Select Add Root Node.
- Output Parameters: Under Input and Output Parameters, click Add assignment parameter next to Output Parameters to add an output parameter to pass the query result to the descendant node.
Click Save on the Query last week's sales data node.

Step 3: Configure the assignment node

The assignment node uses Input Parameters under Input and Output Parameters to receive theoutputs parameter from the upstream SQL query node. The node then processes this data, generates a new value for Output Parameters, and passes it to the data push node.

Double-click theTop3CategoryList assignment node. In the node editor, enter the following Python code.

def main():

    from datetime import date
    today = date.today()
    formatted_date = today.strftime('%Y-%m-%d')

    msg = 'Stat date: ' + formatted_date + ' \\n\\n ' \
    '- 1: ${inputs[0][0]}, sales: ${inputs[0][1]} \\n\\n ' \
    '- 2: ${inputs[1][0]}, sales: ${inputs[1][1]} \\n\\n ' \
    '- 3: ${inputs[2][0]}, sales: ${inputs[2][1]} \\n\\n '

    print(msg)


if __name__ == "__main__":
    import sys
    main()

After you enter the code, click Scheduling Settings on the right. In the resulting pane, configure the following parameters.
- Scheduling Time:08:00.
- Resource Group for Scheduling: Select your scheduling resource group.
- Input and Output Parameters.
  - Input Parameters:
    - Parameter name:inputs.
    - Value Source: Select the outputs parameter from the upstreamSalesAmountPreWeek node.
  - Output Parameters: Generated automatically by the system.
Click to save the Top 3 Sales in Organization List assignment node.

Step 4: Configure the data push node

Configure Input Parameters under Input and Output Parameters to receive theoutputs parameter from the upstream assignment node. Then, use this parameter in the message body and push it to the destination.

Double-click the data push node named Push Top 3 Categories of Last Week, click Scheduling Settings, and in the Scheduling Settings panel, configure the settings as follows.

Parameter type		Parameter content	Illustration
Scheduling Parameter	Parameter name	`curdate`.
Scheduling Parameter	Parameter Value	`$[yyyymmddhh:mi:ss]`.
Schedule	Scheduling Frequency	`Daily`.
	Scheduling Time	`08:00`. Note This tutorial uses 08:00 as an example to ensure the data is pushed to the destination at 08:00. You can configure a different time as needed.
	Rerun	The node can be rerun after it succeeds or fails.
Resource Group	Resource Group for Scheduling	Select your scheduling resource group. Note The first time you use a data push node, you must submit a ticket to upgrade the scheduling resource group.
Input and Output Parameters	Input Parameters	Click Add to add an input parameter: Parameter Name:`inputs`. Value source: Select the output parameter `outputs` from the upstream node `Top 3 sales categories last week`.

After configuring the Scheduling Settings, configure the data push content as follows.

Destination: Select a destination from the Destination drop-down list. If your destination is not listed, click Create Destination at the bottom of the list to add it.

Parameter	Description
Type	Supports DingTalk, Lark, WeCom, Teams, and Email.
Object	Specify a custom name based on your business needs.
Webhook	Obtain the webhook URL for DingTalk, Lark, WeCom, or Teams bots, and the SMTP server details for email, from their respective platforms. Note To get a DingTalk bot webhook, refer to the "How do I get the access_token for an internal application bot webhook?" question in the FAQ. To get a Lark bot webhook, see Lark Webhook Trigger Configuration. To get a WeCom bot webhook, see Group Robot Configuration Guide. To get a Teams webhook, see Create an Incoming Webhook with Microsoft Teams Workflows.

Title:Top 3 categories by sales for the previous week.
Body: Configure the message body as needed. For details, see Configure push content.
Note
In the body, you can reference input parameters from the upstream SQL query node by using its returned field names as placeholders.

After you complete the configuration, click to save the Push Top Three Categories of Last Week push node.

Step 5: Test the script data push workflow

After you configure the script data push workflow, test it before you submit and deploy it.

Double-click theDataPushDemo workflow to open the workflow canvas.
Right-click theSalesAmountPreWeek node and select Run Current Node and Its Descendant Nodes. Wait for the process to complete.
Note
If a task fails, right-click the failed node and select View Log to view the log.

Simple data push

Step 1: Build the push workflow

Double-click the Data_Push_Demo_Workflow. On the workflow canvas, you can see multiple existing nodes. Drag the MySQL query node Query_Yesterday_Sales_Total as the upstream node and connect it to the downstream data push node Push_Yesterday_Sales_Total. This creates a simple data push workflow, as shown in the following figure.

Step 2: Configure the SQL query node

Use the Input and Output Parameters to generate an outputs parameter that passes the SQL query result to the data push node.

Double-click the Query_Yesterday_Sales_Total node and enter the following SQL code.

-- Create a temporary table named temp_array
CREATE TEMPORARY TABLE IF NOT EXISTS temp_array (
  total_amount DOUBLE
);

-- Write the total sales from yesterday into the temp_array table
INSERT INTO temp_array (total_amount)
SELECT SUM(sales)
FROM orders
WHERE datetime BETWEEN DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 DAY), '%Y-%m-%d 00:00:00') AND DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 DAY), '%Y-%m-%d 23:59:59');

-- Query the temp_array table
select total_amount FROM temp_array;

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select an existing Serverless resource group.
- Upstream Nodes: Select Add Root Node.
- Output Parameters: In the Input and Output Parameters section, click Add assignment parameter next to Output Parameters to add an output parameter. Downstream nodes can then access its value.
Click Save to save the Query_Yesterday_Sales_Total node.

Step 3: Configure the data push node

Configure the Input Parameters within the Input and Output Parameters section to receive the outputs parameter from the upstream SQL query node. You can then use this parameter in the message body and push it to the destination.

Double-click the Push_Yesterday_Sales_Total data push node. In the node editor, click Scheduling Settings on the right. In the Scheduling Settings pane, configure the following parameters.

Parameter type		Details	Illustration
Scheduling Parameter	Parameter name	`curdate`
Scheduling Parameter	Parameter Value	`$[yyyymmddhh:mi:ss]`
Schedule	Scheduling Frequency	`Daily`
	Scheduling Time	`08:00` Note This tutorial uses 08:00 as an example to ensure the data is pushed to the destination at 08:00. You can configure a different time as needed.
	Rerun	The node can be rerun after a successful or failed run.
Resource Group	Resource Group for Scheduling	Select an existing scheduling resource group. Note The first time you use a data push node, you must submit a ticket to upgrade the scheduling resource group.
Input and Output Parameters	Input Parameters	Click Add to add an input parameter: Parameter name: `inputs`. Value Source: Select the `outputs` parameter from the upstream `Query_Yesterday_Sales_Total` node.

After configuring the Scheduling Settings, configure the data push content as follows.

Destination: From the Destination drop-down list, select a destination. If your destination isn't listed, click Create Destination.

Parameter	Description
Type	Supported types include DingTalk, Feishu, WeCom, Teams, and Email.
Object	Enter a custom name based on your business needs.
Webhook	Obtain the webhook URL for DingTalk, Feishu, or WeCom bots, or for a Microsoft Teams workflow, from the respective platforms. For email, obtain the SMTP details. Note For more information about how to get a DingTalk bot webhook, see How do I obtain the access_token for an enterprise internal application bot? in FAQ. For more information about how to get a Feishu bot webhook, see Feishu webhook trigger configuration. For more information about how to get a WeCom bot webhook, see Group bot configuration guide. For more information about how to get a Teams webhook, see Create incoming webhooks with workflows for Microsoft Teams.

Title: Push_Yesterday_Sales_Total.
Body: Configure the message body as needed. For more information, see Configure the push content.
Note
In the body, you can reference input parameters from the upstream SQL query node by using its returned field names as placeholders.

Click Save to save the Push_Yesterday_Sales_Total data push node.

Step 4: Test the simple push workflow

After configuring the simple data push workflow, test it before submitting it for deployment.

Double-click Data_Push_Demo_Workflow to open the workflow canvas.
Select the Query_Yesterday_Sales_Total node, right-click it, and select Run current node and its downstream nodes. Wait for the run to complete.
Note
If a task fails, right-click the failed node and select View Log to view the log.

Combined data push

Step 1: Build the workflow

Double-click to open the Data Push Demo Flow workflow canvas. On the canvas, drag and connect the upstream nodes Query Yesterday's Total Sales and Query Yesterday's Sales Growth to the descendant node Push Yesterday's Total Sales and Growth to create a combined data push workflow as shown in the following figure.

Note

The Query yesterday's total sales node can be the same one used in the simple data push workflow.

Step 2: Configure the SQL query node

You can configure an SQL query node to query test data and use a Input and Output Parameters to generate the outputs output parameter, which passes the SQL query result to a data push node.

Click the Query Yesterday's Sales Growth node, and write the following query SQL code.

-- Create the temporary table temp_array1 to store data from the day before yesterday
CREATE TEMPORARY TABLE IF NOT EXISTS temp_array1 (
  category VARCHAR(255),
  sales DOUBLE
);
-- Write data from the day before yesterday to temp_array1
INSERT INTO temp_array1 (category, sales) SELECT category, SUM(sales)
FROM orders
WHERE datetime BETWEEN DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 2 DAY), '%Y-%m-%d 00:00:00') AND DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 2 DAY), '%Y-%m-%d 23:59:59')
GROUP BY category;

-- Create the temporary table temp_array2 to store yesterday's data
CREATE TEMPORARY TABLE IF NOT EXISTS temp_array2 (
  category VARCHAR(255),
  sales DOUBLE
);
-- Write yesterday's data to temp_array2
INSERT INTO temp_array2 (category, sales) SELECT category, SUM(sales)
FROM orders
WHERE datetime BETWEEN DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 DAY), '%Y-%m-%d 00:00:00') AND DATE_FORMAT(DATE_SUB(CURDATE(), INTERVAL 1 DAY), '%Y-%m-%d 23:59:59')
GROUP BY category;

-- Create the result temporary table to store yesterday's sales growth
CREATE TEMPORARY TABLE IF NOT EXISTS result (
  category VARCHAR(255),
  diff DOUBLE
);
-- Write the growth data to the result table
INSERT INTO result (category, diff) SELECT temp_array2.category AS category, temp_array2.sales - temp_array1.sales AS diff FROM temp_array1 LEFT JOIN temp_array2 ON temp_array1.category = temp_array2.category;

-- Query the growth data from the result temporary table
SELECT category, diff FROM result;

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select an existing serverless resource group.
- Upstream Nodes: Select Add Root Node.
- Output Parameters: In the Input and Output Parameters section, click Add assignment parameter next to Output Parameters to add output parameters as values for the input parameters of descendant nodes.
Click Save to save the Query Yesterday's Sales Growth node.

Step 3: Configure the data push node

Use the Input Parameters of the Input and Output Parameters to receive the outputs output parameter from the upstream Query Yesterday's Total Sales and Query Yesterday's Sales Growth nodes, so that you can use the parameters in the Body and push them to the target.

Double-click the data push node named Push Yesterday's Total Sales and Growth. After the node page opens, click Scheduling Settings and configure the following settings in the Scheduling Settings panel.

Parameter type		Description	Example
Scheduling Parameter	Parameter name	`curdate`
Scheduling Parameter	Parameter Value	`$[yyyymmddhh:mi:ss]`
Schedule	Scheduling Frequency	`Day`
	Scheduling Time	`08:00` Note This tutorial uses 08:00 as an example to ensure the data is pushed to the destination at 08:00. You can configure a different time as needed.
	Rerun	The node can be rerun regardless of whether the previous run succeeded or failed.
Resource Group	Resource Group for Scheduling	Select an existing resource group. Note The first time you use a data push node, you must submit a ticket to upgrade the scheduling resource group.
Input and Output Parameters	Input Parameters	Click Add to add input parameters for this node: Parameter 1: Parameter name: `inputs1`. Value Source: Select the output parameter `outputs` of the upstream node `Query Yesterday's Total Sales`. Parameter 2: Parameter name: `inputs2`. Value Source: Select the output parameter `outputs` from the upstream node `Query Yesterday's Sales Growth`.

After configuring the Scheduling Settings, configure the data push content as follows.

Destination: From the Destination dropdown list, select a destination. If your desired destination is not available, click Create Destination in the lower-right corner of the dropdown list to create a new one.

Parameter	Description
Type	Supported types include DingTalk, Lark, WeCom, Microsoft Teams, and Email.
Object	Specify a custom name based on your business requirements.
Webhook	Obtain the webhook URL for DingTalk, Lark, WeCom, or Microsoft Teams chatbots, or the SMTP details for Email, from the respective platform. Note To learn how to get a DingTalk chatbot webhook, see How do I obtain the access_token for an enterprise internal application chatbot? in FAQ. To learn how to get a Lark chatbot webhook, see Lark Webhook Trigger Configuration. To learn how to get a WeCom chatbot webhook, see Group Chatbot Configuration Guide. To learn how to get a Teams webhook, see Create incoming webhooks with workflows for Microsoft Teams.

Title: Push Yesterday's Total Sales and Growth
Body: Configure the body as required. For more information, see Configure push content.
Note
In the body, you can reference input parameters from the upstream SQL query node by using its returned field names as placeholders.

After the configuration is complete, click Save to save the Push Yesterday's Total Sales and Growth push node.

Step 4: Test the combined push workflow

Before you can test the combined push workflow, you must complete the simple push workflow configuration. This configuration is a prerequisite for subsequent deployment.

Double-click Data Push Demo Flow to open the business process diagram page.
Select the Push Yesterday's Total Sales and Growth node, right-click and select Run Till Current Node, and wait for the run to complete.
Note
If a task fails, right-click the failed node and select View Log to view the log.

Push data from MaxCompute

Step 1: Build the data push flow

Double-click Data Push Demo Flow. On the workflow canvas, you can see the created nodes. Drag a Batch Synchronization node to be the upstream node of the Assignment Node. Connect the Sync MySQL data to ODPS, Query ODPS data, and Push ODPS data nodes in sequence.

Step 2: Configure the batch synchronization node

Configure the Synchronize MySQL data to ODPS node to synchronize the test data written to MySQL during the Prepare data phase to the ODPS data source for subsequent use.

Double-click the Synchronize data from MySQL to ODPS node to configure the batch synchronization node.

Parameter		Configuration	Example
Source	Data Source	MySQL
	Data Source Name	Select the MySQL data source that you created.
My Resource Group		Select a serverless resource group.
Destination	Destination	MaxCompute (ODPS)
	Data Source Name	Select the MaxCompute data source bound to the workspace.

After you complete the configuration, the system automatically tests the connectivity between the data source and the resource group. After the test succeeds, click Next to configure the source and destination details.

Configure the source and destination.

Parameter		Configuration	Example
Data Source	Data Sources	Keep the default settings: MySQL. Select the MySQL data source that you created.
	Table	Select the `orders` table.
	Data Filter	You can configure this as needed. For this tutorial, leave it blank.
	Shard Key	You can use a column from the source table as the split key. We recommend using the primary key or an indexed column.
	Data Preview	Preview the data retrieved from the MySQL data source to verify that it meets your expectations.
Destination	Data Sources	Keep the default settings: MaxCompute (ODPS). Select the MaxCompute data source bound to the workspace.
	Tunnel Resource Group	This specifies the Tunnel Quota. The default is "Public transmission resources", the free quota for MaxCompute. Note If an exclusive tunnel quota is unavailable due to overdue payments or expiration, the task automatically switches to "Public transmission resources" during runtime. For details on MaxCompute data transfer resources, see Purchase and use exclusive data transfer service resource groups.
	schema	From the drop-down list, select the schema to which you want to write data.
	Table	Click Generate Destination Table Schema to create the destination table.
	Partition Information	To load incremental data daily, configure a date-based partition. For example, set the `pt` partition to `${bizdate}`.
	Write Method	Clear existing data before writing (Insert Overwrite)

After you configure the source and destination, you can Map Fields with the Same Name the fields.
Configure channel control.
- Expected Maximum Concurrency: The actual concurrency at runtime may be less than or equal to this value because of resource limitations or the nature of the task. You are charged based on the actual concurrency. For this tutorial, a concurrency of 2 is sufficient.
- Bandwidth Throttling: You can use throttling to protect the read/write load on the source or destination. If you do not configure throttling, the system provides the maximum transfer performance that the current hardware supports. For this tutorial, throttling is not configured.
- Policy for Dirty Data Records: Dirty data is not tolerated.
- Distributed Execution: This feature is disabled by default. A concurrency of 8 or greater is required to enable it.
Configure scheduling properties.
After you configure the integration task, click **Properties** on the right side of the page. In the **Properties** panel, configure the following parameters.
- Scheduling Parameter:
  - Parameter name: bizdate
  - Parameter Value: $[yyyymmdd-1]
- Scheduling Time: 08:00
- Rerun: From the drop-down list, select Allow Regardless of Running Status.
- Resource Group for Scheduling: Select the scheduling resource group that you created.
- Dependencies: Select the workspace root node to use it as the upstream dependency for the batch synchronization task.
Click Save to save the Synchronize MySQL data to ODPS batch synchronization node.

Step 3: Configure the assignment node

ODPS data sources do not support using an ODPS SQL node to query data and output the data to a data push node by using Input and Output Parameters. You must use an assignment node to query the ODPS data and then use Input and Output Parameters to output the data to the data push node.

Double-click the Query ODPS data node to open its configuration page.

From the Language drop-down list at the top of the editor, select **ODPS SQL**.

Enter the ODPS SQL code.

-- Create a subquery with a ranking to calculate the descending order of sales within each partition (pt).
-- The DENSE_RANK() function assigns a unique rank to each row within a partition.
-- Rows with equal sales values receive the same rank, and no rank numbers are skipped.
--
-- Subquery details:
-- 1. Select the required columns from the 'orders' table: order_id, category, sales, datetime, and pt (business date).
-- 2. Use DENSE_RANK() OVER (PARTITION BY pt ORDER BY sales DESC):
   -- PARTITION BY pt specifies that ranking is performed separately for each unique value in the pt column.
   -- ORDER BY sales DESC sorts rows within each partition by sales in descending order.
   -- The 'rank' column stores the sales rank of each row within its partition.
--
-- Main query details:
-- The main query selects records from the ranked subquery where the rank is 3 or less.
-- This ensures that for each business date, only the top three orders by sales are retrieved.

SELECT
  order_id,          -- Select the order ID
  category,          -- Select the product category
  sales,             -- Select the sales amount
  datetime,          -- Select the order time
  pt                 -- Select the business date
FROM (
    SELECT
      order_id,
      category,
      sales,
      datetime,
      pt,
      DENSE_RANK() OVER (PARTITION BY pt ORDER BY sales DESC) AS rank  -- Calculate sales rank within each pt partition
    FROM orders
    WHERE pt = '${bizdate}'  -- Filter records for the specified business date
) AS ranked_orders
WHERE rank <= 3  -- Keep only the top three records by sales for each pt partition

After you enter the SQL code, click Scheduling Settings on the right. In the Properties pane, configure the following parameters.
- Scheduling Time: 08:00.
- Resource Group for Scheduling: Select a serverless resource group that you have created.
- Parent Nodes: Check if the parent node is a MySQL to ODPS batch synchronization node.
- Input and Output Parameters: Click Add after the output parameters to add an output parameter as the value for an input parameter of a descendant node.
Click Save to save the ODPS data query node.

Step 4: Configure the data push node

Configure the Input Parameters of the Input and Output Parameters to obtain the outputs parameter from the upstream assignment node, and then use these parameters in the Body and push them to the target.

Double-click the data push node named ODPS Data Push, click Scheduling, and configure the following settings in the Scheduling panel.

Parameter type		Configuration	Example
Scheduling Parameter	Parameter name	`curdate`
Scheduling Parameter	Parameter Value	`$[yyyymmddhh:mi:ss]`
Schedule	Scheduling Frequency	`DD`
	Scheduling Time	`08:00` Note This tutorial uses 08:00 as an example to ensure the data is pushed to the destination at 08:00. You can configure a different time as needed.
	Rerun	Allow Regardless of Running Status.
Resource Group	Resource Group for Scheduling	Select a resource group created after the release date of the data push feature. If your resource group was created before this date, submit a ticket to upgrade it. Note The data push node feature was released on June 28, 2024. For more DataWorks release notes, see Release History.
Input and Output Parameters	Input Parameters	Click Add to add input parameters for this node: Parameter name: `inputs` Value Source: Select the outputs output parameter from the upstream `ODPS Data Query` node.

After configuring the Scheduling Settings, configure the data push content as follows.

Destination: Select the required destination from the Destination drop-down list. If the destination does not exist, you can click Create Destination at the bottom right of the drop-down list to create a new one.

Parameter	Description
Type	Supported destinations include DingTalk, Lark, WeChat Work, Microsoft Teams, and Email.
Object	Specify a custom name based on your business requirements.
Webhook	You must obtain the webhook URL for DingTalk, Lark, WeChat Work, or Microsoft Teams bots, or the SMTP details for email, from the respective platforms. Note To learn how to obtain a DingTalk bot webhook, see How do I obtain the access_token for an enterprise internal application bot webhook? in FAQ. To learn how to obtain a Lark bot webhook, see Lark Webhook Trigger Configuration. To learn how to obtain a WeChat Work bot webhook, see Group Bot Configuration Guide. To learn how to obtain a Microsoft Teams webhook, see Create incoming webhooks with Microsoft Teams workflows.

Title: ODPS Data Push
Body: Configure as needed. For details, see Configure push content.
Note
In the message body, you can use the field names from the upstream assignment node's query result directly as placeholders.

After you complete the configuration, click the Save icon to save the data push node.

Step 5: Test the MaxCompute data push flow

After configuring all nodes in the data push flow, you must test the flow before committing and deploying it.

Double-click to open the Data_Push_Demo workflow page.
Select the Sync Data from MySQL to ODPS node, right-click and select Run current node and its downstream nodes, and wait for the run to complete.
Note
If a task fails, right-click the failed node and select View Log to view the log.

Submit and publish

After you configure the data push flow, double-click the Data Push Demo Example business process diagram to verify that all data push flows run correctly. Once the tests succeed, submit and publish the flows.

On the edit page for the data push flow, click the icon to run the business process.
After the icon appears on all nodes in the data push flow, click the icon to submit the flow.
In the Submission dialog box, select the nodes to submit and check the Ignore I/O Inconsistency Alerts checkbox.
Click Submission.
After submitting the flow, you can publish its nodes on the publish page. For more information, see Publish Task.

Next steps

A data push runs on its configured scheduling cycle. From the Operation Center, you can manage the task nodes of a published data push. For details, see Basic operations on scheduled tasks.
