Adaptation guide for third-party Bluetooth communication plugins

Procedure

1. Obtain identity information.
   A smart device must have an identity on the Alibaba Cloud IoT Platform. This identity links the device to a user account. It also enables data to be sent between the device and the cloud and allows for device control. On the IoT Platform, a device identity is determined by two items:

   • A `ProductKey` is a random string that represents the product model. The IoT Platform issues a `ProductKey` when you register a product.
   • A `DeviceName` is a device ID specific to the IoT Platform. Together with the `ProductKey`, it uniquely identifies a device on the platform. The `DeviceName` can be a random string generated by the IoT Platform or a string that you specify when you add the device to the platform.

   When a smart device is manufactured, it is issued a globally unique ID. This ID usually consists of two parts.

   • `ProductModel`: The product model, such as BCD-320WGPZM for a refrigerator.
   • `DeviceId`: The device ID, which is usually a MAC address or serial number (SN).

   When you connect a smart device to the IoT Platform, you must map its private ID to the ID that is issued by the platform.

   1. Create a product.

      Add a new product on the IoT Platform. When you register the product, the IoT Platform issues a `ProductKey` to identify it.

   2. Enter device IDs.

      Add devices for the product in batches by entering their `DeviceId`s. The IoT Platform issues device identities for the batch and uses the `DeviceId`s that you entered as the `DeviceName`s.

2. Create a data format transformation script.
   Because third-party Bluetooth devices do not use the Thing Specification Language model to define their features, you must transform data into a format that the device can understand. For example, in a scenario where you turn on a light, the message that is encapsulated based on the Thing Specification Language model is shown below.

   {
   "id":123,
   "version":"1.0.0",
   "method":"thing.service.property.set",
   "params":{
   "LightSwitch":1
   },
   }

3. Develop a plugin for the Bluetooth communication plugin management system.
   The communication plugin abstract interface has three parts:

   • Device discovery interface

     You must convert the `ProductModel` from the broadcast into the `ProductKey` that you obtained during product registration. You can use the MAC address directly as the `DeviceName`.

     When purchasing activation codes in the Mass Production Management section of the IoT Platform console, select the batch upload method to generate the codes by uploading the MAC addresses to use as `DeviceName`s.

   • Device connection interface

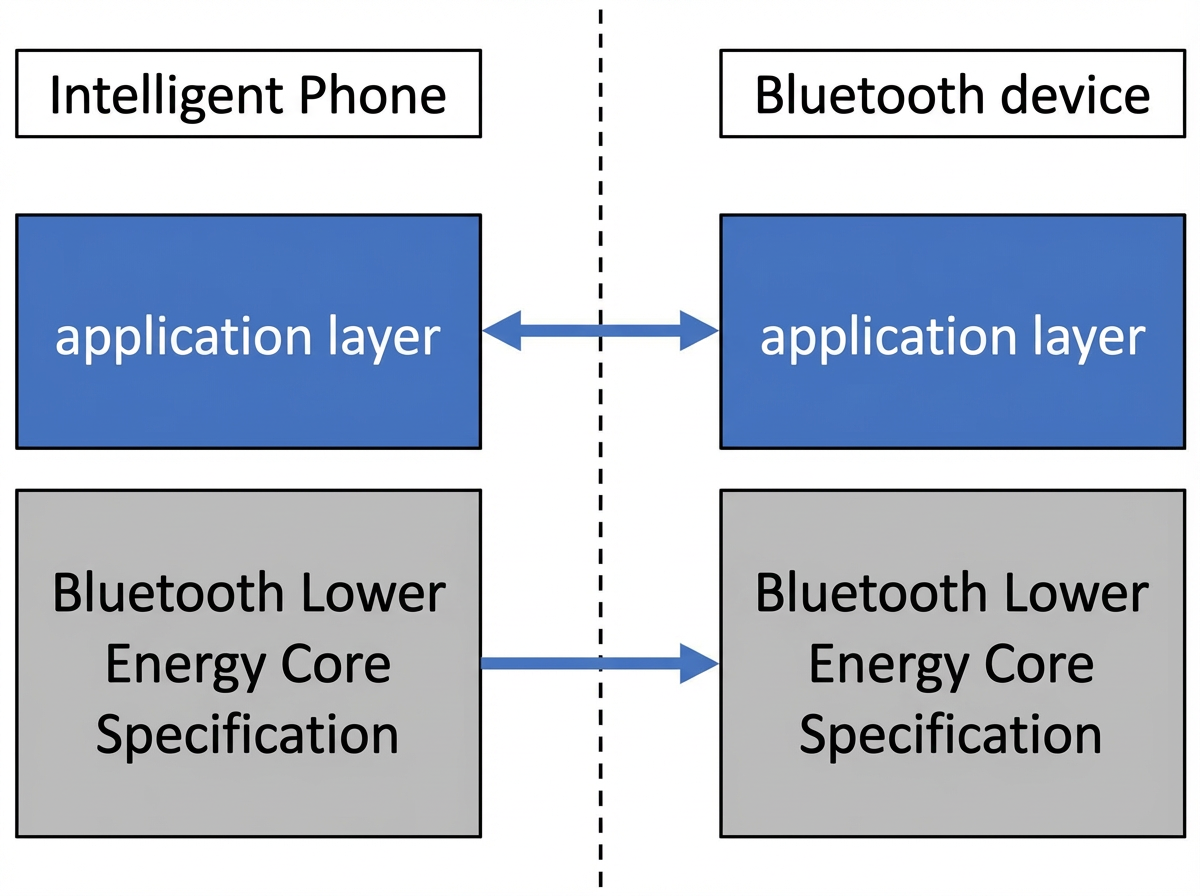

     This interface must establish a connection between the mobile phone (Bluetooth Central) and the Bluetooth device (Bluetooth Peripheral).

   • Data sending/receiving interface

     This interface sends business data to the Bluetooth device and returns the device's response to the upper-layer Bluetooth access framework. You must also implement the event subscription feature. This lets you subscribe to device events so that the app can receive notifications when the events occur.

4. Bind and control the Bluetooth device.
   After the plugin is implemented, the subsequent process for a third-party Bluetooth device is the same as for a standard Alibaba Cloud IoT Bluetooth device. For more information about binding and controlling the device, see the mobile software development kit (SDK) guide.
