Link Visual device development - Linux SDK

1. Obtain the Link Visual SDK

The Linux version of the LinkVisual device-side SDK is provided as a static library. It supports integration with devices that use different chips through compilation. You must request the SDK by email.

Send an email to fangyu.hfy@alibaba-inc.com using the following template to request the LinkVisual device-side SDK. We will contact you within five business days after we receive your email.

• Subject: Request for firmware upgrade SDK and operation documentation

• Body:

  Company name:
  Company address:
  Contact:
  Phone number:
  Scenario description:

2. Understand the SDK directory structure and demo source code

Before you develop with the LinkVisual SDK, review the SDK directory structure and the LinkVisual demo source code to quickly understand the development workflow.

• Understand the SDK directory structure

  Extract the LinkVisual SDK archive and examine its contents.

  # Extract the archive and view its contents (note: the filename includes version-specific information; use the actual filename when running the command)
  $ tar -xf link_visual_ipc_vxxx.tar.gz
  $ tree -L 2 link_visual_ipc_vxxx

  ├── CMakeLists.txt # Basic CMake-based build example
  ├── linkvisual # LV libraries and header files
  │   ├── liblink_visual_ipc.a # LV library (note: the actual archive may contain a dynamic library)
  │   ├── link_visual_def.h # LV header file
  │   └── link_visual_ipc.h # LV header file
  ├── sample # Sample code
  │   ├── demo.c # Entry file for sample code
  │   ├── demo.h # Header file for sample code
  │   ├── ipc_operation # Simulated IPC functionality for demonstration
  │   └── sdk_api_operation # LV SDK implementation files for the sample
  ├── third_party # Third-party libraries
  │ ├── cJSON-1.7.7.tar.gz # JSON parsing library, version 1.7.7
  │ ├── libevent-2.1.8-stable.tar.gz # libevent, version 2.1.8
  │ └── linkkit-sdk-c.tar.gz # IoT Platform SDK for IoT Platform connectivity
  └── version.txt  # Version information

• Understand the demo source code

  For instructions on how to download the LinkVisual demo, see Quickly experience LinkVisual.

  # Code excerpt from sample/demo.c
  int main(int argc, char* argv[])
  {
      char product_key[PRODUCT_KEY_LEN + 1] = {0};
      char device_name[DEVICE_NAME_LEN + 1] = {0};
      char device_secret[DEVICE_SECRET_LEN + 1] = {0};
      char product_secret[PRODUCT_SECRET_LEN + 1] = {0};

      int ret = 0;
  #ifdef DUMMY_IPC
      /* 0. Initialize virtual IPC functionality */
      ret = dummy_ipc_start(&dummy_ipc_config);
  #endif // DUMMY_IPC

      /* 1. Initialize LinkVisual resources */
      ret = linkvisual_client_init(product_key, device_name, device_secret, (lv_log_level_e) log_level);

      /* 2. Initialize linkkit resources and establish a persistent connection to the server */
      ret = linkkit_client_start(product_key, product_secret, device_name, device_secret);

      /* 3. Run and wait for server commands */
      while(1) {
          usleep(1000 * 500);
      }

      /* 4. Disconnect the linkkit persistent connection and release resources */
      linkkit_client_destroy();

      /* 5. Disconnect the LinkVisual audio/video connection and release resources */
      linkvisual_client_destroy();

  #ifdef DUMMY_IPC
      /* Stop virtual IPC functionality */
      dummy_ipc_stop();
  #endif // DUMMY_IPC

      return 0;
  }

  As shown in the preceding code, the LinkVisual device demo implements three modules.

  • Starts a virtual IPC to simulate IPC stream output. This is for testing only. You do not need to focus on its implementation details. In a real product, you must replace it with actual IPC stream output functionality.

  • Starts the IoT Platform SDK to establish a signaling channel for receiving commands, such as live streaming requests. Features such as network provisioning and Over-the-Air (OTA) updates are also part of the IoT Platform SDK.

  • Starts the video service SDK to handle video-related commands, such as live streaming, and establish a media channel to send audio and video data.

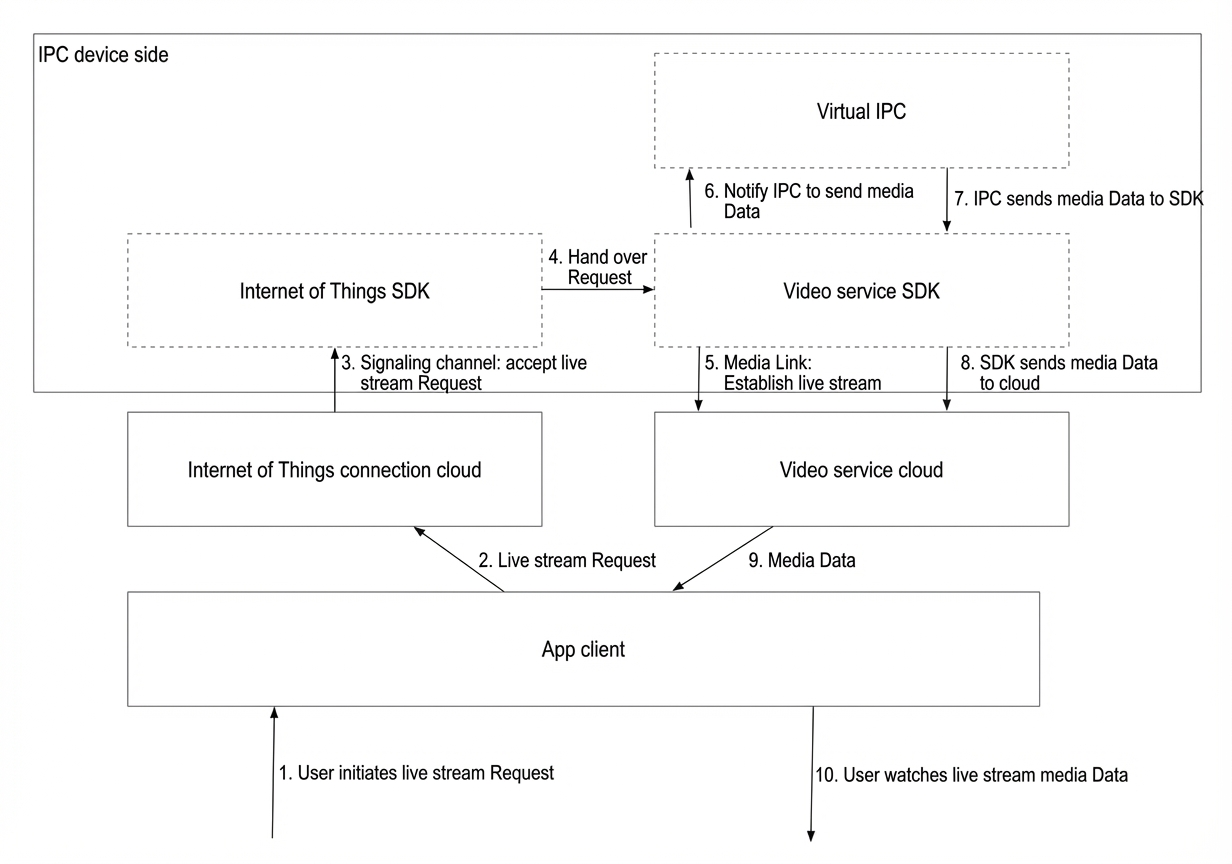

  The relationship among these three modules is shown in the following figure. The figure uses live stream forwarding as an example.



3. Compile the Link Visual SDK

1. Set up the environment.

   Compilation requires tools such as CMake. The following example shows how to install the build environment on Ubuntu 16.04.

   $ sudo apt-get install -y build-essential make git gcc g++ cmake tree

2. Compile cJSON.

   1. Go to the third_party directory and extract cJSON-1.7.7.

      $ cd third_party
      # Extract the source archive
      $ tar -xf cJSON-1.7.7.tar.gz
      $ cd cJSON-1.7.7

   2. Add toolchain declarations to the Makefile and replace them with your cross-compilation toolchain.

      CC        =   arm-linux-gcc
      LD        =   arm-linux-ld
      AR       =   arm-linux-ar

   3. Compile cJSON and verify that libcjson.a and the header file cJSON.h exist.

      $ make
      # Confirm libcjosn.a and related header files exist
      $ ls lib*.a
      $ ls *.h

3. Compile libevent.

   1. In the third_party directory, extract libevent.

      $ cd third_party
      # Extract the source archive
      $ tar -xf libevent-2.1.8-stable.tar.gz

   2. Compile libevent.

      $ cd libevent-2.1.8-stable
      # Configure build options; update host and CC to match your cross-compilation toolchain. Adjust other options as needed.
      $ ./configure --host=arm-linux CC=arm-linux-gcc --enable-static --disable-samples --disable-openssl
      $ make # Compile
      $ ls .libs/libevent.* # Confirm libevent.a is generated

4. Compile the IoT Platform SDK.

   1. In the third_party directory, extract ali-smartliving-device-sdk-c.

      $ cd third_party
      $ tar -xf ali-smartliving-device-sdk-c-1.4.tar.gz；
      # Extract the source archive
      $ cd ali-smartliving-device-sdk-c

   2. Modify src/board/config.ubuntu.x86 to prepare for cross-compilation.

      CROSS_PREFIX :=arm-linux-
      # Append CROSS_PREFIX := [your cross-compilation toolchain path prefix] (replace with your actual toolchain)

   3. Select Ubuntu compilation and confirm that the libraries libiot_tls.a, libiot_sdk.a, and libiot_hal.a are generated.

      # Select the Ubuntu option (usually number 6)
      $ make reconfig
      $ make
      # Confirm libiot_tls.a/libiot_sdk.a/libiot_hal.a exist
      $ ls output/lib/*.a
      # Confirm header files such as iot_import.h exist
      $ tree include

5. Organize the build.

   1. Return to the root directory of the extracted SDK and modify the TOOLCHAINS_PREFIX parameter in CMakeLists.txt.

      set(TOOLCHAINS_PREFIX "arm-linux-" CACHE STRING "set the toolchain")
      # Set the second parameter to your cross-compilation toolchain prefix (replace with your actual toolchain)

   2. Perform the build.

      # Create a build folder to organize build artifacts
      $ mkdir -p build
      # Enter the build directory and run CMake using CMakeLists.txt from the root
      $ cd build
      $ cmake ..
      # Compile and install required runtime files
      $ make
      $ make install

      • During compilation, add -std=c++11 to enable C++11 support.

      • During linking, add -lstdc++ to enable C++11 support.

      • Link the libraries in the following order: link_visual_ipc, iot_sdk cjson, iot_hal, iot_tls pthread, and rt.

6. Run the device.

   # Run similarly to the Ubuntu or Docker demo, passing your device's activation credentials
   $ ./link_visual_demo -p your_product_key -n your_product_name -s your_product_secret

4. API overview

Because the LinkVisual SDK depends on the IoT Platform SDK, you must confirm that you have completed the IoT Platform SDK development before you proceed. For more information, see Development guide.

• Lifecycle functions

  The following APIs manage the SDK lifecycle.

  Features	API name
  SDK initialization	lv_init
  SDK shutdown	lv_destroy

• Dynamic control and other functions

  Description	API name
  Inject IoT Platform SDK messages	lv_linkkit_adapter
  Dynamic SDK control	lv_control

• Live streaming, SD card video-on-demand, and cloud storage functions

  Features	API name
  Notify that live streaming or video-on-demand has started	lv_start_push_streaming_cb
  Notify that live streaming or video-on-demand has ended	lv_stop_push_streaming_cb
  Push audio/video configuration parameters	lv_stream_send_config
  Push video data	lv_stream_send_video
  Push audio data	lv_stream_send_audio
  Control commands during streaming (pause, etc.)	lv_on_push_streaming_cmd_cb
  Query a list of video-on-demand files	lv_query_storage_record_cb
  You can query video-on-demand files by month.	lv_query_storage_record_by_month_cb
  End playback of a recorded file	lv_post_file_close

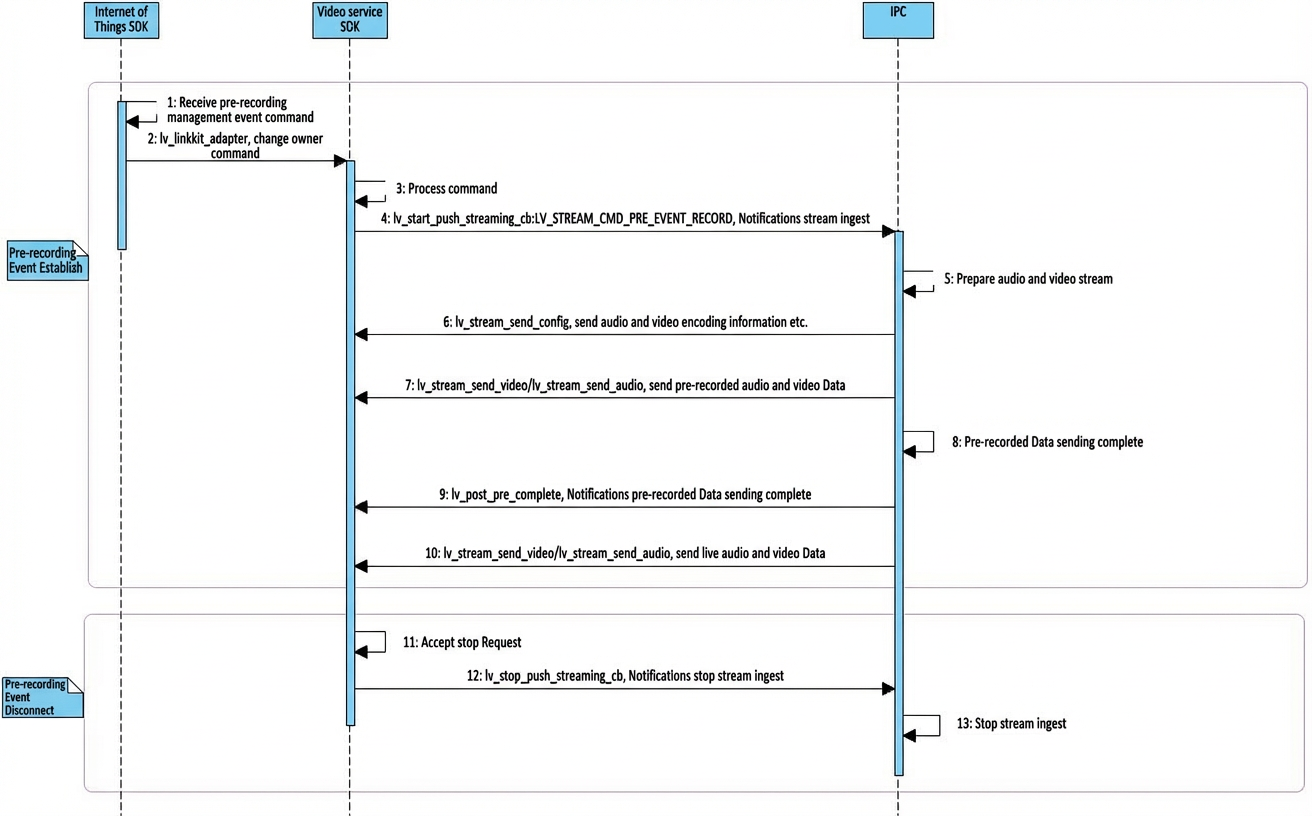

  End pre-recording data	lv_post_pre_complete

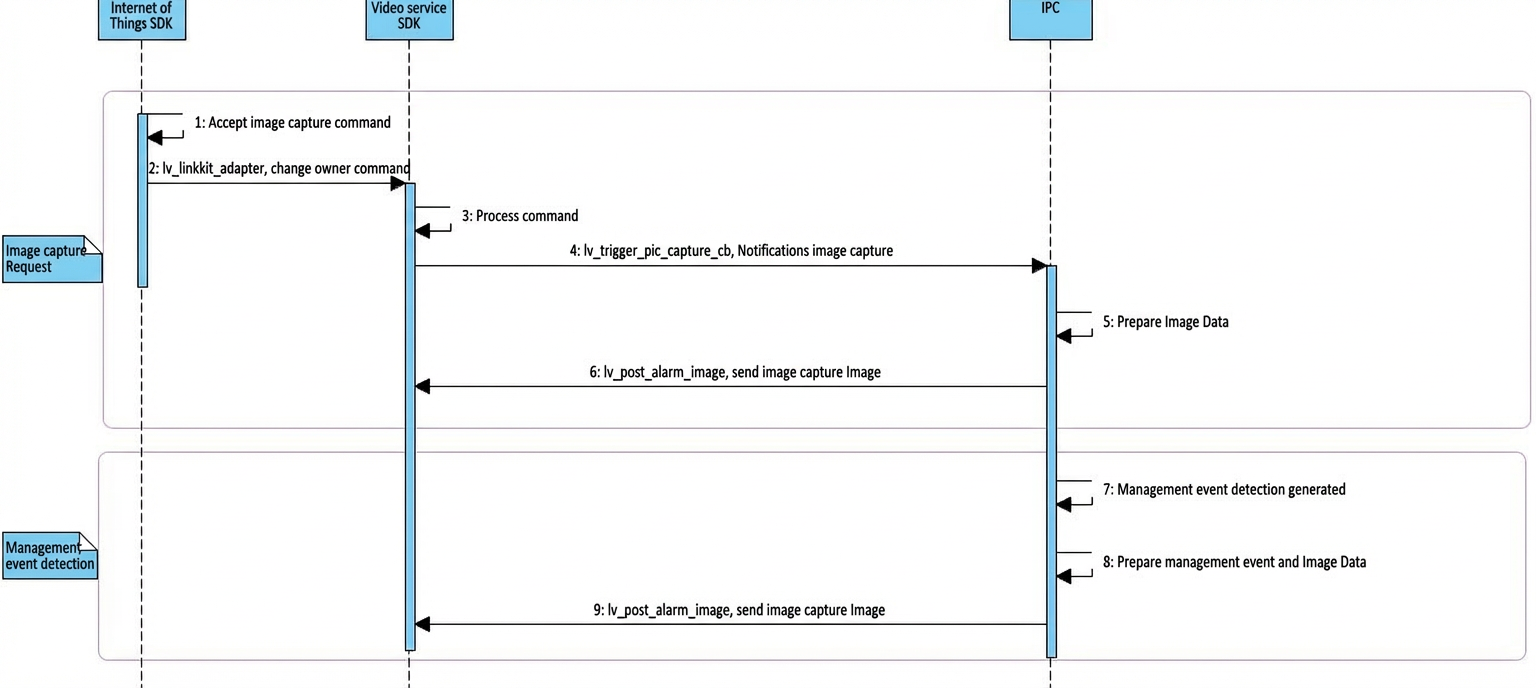

• Image capture function

  Description	API name
  Upload images	lv_post_alarm_image
  Image Upload Notifications	lv_trigger_pic_capture_cb

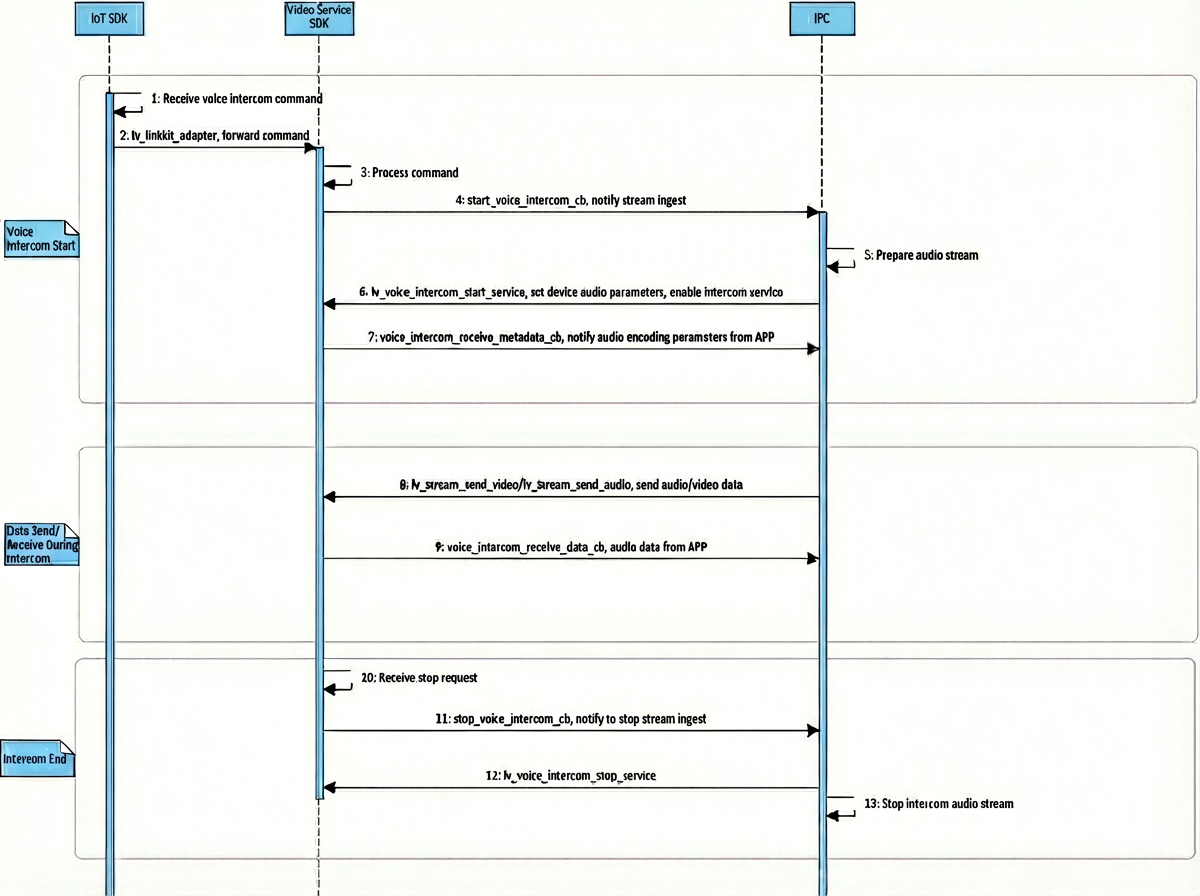

• Voice intercom function

  Features	API name
  Notify service start	lv_start_voice_intercom_cb
  Notify service end	lv_stop_voice_intercom_cb
  Start service	lv_voice_intercom_start_service
  Stop service	lv_voice_intercom_stop_service
  Send audio	lv_voice_intercom_send_audio
  Receive audio	lv_voice_intercom_receive_data_cb
  Receive audio parameter configuration	lv_voice_intercom_receive_metadata_cb

5. Detailed API reference - SDK lifecycle

The following APIs manage the SDK lifecycle.

• lv_init

  API name	API details	Description
  lv_init	int lv_init(const lv_config_s *config)	Initializes the SDK. Notes: Registers callbacks for various IPC functions and configuration information. Prints version information to help troubleshoot issues. Initialization failures are usually unrelated to network issues. First check if input parameters are correct or if resource allocation succeeded. Registers many callbacks that share a single message queue thread. Avoid time-consuming operations in callbacks. Defines the log level log_level. Set it to LV_LOG_DEBUG during initial integration. Call IOT_Linkkit_Connect only after successfully calling lv_init.

  Request parameters:

  Parameter	Type	Description
  config	lv_config_s*	Configuration structure.

  Example code:

  // Create and zero-initialize a configuration structure
  lv_config_s config;
  memset(&config, 0, sizeof(lv_config_s));

  // Set specific configuration properties
  // Device certificate (ProductKey, DeviceName, DeviceSecret)
  memcpy(config.product_key, product_key.c_str(), product_key.length());
  memcpy(config.device_name, device_name.c_str(), device_name.length());
  memcpy(config.device_secret, device_secret.c_str(), device_secret.length());

  // SDK logging configuration
  config.log_level = LV_LOG_DEBUG;
  config.log_dest = LV_LOG_DESTINATION_STDOUT;
  //config.log_dest_file;

  // Audio/video streaming service
  config.start_push_streaming_cb = startPushStreamingCallback;
  config.stop_push_streaming_cb = stopPushStreamingCallback;
  config.on_push_streaming_cmd_cb = onPushStreamingCmdCb;

  // Voice intercom service
  config.start_voice_intercom_cb = startVoiceIntercomCallback;
  config.stop_voice_intercom_cb = stopVoiceIntercomCallback;
  config.voice_intercom_receive_metadata_cb = voice_intercom_receive_metadata_cb;
  config.voice_intercom_receive_data_cb = VoiceIntercomReceiveDataCallback;

  // Query stored recordings
  config.query_storage_record_cb = queryStorageRecordCallback;

  // Trigger device image capture
  config.trigger_pic_capture_cb = triggerPicCaptureCallback;

  // Trigger device recording
  config.trigger_record_cb = triggerRecordCallback;

  // Initialize SDK; exit on failure
  int ret = lv_init(&config);
  if (ret < 0) {
      return -1;
  }

• lv_destroy

  API name	Interface details	Description
  lv_destroy	int lv_destroy(void);	Shuts down the SDK. Notes: Call IOT_Linkkit_Close before calling lv_destroy. Calling lv_destroy can take several seconds. Avoid repeated calls in normal business logic.

  No request parameters.

  Example code:

  // After execution ends
  lv_destroy();

6. Detailed API reference - Video playback

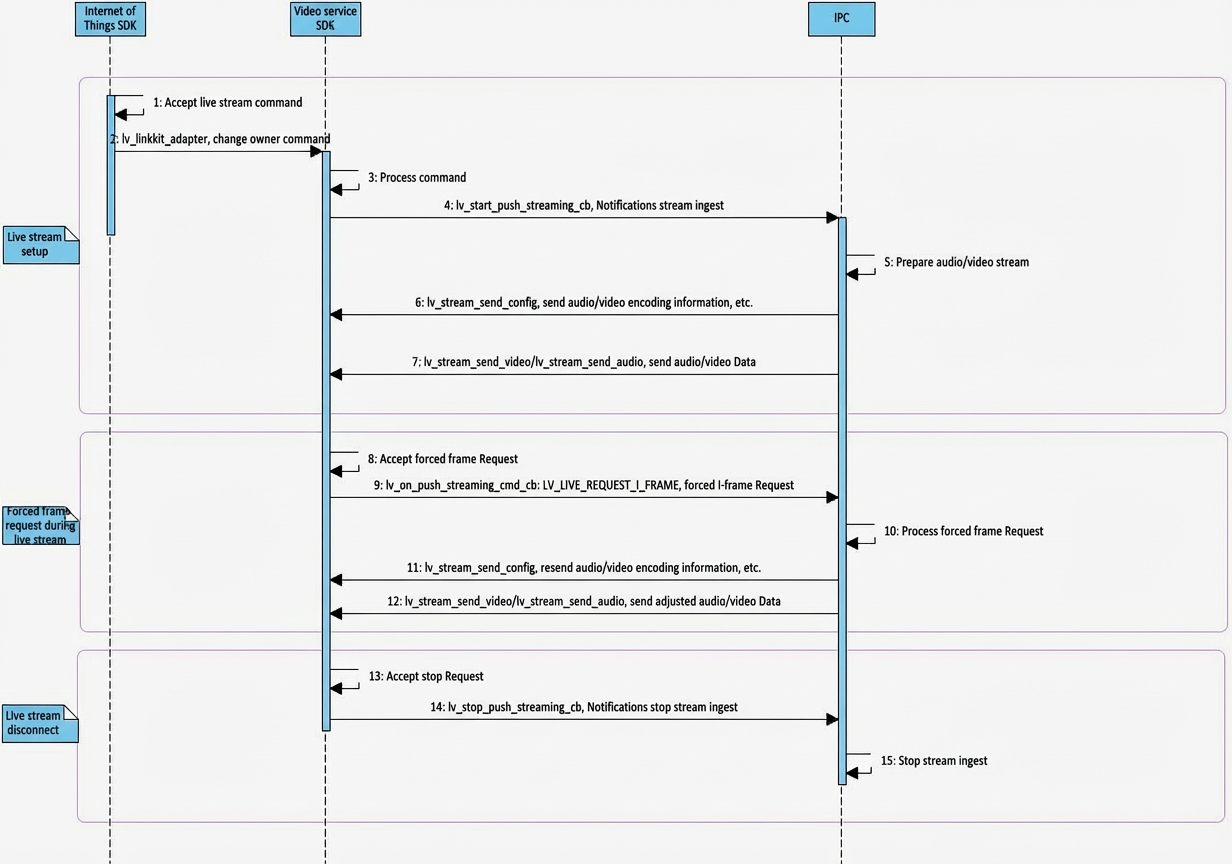

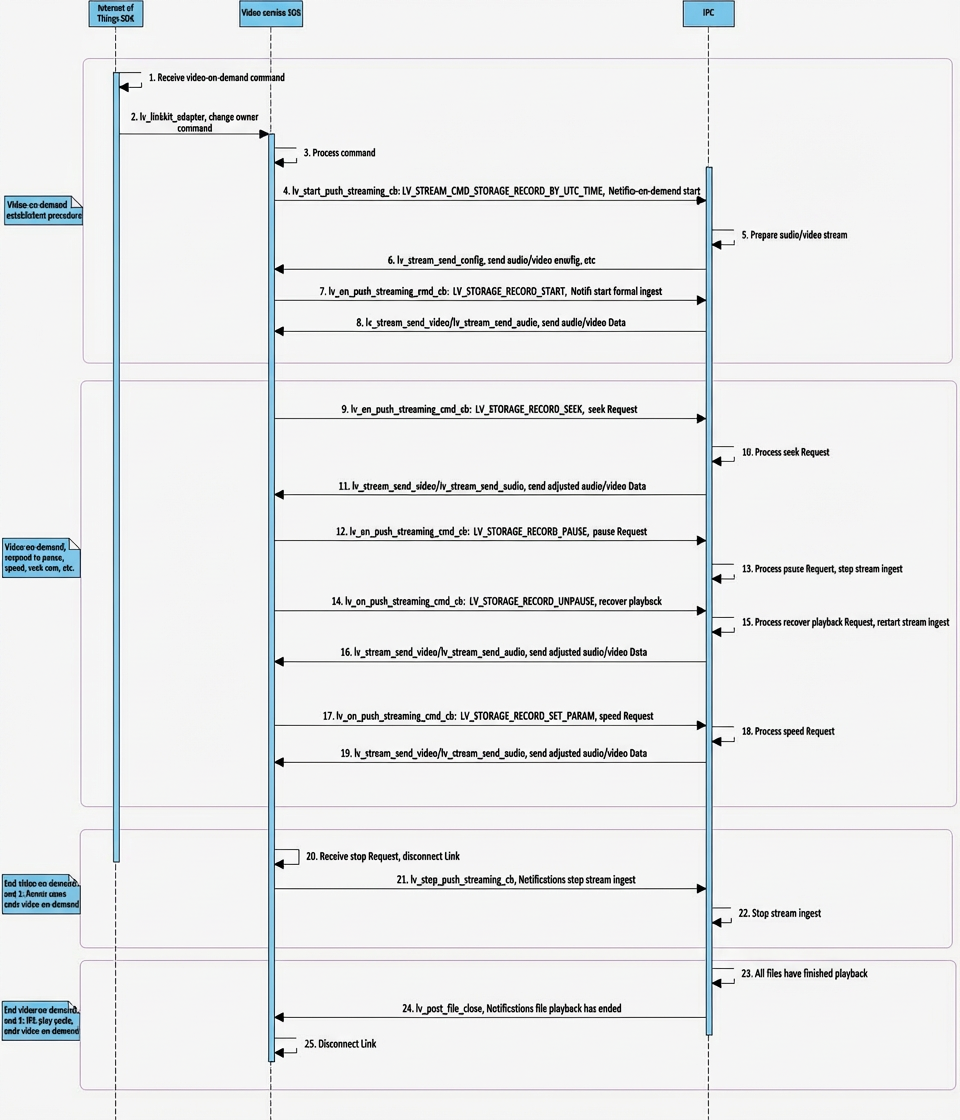

Video playback includes live streaming, SD card video-on-demand, and cloud storage playback. The SDK uses the same set of APIs for all video playback scenarios. The relevant APIs are as follows.

• lv_start_push_streaming_cb

  API name	API Details	Description
  lv_start_push_streaming_cb	typedef int (lv_start_push_streaming_cb)(int service_id, lv_stream_type_e type, const lv_stream_param_s *param)	Callback function that notifies your application that a video playback link has been established successfully, along with configuration details. After receiving this callback, initialize your encoder based on the provided configuration and begin pushing audio/video data.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  type	lv_stream_type_e	Link type: live streaming or SD card video-on-demand.
  param	const lv_stream_param_s*	Link parameters, such as the filename for SD card video-on-demand.

  Example code:

  // Demo: define start_push_streaming_cb as the implementation of lv_start_push_streaming_cb
  lv_start_push_streaming_cb = start_push_streaming_cb；

  // Demo: callback function startPushStreamingCallback
  int start_push_streaming_cb(int service_id, lv_stream_type_e cmd_type, const lv_stream_param_s *param)
  {
      if (cmd_type == LV_STREAM_CMD_LIVE) {
          // Push audio/video data using lv_stream_send_video/lv_stream_send_audio;
          // In practice, create a new thread for data transmission
          ......
          return 0;
      } else if (cmd_type == LV_STREAM_CMD_STORAGE_RECORD_BY_FILE) {
         // Push audio/video data using lv_stream_send_video/lv_stream_send_audio
         // In practice, create a new thread for data transmission
         ......
         return 0;
      }

      return 0;
  }

• lv_stop_push_streaming_cb

  API name	Interface details	Description
  lv_stop_push_streaming_cb	typedef int (*lv_stop_push_streaming_cb)(int service_id)	Callback function that notifies your application that a video playback link has been disconnected. After receiving this callback, stop pushing audio/video data.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.

  Example code:

  // Demo: define stop_push_streaming_cb as the implementation of lv_stop_push_streaming_cb
  lv_stop_push_streaming_cb = stop_push_streaming_cb;

  // Demo: callback function stop_push_streaming_cb
  int stop_push_streaming_cb(int service_id)
  {
      if (service_id == g_live_service_id) {
          // Stop streaming
      } else if (service_id == g_storage_record_service_id) {
         // Stop streaming
      }

      return 0;
  }

• lv_on_push_streaming_cmd_cb

  API name	Interface details	Description
  lv_on_push_streaming_cmd_cb	typedef int (*lv_on_push_streaming_cmd_cb)(int service_id, lv_on_push_streaming_cmd_type_e cmd, const lv_on_push_streaming_cmd_param_s *param)	Callback function that notifies your application of control commands during video playback link establishment, such as a request to send an I-frame.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  cmd	lv_on_push_streaming_cmd_type_e	Control command. Supported commands: start playback, stop playback, pause playback, resume playback, seek, and force I-frame.
  param	lv_on_push_streaming_cmd_param_s *	Parameter value, which depends on lv_on_push_streaming_cmd_type_e.

  Example code:

  // Demo: define on_push_streaming_cmd_cb as the implementation of lv_on_push_streaming_cmd_cb
  on_push_streaming_cmd_cb = on_push_streaming_cmd_cb;

  int on_push_streaming_cmd_cb(int service_id, lv_on_push_streaming_cmd_type_e cmd, const lv_on_push_streaming_cmd_param_s *param)
  {
      if (cmd == LV_STORAGE_RECORD_START) {
          // Start SD card recording stream
      } else if (cmd == LV_STORAGE_RECORD_STOP) {
          // Stop SD card recording stream
      } else if (cmd == LV_STORAGE_RECORD_PAUSE) {
          // Pause SD card recording stream
      } else if (cmd == LV_STORAGE_RECORD_UNPAUSE) {
          // Resume SD card recording stream
      } else if (cmd == LV_STORAGE_RECORD_SEEK) {
          // Seek to a specific segment in SD card recording
      } else if (cmd == LV_LIVE_REQUEST_I_FRAME) {
          // For live streaming, force generation of an I-frame
      }

      return 0;
  }

• lv_stream_send_config

  API name	API details	Description
  lv_stream_send_config	int lv_stream_send_config(int service_id, unsigned int bitrate_kbps, double duration, const lv_video_param_s *video_param, const lv_audio_param_s *audio_param)	Configures audio/video transmission parameters.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  bitrate_kbps	unsigned int	Stream bitrate. Higher bitrates require larger internal audio/video data buffers.
  duration	double	File duration. Valid only for SD card video-on-demand.
  video_param	const lv_video_param_s*	Video parameter set.
  audio_param	const lv_audio_param_s*	Audio parameter set.

  Example code:

  lv_video_param_s video_param;
  memset(&video_param, 0, sizeof(lv_video_param_s));
  video_param.format = LV_VIDEO_FORMAT_H264;
  video_param.fps = 25;

  lv_audio_param_s audio_param;
  memset(&audio_param, 0, sizeof(lv_audio_param_s));
  audio_param.format = LV_AUDIO_FORMAT_G711A;
  audio_param.channel = LV_AUDIO_CHANNEL_MONO;
  audio_param.sample_bits = LV_AUDIO_SAMPLE_BITS_16BIT;
  audio_param.sample_rate = LV_AUDIO_SAMPLE_RATE_8000;

  lv_stream_send_config(service_id, 1000, 0, &video_param, &audio_param);

• lv_stream_send_video

  API name	API Details	Description
  lv_stream_send_video	int lv_stream_send_video(int service_id, lv_video_format_e format,unsigned char* buffer, unsigned int buffer_len, bool key_frame, unsigned int timestamp_ms)	Sends video data.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  format	lv_video_format_e	Video codec.
  buffer	unsigned char*	Video data.
  buffer_len	unsigned int	Video data length.
  key_frame	bool	Indicates whether the frame is a keyframe. I-frames are keyframes. P-frames are non-keyframes. B-frames are not accepted.
  timestamp_ms	unsigned int	Video timestamp.

  Example code:

  // Demo: this function receives video frames as input
  void linkvisual_client_video_handler(int service_id, lv_video_format_e format, unsigned char *buffer, unsigned int buffer_size,
                                       unsigned int present_time, int nal_type) {
      lv_stream_send_video(service_id, format, buffer, buffer_size, nal_type, present_time);
  }

• lv_stream_send_audio

  API name	API details	Description
  lv_stream_send_audio	int lv_stream_send_audio(int service_id, lv_audio_format_e format,unsigned char* buffer, unsigned int buffer_len, unsigned int timestamp_ms)	Sends audio data.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  format	lv_audio_format_e	Audio codec.
  buffer	unsigned char*	Audio data.
  buffer_len	unsigned int	Audio data length.
  timestamp_ms	unsigned int	Audio timestamp.

  Example code:

  // Demo: this function receives audio frames as input
  void linkvisual_client_audio_handler(int service_id,
                                       lv_audio_format_e format,
                                       unsigned char *buffer,
                                       unsigned int buffer_size,
                                       unsigned int present_time) {
      lv_stream_send_audio(service_id, format, buffer, buffer_size, present_time);
  }

• lv_query_storage_record_cb

  API name	API Details	Description
  lv_query_storage_record_cb	typedef void (lv_query_storage_record_cb)(unsigned int start_time, unsigned int stop_time, int num, const char *id, int (on_complete)(int num, const char *id, const lv_query_storage_record_response_s *response))	Callback function that queries SD card recording file information.

  Request parameters:

  Parameter	Type	Description
  start_time	unsigned int	Start time of the recording query.
  stop_time	unsigned int	End time of the recording query.
  num	int	If less than or equal to zero, indicates all recordings have been queried.
  id	const char *	Session ID for the query. Must be returned in the response.
  on_complete	Function pointer	Returns query results synchronously through this function.

  Example code:

  int dummy_ipc_report_vod_list(unsigned int start_time,
                                unsigned int stop_time,
                                int num,
                                const char *id,
                                int (*on_complete)(int num,
                                                   const char *id,
                                                   const lv_query_storage_record_response_s *response)) {
      int answer_num = g_vod_media_file_group.size();
      auto *response = new lv_query_storage_record_response_s[answer_num];
      memset(response, 0, sizeof(lv_query_storage_record_response_s) * answer_num);
      double duration = 0;
      for (int i = 0; i < answer_num; i ++) {
          MediaParse::GetDuration(g_vod_media_file_group[i], duration);
          response[i].file_size = 0;
          response[i].record_type = LV_STORAGE_RECORD_INITIATIVE;
          snprintf(response[i].file_name, 64, g_vod_media_file_group[i].c_str(), i);// Avoid buffer overflow
          if (i == 0) {
              response[i].start_time = (int)start_time;
              response[i].stop_time = (int)start_time + (int)duration;
          } else {
              response[i].start_time = response[i - 1].stop_time;
              response[i].stop_time = response[i - 1].stop_time + (int)duration;
          }
      }    int result = on_complete(answer_num, id, response);
      printf("dummy_ipc_report_vod_list result: %d\n", result);
      delete[] response;
      return 0;
  }

• Live streaming flowchart

• SD card video-on-demand flowchart

• Pre-recorded event video-on-demand flowchart

• Cloud storage

  Cloud storage includes event-triggered and continuous recording scenarios. If you implement live streaming with the SDK, cloud storage is automatically enabled. No additional development is required.

Notes on using video playback APIs:

• When a forced I-frame command is issued, you must generate the I-frame as quickly as possible, ideally within 300 ms.

• After a forced I-frame command, you must call lv_stream_send_config again to resend the stream configuration.

• During SD card recording seek operations, you must send an I-frame as quickly as possible after seeking. The SDK stops accepting audio and P-frame video data until the I-frame arrives.

• H.264 and H.265 frame structures have specific requirements. You can print the first 256 bytes of an I-frame to verify using the following code.

  for (int i = 0; i < ((buffer_size > 256)?256:buffer_size); i++) {
      printf("%02x ", buffer[i]);
      if ((i + 1) % 30 == 0) {
          printf("\n");
      }
  }
  printf("\n");

  H.264 requires I-frames in the following format: frame delimiter + SPS + frame delimiter + PPS + frame delimiter + IDR, as shown in the following figure.



  Frame delimiters are 0x000001 or 0x00000001. SPS starts with 0x67, PPS starts with 0x68, and IDR starts with 0x65.

  H.265 requires I-frames in the following format: frame delimiter + VPS + frame delimiter + SPS + frame delimiter + PPS + frame delimiter + IDR, as shown in the following figure.



  Note

  The supported audio codecs are G711A and LC-AAC. For more information about the supported encoding parameters, see the macro definitions in the link_visual_def.h header file.

  When you switch video streams on the same channel, for example, from the main stream to the sub-stream, change the resolution, or switch between H.264 and H.265, you must ensure that the first frame after the switch is an I-frame. Otherwise, visual artifacts may occur.

7. Detailed API reference - Image service

The following APIs support image services.

• lv_trigger_pic_capture_cb

  API name	API Details	Description
  lv_trigger_pic_capture_cb	typedef int (lv_trigger_pic_capture_cb)(const char *id)	Notifies the device to start capturing an image.

  Request parameters:

  Parameter	Type	Description
  id	const char *	Request ID. Must be returned in the response.

• lv_post_alarm_image

  API name	Interface description	Description
  lv_post_alarm_image	int lv_post_alarm_image(const char *buffer, int buffer_len, lv_event_type_e type, const char *id)	Sends an image and alarm event. Use this after an image capture callback or for device-initiated uploads.

  Request parameters:

  Parameter	Type	Description
  buffer	const char *	Image data.
  buffer_len	int	Image data length.
  type	lv_event_type_e	Upload type: post-capture callback or device-initiated.
  id	const char *	Callback ID for image capture. For device-initiated uploads, pass an empty string or NULL.

Image capture supports two scenarios: app-triggered requests and device-initiated captures that are triggered by event detection.

Notes on using image service APIs:

• The maximum image size for an upload is 1 MB.

• The minimum interval between image uploads is 1 second. More frequent uploads are discarded.

• The SDK internally saves a copy of each image and maintains a pending upload queue. The queue can hold up to five images. If the network is slow and the queue becomes full, new images are discarded.

• The SDK does not restrict image formats, as long as the cloud or client devices can parse them. We recommend that you use common formats such as .jpg.

8. Detailed API reference - Voice intercom service

The following APIs support voice intercom services.

• lv_start_voice_intercom_cb

  API name	API Details	Description
  lv_start_voice_intercom_cb	typedef int (*lv_start_voice_intercom_cb)(int service_id)	Callback function that notifies your application that a voice intercom link can be established.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.

• lv_voice_intercom_start_service

  API name	API Details	Description
  lv_voice_intercom_start_service	int lv_voice_intercom_start_service(int service_id, const lv_audio_param_s *audio_param)	Establishes a voice intercom link. Call this after receiving the voice intercom start callback.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  audio_param	const lv_audio_param_s *	Device audio parameter structure.

  Example code:

  // Demo: start_voice_intercom_cb is the actual implementation of lv_start_voice_intercom_cb
  lv_start_voice_intercom_cb = start_voice_intercom_cb；

  int start_voice_intercom_cb(int service_id)
  {
      // When a voice intercom request is received, actively start the intercom service
      lv_audio_param_s audio_param;
      memset(&audio_param, 0, sizeof(lv_audio_param_s));
      audio_param.format = LV_AUDIO_FORMAT_G711A;
      audio_param.channel = LV_AUDIO_CHANNEL_MONO;
      audio_param.sample_bits = LV_AUDIO_SAMPLE_BITS_16BIT;
      audio_param.sample_rate = LV_AUDIO_SAMPLE_RATE_8000;
      int ret = lv_voice_intercom_start_service(service_id, &audio_param);

      return 0;
  }

• lv_stop_voice_intercom_cb

  API name	API Details	Description
  lv_stop_voice_intercom_cb	typedef int (*lv_stop_voice_intercom_cb)(int service_id)	Callback function that notifies your application that a voice intercom link can be disconnected.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.

• lv_voice_intercom_stop_service

  API name	API Details	Description
  lv_voice_intercom_stop_service	int lv_voice_intercom_stop_service(int service_id)	Disconnects a voice intercom link. Call this after receiving the voice intercom end callback.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.

  Example code:

  // Demo. stop_voice_intercom_cb is the actual implementation of lv_stop_voice_intercom_cb.
  lv_stop_voice_intercom_cb = stop_voice_intercom_cb;

  int stop_voice_intercom_cb(int service_id)
  {
      lv_voice_intercom_stop_service(service_id);
  }

• lv_voice_intercom_receive_metadata_cb

  API name	API Details	Description
  lv_voice_intercom_receive_metadata_cb	typedef int (lv_voice_intercom_receive_metadata_cb)(int service_id, const lv_audio_param_s *audio_param)	Callback function that notifies your application of the audio format used by the App during voice intercom.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  audio_param	const lv_audio_param_s *	App audio format structure.

• lv_voice_intercom_receive_data_cb

  API name	API Details	Description
  lv_voice_intercom_receive_data_cb	typedef void (lv_voice_intercom_receive_data_cb)(const char *buffer, unsigned int buffer_len)	Callback function that delivers audio data sent by the App during voice intercom.

  Request parameters:

  Parameter	Type	Description
  buffer	const char *	App audio data.
  buffer_len	int	App audio data length.

• lv_voice_intercom_send_audio

  API name	API Details	Description
  lv_voice_intercom_send_audio	int lv_voice_intercom_send_audio(int service_id, const char *buffer, int buffer_len , unsigned int timestamp_ms)	Sends audio data over a voice intercom link.

  Request parameters:

  Parameter	Type	Description
  service_id	int	Link ID.
  buffer	const char *	Device audio data.
  buffer_len	int	Device audio data length.
  timestamp_ms	unsigned int	Device audio timestamp.

  Example code:

  void linkvisual_client_audio_handler(int service_id,
                                       lv_audio_format_e format,
                                       unsigned char *buffer,
                                       unsigned int buffer_size,
                                       unsigned int present_time) {
      lv_voice_intercom_send_audio(g_voice_intercom_service_id, buffer, buffer_size, present_time);
  }

Voice intercom flowchart:

9. What to do next

After you generate the device firmware, you can flash it onto your device and test LinkVisual features using the app. We recommend that you use the public app for testing. For more information, see Introduction to Cloud Intelligence App.
