You can edit the version of a topology to modify the topology.

Topology version lifecycle

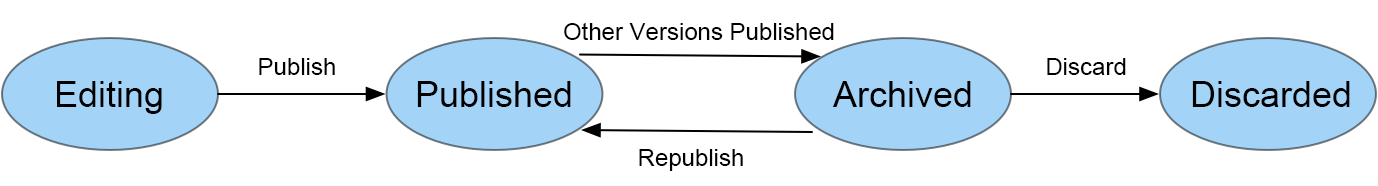

The following figure shows the lifecycle of a topology version.

Status	Description	Supported operations
Published	The topology version that is currently being used. After a version in the Editing or Archived state is published, the version enters the Published state. Only one version of each topology can be in the Published state.	View
Editing	The draft topology version that is being created or edited. A baseline version allows for only one draft version that is in the Editing state.	View Edit Publish Delete
Archived	The earlier version is automatically archived after a later version is published. An archived version can be published again or be used as the baseline version of a draft version.	View Publish Discard
Discarded	A discarded version is no longer used. A discarded version cannot be used as the baseline version of a new version.	View Delete

Create a topology version

Log on to the Scalable Open Financial Architecture Stack (SOFAStack) console.
In the left-side navigation pane, choose Middleware > Task Scheduling > Task Orchestration.
Click the name of the target in the topology list and then click the Version Management tab.
Click Add Version. In the dialog box that appears, select a baseline version for the new version.
Important
You can select only a published or archived version as the baseline version. A version can be selected as the baseline version for only one version being edited.
Click OK.

Edit a topology version

You can edit only versions in the Editing state. To edit a published version, create another version based on the target version.

In the version list, click Edit on the right side of the target version.
Edit the topology as required.
For more information about the editing procedure, see Edit a topology.
Click Submit.

Publish a topology version

For a newly created topology, the initial topology version is in the Editing state by default. You must publish this version before you use the topology.

In the version list, click Publish on the right side of the target version.
You can publish only versions in the Editing or Archived state. If a version in the Published state exists for a topology, the version automatically enters the Archived state after a new version is published.
Click OK.
You can view the published tasks on the Task Topology tab.

Discard a topology version

After a new version is published, the previously published version enters the Archived state. You can discard an archived version. A discarded version cannot be published again or used as the baseline version of a new version.

In the version list, click Discard on the right side of the target version.
Click OK.

Delete a topology version

You can delete a discarded version from the version list. A deleted version cannot be recovered. Proceed with caution.

In the version list, click Delete on the right side of the target version.
Click OK.
