The Resource Dashboard page displays the statistics on message generation and consumption, and the trends of various monitoring data. On this page, you can view the statistics of resources such as topics within a period of time, the total number of messages sent to a topic or the message production data, the total number of messages delivered to a group ID by a topic within a period of time, and the message consumption data.
Procedure
Log on to the SOFAStack console.
In the left-side navigation pane, choose Middleware > MSMQ > Resource Dashboard.
Select a time range or customize a time range. The default range is the last 1 hour. The maximum supported time interval is 1 day.
Click Refresh to view the resource data within the specified time range.
Resource Statistics
The Resource Dashboard displays the statistics of message-related resources in the current environment, including the total number of topics, total number of groups, total number of accumulated messages, and total number of dead letters, as shown in the following figure.
In addition, you can view the trends of the TPM, accumulated message count, and dead letter count.

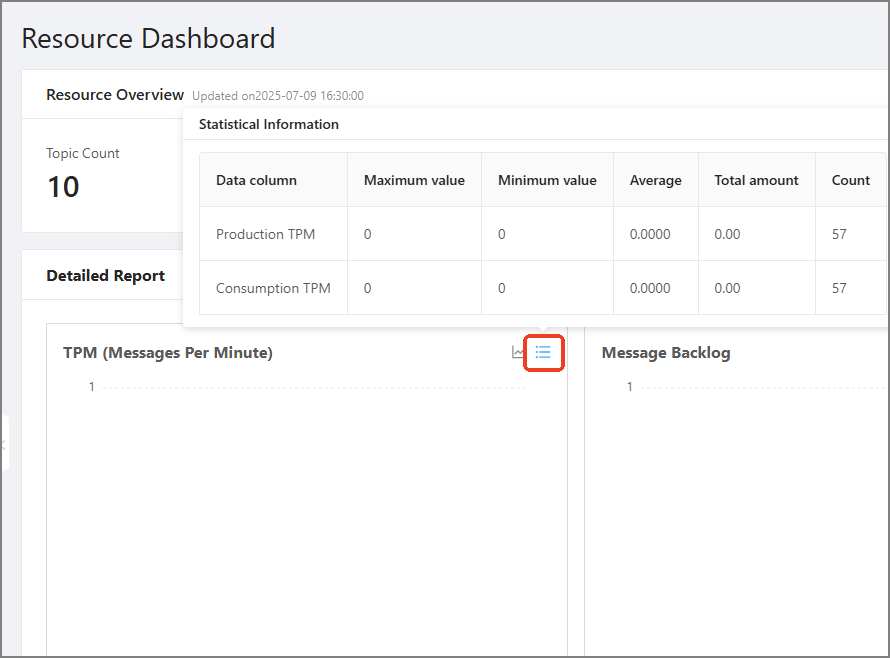

Click the
icon in the upper right corner of each monitoring chart to view the detailed statistics of the monitoring metrics within the target time range, as shown in the following figure.
Click the

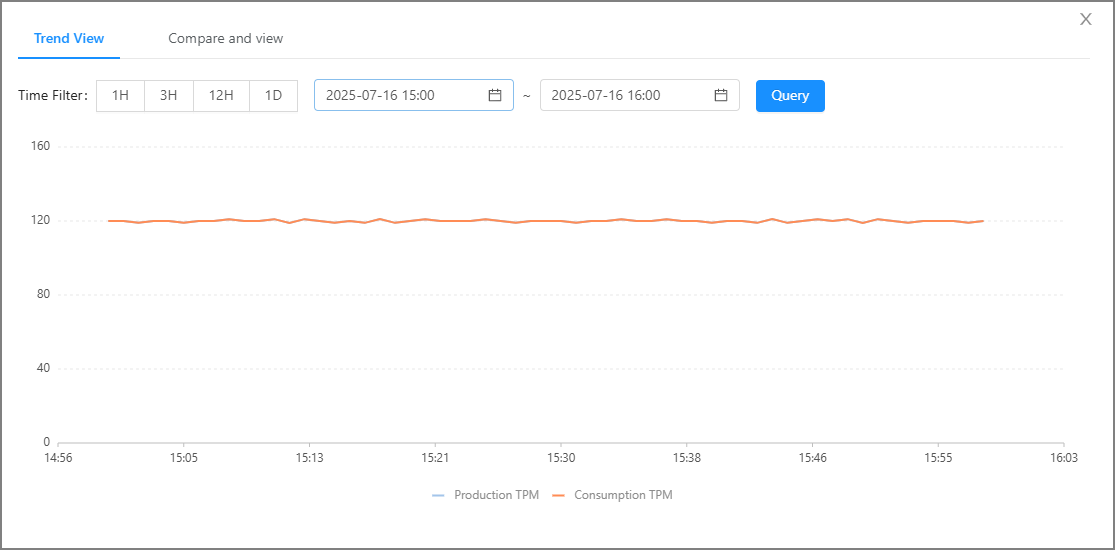

icon in the upper-right corner of each monitoring chart to view the detailed trend of the metric in the new window. Trend View: On the Trend View tab, select a time range and click Search, as shown in the following figure.

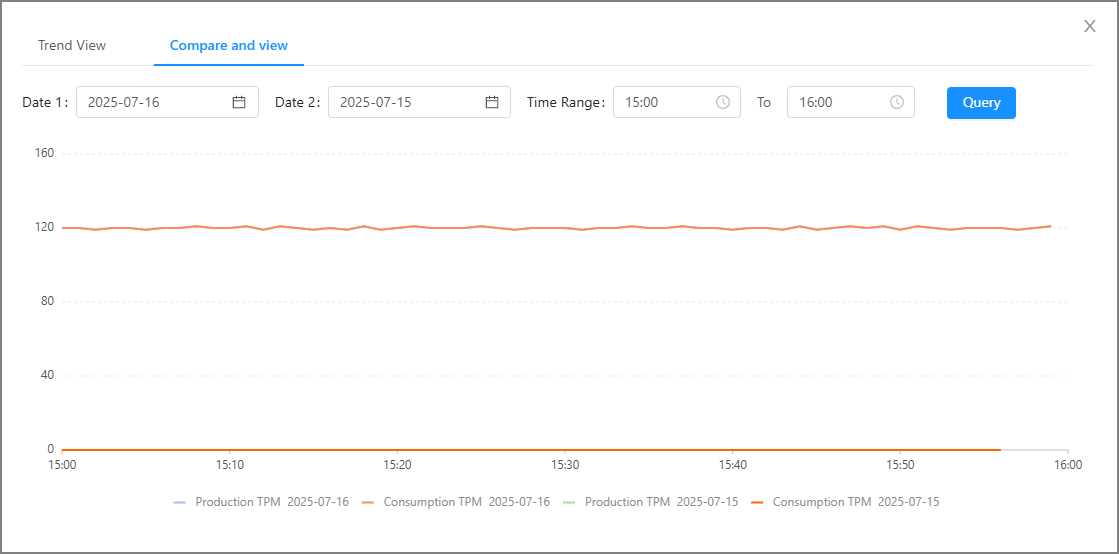

Compare and View: On the Compare and View tab, select the date and time range that you want to compare and view the trend, and then click Search, as shown in the following figure.
Topic Production Report
By default, the Topic Production Report section displays the data of all topics in the current environment, including the topic name, message production data (TPS/TPM), data volume per minute (bytes), and average size (bytes).
Click the name of the target topic to go to the details page of the topic and view the resource monitoring data.
Click each metric data to further view the trend and compare the trend changes in two different time periods.
Group Consumption Report
By default, the Group Consumption Report section displays the information about all groups in the current environment, including the group ID, corresponding topics, message consumption data (TPS/TPM), number of pull requests per minute, number of single pull requests, and current backlog.
Click the group ID or topic name to go to the details page of the group ID or topic and view the monitoring data of the resource.
Click each metric data to further view the trend and compare the trend changes in two different time periods.
