SOFARegistry is a service registry and an underlying component of the SOFA middleware.
It stores the following information:
Service provider addresses
Service consumer subscriptions
It works as follows:
It establishes persistent connections with both service consumers and service providers.
It dynamically detects changes in published service addresses and notifies consumers.
SOFARPC requires SOFARegistry, the service registry, when it uses a software load balancing routing policy.
Software load balancing is a client-side routing method. To call a service, the consumer uses a software load balancing policy to select an address from a list. This list is pushed by SOFARegistry and stored in the local cache. The consumer then calls the service at the selected address.
SOFARPC uses a ServicePublish and ServiceReference model. Through SOFARegistry, SOFARPC dynamically detects service publications and pushes a list of service addresses to consumers that reference the service. This process updates the list of active services in the consumer's local cache. Finally, a software load balancing policy selects an active address for the consumer to use for remote communication.
When using SOFARPC with a service registry, configure the address in the configuration file.

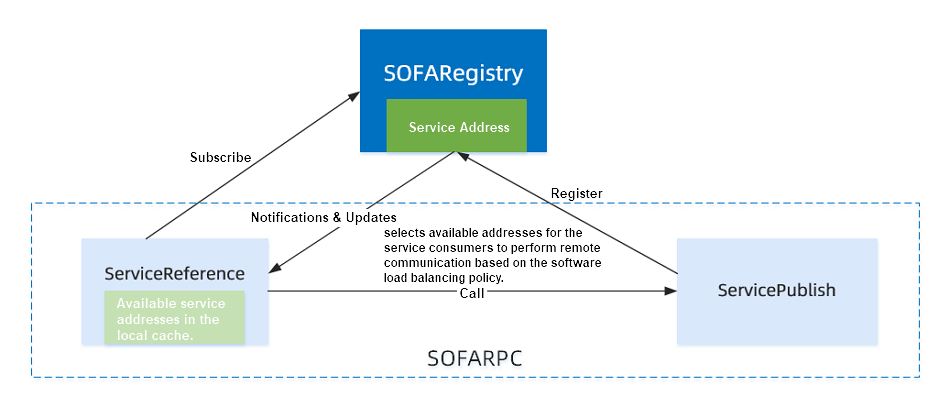

Diagram of SOFARPC using SOFARegistry
