Import and export service throttling rules

Export service throttling rules

1. Log on to the SOFAStack console.

2. In the navigation pane on the left, choose Middleware > Microservice Platform > Microservice > Service Governance.

3. Click Service Throttling. In the application list, find the target application and choose More > Export.

   The exported file is in JSON format and is saved to the default download folder of your browser.

Import service throttling rules

You can import the exported rules to other applications to quickly create new service throttling rules.

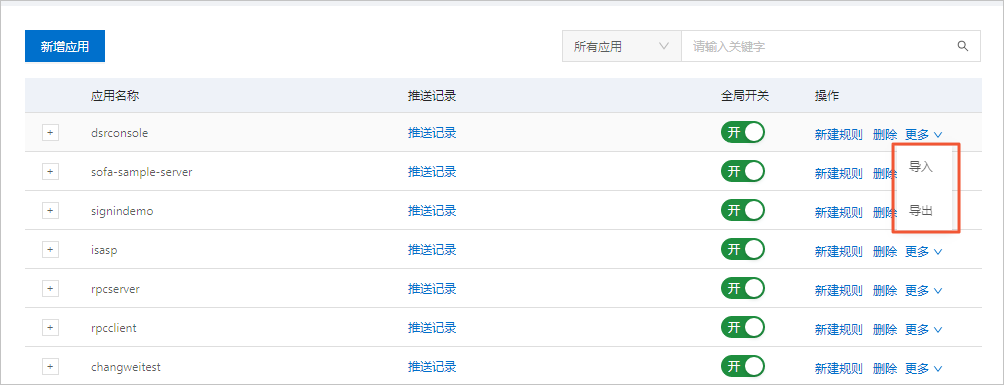

1. On the Service Throttling page, find the target application in the application list and choose More > Import.

2. Click Browse, select the target file, and then click Open.

Service throttling rule file format

The exported service throttling rule file is in JSON format. The file content is as follows:

[
    {
        "actionConfig":{
            "actionType":"LIMIT_EXCEPTION",
            "responseContent":"ssssssssss"
        },
        "calculationConfigs":[
            {
                "calculationType":"INVOKE_BY_TIME",
                "maxAllow":1,
                "period":1000
            }
        ],
        "desc":"GuardianApp.query",
        "enable":false,
        "globalLimit":false,
        "limitStrategy":"QpsLimiter",
        "limitType":"GENERIC_LIMIT",
        "maxBurstRatio":0,
        "resourceConfigs":[
            {
                "baseName":"com.alipay.antcloud.dsrconsole.core.service.guardian.facade.GuardianAppFacade.query",
                "resourceType":"METHOD",
                "ruleIds":[

                ]
            },
            {
                "baseName":"11.22",
                "resourceType":"METHOD",
                "ruleIds":[

                ]
            }
        ],
        "resourceType":"METHOD",
        "runMode":"CONTROL",
        "trafficType":"ALL"
    }
]

The following table describes the parameters:

For more information, see Add service throttling rules.
