Overview
The Cloud Intelligence 2.X series templates are proprietary app templates built on the open Cloud Intelligence App. With a few simple configurations, you can build your own 'Cloud Intelligence App'.
Activate the service
To use the Cloud Intelligence 2.X series templates, you must first activate the Smart Device App Template service. For more information, see App template billing.
Function introduction
IoT Platform provides a complete set of smart device app templates. These templates include features such as network provisioning, home and room grouping, device control, scenario automation, and a user account center. After you activate the Cloud Intelligence 2.X series templates, you can use these features without additional development.
| App page | Provided services |
| Network provisioning | Supports network provisioning by scanning a QR code, local discovery, and manual selection. For manual selection, all products associated with the app are displayed in a list. |
| Home, room, and group | Provides management of homes, rooms, and groups. |
| Device control | Device panels that you configure on the Human-Machine Interface page for a product in the console can be used directly in the app. |
| Scenario automation | Supports manual triggers (scenarios) and automatic triggers (automation). Triggers can be based on conditions such as a specific time, a time period, or device status. Executed actions can include device actions, triggering other scenarios, or sending notifications. |
| Mine | Provides features for the personal center and app settings. These include nickname, profile picture, Message Center, device sharing, widgets, feedback, smart logs, firmware upgrade, language switching, temperature unit, current version, Terms of Service, and voice platform integration. |
Customization options
You can customize the Cloud Intelligence 2.X series templates. You can make changes in the console or by modifying the source code.
- Console configuration options
- App theme color
The theme color affects the user interface (UI) style of major elements such as buttons, text, switches, and menus. The template provides five fixed theme colors and one custom theme color.
- Fixed theme colors

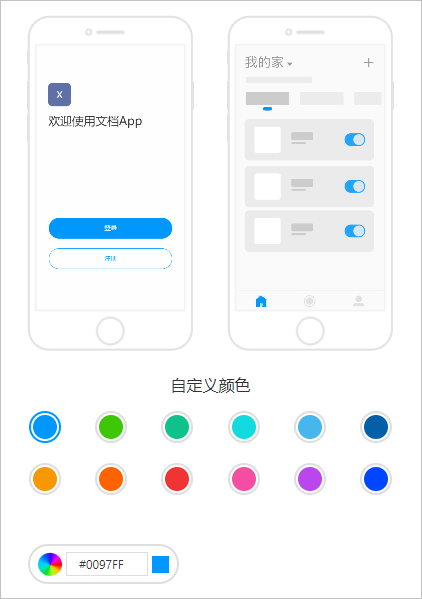

- Custom theme color
The custom theme uses a white background. You can select any color from the color palette to be the app's theme color.
- Fixed theme colors
- App splash screen
You can upload an image larger than 1242 × 2688 px. The image is automatically cropped to fit various phone models.
- App theme color
- Source code modification options
In the source code for the Cloud Intelligence 2.X series templates, you can modify the theme color, UI configuration items such as text, colors, and images, and the Tmall Genie integration source code. You can also modify more detailed elements in the source code, as shown in the following table.
App interface Modifiable content Registration and logon page - Modify images: background image, top icon
- Modify colors: background color, logon button color, registration button color
- Modify text: modify the text on the interface
App bottom menu - Modify images: icons for selected and unselected states
- Modify colors: background color, text color
- Modify text: modify the menu text
Home page - Modify images: background image, empty list background image
- Modify colors: theme color
- Modify text: modify the text on the interface
- Can be hidden: the home page
Smart menu page - Modify images: scenario background image, automation background image, scenario empty list background image, automation empty list background image
- Modify colors: theme color
- Modify text: modify the text on the interface
- Can be hidden: the Smart page
My menu - Modify images: icons for each list, default profile picture
- Modify colors: theme color
- Modify text: modify the text on the interface
- Can be hidden: the Me page, some feature lists, and sub-features within some feature lists
All feature modules can be hidden individually, except for Edit Personal Information, Message Center, and Device Sharing. The sub-features within the Settings and About modules can also be hidden individually.
