Add a secure signature

How to add a secure signature

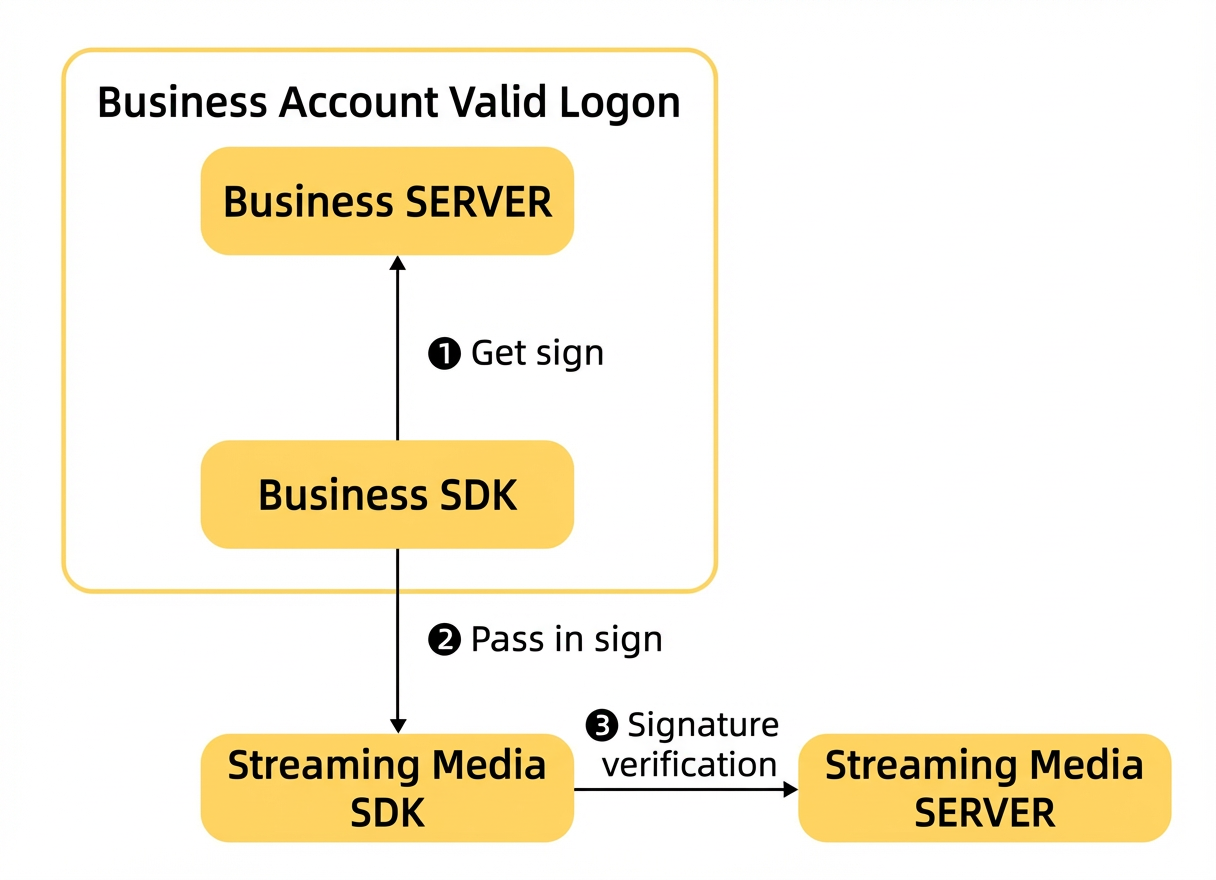

Before each call, the client requests a signature from your business server. The client then passes this signature to the streaming media software development kit (SDK). The SDK uses the signature to perform a security check with the streaming media server-side. The complete flow is as follows:

Follow these steps to add a secure signature to an application:

1. Obtain the application and audio/video call parameters from the mPaaS console. Before you add the signature, you must obtain the appId, workspaceId, bizName, and key because they are required by the signing code.

2. Generate a signature on your business server using the key and following the specified rules.

Procedure

1. Obtain the appId and workspaceId.

   1. Log on to the mPaaS console and navigate to the target application.

   2. Click Download iOS Code Configuration or Download Android Code Configuration. The Code Configuration panel for the client opens. Obtain the appId and workspaceId from the Code Configuration panel on the right.

2. Obtain the application's bizName and key. The bizName is the business ID for the video application. The key is the application's private key.

   1. Log on to the mPaaS console and navigate to the target application. Click Audio & Video Call > Call Application Management.

   2. Obtain the bizName on the Call Application Management page.

   3. Click View Key to obtain the key.

3. Generate the signature on the business server.

   1. Concatenate the parameters in the following order to create the string to be encrypted.

      String encryptStr = bizName + appId + workspaceId + uid + expireTime;

      Where:

      • Use the actual values for appId, workspaceId, and bizName that you obtained from the mPaaS console.

      • uid and expireTime are custom parameters. uid is the business user ID provided by your application. expireTime is the signature's expiration time in milliseconds. This value is the sum of the current time and the validity period. For example:

        Note

        The `uid` can contain only letters, numbers, and underscores. The length cannot exceed 128 characters.

        long expire = 5 * 60 * 1000L; // Signature validity period in milliseconds (ms), for example, 5 minutes
        long expireTime = System.currentTimeMillis() + expire; // Signature expiration time: current time + validity period

   2. Generate the signature using RSA encryption with the `key` that you obtained from the mPaaS console.

      String sign = EncryptUtils.encryptByPrivate(encryptStr, EncryptUtils.getPrivateKey(key)); // Encrypt the string

      // Encrypt with the RSA private key
       public static String encryptByPrivate(String content, PrivateKey privateKey) throws Exception {
           Cipher cipher = Cipher.getInstance("RSA");
           cipher.init(Cipher.ENCRYPT_MODE, privateKey);
           return Base64.getEncoder().encodeToString(cipher.doFinal(content.getBytes("UTF-8")));
       }

        // Convert the Base64-encoded RSA private key string to a PrivateKey instance
       public static PrivateKey getPrivateKey(String privateKey) throws Exception {
           byte[] keyBytes = Base64.getDecoder().decode(privateKey);
           PKCS8EncodedKeySpec keySpec = new PKCS8EncodedKeySpec(keyBytes);
           KeyFactory keyFactory = KeyFactory.getInstance("RSA");
           return keyFactory.generatePrivate(keySpec);
       }
