DRM FAQ

How to dynamically set log levels using DRM?

Applications developed with SOFABoot have the following default log configurations:

• application.properties

# log level for current application with groupid com.hula.sofa
 logging.level.com.hula.sofa=INFO

• logback-spring.xml

<springProperty scope="context" name="logging.level" source="logging.level.com.hula.sofa"/>

To dynamically update the log level using DRM, follow these steps:

1. Define the dynamic configuration class in your SOFABoot project.

   The following code provides an example:

           import com.alipay.drm.client.DRMClient;
           import com.alipay.drm.client.api.annotation.DAttribute;
           import com.alipay.drm.client.api.annotation.DObject;
           import com.alipay.drm.client.api.model.DependencyLevel;
           import org.springframework.beans.factory.annotation.Autowired;
           import org.springframework.beans.factory.annotation.Value;
           import org.springframework.boot.logging.LogLevel;
           import org.springframework.boot.logging.LoggingSystem;
           @DObject(region="hula", appName ="dynamic-log-level", id ="com.hula.sofa.config.DynamicConfig")
           public class DynamicConfig{
               // Use the value from application.properties as the default value.
               @DAttribute
               @Value("${logging.level.com.hula.sofa}")
               private String loglevel;
               @Autowired
               LoggingSystem loggingSystem;
               public void init(){
                   DRMClient.getInstance().register(this);
               }
               public String getLoglevel(){
                    return loglevel;
               }
               public void setLoglevel(String loglevel){
                   this.loglevel = loglevel;
                   LogLevel level =LogLevel.valueOf(loglevel.toUpperCase());
                   // Use Spring Boot's LoggingSystem to set the log level for the target logger.
                   loggingSystem.setLogLevel("com.hula.sofa", level);
               }
           }

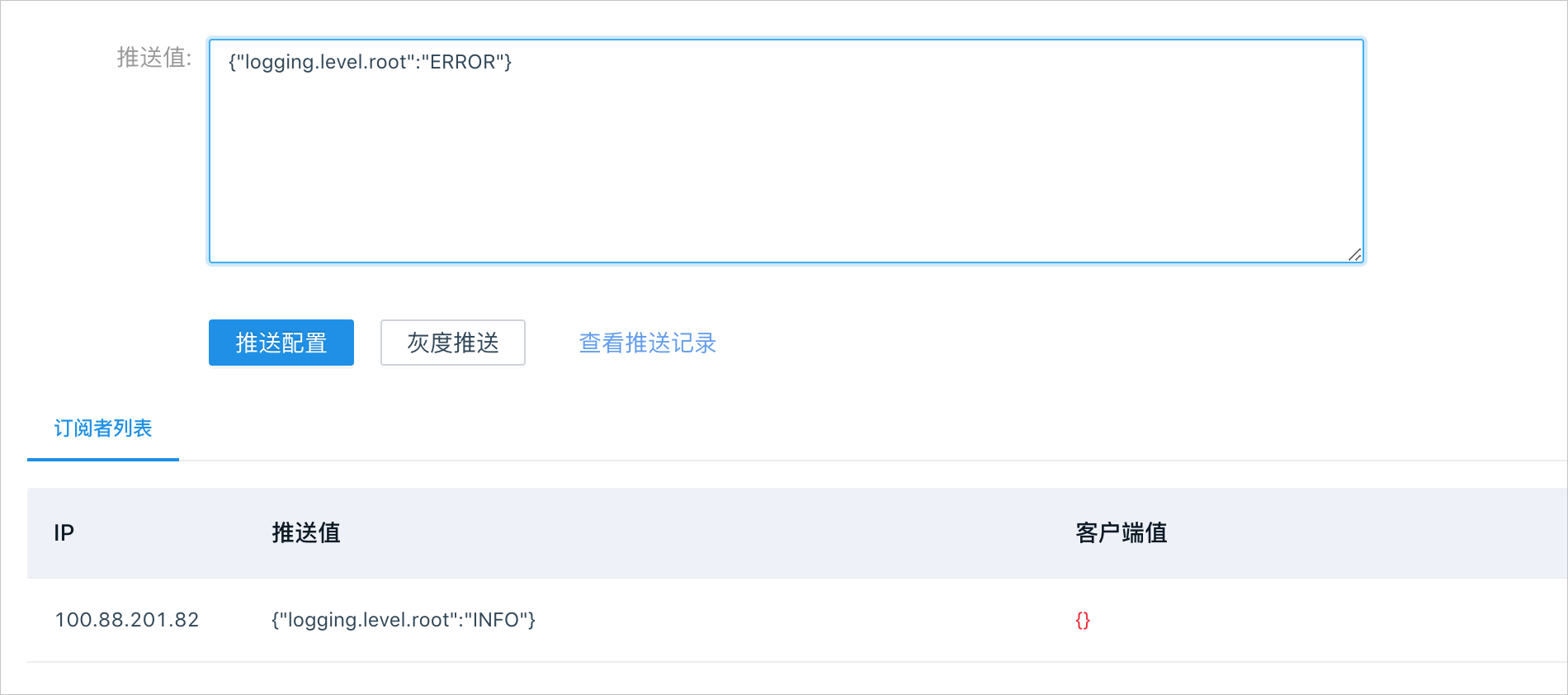

2. Add the following dynamic configuration on the SOFA microservice platform.

   For more information, see Add a dynamic configuration.

   Note

   The client does not display the new value after a successful configuration push.

Why does a property get the pushed value instead of the default value after a service restart?

By default, when a client starts, it synchronizes configuration values from the server-side. To disable this behavior, set @DAttribute(dependency = DependencyLevel.NONE).

The dependency levels are described as follows:

How to assign an initial value to a property?

You can assign a value to a property in one of the following ways:

• Assign the value directly in the definition. For example: private String loglevel = "info".

• Retrieve the value from application.properties. The following code shows examples:

  @DAttribute private String loglevel ="info";   // The initial value is info.

  Or

  @Value("${logging.level.com.hula.sofa}")
  @DAttributeprivate String loglevel;

  Important

  Do not assign the value in the `init` method. Otherwise, the pushed value is overwritten by the default value when the client restarts, which causes subsequent pushes to fail. The following code provides an example:

  public void init(){
           DRMClient.getInstance().register(this);
           setLoglevel("info");
  }

Deployment gets stuck during the service deployment step and fails due to a timeout

Symptom:

The deployment process stalls at the service deployment step and fails after an 8-minute timeout.

Cause:

You set RefreshCacheDRM.refreshCacheType = GEOHASH in DRM. After receiving this update, the application code takes more than 10 minutes to process the business logic.

Solution:

• Workaround: Set RefreshCacheDRM.refreshCacheType = null. This temporarily prevents the business logic from being triggered.

• Long-term solution: Optimize your application code. After receiving a property update from DRM, use an asynchronous thread to process the business logic. Then, promptly send a success signal back to DRM.
