This topic shows you how to integrate Enhanced Voice Moderation with Volcano Engine RTC, Agora RTC, and ZEGO RTC to detect non-compliant voice content.
Integrate with Volcano Engine RTC
Prerequisites
You have activated the Enhanced Voice Moderation service. For more information, see Activate Content Moderation Pro.
You have activated the Volcano Engine Real-Time Communication (RTC) product. For more information, see Activate RTC.
Approach 1: Native integration (Recommended)

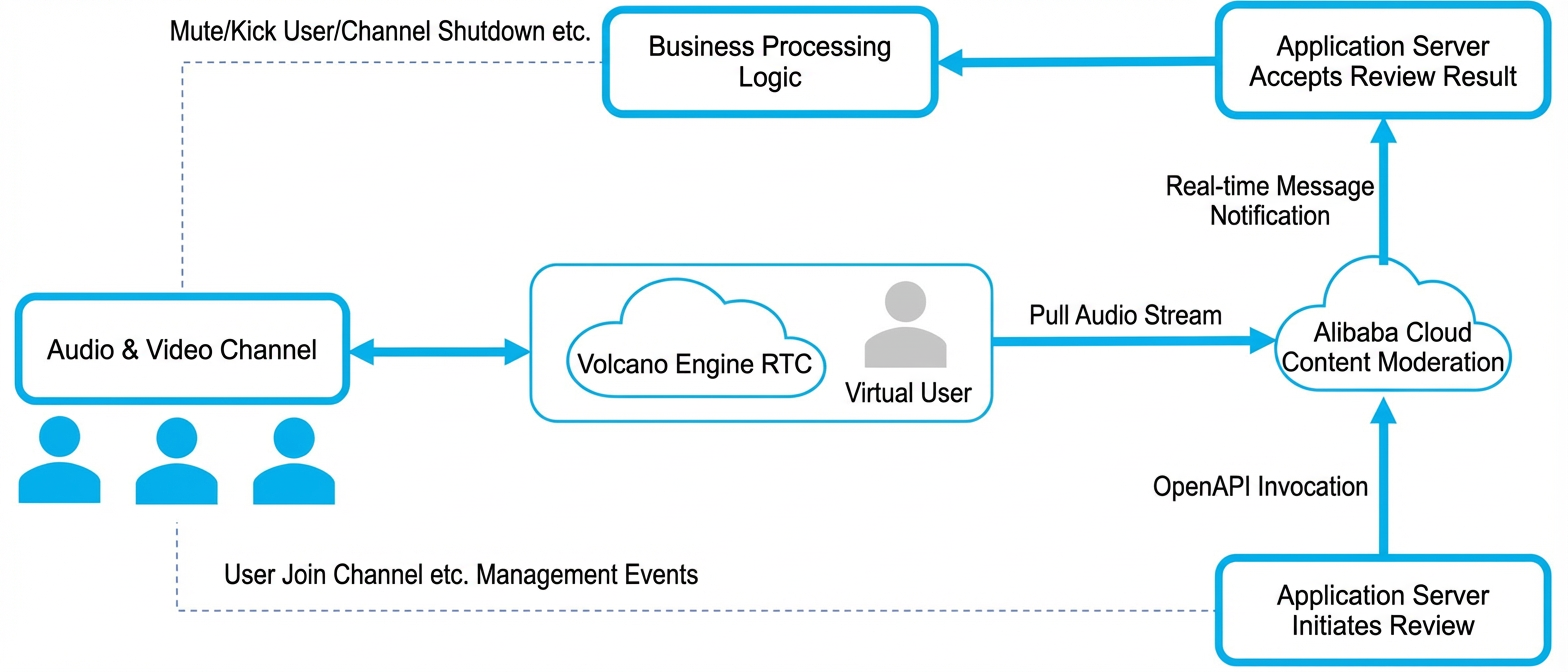

Technical architecture
Content Moderation natively integrates with Volcano Engine RTC. When you call the moderation API with parameters such as the room and user ID, a virtual user joins the room to pull the audio stream. The service then performs real-time detection for non-compliant content and notifies your application server.
Benefits
This approach offers several advantages:
Faster moderation: The end-to-end latency is typically within seconds, whereas sideload push-streaming can take ten seconds or more.
Cost-effective: This approach does not incur additional costs for transcoding or live stream pushing.
Simplified integration: You only need to provide specific parameters to start the process, which simplifies integration and usage.
Billing
This approach incurs the following costs:
Type | Description |
Volcano Engine RTC audio and video communication fees | Includes fees for audio and video services, which are billed based on duration. For more information, see Billing of audio and video services. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Obtain the Volcano Engine RTC AppId, a virtual user ID for moderation, and the corresponding token. For more information, see Use a token for authentication.
Call the Enhanced Voice Moderation API, provide the preceding parameters, and specify the room and user to be moderated. This starts voice content detection for Volcano Engine RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the Detection Type to
live_stream_detectionand configure theextrafield of the ServiceParameters parameter to specify RTC-related information. The following table describes the parameters.Parameter
Type
Required
Example
Description
extra
String
No
{"VolcAppId":"6fabbd****1a7e", "VolcTokenId": "User123456", "VolcToken": "6fabbd****1a7e"}
A JSON string containing the required moderation parameters. For field descriptions, see extra.
NoteIf you configure the
extrafield of the ServiceParameters parameter, you do not need to specify theurlparameter.Table 1. extra
Parameter
Type
Required
Example
Description
VolcAppId
String
No
6fabbd****1a7e
The AppId of your Volcano Engine RTC application.
VolcTokenId
String
No
User123456
The user ID of the virtual user for moderation in Volcano Engine RTC.
VolcToken
String
No
6fabbd****1a7e
The virtual user's token in Volcano Engine RTC.
VolcRoomId
String
No
Room0107
The ID of the room to be moderated in Volcano Engine RTC. To moderate a single stream, you must specify both
VolcRoomIdandVolcUserId.VolcUserId
String
No
User0120
The ID of the user to be moderated in Volcano Engine RTC. To moderate a single stream, you must specify both
VolcRoomIdandVolcUserId.
Approach 2: Sideload push-streaming

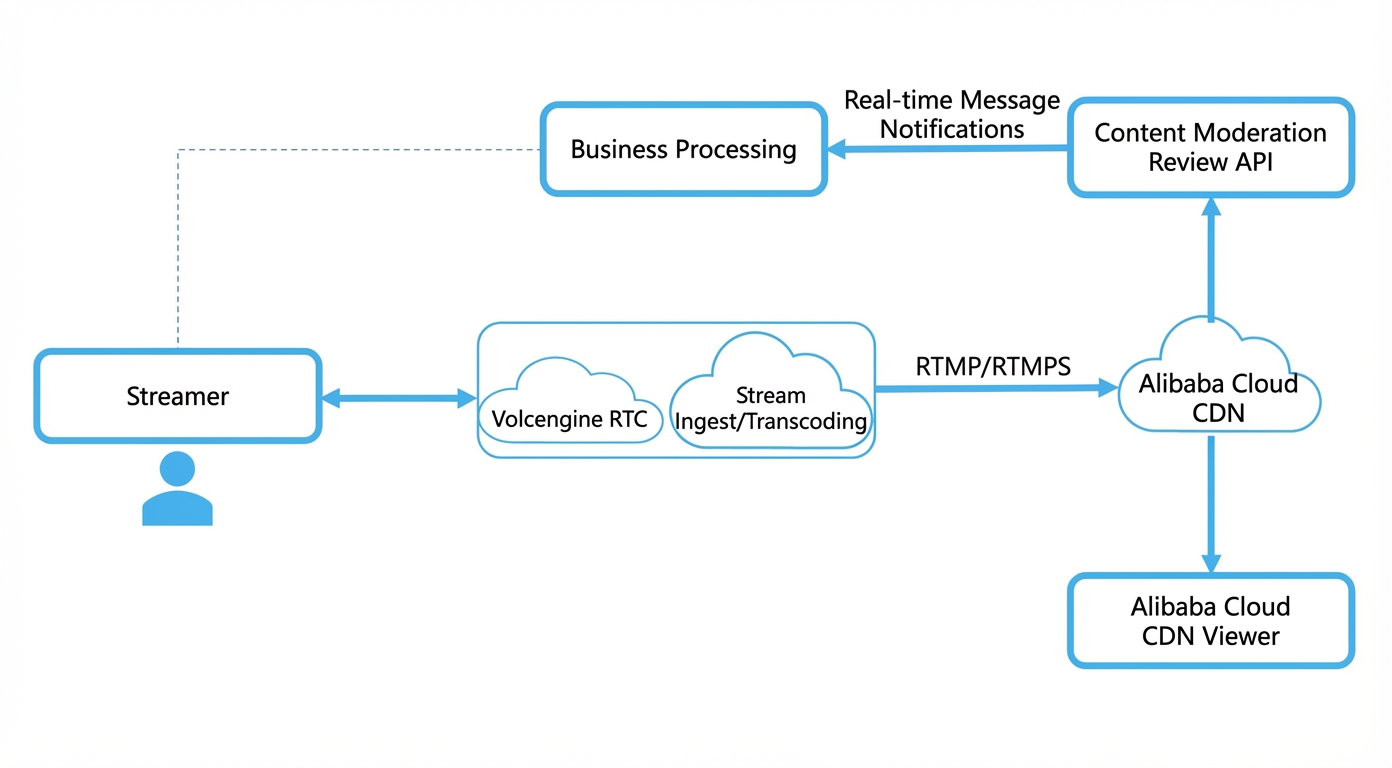

Technical architecture
Volcano Engine RTC can push audio content from a host's room to a CDN by using the sideload push-streaming feature. This converts the audio into a live stream URL. You can then provide this URL to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for Volcano Engine RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with Volcano Engine RTC before starting.
Type | Description |
Volcano Engine RTC audio and video communication fees | Includes fees for audio and video services, which are billed based on duration. For more information, see Billing of audio and video services. |
Volcano Engine RTC stream pushing fees | Stream pushing is billed based on the output resolution and duration. For more information, see Billing of stream pushing. |
Live stream pushing fees | Live stream pushing incurs costs for bandwidth and data transfer. Billing standards vary by live streaming service provider. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Use a RESTful API to implement sideload push-streaming. For more information, see Push RTC streams of VolcEngine.
Provide the RTMP stream URL to Enhanced Voice Moderation to start detecting non-compliant voice content from Volcano Engine RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
live_stream_detection.
Approach 3: Cloud recording

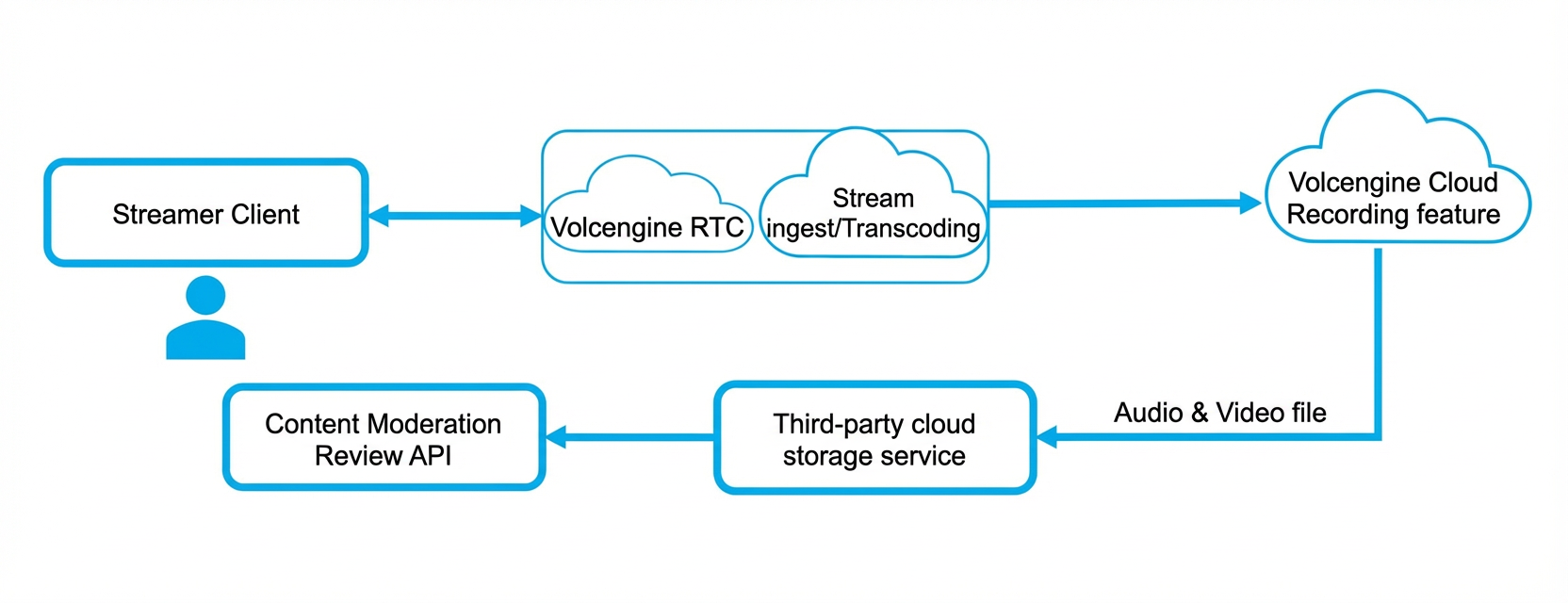

Technical architecture
Volcano Engine RTC supports cloud recording to save voice chats and live streams to a third-party cloud storage service or Alibaba Cloud Object Storage Service (OSS). Once stored, you can provide its location to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for Volcano Engine RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with Volcano Engine RTC before starting.
Type | Description |
Volcano Engine RTC recording fees | Recording fees include costs for audio and video, which are billed based on recording duration. For more information, see Billing of cloud recording. |
Third-party storage fees | Includes costs for storage and public network access. Billing standards vary by storage service provider. Note If you use Alibaba Cloud Object Storage Service (OSS) for cloud recording, you can provide the OSS internal endpoint to the Enhanced Voice Moderation API to moderate the file. This avoids costs associated with public network access. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Send a RESTful API request to initiate cloud recording. For more information, see Cloud recording, Start cloud recording, and Push streams to a CDN.
Provide the URL of the content stored in the third-party cloud storage service to Enhanced Voice Moderation to start detecting non-compliant voice content from Volcano Engine RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
audio_media_detection.
Integrate with Agora RTC
Prerequisites
You have activated the Enhanced Voice Moderation service. For more information, see Activate Content Moderation Pro.
You have activated the Agora RTC product.
Approach 1: Sideload push-streaming

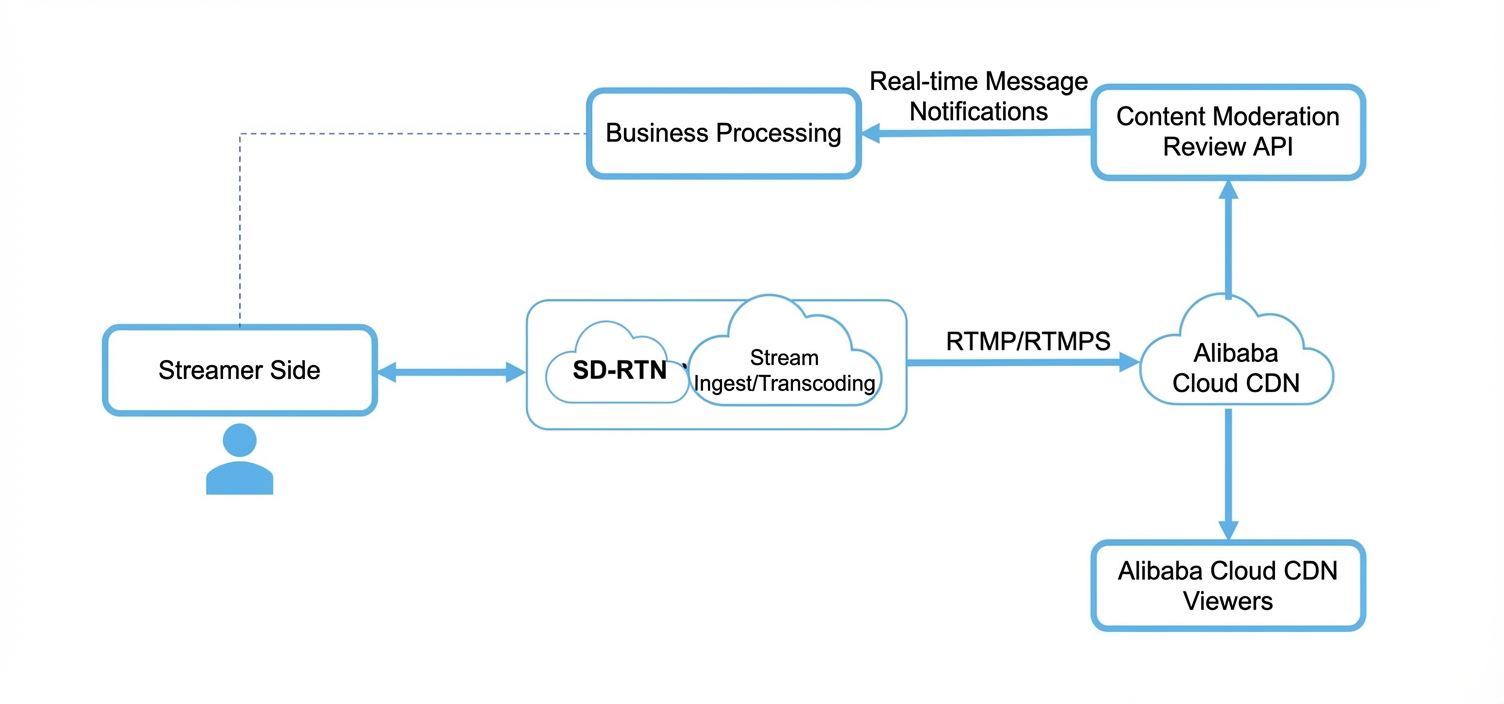

Technical architecture
Agora RTC can push audio content from a host's room to a CDN by using the sideload push-streaming feature. This converts the audio into a live stream URL. You can then provide this URL to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for Agora RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with Agora RTC before starting.
Type | Description |
Agora RTC subscription fees | Subscription fees include costs for audio and video, which are billed based on duration. For more information, see Subscribe to audio and video streams. |
Agora RTC transcoding fees | Transcoding fees are calculated based on the number of output streams. For more information, see Transcoding. |
Live stream pushing fees | Live stream pushing incurs costs for bandwidth and data transfer. Billing standards vary by live streaming service provider. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Implement sideload push-streaming by using a RESTful API. For more information, see Media Push RESTful API.
Provide the RTMP stream URL to Enhanced Voice Moderation to start detecting non-compliant voice content from Agora RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
live_stream_detection.
Approach 2: Cloud recording

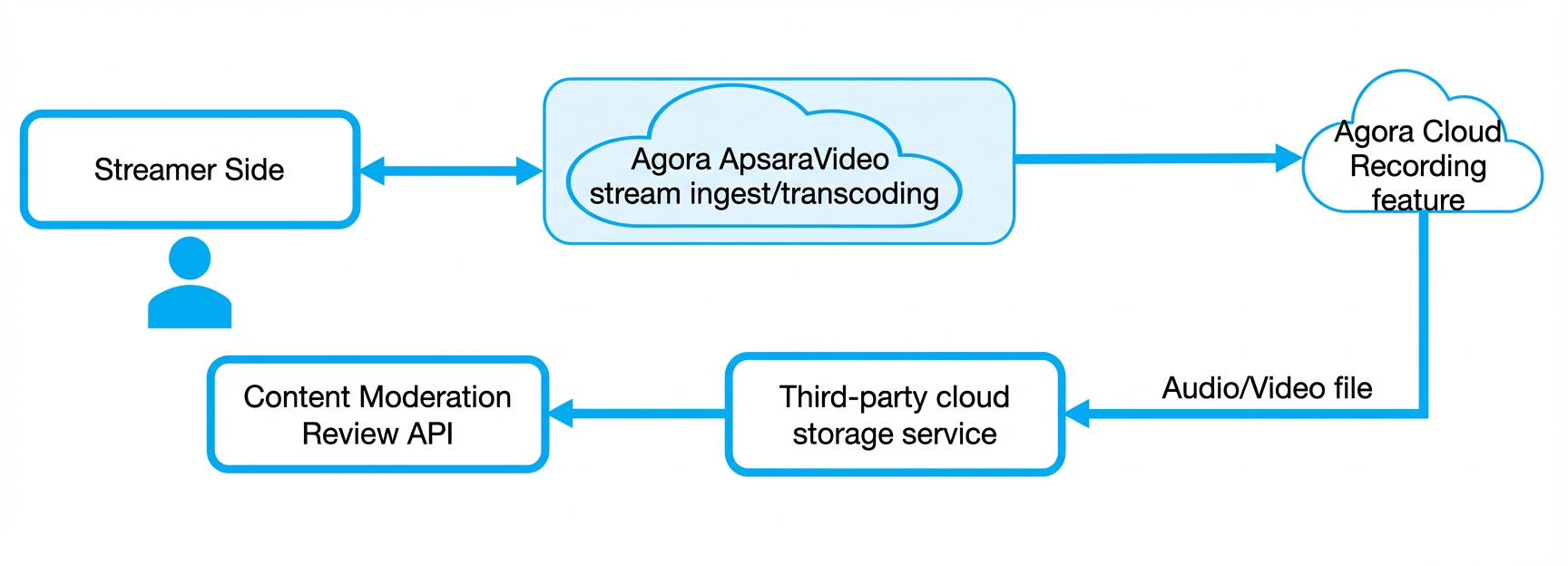

Technical architecture
Agora RTC supports cloud recording to save voice chats and live streams to a third-party cloud storage service or Alibaba Cloud OSS. Once stored, you can provide its location to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for Agora RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with Agora RTC before starting.
Type | Description |
Agora RTC cloud recording fees | Recording fees include costs for audio and video, which are billed based on recording duration. For more information, see Agora Cloud Recording pricing. |
Third-party storage fees | Includes costs for storage and public network access. Billing standards vary by storage service provider. Note If you use Alibaba Cloud OSS, you can provide the OSS internal endpoint to the Enhanced Voice Moderation API to moderate the file. This avoids costs associated with public network access. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Send a RESTful API request to initiate cloud recording. For more information, see Cloud Recording.
Provide the URL of the content stored in the third-party cloud storage service to Enhanced Voice Moderation to start detecting non-compliant voice content from Agora RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
audio_media_detection.
Integrate with ZEGO RTC
Prerequisites
You have activated the Enhanced Voice Moderation service. For more information, see Activate Content Moderation Pro.
You have activated the ZEGO RTC product.
Approach 1: Sideload push-streaming

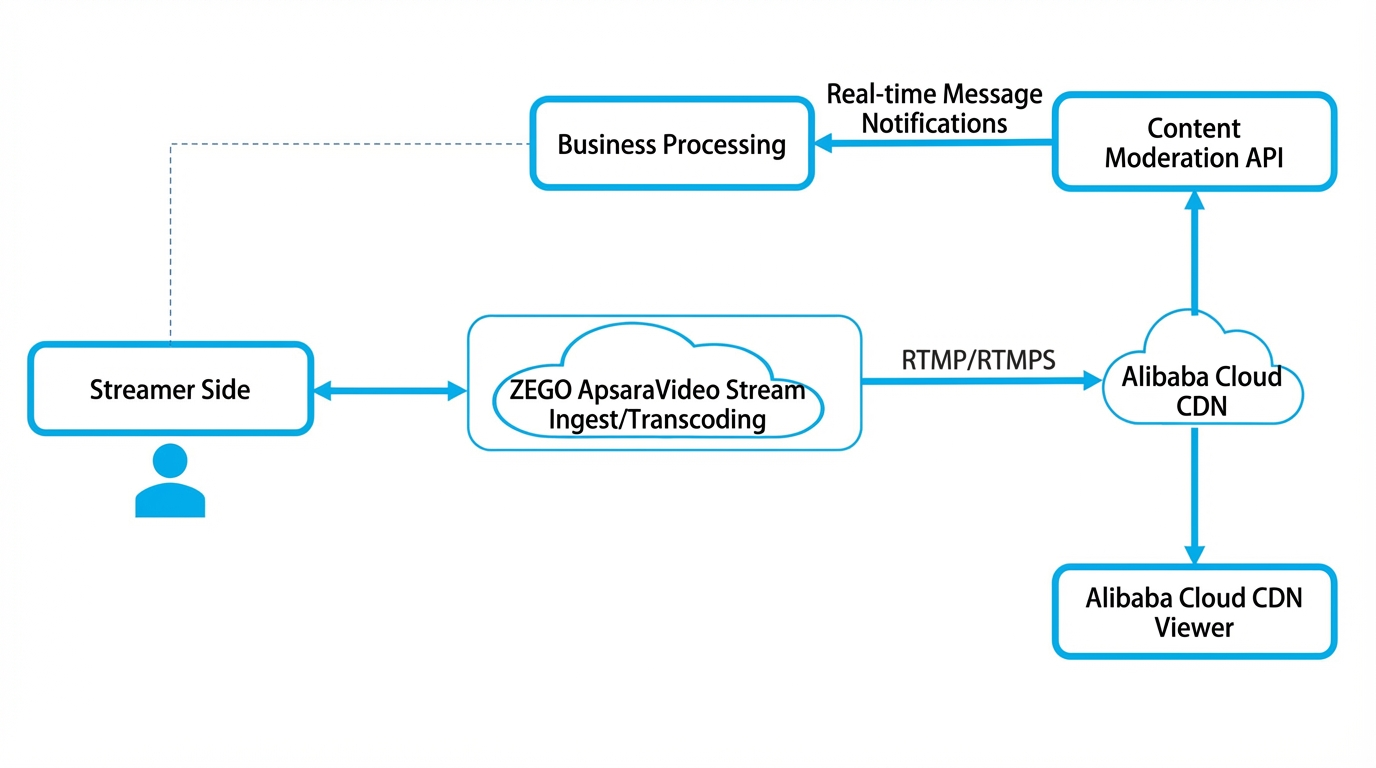

Technical architecture
ZEGO RTC can push audio content from a host's room to a CDN by using the sideload push-streaming feature. This converts the audio into a live stream URL. You can then provide this URL to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for ZEGO RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with ZEGO RTC before starting.
Type | Description |
ZEGO RTC subscription fees | Subscription fees include costs for audio and video, which are billed based on duration. For more information, see Pricing. |
ZEGO RTC stream mixing fees | The usage of the stream mixing service is calculated based on the output resolution and transcoding duration. For more information, see Stream mixing pricing. |
Live stream pushing fees | Live stream pushing incurs costs for bandwidth and data transfer. Billing standards vary by live streaming service provider. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Implement sideload push-streaming by using the custom CDN stream pushing feature. For more information, see Stream pushing to CDN.
Provide the RTMP stream URL to Enhanced Voice Moderation to start detecting non-compliant voice content from ZEGO RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
live_stream_detection.
Approach 2: Cloud recording

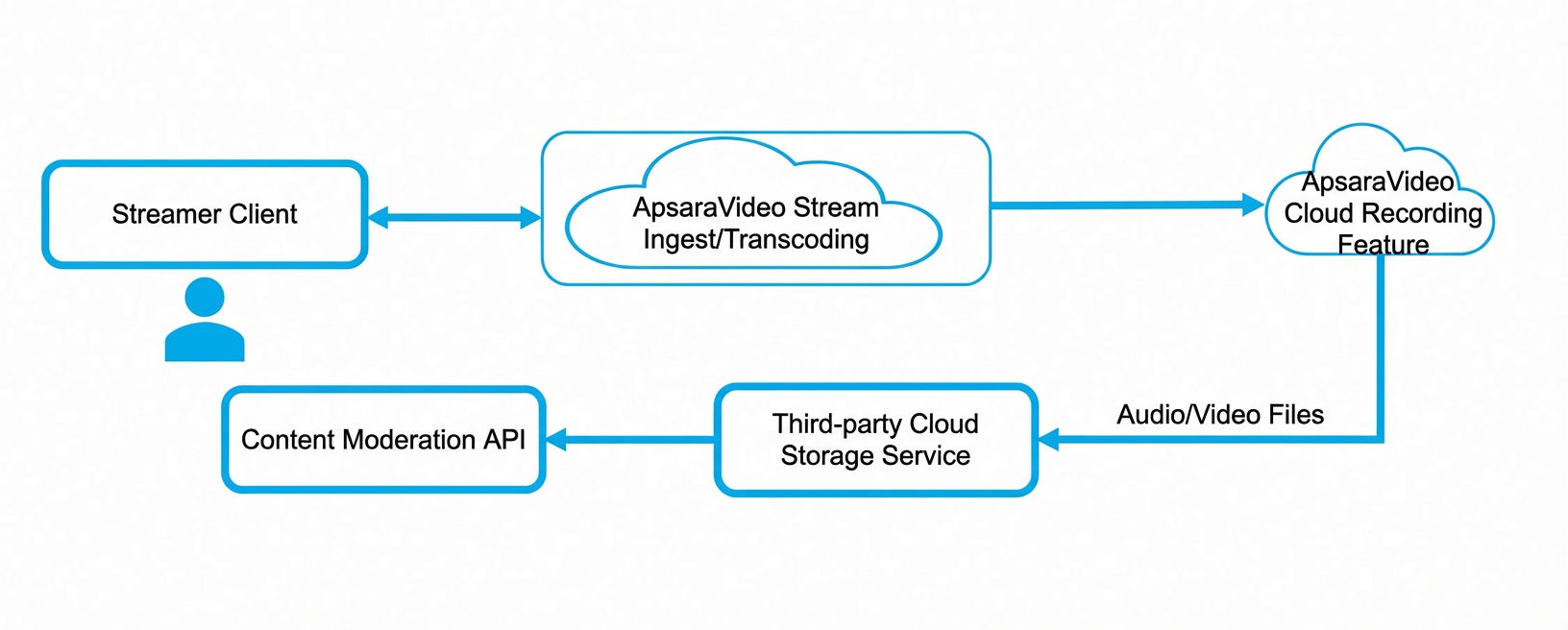

Technical architecture
ZEGO RTC supports cloud recording to save voice chats and live streams to a third-party cloud storage service or Alibaba Cloud OSS. Once stored, you can provide its location to the Enhanced Voice Moderation API to detect non-compliant content.
Billing
This approach incurs the following costs:
The specific fees for ZEGO RTC depend on factors such as your usage, resolution, and whether transcoding is used. We recommend you confirm the pricing with ZEGO RTC before starting.
Type | Description |
ZEGO RTC recording fees | Recording fees include costs for audio and video, which are billed based on recording duration. For more information, see Cloud recording. |
Third-party storage fees | Includes costs for storage and public network access. Billing standards vary by storage service provider. Note If you use Alibaba Cloud OSS for cloud recording, you can provide the OSS internal endpoint to the Enhanced Voice Moderation API to moderate the file. This avoids costs associated with public network access. |
Enhanced Voice Moderation fees | Billed based on the duration of the moderated audio stream. For more information, see Billing of Voice Moderation Pro. |
Procedure
Send a RESTful API request to initiate cloud recording. For more information, see Enable Cloud Recording.
Provide the URL of the content stored in the third-party cloud storage service to Enhanced Voice Moderation to start detecting non-compliant voice content from ZEGO RTC. For more information, see Voice Moderation Pro SDK V2.0 and integration guide.
Set the detection type to
audio_media_detection.
