This document describes the table list, table properties, and table data.

Table list

After you log on to a database and open the SQL development window, you can click the Tables tab in the navigation pane on the left to view the table list. The table list shows the tables in the current database connection. From the list, you can view a table's structure tree or right-click a table to perform management operations.

Structure tree

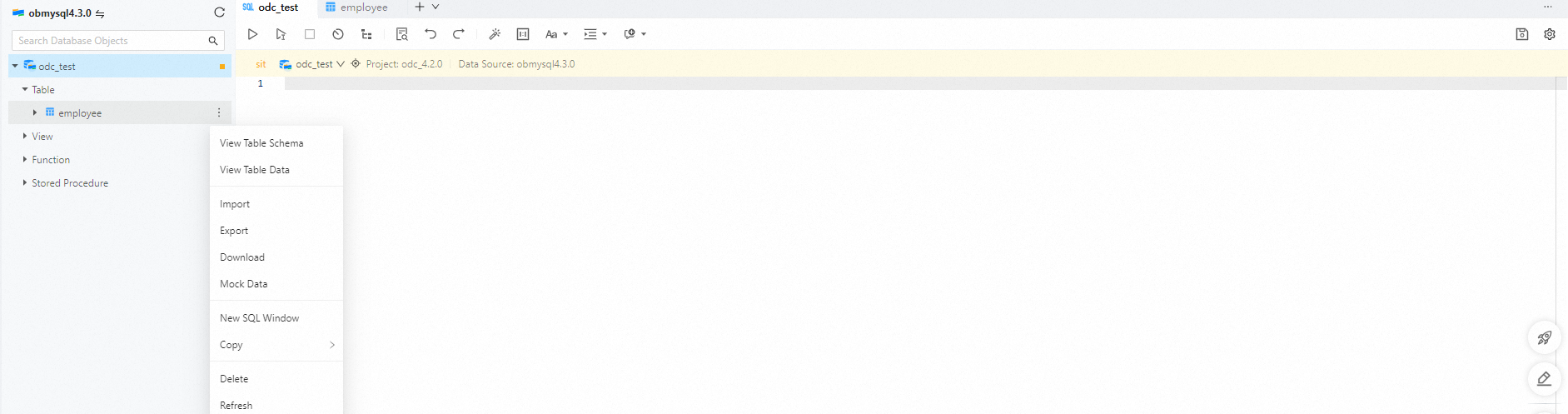

As shown in the preceding figure, you can click the arrow next to a table name in the table list to display its structure tree. The structure tree of a table has up to three levels. You can right-click an item at any level of the structure tree to view the available management operations for that item.

Management operations

By default, tables in the table list are sorted in ascending order by the first character of their names. When you right-click an item in the structure tree, ODC provides several operations in the context menu to manage the object. The following table describes these management operations.

Operation	Description
View Table Structure	Opens the table properties tab to view all basic information, columns, indexes, constraints, and Data Definition Language (DDL) statements for the table.
View Table Data	Opens the table data tab to view the data in the table.
Import	Imports data into the current table.
Export	Exports data from the current table.
Download	Downloads the SQL file for the table object.
Analog data	Opens the Simulate Data panel.
Copy	Copies the table name, or a Select, Insert, Update, or Delete statement.
Delete	Deletes the current table object.
Refresh	After you perform management operations on the current table object, refresh the structure tree to display the latest information.

Manage table properties

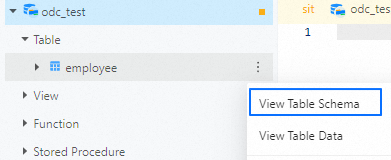

In the navigation pane on the left of the SQL development window, you can double-click a table name in the table list to open the table management page. Alternatively, you can click the More icon next to the table name and select View Table Structure.

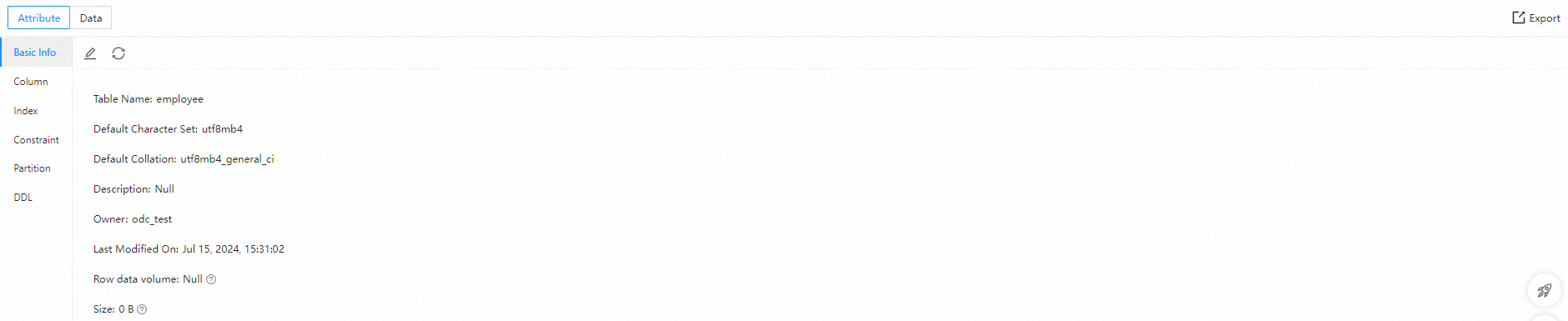

Basic information

On the Properties tab, you can click Basic Information in the navigation pane on the left to view the basic information of the current table:

Item	Description
Table Name	The name of the current table. You can also modify the table name here.
Default Character Set	The character set used by the current table.
Default Collation	The collation used by the current table.
Description	The description added when the table was created. You can also modify the description here.
Owner	The database where the table object resides.
Last Modified	The date when the table properties were last modified.
Row Count	The number of rows.
Size	The size of the data.

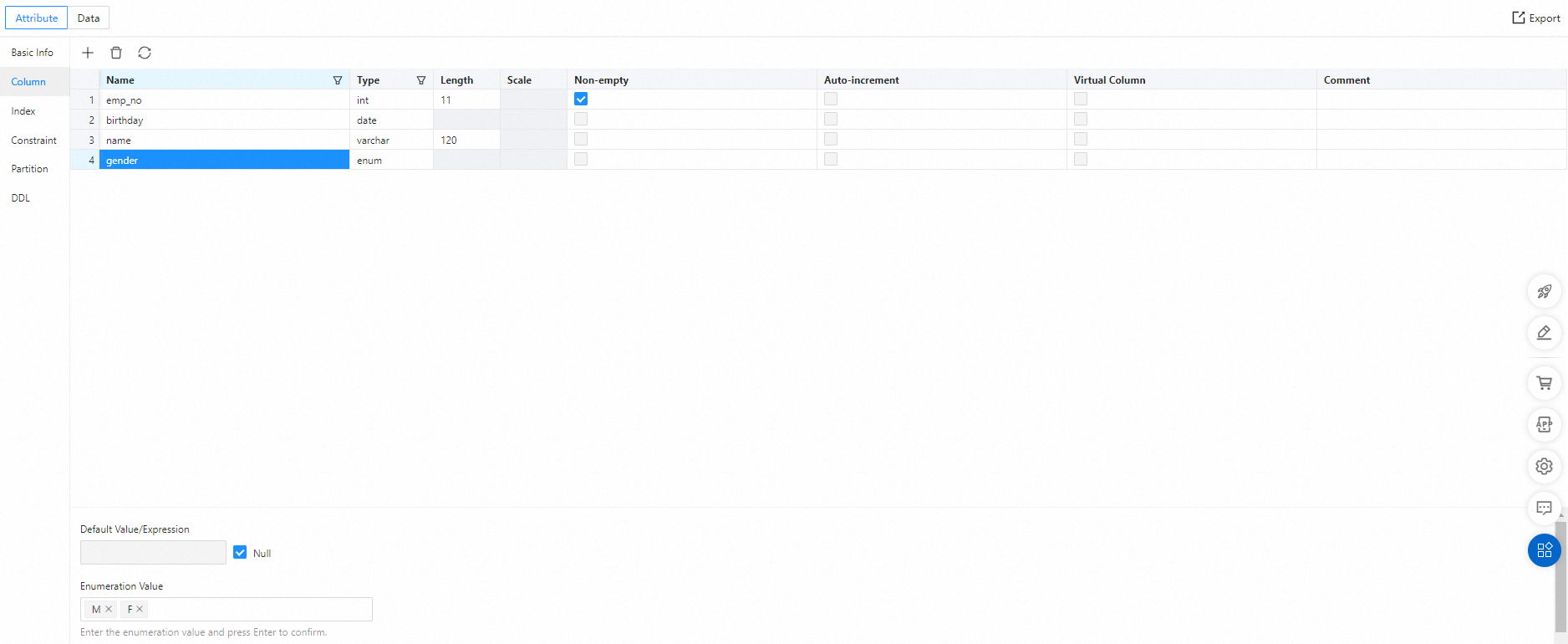

Column information

On the Properties tab, you can click the Columns tab in the navigation pane on the left to view the columns in the current table. On the Columns tab, you can modify the Name, Length, Not Null, and Comment properties.

Item	Description
Name	The name of the field (column).
Type	The data type of the field (column). For more information about data types, see OceanBase Database Reference Guide.
Length	The length of the data type.
Decimal Places	You can set the type precision.
Not Null	Specifies whether the field (column) can contain null values.
Auto-increment (MySQL mode)	Specifies whether the column is an auto-increment column. Important Each table can have only one auto-increment field (column). After a field (column) is set to auto-increment, you cannot select this option for other fields (columns). To set another field (column) as auto-increment, you must first clear the selection for the current one.
Virtual Column	Specifies whether to create a virtual column. Important If you select Virtual Column, you must specify an expression. When you create a virtual column, you must define the expression on which it depends. Virtual columns include Virtual and Stored columns. The value of a virtual column is calculated from the expression only when it is used. Therefore, you cannot specify a value for a virtual column when you insert data into the table.
Default Value/Expression	The default value or expression for the field (column).
Comment	A description of the field (column).

Note

Auto-increment fields are not supported in Oracle mode.
You can change a column from NOT NULL to allow null values, but you cannot change a column that allows null values to NOT NULL.
If a table does not have an auto-increment field, you can only designate a new column as the auto-increment column.
The Default Value and Auto-increment properties are mutually exclusive. You can only modify the default value for a column that is not a virtual column. After a default value is set, it cannot be removed.
You cannot modify existing virtual columns. You can set a new column as a virtual column.

Index information

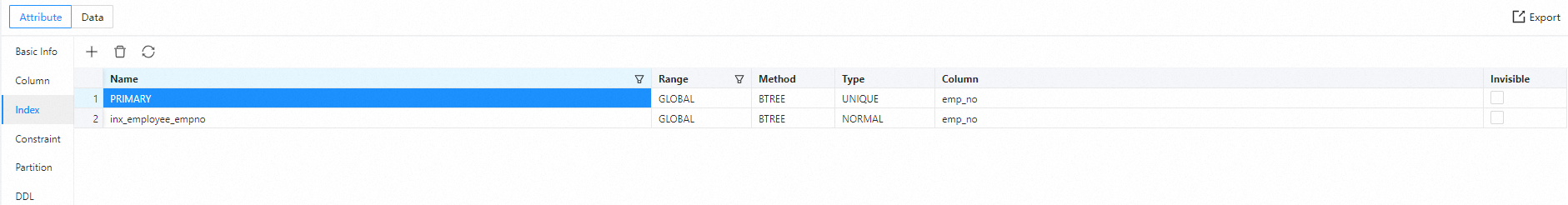

On the Properties tab, you can click the Indexes tab in the navigation pane on the left to view the indexes in the current table.

On the Indexes tab, you can modify the Index Name and Invisible properties.

ODC V4.2.2 and later lets you check whether an index is active. If an alert icon appears next to the index name, the index is not active.

Item	Description
Index Name	The name of the index.
Scope	The default value is GLOBAL. Supported values are GLOBAL (global index) and LOCAL (local index).
Method	The default value is BTREE (for global indexes). Supported values are None, BTREE, and HASH. BTREE stores data in a B+ tree structure and is suitable for SQL statements that perform range lookups. A HASH index is implemented based on a hash table. It is used only when the query condition is an exact match for all columns in the HASH index. It only supports `=`, `IN`, and `<=>` queries. A HASH index cannot be used for sorting and is not suitable for columns with low cardinality, such as a gender column.
Index Type	The default value is NORMAL. Supported values are NORMAL, UNIQUE, and FULLTEXT. NORMAL indicates a regular index. UNIQUE indicates a unique index that does not allow duplicate values, such as an employee ID (emp_no). FULLTEXT indicates a full-text search index, which is used to search tables that contain large amounts of data.
Columns	The columns included in the index. Note the order of the index columns.
Invisible	Specifies whether the index is visible.

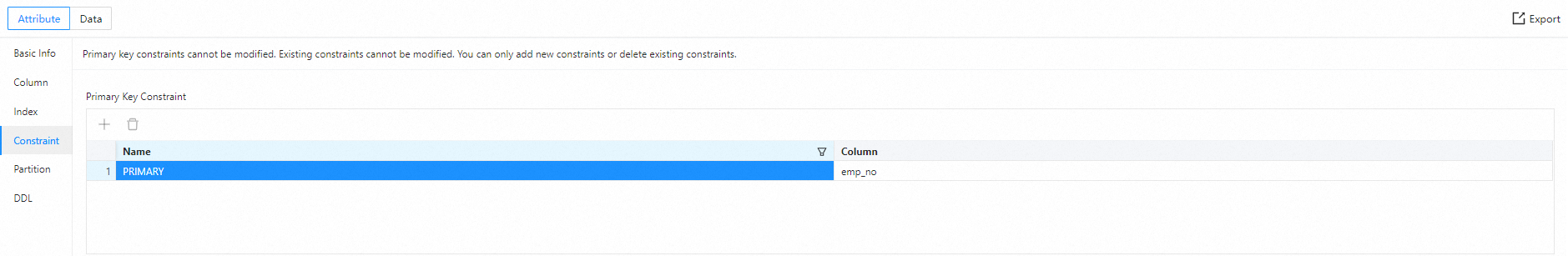

Constraint information

On the Properties tab, you can click the Constraints tab in the navigation pane on the left to view the constraints in the current table.

On the Constraints tab, you can add or delete UNIQUE constraints and CHECK constraints. You cannot modify existing constraints.

Item	Description
Constraint Name	The name of the constraint.
Column Information	Select a field or a group of fields for the constraint.
Associated Schema (Oracle mode)	When you use a foreign key constraint, specify the schema where the referenced table (parent table) resides.
Associated Database (MySQL mode)	When you use a foreign key constraint, specify the database where the referenced table (parent table) resides.
Associated Table	When you use a foreign key constraint, specify the referenced table (parent table).
Associated Field	When you use a foreign key constraint, specify the referenced field (in the parent table).
Delete	The action to perform on the current table (child table) when data is deleted from the referenced table (parent table). You can specify one of four actions: CASCADE, NO ACTION, RESTRICT, and SET NULL. The supported foreign key actions differ between MySQL and Oracle modes: In MySQL mode, OceanBase supports CASCADE, NO ACTION, RESTRICT, and SET NULL. In Oracle mode, OceanBase supports CASCADE, NO ACTION, and SET NULL. Important OceanBase does not currently support the SET NULL action. For more information about the syntax, see the official OceanBase, MySQL, or Oracle documentation.
Update	The action to perform on the current table (child table) when data is updated in the referenced table (parent table). You can specify one of four actions: CASCADE, NO ACTION, RESTRICT, and SET NULL. The supported foreign key actions differ between MySQL and Oracle modes: In MySQL mode, OceanBase supports CASCADE, NO ACTION, RESTRICT, and SET NULL. In Oracle mode, OceanBase supports NO ACTION. Important OceanBase does not currently support the SET NULL action. For more information about the syntax, see the official OceanBase, MySQL, or Oracle documentation.
Check Condition	The rule for validating data when the CHECK constraint is enforced.

Note

The available operations vary by constraint type. If an operation is unavailable or grayed out in the navigation bar, it is not supported for that constraint type.
Foreign key constraints: In OceanBase Database in Oracle mode, you can query foreign keys from all_constraints. In OceanBase Database in MySQL mode, you can query foreign keys from information_schema.key_column_usage in OBServer V2.2.6 and later.
The CHECK constraint feature is supported only in OceanBase Database in Oracle mode.

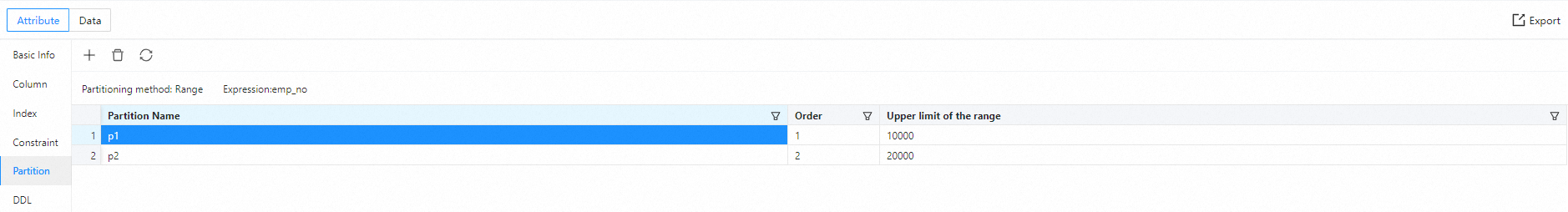

Partition information

Because partitions are defined differently in MySQL and Oracle modes, the meaning of the following information varies slightly between modes. You must specify the following information based on the definitions for your selected partitioning method:

Item	Description
Partitioning Method	The partitioning method. The supported methods differ between MySQL and Oracle modes. Range partitioning: Assigns rows to partitions based on column values that fall within a given continuous range. The ranges must be ordered, contiguous, and non-overlapping. List partitioning: Partitions data based on a list of discrete values. Hash partitioning: Partitions data based on a specified number of partitions. Use hash partitioning for data that does not have a clear distribution rule or distinct range-based lookup characteristics. This method uses a hash algorithm to discretize the values of the partitioning key column across different partitions, distributing the data randomly. Key partitioning: Similar to hash partitioning, but it only supports one or more columns, and the MySQL server provides its own hashing function. One or more columns must contain integer values. For more information about partitioning methods, see Partitioned tables in OceanBase Database.
Field	The field to use as the partitioning key.
Expression	Partitions data based on the return value of an expression. Partition filter expressions are not supported in Oracle mode.
Partitions	Depending on the selected Partitioning Method, you may need to specify information such as Partition Name, Number of Partitions, Upper Bound, or Value List. You can add multiple partitions and drag the selected fields to sort them.

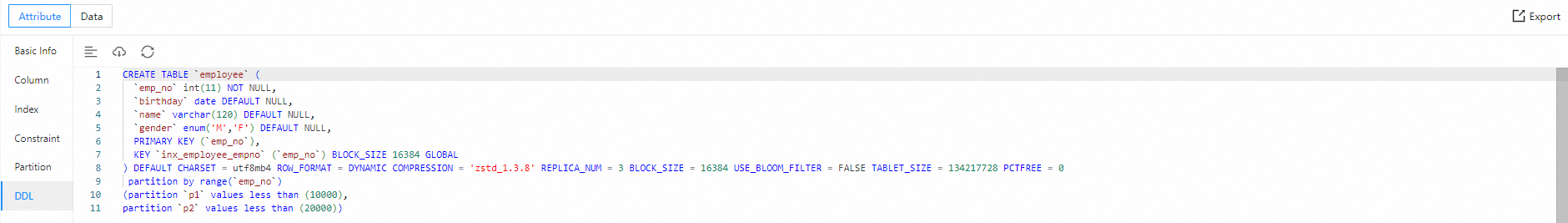

DDL information

On the Properties tab, you can click the DDL tab in the navigation pane on the left to view the Data Definition Language (DDL) statement for the current table. This is the SQL statement that defines the table. You cannot edit it.

Manage table data

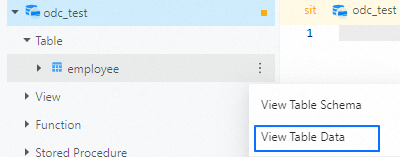

In the navigation pane on the left of the SQL development window, you can double-click a table name in the table list to open the table management page. Alternatively, you can click the More icon next to the table name and select View Table Data.

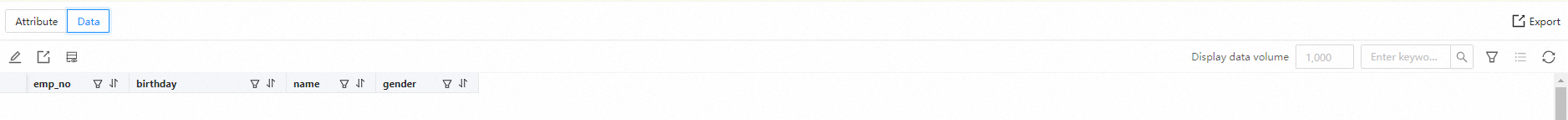

On the View Table Data tab, you can view, add, modify, and delete data in the current table.
For more information about how to edit data, see Edit and export results.
Important
ODC shares sessions, and each connection has only one session. In Oracle mode, autocommit is disabled by default in ODC V2.3.2 and later. Therefore, you must manually commit transactions. You can change the value of the autocommit variable on the Global Variables page. For more information, see Session management.

Note

For more information about the toolbar functions on the table properties and data pages, see Introduction to common features.
