This topic describes the architecture of ApsaraDB for MyBase Open Edition and its components.
Architecture diagrams

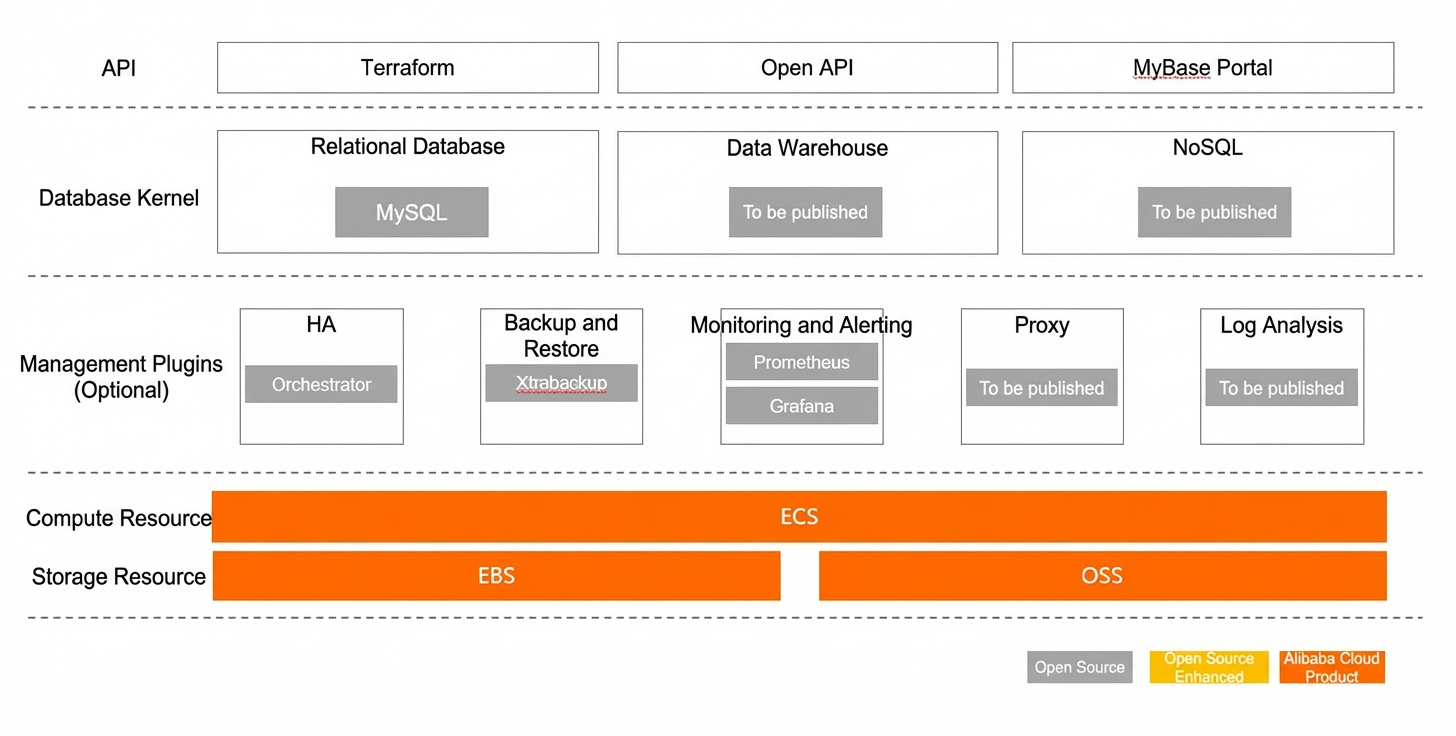

MyBase on ECS

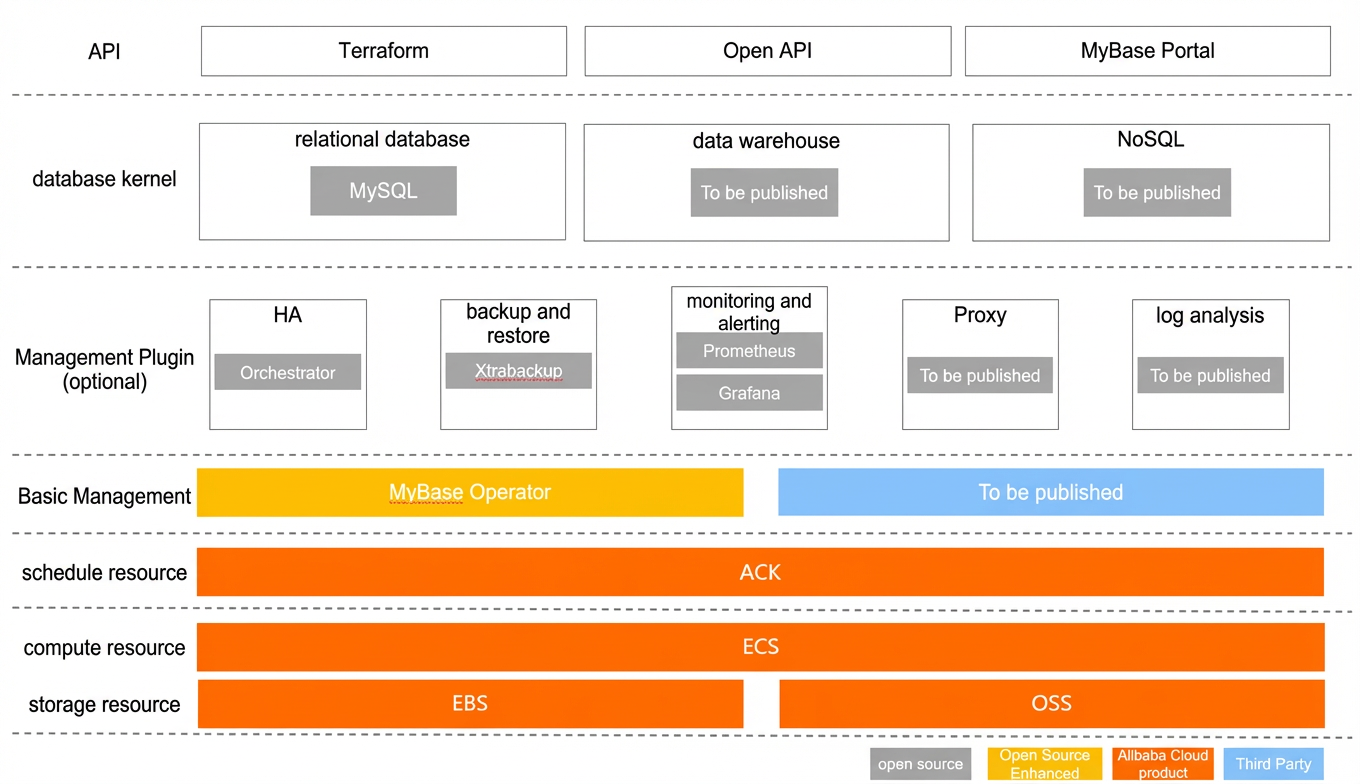

MyBase on ACK
Architecture description
ApsaraDB for MyBase Open Edition consists of four types of products:
Open source community products
Integrated open source database engines and management tools, such as MySQL, Orchestrator, and Prometheus.
MyBase open source enhancements
MyBase is built on open source components, offering enhanced performance and features.
The MyBase Operator.
Alibaba Cloud products
MyBase Open Edition is built on foundational Alibaba Cloud products and provides open source database engines and ecosystem tools. MyBase can be deployed on Elastic Compute Service (ECS) or Container Service for Kubernetes (ACK). Database instances created in MyBase can be connected to Alibaba Cloud database ecosystem tools with a single click. These tools, such as Data Management Service (DMS), Database Backup Service (DBS), Data Transmission Service (DTS), and Database Autonomy Service (DAS), provide easy access to advanced capabilities.
Third-party products
To be released.
