Report device status on demand from the device

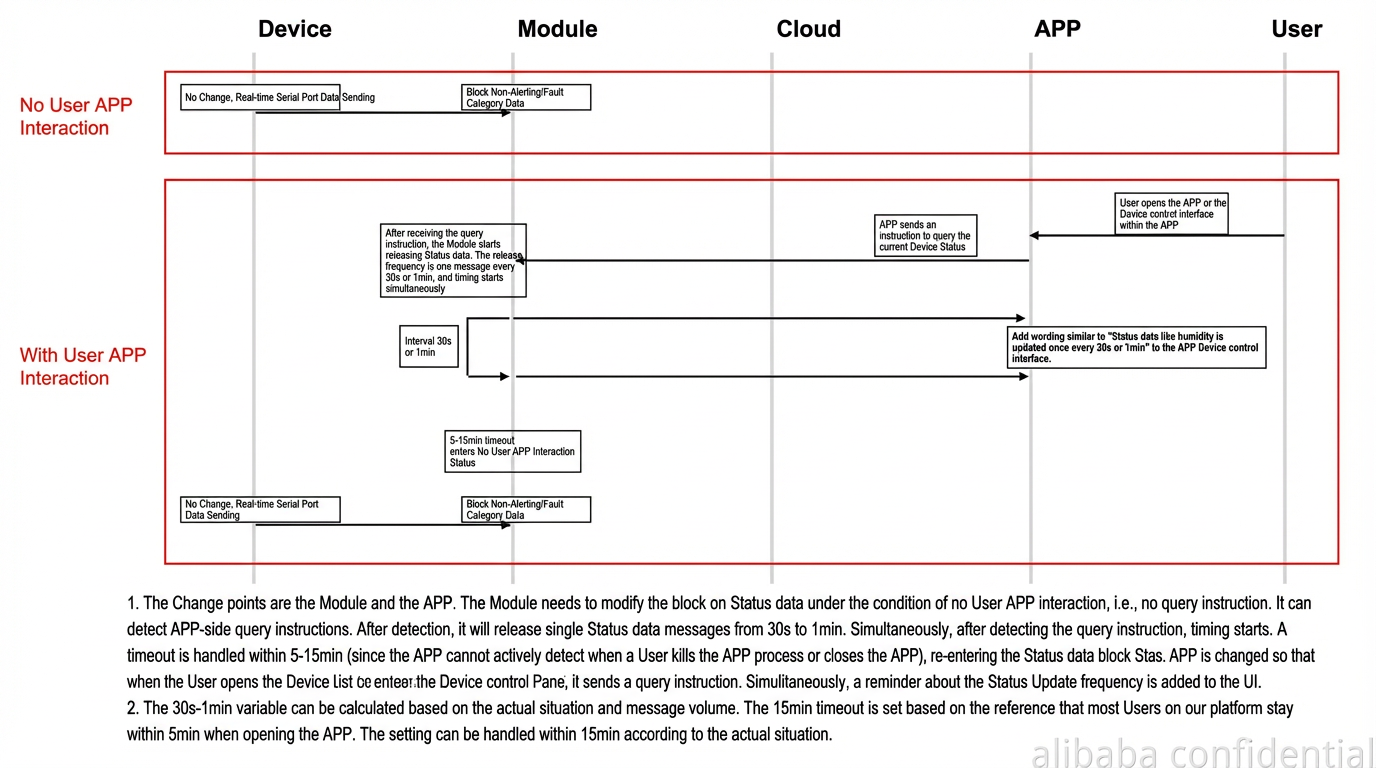

Solution

How to Get Started

1. Add the getProperties service to the Thing Specification Language model during product registration, as shown below:

2. Use version 1.6.6-20 of the Feiyan device SDK.

3. This feature is disabled by default. To enable it, refer to the smart_outlet application at Products/example/smart_outlet.

   1. In the smart_outlet.mk file, enable the GLOBAL_CFLAGS += -DREPORP_ON_DEMAND macro.

   2. To control event reporting in the Thing Specification Language model, enable the GLOBAL_CFLAGS += -DDISABLE_EVENT_REPORT macro in smart_outlet.mk. Otherwise, leave it disabled.

   3. Based on the product's Thing Specification Language model definition, complete the user_post_all_property(void) function in the smart_outlet_main.c file. This function is called when the device status reporting window opens to report the complete device status once.

   4. In the user_connected_event_handler(void) function in the smart_outlet_main.c file, disable the reporting switch after the connection is established and the status is reported once.

   @@ -234,6 +234,9 @@ static int user_connected_event_handler(void)
        }
    #endif

   +#ifdef REPORP_ON_DEMAND
   +    set_report_state(0);
   +#endif
        return 0;
    }


4. The reporting window duration is defined in the report_on_demand.c file. The default duration is 30 s. You can modify it as needed:

   #define REPORT_TIMEOUT_MS (1 * 30 * 1000)

5. Add the report_on_demand.c file to smart_outlet.mk.

   @@ -36,7 +36,8 @@ $(NAME)_SOURCES := app_entry.c \
                       device_state_manger.c \
                       factory.c \
                       property_report.c \
   -                   msg_process_center.c
   +                   msg_process_center.c \
   +                   report_on_demand.c

Patch file
