Event subscription integration guide

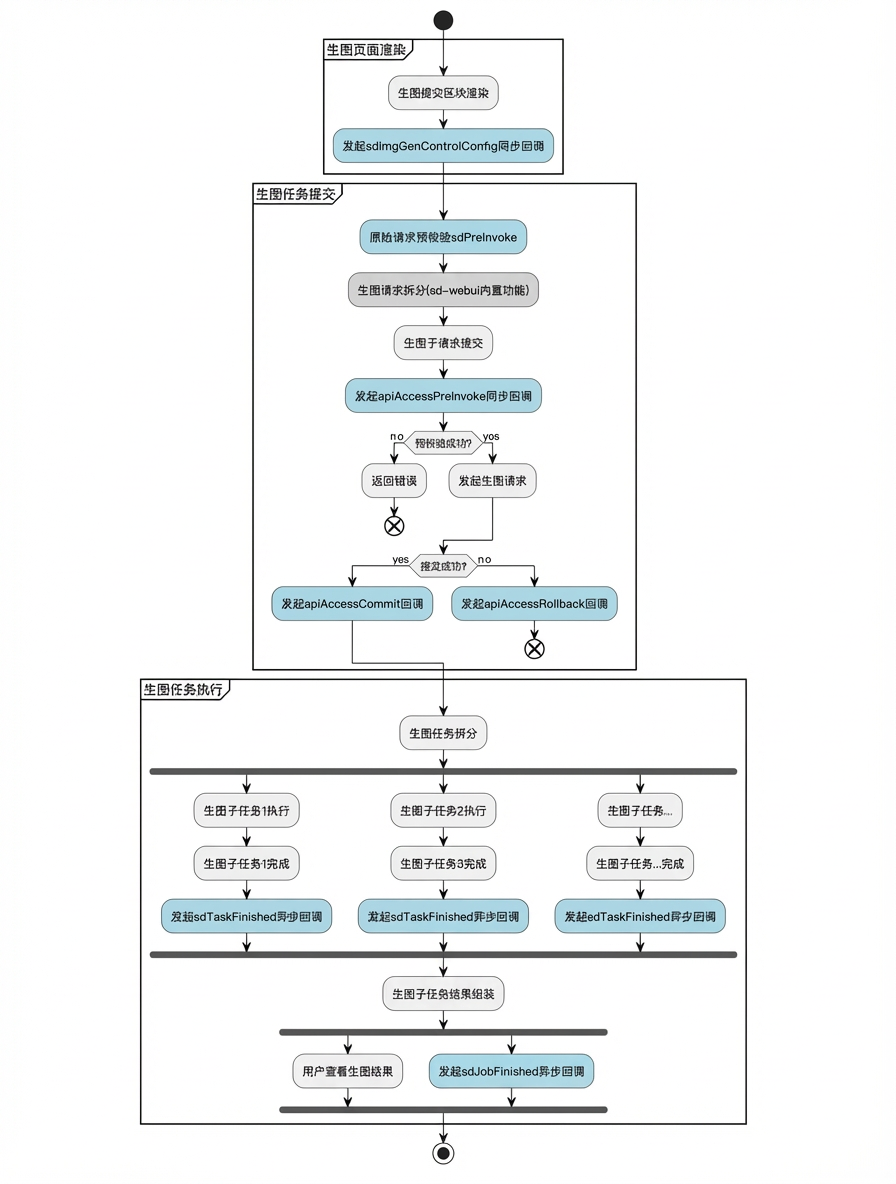

Image generation flow

Image generation has three main stages:

1. Page rendering

2. Task submission

3. Task execution and result display

Event and callback flow

• sdImgGenControlConfig: Displays custom text. Retrieves user information from your system using the callback request token. Displays your system information, such as user quotas.

• apiAccessPreInvoke: Deducts user quotas from your system in real time.

• apiAccessCommit: Maintains the status of user quota deductions in your system.

• apiAccessRollback: Rolls back user quota deductions in your system.

• sdTaskFinished: Stores the results of user-generated images in your system.

Callback protocol

Callback requests are POST requests sent over the HTTP protocol. The default timeout is 5 s. Ensure you respond within 5 s.

Callback types

• Synchronous callback: Blocks the next step on the platform. No retries are attempted.

• Asynchronous callback: Does not block the next step on the platform. If the response status code is in the 4xx or 5xx range, a retry is triggered.

Receiving callbacks

A callback request has two parts:

• Request context: Includes the request initiator, target API, and event type. These details are in the URL parameters.

• Request details: Contains the business parameters sent by the user to the platform. This information is in the request body, which can be empty.

Request context parameters

Responding to callbacks

Status codes

• 2xx: The request was successfully received and processed. The callback is complete.

• 4xx/5xx: The request was not successfully received or processed, and the callback failed. The platform retries the call. The retry intervals are 10 s, 30 s, 1 minute, 2 minutes, 3 minutes, 4 minutes, 5 minutes, 6 minutes, 7 minutes, 8 minutes, 9 minutes, 10 minutes, 20 minutes, 30 minutes, 1 hour, and 2 hours.

Event request parameters and response formats

apiAccessPreInvoke

After a user initiates a request, a pre-check is triggered to determine if the user has sufficient permissions.

• Timing: Before the user's request is executed.

• Request content: The request submitted by the user.

• Request type: Synchronous.

• Request format: The user's actual request content. There is no standard format.

Response body format

sdPreInvoke

Pre-checks an SD image generation request to determine if the user has sufficient permissions.

• Timing: Before the user initiates an image generation request.

• Request content: The user's original image generation request.

• Request type: Synchronous.

Request details

• In SD WebUI, when a user generates a single image, this action may correspond to multiple internal text-to-image or image-to-image requests. Both sdPreInvoke and apiAccessPreInvoke are triggered before the request is executed. apiAccessPreInvoke corresponds to each sub-request that the backend receives, and its input parameter is the actual API request. sdPreInvoke corresponds to the original request that the user initiates in SD WebUI.

Response body

sdTaskFinished

Notifies you of the image generation result after an image generation sub-task is complete.

• Timing: After an image generation sub-task is complete.

• Request content: The result of the user's image generation.

• Request type: Asynchronous.

Request details

Response body

None. A successful response returns an HTTP status code of 200. If a 500 status code is returned, the system retries the call.

sdJobFinished

Notifies you of the image generation result after an image generation job is complete.

• Timing: After an image generation job is complete.

• Request content: The result of the user's image generation.

• Request type: Asynchronous.

Request details

• In SD WebUI, a user's request to generate an image is a job that can consist of multiple sub-tasks, such as internal text-to-image or image-to-image requests. Two events indicate completion: sdTaskFinished and sdJobFinished. The sdTaskFinished event is triggered when a single sub-task ends. The sdJobFinished event is triggered when the entire job is complete from the user's perspective. The final image that the user sees may be the result of a plugin that post-processes the outputs from multiple sub-tasks.

Response body

None. An HTTP 200 status code indicates a successful response. If an HTTP 500 status code is returned, the system retries the call.

sdImgGenControlConfig

Controls the submission block for image generation.

• Timing: When a user opens the image generation page.

• Request content: The current request context.

• Request type: Synchronous.

Request details

Response body

apiAccessRollback

Callback for an image generation submission failure.

• Timing: When an image generation request fails to submit.

• Data content: The current request context.

• Request type: Synchronous.

Response body format

Decrypt tokens and verify signatures (Python example)

Install dependencies

pip install pycryptodome

Example

import hmac
import hashlib
import base64
from Crypto.Hash import SHA256
from Crypto.Cipher import AES


def decrypt_api_token(
        encrypted_api_token: str,
        sk: str
):
    """
    Decrypts the API token and returns the result.
    :param encrypted_api_token:
    :param sk:
    :return:
    """

    sha256 = SHA256.new()
    sha256.update(sk.encode('utf-8'))
    key = sha256.digest()[:16]

    encrypted = base64.b64decode(encrypted_api_token)
    iv = encrypted[:16]

    cipher = AES.new(key, AES.MODE_CBC, iv)
    decrypted = cipher.decrypt(encrypted[16:])
    pad_size = decrypted[-1]
    decrypted = decrypted[:-pad_size]
    return decrypted.decode('utf-8')


def check_sign_equal(
        sign: str,
        ak: str,
        sk: str,
        nonce: str,
        timestamp: str,
        body: str = None,
        biz_type: str = None,
        api_token: str = None,
        api_id: str = None,
        invoke_id: str = None,
):
    """
    Checks if the signature is consistent.
    :param sign:
    :param ak:
    :param sk:
    :param nonce:
    :param timestamp:
    :param body:
    :param biz_type:
    :param api_token: The decrypted token.
    :param api_id:
    :param invoke_id:
    :return
    """

    params = [ak, nonce, body, timestamp]
    if biz_type and len(biz_type.strip()) > 0:
        params.append(api_token)
        params.append(biz_type)
        params.append(api_id)
        params.append(invoke_id)
    sign_str = "".join(param for param in params if params is not None)

    h = hmac.new(bytes(sk, 'utf-8'), bytes(sign_str, 'utf-8'), hashlib.sha256)
    expect_sign = base64.b64encode(h.digest()).decode('utf-8')
    return sign == expect_sign
