iOS SDK integration inspection plugin

1. Feature overview

The iOS SDK integration inspection plugin lets you verify event (instrumentation) data before publishing your application. It supports checking the SDK (Statistical Analysis SDK) integration status, viewing events in real time, inspecting debug logs, and monitoring network requests.

1.1 Import the SDK

1.1.1 Integration steps:

Add the analytics SDK and its dependencies to your project’s Podfile:

// QuickTracking Statistical Analysis SDK
pod 'QTCommon', '1.6.4.PX' // Specify a version number. Versions 1.6.4.PX and later support the inspection plugin.

// Optionally add QTCommonLog from the "Base Libraries - Logstore" for development debugging.
pod 'QTCommonLog'

pod 'QTSDKMonitor'

1.1.2 Enable the inspection plugin

The SDK inspection plugin is disabled by default. Enable it by calling [QTConfigure setSDKMonitorEnable:YES]; before the initWithAppkey method. Example:

[QTConfigure setSDKMonitorEnable:YES];

// Explicitly call this function so the logging system works.
[UMCommonLogManager setUpUMCommonLogManager];
[QTConfigure setLogEnabled:YES]; // Enable logging.
[QTConfigure setCustomDomain:@"Your data collection service domain name" standbyDomain:nil]; // Set domain name.
[QTConfigure initWithAppkey:@"Your appkey" channel:@"App Store"];

2. Floating button

After completing integration, launch your app to access the following features.

2.1 Entry point

After launching the app, a floating button appears. Below the button, the total number of events generated since launch and the upload completion percentage (uploaded events ÷ total collected events) are displayed. Tap the floating button to open the panel.

2.1.1 Floating entry configuration

We recommend adding a new button on your app’s Debug page (or developer tools page) to show or hide the floating button. You can drag the floating button to reposition it.

#import <QTSDKMonitor/QTSDKMonitor.h>

// Show the floating button. Call this after initialization completes.
[QTSDKMonitorManager showToolEntry];

2.1.2 Manually show the panel

To hide the floating button, disable it as follows:

[QTSDKMonitorManager closeToolEntry];

2.1.3 Show floating event list

The floating event list displays the names of the most recently collected events. It is disabled by default. Enable it in the sdkMonitor module (only effective when the floating entry is visible):

3. Panel sections

3.1 Event list

Search and filter module:

• Filter events by keyword (supports Regex Match)

• Event type

• Upload status

• Entry Status Search

You can sort events by time in ascending or descending order, manually pull metadata from Data Management, clear the search box, and view historical instrumentation searches.

Event list:

• Event timestamp

• Event type

• Event status

Tap an event to view its details. Long-press an event to copy its content to the clipboard.

3.2 Console

The console is the central panel of the integration inspection plugin. It provides core debugging features, including log display for the Growth Statistical Analysis SDK, packet capture, event statistics, and basic configuration.

3.3 Integration bar

The integration bar shows your current SDK feature version, AppKey, and feature usage status.

3.4 Debug logs

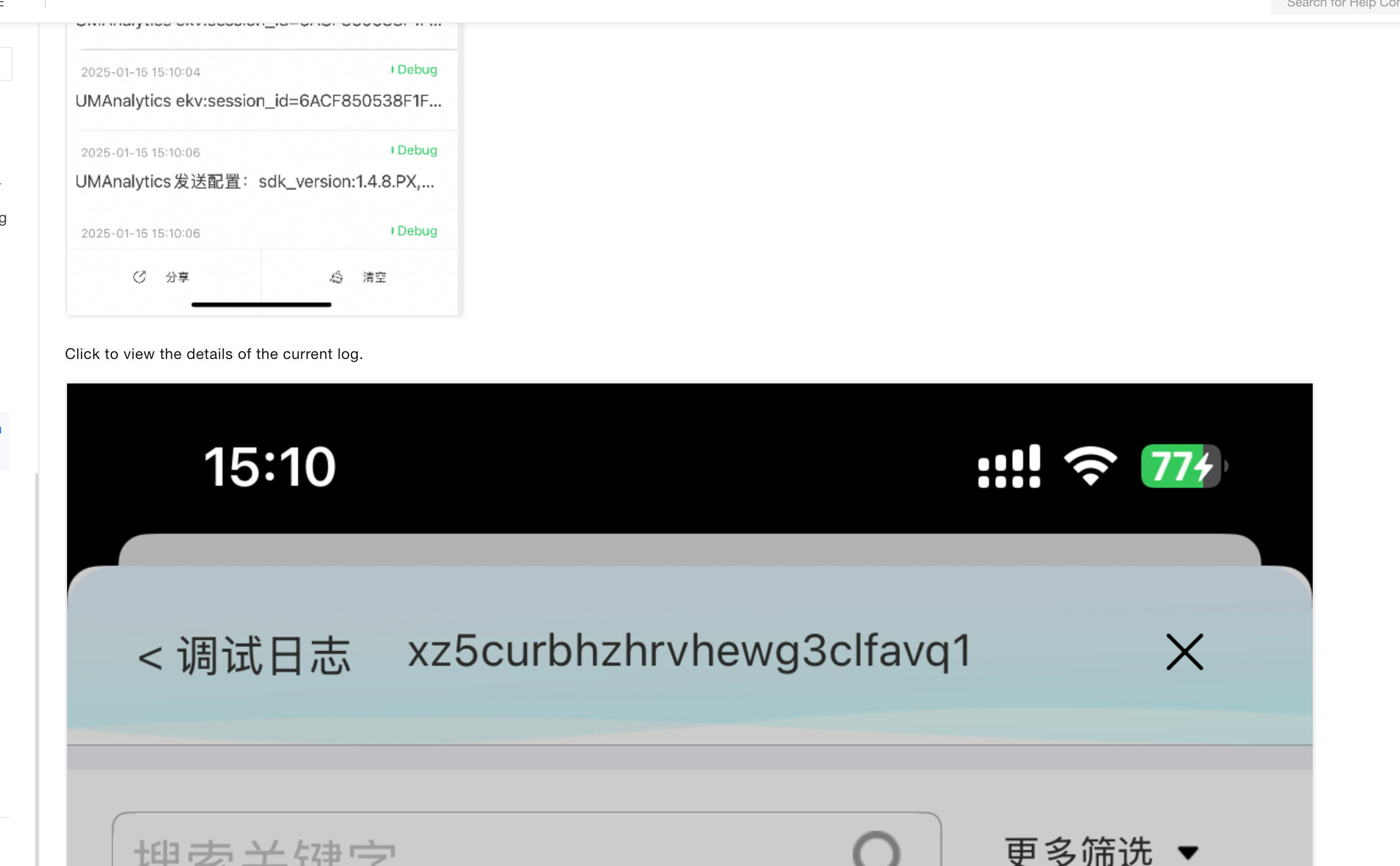

Tap “Debug logs” in the console to open the debug log page. Use error logs to quickly troubleshoot integration issues.

Tap a log entry to view its full details.

3.5 Packet capture

Packet capture prints detailed information about current uploads.

3.6 SDK configuration

The SDK configuration section shows your current settings.

3.7 Event statistics

Event statistics groups and summarizes all current events.

3.8 SDKMonitor configuration

SDKMonitor configuration lets you adjust tool-related settings for the integration inspection plugin.
