YonBuilder SDK

Get started with qtAnalytics

1. Before you begin, register an account and create an application on the QuickTracking platform to obtain an appkey and a data collection domain.

Refer to the QuickTracking integration guide.

2. Configure the config.xml file. The configuration takes effect after a cloud build:

• Name: qtAnalytics

• Parameters: ios_appkey, ios_channel, android_appkey, android_channel, primaryDomain, standbyDomain

• Configuration example:

<feature name="qtAnalytics">
  <param name="ios_appkey" value="YOUR_IOS_APP_KEY"/>
  <param name="ios_channel" value="YOUR_IOS_CHANNEL"/>
  <param name="android_appkey" value="YOUR_ANDROID_APP_KEY"/>
  <param name="android_channel" value="YOUR_ANDROID_CHANNEL"/>
  <param name="primaryDomain" value="YOUR_primaryDomain"/>
  <param name="standbyDomain" value="YOUR_standbyDomain"/>
</feature>

• Field descriptions:

  1. ios_appkey: The appkey for your iOS app.

  2. ios_channel: The channel ID for your iOS app.

  3. android_appkey: The appkey for your Android app.

  4. android_channel: The channel ID for your Android app.

  5. primaryDomain: The primary data collection domain.

  6. standbyDomain: The standby data collection domain.

API reference

Initialization

Initialize the SDK to start collecting analytics data.

init

Parameters

Parameter		Type	Description	Default	Notes
logEnabled		boolean	Disable SDK debug logs before releasing your app.	false	Recommended for development and debugging only.
callback(ret, err)	ret	JSON object	{ "status": true }, where 'status' (boolean) indicates if the SDK initialized successfully.	None
	err	JSON object	{ "msg": "Error message" }, where 'msg' (string) is the error message.	None

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.init(
    {logEnabled:true},
    function(ret, err) {
        if (ret.status) {
            api.alert({
                msg: JSON.stringify(ret)
            })
        } else {
            api.alert({
                msg: JSON.stringify(err)
            })
        }
    }
);

Availability

iOS, Android

Available in v1.0.0 and later.

Disable data collection

disableSDK

• To comply with app privacy policies, the SDK does not cache its enabled or disabled state. If you want data collection to remain disabled across cold starts, you must call the disableSDK API on every cold start.

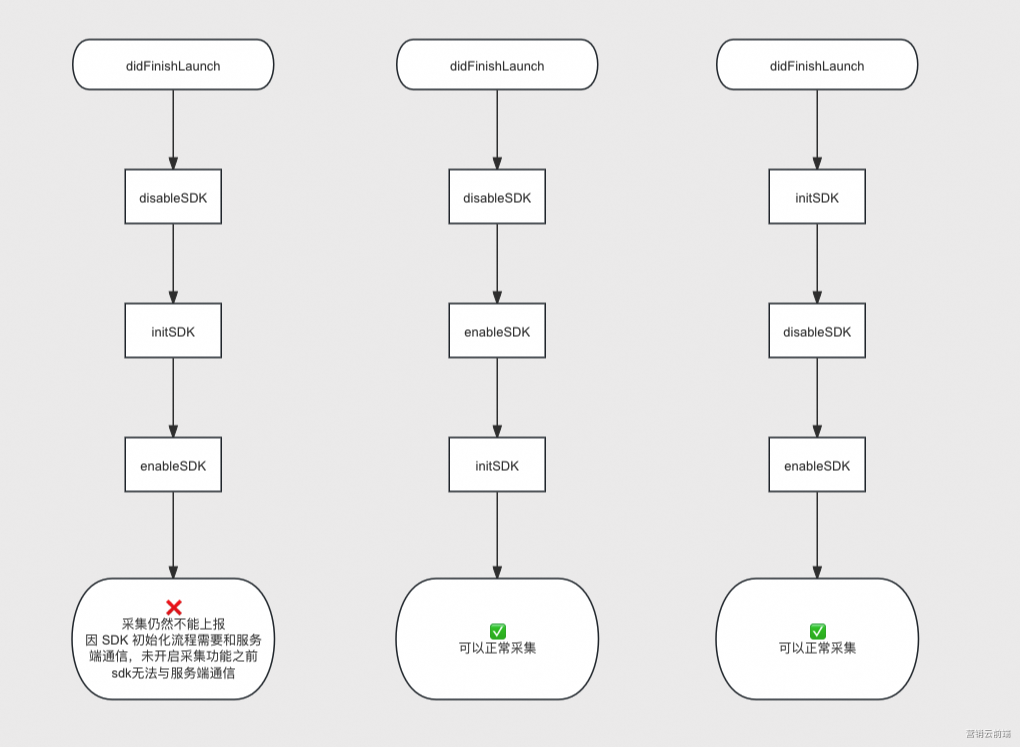

• On iOS, the SDK can only be initialized once per app lifecycle and requires network communication. Therefore, keep the following in mind when enabling or disabling the SDK:



Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.disableSDK();

Availability

iOS, Android

Available in v1.0.0 and later.

Enable SDK

enableSDK

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.enableSDK();

Availability

iOS, Android

Available in v1.0.0 and later.

Set storage path

resetStorePath

Important: Check if you are already using the Umeng+ SDK. If so, you must change the SDK's file path to avoid conflicts.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.resetStorePath();

Availability

iOS, Android

Available in v1.0.0 and later.

Customize Android device identifiers

setAndroidDeviceInfo

The SDK collects the following device identifiers by default:

Device identifier	Collection method	Notes
Android ID	String getAndroidID(Context context)	Android ID
Serial number	String getSerial()	Android device serial number.
IMEI	String getImei(Context context)	IMEI
IMSI	String getImsi(Context context)	IMSI
WiFiMac	String getWifiMac(Context context)	Wi-Fi MAC address
OAID	String getOaid(Context context)	Open Anonymous Device Identifier (for Chinese mainland)
GAID	String getGaid(Context context)	Google Advertising ID
MCCMNC	String getMCCMNC(Context context)	MCC: Mobile Country Code MNC: Mobile Network Code The returned value is a concatenation of the MCC and MNC. The MCC is a 3-digit integer, and the MNC is a 2-digit integer. Example: 46011

You can customize how these identifiers are collected. For example, you can prevent IMEI and serial number collection, or provide your own OAID value.

Note:

1. If you do not provide a custom implementation, the QuickTracking SDK collects these identifiers by default.

2. Call the setAndroidDeviceInfo function before you initialize the SDK.

3. If you do not need to customize device identifier collection, do not call this function.

Parameters

Parameter	Type
AndroidID	String
Serial	String
IMEI	String
IMSI	String
WiFiMac	String
OAID	String
GAID	String
MCCMNC	String

Example

var qtAnalytics = api.require('qtAnalytics');
// Prevents the collection of IMEI and Serial, and provides a custom OAID.
qtAnalytics.setAndroidDeviceInfo({
    IMEI:null,
    Serial:null,
    OAID:"custom_oaid"
});
qtAnalytics.init(
    {logEnabled:true},
    function(ret, err) {
        if (ret.status) {
            api.alert({
                msg: JSON.stringify(ret)
            })
        } else {
            api.alert({
                msg: JSON.stringify(err)
            })
        }
    }
);

Availability

Android

Available in v1.0.0 and later.

Customize IDFA

customSetIdfa

Sets a custom Identifier for Advertisers (IDFA). To prevent collection, pass an empty string ('').

Parameter	Type	Description
idfa	String	Identifier for Advertisers (IDFA).

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetIdfa({
    idfa: ''
});

Availability

iOS

Available in v1.0.0 and later.

Customize IDFV

customSetIdfv

Sets a custom Identifier for Vendors (IDFV). To prevent collection, pass an empty string ('').

Parameter	Type	Description
idfv	String	Identifier for Vendors (IDFV).

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetIdfv({
    idfv: ''
});

Availability

iOS

Available in v1.0.0 and later.

Customize OpenUDID

customSetOpenUdid

Sets a custom OpenUDID. To prevent collection, pass an empty string ('').

Parameter	Type	Description
openUdid	String	The OpenUDID.

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetOpenUdid({
    openUdid: ''
});

Availability

iOS

Available in v1.0.0 and later.

Customize UTDID

customSetUtdid

Sets a custom UTDID. To prevent collection, pass an empty string ('').

Parameter	Type	Description
utdid	String	The Taobao UTDID. QuickTracking only collects this identifier if you have integrated the Taobao UTDID SDK.

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetUtdid({
    utdid: ''
});

Availability

iOS

Available in v1.0.0 and later.

Customize MCC

customSetMcc

Sets a custom Mobile Country Code (MCC). To prevent collection, pass an empty string ('').

Parameter	Type	Description
mcc	String	Mobile Country Code (MCC).

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetMcc({
    mcc: ''
});

Availability

iOS

Available in v1.0.0 and later.

Customize MNC

customSetMnc

Sets a custom Mobile Network Code (MNC). To prevent collection, pass an empty string ('').

Parameter	Type	Description
mnc	String	Mobile Network Code (MNC).

Important: Use this method with caution. When you provide a custom implementation, your app becomes responsible for collecting the identifier. Collecting fewer device identifiers can reduce the accuracy and stability of your analytics data.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.customSetMnc({
    mnc: ''
});

Availability

iOS

Available in v1.0.0 and later.

Set a custom device ID

setCustomDeviceId

Parameter	Type	Description
deviceId	String	The SDK supports setting a custom device ID (UMID). To use a custom UMID, call the setCustomDeviceId method with a non-empty value before initializing the SDK.

Note:

This function takes effect only if a UMID has not yet been generated. If a UMID already exists locally, calling this method has no effect. To clear a UMID for testing, uninstall and reinstall the app.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.setCustomDeviceId({
    deviceId: 'xxxxxx'
});

Availability

iOS, Android

Available in v1.0.0 and later.

Get device ID

getUMIDString

Example

var qtAnalytics = api.require('qtAnalytics');
var umidStr = qtAnalytics.getUMIDString();

Availability

iOS, Android

Available in v1.0.0 and later.

Sign in

By default, analytics are tracked per device. To track by user account instead, call this method.

onProfileSignIn

Parameter	Type	Description
userId	String	The user account ID. The length must be less than 64 bytes.

Note: After a user account ID is set, it is saved locally. The ID remains active until the app is uninstalled, app data is cleared, or the onProfileSignOff method is called. Subsequent events are then associated with this account ID.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onProfileSignIn({userId:"custom_userId"});

Availability

iOS, Android

Available in v1.0.0 and later.

Sign out

Call this method when a user signs out. The SDK stops sending account-related information after this call.

onProfileSignOff

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onProfileSignOff()

Availability

iOS, Android

Available in v1.0.0 and later.

Set user properties

Call onProfileSignIn to set a userId before reporting user properties. Without a userId, QuickTracking cannot associate user properties with an account. Once set, use the following method to report user properties:

setUserProfile

Parameter	Type	Description
properties	JSON object	Key-value pairs representing the user properties.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.setUserProfile({
    properties:{
        sex:"girl", // Gender
        age:"8"     // Age
    }
});

Availability

iOS, Android

Available in v1.0.0 and later.

Register global properties

Registered global properties are automatically included in all subsequent events. These properties are cached for the current session and cleared when the app exits.

registerGlobalProperties

Parameter	Type	Description
properties	JSON object	Key-value pairs for the global properties.

Example

var qtAnalytics = api.require('qtAnalytics');
var param = {properties:{a:"1",b:"2"}};
qtAnalytics.registerGlobalProperties(param); // Global properties are now {a: "1", b: "2"}

var param = {properties:{b:"3",c:"4"}};
qtAnalytics.registerGlobalProperties(param); // Global properties are now {a: "1", b: "3", c: "4"}

Availability

iOS, Android

Available in v1.0.0 and later.

Unregister a global property

unregisterGlobalProperty

Parameter	Type	Description
propertyName	String	Must contain only letters, numbers, and underscores.

Example

var qtAnalytics = api.require('qtAnalytics');
var param = {propertyName:"lnch_Source"};
qtAnalytics.unregisterGlobalProperty(param);

Availability

iOS, Android

Available in v1.0.0 and later.

Get a global property by key

getGlobalProperty

Parameter	Type	Description
propertyName	String	Must contain only letters, numbers, and underscores.

Example

var qtAnalytics = api.require('qtAnalytics');
var param = {propertyName:"lnch_Source"};
var gp = qtAnalytics.getGlobalProperty(param);

Availability

iOS, Android

Available in v1.0.0 and later.

Get all global properties

getGlobalProperties

• Description: Returns a JSON-formatted string that contains all global properties. Example: {"id":"SA1375","userName":"Mike","account_type":"vip", "MemberLevel":"Level1"}

Example

var qtAnalytics = api.require('qtAnalytics');
var allgp = qtAnalytics.getGlobalProperties();

Availability

iOS, Android

Available in v1.0.0 and later.

Clear all global properties

clearGlobalProperties

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.clearGlobalProperties();

Availability

iOS, Android

Available in v1.0.0 and later.

Start manual page tracking

Track page paths and time spent on each page by calling onPageStart and onPageEnd.

Note:

• onPageStart marks the beginning of a page view but does not send an event. The SDK sends the page view event only when onPageEnd is called.

• onPageStart and onPageEnd must be called in pairs, and the pageName value must be identical for both calls. If onPageEnd is not called, or if its pageName does not match that of onPageStart`, the SDK discards the information recorded by onPageStart.

onPageStart

Parameter	Type	Description
pageName	String	A custom page name.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onPageStart({pageName:"MainScreen"});

Availability

iOS, Android

Available in v1.0.0 and later.

Manual page capture complete

onPageEnd

Parameter	Type	Description
pageName	String	The name of the custom page.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onPageEnd({pageName:"MainScreen"});

Availability

iOS, Android

Available in v1.0.0 and later.

Upload page properties

Add custom attributes to the current page.

setPageProperty

Parameter	Type	Description
pageName	String	A custom page name.
properties	JSON format	The custom properties of the page.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onPageStart({pageName:"MainScreen"});
qtAnalytics.setPageProperty({
    pageName:"MainScreen",
    properties:{
        home_param_1:"value11" // Set properties for the current page.
    }
});

Availability

iOS, Android

Available in v1.0.0 and later.

Attach custom attributes to the next page

Note: This must be called before the onPageStart of the next page.

setNextPageProperty

Parameter	Type	Description
properties	JSON format	The business parameters to pass to the next page.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.setNextPageProperty({
    properties: {
                nextPageProperty: "secondPageProperty"
            }
        });

Availability

iOS, Android

Available in v1.0.0 and later.

Event Tracking

Use custom events to track user behavior and record event details.

onEventObject

Parameter	Type	Description
eventId	String	The ID of the event that is being tracked.
pageName	String	The code of the page where the event occurred.
properties	JSON format	The custom properties of the event.

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onEventObject({
    eventId:"play_music",
    pageName:"MainScreen",
    properties:{
        music_type:"popular", // Custom parameter: music type, value: popular
        singer:"JJ", // Singer: JJ
        song_name:"A_Thousand_Years_Later", // Song name: A Thousand Years Later
        song_price:100 // Price: 100
    }
});

Availability

iOS, Android

Available in v1.0.0 and later.

Process kill protection methods

If you call kill or exit to terminate a process, call onKillProcess first to save statistical data.

onKillProcess

Example

var qtAnalytics = api.require('qtAnalytics');
qtAnalytics.onKillProcess();

Availability

Android

Available in version 1.0.0 and later.

Notes

• The tracking point verification feature is temporarily unavailable for iOS because the YonBuilder platform does not expose the openURL interface. Use the real-time log verification feature to test. For more information, see Get device ID.

• YonBuilder does not support the codeless tracking feature.

• YonBuilder does not support the referral marketing feature.
