Video Codec/Image使用指南 (v1.4.1)

1. Overview

The PPU is compatible with NVIDIA's hardware acceleration libraries for video and image codecs, pre-processing, and post-processing. These libraries include:

• Video Codec SDK: Provides hardware acceleration for cuvid decode and nv encode. Current version: 12.2.

• nvJPEG: Provides hardware acceleration for JPEG decoding and encoding. Current version: 12.3.

• NPP: Provides hardware acceleration for 2D image post-processing. Current version: 11.6.

2. Ecosystem

The following applications and frameworks can easily use hardware acceleration.

• FFmpeg: Compile FFmpeg with cuvid, nvenc, and libnpp enabled to support hardware acceleration. When performing video encoding, decoding, or transcoding, you can specify cuvid, nvenc, or NPP filters. FFmpeg is widely used, and most applications for video encoding or decoding depend on it, including PyAV (the backend for torchvision).

• DALI: An accelerated, parallel data loader framework from NVIDIA. It supports hardware acceleration for JPEG and video codecs.

  • Official Website: https://docs.nvidia.com/deeplearning/dali/user-guide/docs/index.html

  • Examples: https://github.com/NVIDIA/DALI/blob/main/docs/examples/use_cases/

In addition to these popular frameworks, you can use the following libraries to directly access codec and JPEG interfaces:

• nvImageCodec: An NVIDIA wrapper library that reads various types of image resources and converts them into tensor data. It also supports hardware-accelerated JPEG encoding and provides a Python interface.

  • Official Website: https://docs.nvidia.com/cuda/nvimagecodec/

  • Source Code: https://github.com/NVIDIA/nvImageCodec

• VPF: A Video Processing Framework (VPF) wrapper library from NVIDIA. It encapsulates the capabilities of the Video Codec SDK and provides a Python interface.

  • Official Website: https://developer.nvidia.com/blog/vpf-hardware-accelerated-video-processing-framework-in-python/

  • Source Code: https://github.com/NVIDIA/VideoProcessingFramework

3. Compile and run

Video Codec SDK

The PPU is compatible with the NVIDIA Video Codec SDK. Official Website: https://developer.nvidia.com/nvidia-video-codec-sdk/download

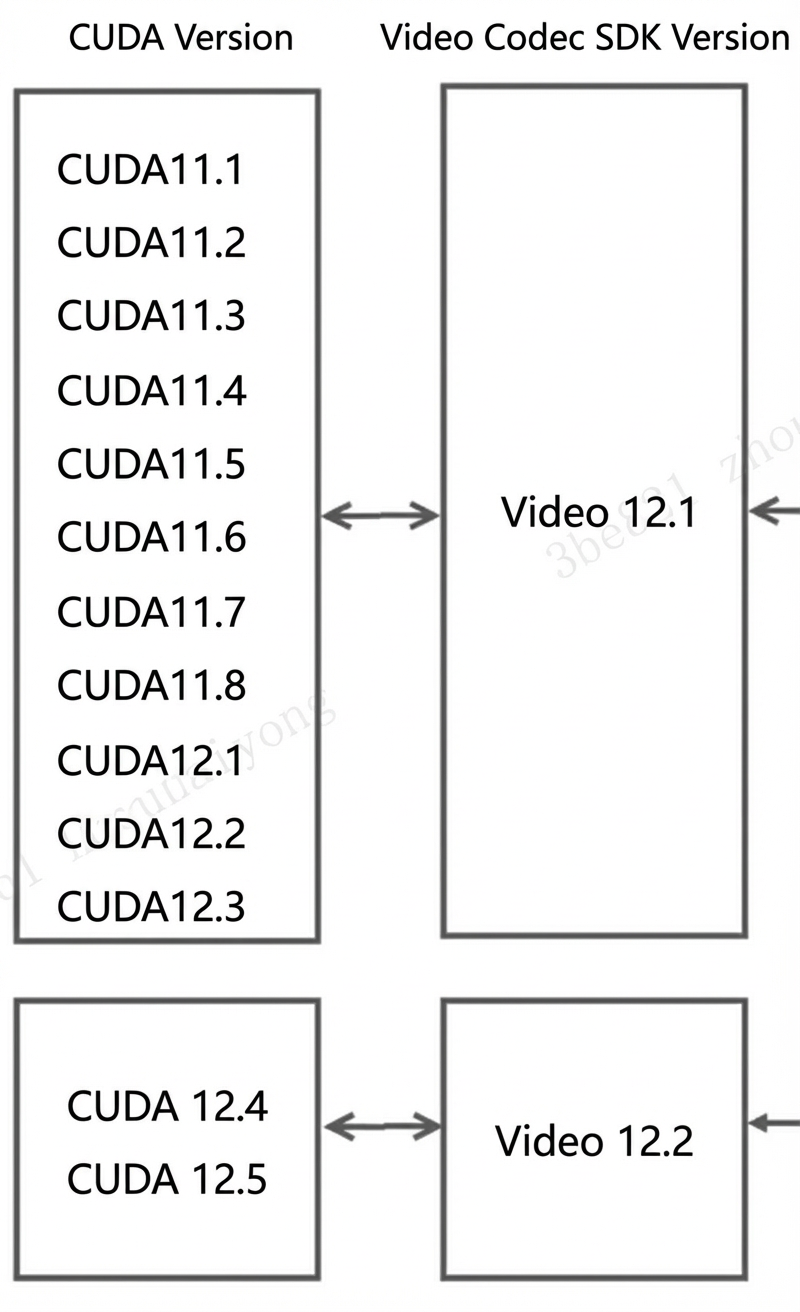

We recommend downloading a version of the Video Codec SDK that is compatible with the CUDA version of the PPU SDK. The known version compatibilities are as follows:

Prerequisites

• Because the PPU does not support OpenGL or Vulkan, you must modify the Samples/CMakeLists.txt file before compiling. Remove the unsupported projects and keep only the commonly used codec projects:

  # Keep the following and comment out the others.
  add_subdirectory(AppEncode/AppEncCuda)
  add_subdirectory(AppEncode/AppEncPerf)
  add_subdirectory(AppEncode/AppEncMultiInstance)

  add_subdirectory(AppEncode/AppEncDec)
  add_subdirectory(AppTranscode/AppTrans)
  add_subdirectory(AppTranscode/AppTransPerf)

  add_subdirectory(AppDecode/AppDec)
  add_subdirectory(AppDecode/AppDecMultiFiles)
  add_subdirectory(AppDecode/AppDecPerf)

• The Video Codec SDK depends on FFmpeg for demuxing capabilities, so you must first install FFmpeg. Although the SDK only requires demuxing capabilities and does not necessarily require a hardware-accelerated version of FFmpeg, we recommend that you compile and install FFmpeg with hardware acceleration support to prevent potential conflicts (see the Video FFMPEG User Guide).

  If FFmpeg is installed in the FFMPEG_PATH directory, run pkg-config --modversion libavcodec to display the version number. If the version number is not displayed, run export PKG_CONFIG_PATH=$FFMPEG_PATH/lib/pkgconfig:$PKG_CONFIG_PATH, and then run the pkg-config command again.

  Note

  If you do not specify a directory during compilation, the default is /usr/local. Otherwise, the content of FFmpeg's include, lib, and bin directories is copied to $FFMPEG_PATH/include, $FFMPEG_PATH/lib, and $FFMPEG_PATH/bin respectively.

• Specify CUDA_PATH.

  export CMAKE_LIBRARY_PATH=${CUDA_HOME}/lib64

  Here, CUDA_HOME points to the CUDA_SDK directory within the PPU SDK directory.

• If the version of the downloaded Video Codec SDK is incompatible with the CUDA version specified in the PPU SDK, a compilation error may occur. To resolve this, run the following command:

  cp Interface/* ${CUDA_HOME}/include

  Here, Interface refers to the Interface directory within the downloaded Video Codec SDK.

Compile

cd Samples  # Sample folder of the video-codec-sdk download path
mkdir build
cd build
cmake ..
make

Run

# To decode, run 12 threads simultaneously to maximize performance.
./AppDecode/AppDecPerf/AppDecPerf -thread 12 -i test_1920x1080_yuv420p_50fps_h264.mp4

# To encode, run 4 threads simultaneously to maximize performance.
./AppEncode/AppEncPerf/AppEncPerf -i crowd_run_1920x1088_nv12_8bit_50.0fps_n500.yuv -s 1920x1088 -if nv12 -fps 30  -preset p4 -gop 60 -rc cbr -bitrate 10000000 -codec h265 -thread 4

nvJPEG

The PPU SDK is fully compatible with nvJPEG. You can test JPEG functionality directly using the nvJPEG samples. Official website: https://developer.nvidia.com/nvjpeg

nvJPEG samples: https://github.com/NVIDIA/CUDALibrarySamples/tree/master/nvJPEG/

Compile

The decoding and encoding samples are in the nvJPEG-Decoder and nvJPEG-Encoder directories, respectively.

$ mkdir build
$ cd build
$ cmake ..
$ make

Run

# Decode. Assume the JPEG dataset is in the 1080p directory and the batch size is 128.
./nvjpegDecoder -i 1080p/ -b 128

# Encode (the sample decodes first and then encodes).
./nvJPEG_encoder -i input.jpg  -o output.jpg

Note:

The PPU has 4 JPEG encode cores, so theoretically, 4 threads can achieve optimal performance. It has 8 JPEG decode cores, and batch mode automatically enables 8 internal threads to achieve optimal performance.

4. Specifications

Video decoding

• Supports the cuvid decoder.

• Codecs:

  • HEVC (H.265) - ITU-T Rec. H.265 (04/2013), ISO/IEC 23008-2

    • Main Profile, Level 5.1, High Tier

    • Main10 Profile, Level 5.1, High Tier

    • Main Still Profile

  • VP9 - vp9-bitstream-specification-v0.6-20160331-draft

    • Profile 0, 8-bit

    • Profile 2, 10-bit

  • AVC (H.264) - ITU-T Rec. H.264 (03/2010) / ISO/IEC 14496-10

    • Main Profile, levels 1 - 5.2

    • High Profile, levels 1 - 5.2

    • High 10 Profile, levels 1 - 5.2

    • Baseline Profile, levels 1 - 5.2

  • AV1 Bitstream & Decoding Process Specification Version 1.0.0 with Errata 1

    • Main Profile, Level 5.1

  • AVS2

• Supports resolutions up to 8192x8192

• Supports up to 192 FHD streams

Video encoding

• Supports nvenc

• Codecs:

  • AVC(H.264): Spec Version 12:ISO/IEC 14496-10 / ITU-T Rec. H.264 (03/2010)

    • Baseline Profile, levels 1 – 5.2

    • Main Profile, levels 1 - 5.2

    • High Profile, levels 1 – 5.2

    • High 10 Profile, levels 1 - 5.2

  • HEVC(H.265): ITU-T Rec. H.265 (04/2013), ISO/IEC 23008-2

    • Main Profile, Level 5.1, High Tier

    • Main10 profile, Level 5.1, High Tier

    • Main Still Profile

  • AV1 Bitstream Specification Version 1.0.0 with Errata 1

    • Main Profile, Level 5.1

• Supports resolutions up to 4K

• Supports RGB input format (converted to YUV420 via inlinePP)

• Supports crop, scale, and rotate operations with inlinePP

• Supports up to 32 FHD streams

JPEG

• Supports the nvJPEG decoder and encoder

• Supports resolutions up to 32Kx32K

• Supports RGB format input and output with inlinePP

• Supports crop, scale, and rotate operations with inlinePP

• Up to 960 FPS at UHD resolution

Image processing

• Supports NVIDIA's 2D Image NPP.

5. Known issues

Video decoding

• Only cuvid decode mode is supported; raw nvdec mode is not. Although both modes provide hardware acceleration, cuvid decode is simpler to use.

• Legacy formats such as MPEG-1, MPEG-2, MPEG-4, VC-1, and VP8 are not supported.

Video encoding

• YUV444 12-bit is not supported.

JPEG

• Lossless JPEG is not supported.

• JPEG 2000 is not supported.

2D image

• NPP supports the Image Process interface but not the Signal Process interface.
