On the OBKV-HBase monitoring details page of a tenant, you can view the OBKV-HBase monitoring data of the tenant.

Note

The OBKV-HBase monitoring page appears only on the tenant monitoring page of OBKV instances.

View OBKV-HBase monitoring data

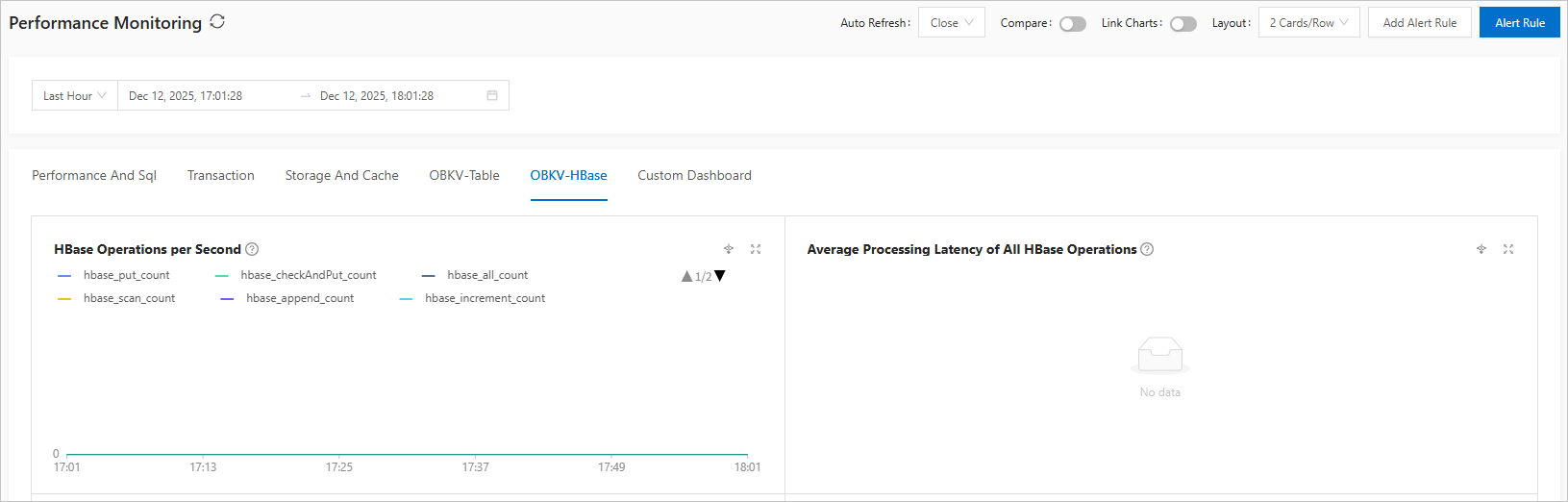

By default, the OBKV-HBase tab displays the monitoring data in the last hour. You can specify a time period or click fields in a chart to filter the data to view.

The following table describes the performance metrics.

Note

You can click the question mark (?) next to a monitoring metric to view its details.

Monitoring item	Metric	Unit	Description
HBase Operations per Second	hbase_all_count hbase_scan_count hbase_put_count hbase_delete_count hbase_append_count hbase_increment_count hbase_checkAndPut_count hbase_checkAndDelete_count hbase_hybrid_batch_count	Times/s	The number of HBase operations processed per second. The number of HBase scan operations processed per second. The number of HBase put operations processed per second. The number of HBase delete operations processed per second. The number of HBase append operations processed per second. The number of HBase increment operations processed per second. The number of HBase checkAndPut operations processed per second. The number of HBase checkAndDelete operations processed per second. The number of HBase hybrid batch operations processed per second.
Average Processing Time of All HBase Operations	hbase_rt hbase_scan_rt hbase_put_rt hbase_delete_rt hbase_append_rt hbase_increment_rt hbase_checkAndPut_rt hbase_checkAndDelete_rt hbase_hybrid_batch_rt	μs	The average time consumed in processing all HBase operations. The average time consumed in processing HBase scan operations. The average time consumed in processing HBase put operations. The average time consumed in processing HBase delete operations. The average time consumed in processing HBase append operations. The average time consumed in processing HBase increment operations. The average time consumed in processing HBase checkAndPut operations. The average time consumed in processing HBase checkAndDelete operations. The average time consumed in processing HBase hybrid batch operations.
HBase Operation Response Time Percentiles	kv_hbase_all_rt_p999 kv_hbase_scan_rt_p999 kv_hbase_put_rt_p999 kv_hbase_delete_rt_p999 kv_hbase_append_rt_p999 kv_hbase_increment_rt_p999 kv_hbase_check_and_put_rt_p999 kv_hbase_check_and_delete_rt_p999 kv_hbase_hybrid_batch_rt_p999 kv_hbase_all_rt_p99 kv_hbase_scan_rt_p99 kv_hbase_put_rt_p99 kv_hbase_delete_rt_p99 kv_hbase_append_rt_p99 kv_hbase_increment_rt_p99 kv_hbase_check_and_put_rt_p99 kv_hbase_check_and_delete_rt_p99 kv_hbase_hybrid_batch_rt_p99 kv_hbase_all_rt_p95 ··· kv_hbase_all_rt_p90 ··· kv_hbase_all_rt_p50 ···	μs	The response time of different types of operations at the 99.9th, 99th, 95th, 90th, or 50th percentile.
Average Rows per HBase Operation	hbase_all_rows hbase_scan_rows hbase_put_rows hbase_delete_rows hbase_append_rows hbase_increment_rows hbase_checkAndPut_rows hbase_checkAndDelete_rows hbase_hybrid_batch_rows	Rows	The average number of rows processed in all types of HBase operations. The average number of rows processed in HBase scan operations. The average number of rows processed in HBase put operations. The average number of rows processed in HBase delete operations. The average number of rows processed in HBase append operations. The average number of rows processed in HBase increment operations. The average number of rows processed in HBase checkAndPut operations. The average number of rows processed in HBase checkAndDelete operations. The average number of rows processed in HBase hybrid batch operations.
