IP access rules

IP access rules let you allow, challenge, or block traffic by source IP, ASN, or geographic location. HTTP (Layer 7) IP access rules are available to all plans. TCP/UDP (Layer 4) IP access rules require an Enterprise plan.

Configure an IP access rule

In the ESA console, go to Websites and click your target website in the Website column.
On the website details page, choose Security > WAF > IP Access Rule.
To define a rule, select a match type, such as IP/CIDR Block, ASN, or Region, enter a value, select an Action, and then click Create Rule. Supported action types are listed in Actions.

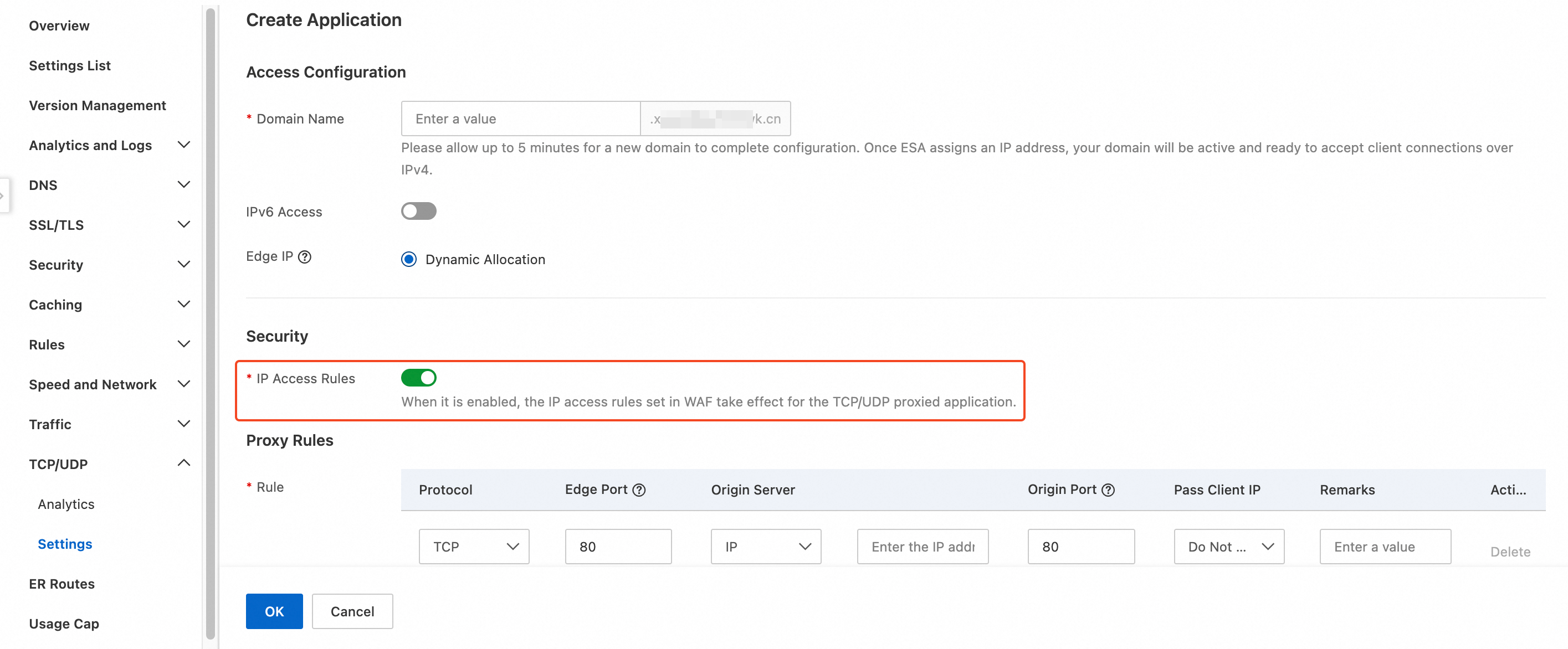

Optional: Rules apply to Layer 7 (HTTP) by default. TCP/UDP (Layer 4) IP access rules require an Enterprise plan. To also cover Layer 4 (TCP/UDP) requests, go to TCP/UDP > Settings. On the Settings page, click Create Application. In the Create Application panel, enable IP Access Rules.

Configuration examples

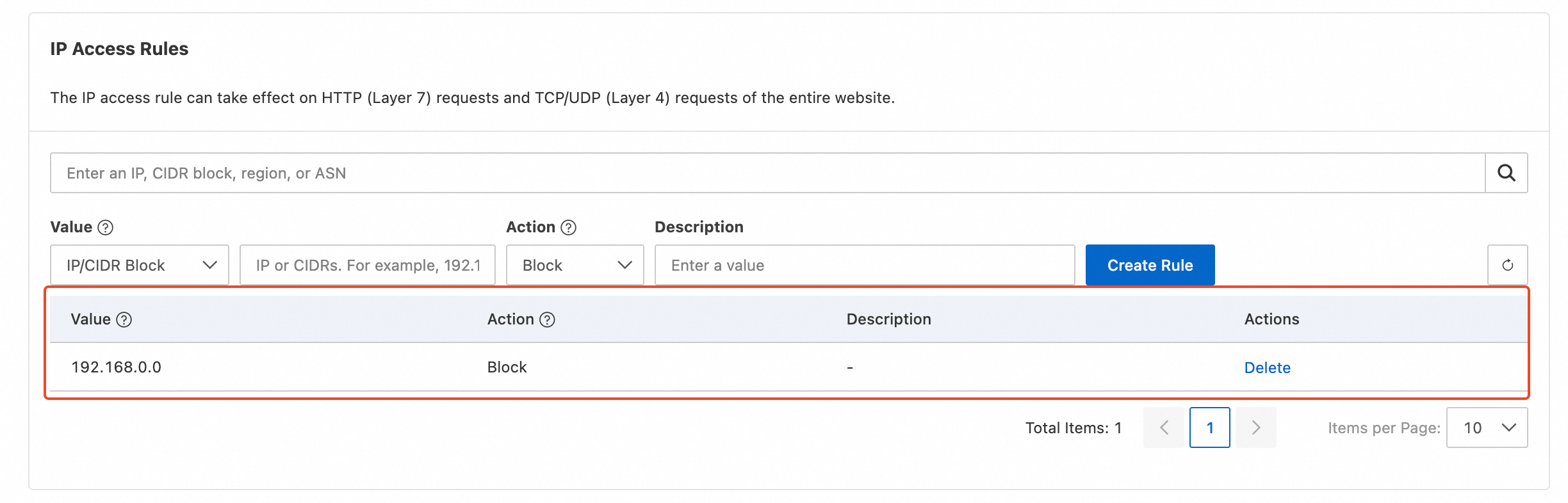

Scenario 1: Block an IP address

To block a specific IP address:

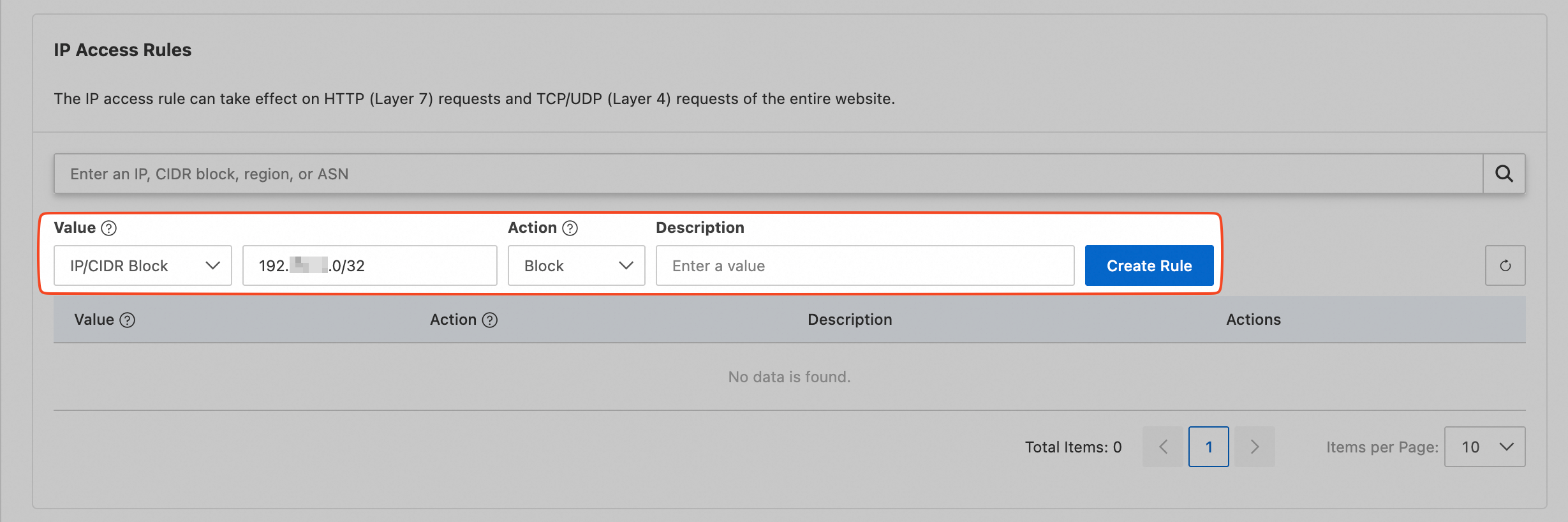

Set the Value for the IP Access Rules to IP/CIDR Block, and enter an IP address such as 192.168.0.0.
Set the Action to Block and click Create Rule. Requests from this IP address are then blocked.

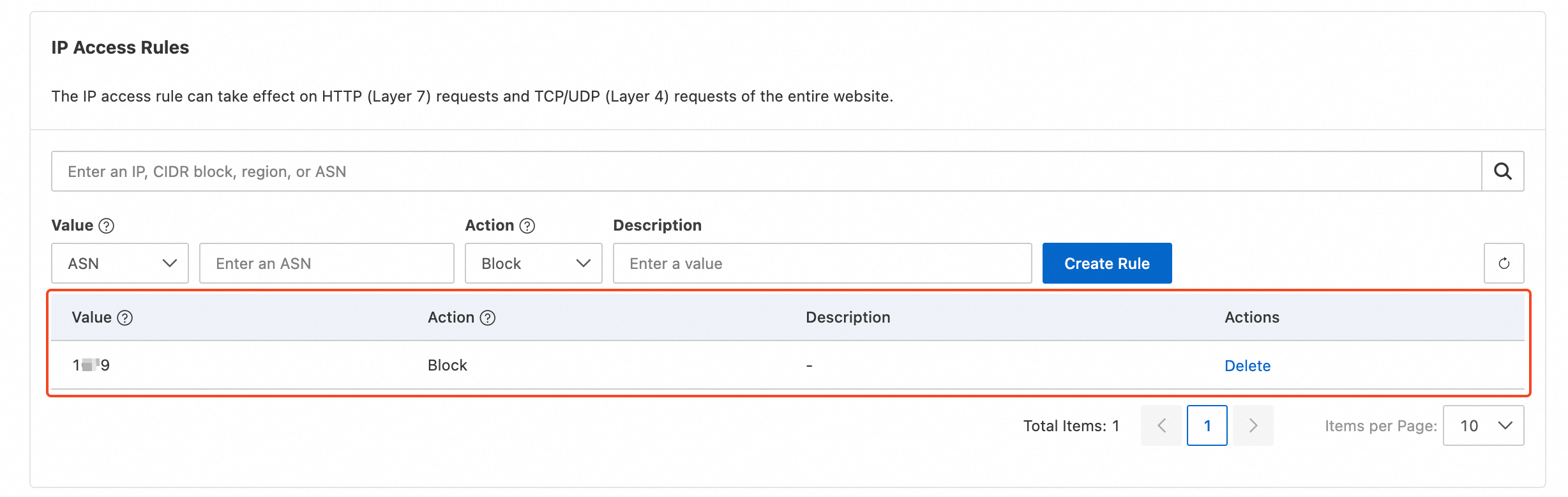

Scenario 2: Block an ASN

To block traffic from a specific ASN:

Set the Value for the IP Access Rules to ASN, and enter the ASN number. Use digits only (for example, 13335). Do not include the "AS" prefix — entering a value like AS13335 triggers a validation error. What is an ASN.
Set the Action to Block and click Create Rule. Requests from this ASN are then blocked.

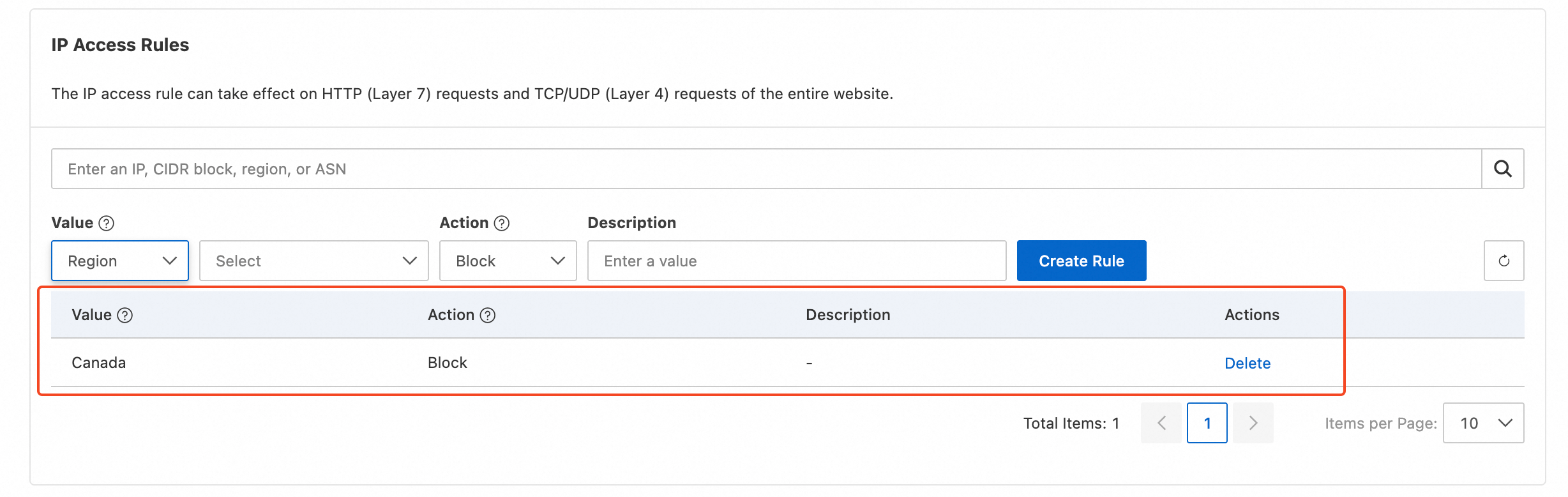

Scenario 3: Block a region

To block a specific region:

Set the Value for the IP Access Rules to Region, and enter a region name.
Set the Action to Block and click Create Rule. The rule then blocks requests from this Region.

Actions

Action	Scope	Description
Block	Applies to both Layer 7 and Layer 4 requests.	Returns an HTTP 403 response for Layer 7 requests and terminates the connection for Layer 4 requests.
Allow	Applies to both Layer 7 and Layer 4 requests.	N/A
JavaScript Challenge	Applies only to Layer 7 requests.	Presents a JavaScript challenge to distinguish legitimate users from bots.
Slider CAPTCHA	Applies only to Layer 7 requests.	Presents a slider CAPTCHA to verify human users and block bots.

Availability

Feature	Free	Basic	Standard	Advanced	Enterprise
Number of IP access rules	50	200	300	400	400
TCP/UDP (Layer 4) IP access rules	Unsupported	Unsupported	Unsupported	Unsupported	Supported
