DeepNCCL is an AI communication acceleration library developed by Alibaba Cloud to optimize multi-GPU interconnection. It seamlessly accelerates tasks that use the NVIDIA Collective Communications Library (NCCL) for communication operator calls, such as distributed training and multi-GPU inference. You can install the DeepNCCL communication library on Elastic GPU Service instances to accelerate distributed training or inference performance. This topic describes how to install and use DeepNCCL on GPU-accelerated instances that run the Ubuntu or CentOS operating system.

Note

For more information, see What is the DeepNCCL AI communication acceleration library?.

Limits

You must have an Alibaba Cloud GPU-accelerated instance that meets the following requirements:
- The operating system is Ubuntu 18.04 or later, or CentOS 7.x or later.
- A GPU driver and CUDA 11.4 or later are installed.
  When you create a GPU-accelerated instance, select an image and then select the Install GPU Driver option. You can then select the required CUDA, driver, and cuDNN versions. For more information, see Create a GPU-accelerated instance.

Only some GPU-accelerated instances support DeepNCCL.

The following table lists the NCCL communication algorithms that DeepNCCL supports. This topic uses the common allreduce (global reduction) communication algorithm as an example to demonstrate the optimization effects of DeepNCCL.

NCCL communication algorithm	Supported GPU-accelerated instances	Description
allgather (full collection)	Multi-node optimization V100: ecs.gn6v-c10g1.20xlarge, ecs.gn6e-c12g1.24xlarge, ecs.ebmgn6e.24xlarge, ecs.ebmgn6v.24xlarge ecs.ebmgn7e.32xlarge, ecs.ebmgn7ex.32xlarge, ecs.sccgn7ex.32xlarge, ecs.gn7e-c16g1.32xlarge	Improves performance by 60% for training on two instances. Supports scaling up to a maximum of 20 instances.
reduce-scatter (scatter reduction)	Multi-node optimization V100: ecs.gn6v-c10g1.20xlarge, ecs.gn6e-c12g1.24xlarge, ecs.ebmgn6e.24xlarge, ecs.ebmgn6v.24xlarge ecs.ebmgn7e.32xlarge, ecs.ebmgn7ex.32xlarge, ecs.sccgn7ex.32xlarge, ecs.gn7e-c16g1.32xlarge	Improves performance by 60% for training on two instances. Supports scaling up to a maximum of 8 instances.
allreduce (global reduction)	Multi-node optimization: V100: ecs.gn6v-c10g1.20xlarge, ecs.gn6e-c12g1.24xlarge, ecs.ebmgn6e.24xlarge, ecs.ebmgn6v.24xlarge ecs.ebmgn7e.32xlarge, ecs.ebmgn7ex.32xlarge, ecs.sccgn7ex.32xlarge, ecs.gn7e-c16g1.32xlarge ecs.ebmgn8v.48xlarge	Improves performance by 40% for training on two instances. Supports scaling up to a maximum of 8 instances.
allreduce (global reduction)	Single-node optimization: A10: ecs.ebmgn7ix.32xlarge	Improves training efficiency by 10% to 100% on a single ebmgn7ix instance for data sizes from 512 B to 2 MB.

Install DeepNCCL

Install DeepNCCL based on the operating system of your GPU-accelerated instance.
Ubuntu operating system
- (Recommended) Install using PyPI
  Run the following command to install the latest version of DeepNCCL, 2.1.0, from the Alibaba Cloud Pip source.
```
pip install deepnccl
```
- Install using a .deb package
  1. Run the following command to download the DeepNCCL .deb package from OSS.
    This step uses DeepNCCL 2.1.0 as an example.
    wget http://aiacc.oss-cn-beijing.aliyuncs.com/deepnccl/release/2.1.0/deb/deep-nccl-2.1.0.deb
  2. Run the following command to install DeepNCCL.
    dpkg -i deep-nccl-2.1.0.deb
CentOS operating system
- (Recommended) Installation using PyPI
  Run the following command to install the latest version of DeepNCCL (2.1.0) from the Alibaba Cloud Pip source.
```
pip install deepnccl
```
- Install using an .rpm package
  1. Run the following command to download the DeepNCCL .rpm package from OSS.
    This step uses DeepNCCL 2.1.0 as an example.
    wget http://aiacc.oss-cn-beijing.aliyuncs.com/deepnccl/release/2.1.0/rpm/deep-nccl-2.1.0.rpm
  2. Run the following command to install DeepNCCL.
    rpm -i deep-nccl-2.1.0.rpm
Run the following command to verify the installation.
```
ldconfig -p | grep nccl
```
The command output is shown in the following figure. If the output contains libnccl.so.2, DeepNCCL is installed.

Use DeepNCCL

After you install DeepNCCL (including aiacc-nccl-plugin), you can use its communication optimization features without additional configuration. The following example uses nccl-tests to demonstrate the acceleration effect of DeepNCCL with the allreduce communication algorithm on a setup that consists of two V100 instances and 16 GPUs.

Sample script

Download the nccl-tests package from NVIDIA nccl-tests. Follow the instructions in the README.md file and copy the following sample script to load the optimization algorithm.

mpirun --allow-run-as-root \
  --np 16 -npernode 8  \
  --hostfile hostfile \
  -mca btl_tcp_if_include eth0 \
  -x NCCL_DEBUG=info \
  -x NCCL_ALGO=Ring \
  ./build/${op}_perf -b 256K -e 1G -d $datatype -f 2 -g 1 -w 10 -n 100

The algorithm loading process depends on the current instance topology. The following figure shows that the optimization algorithm is successfully loaded.


Performance improvement

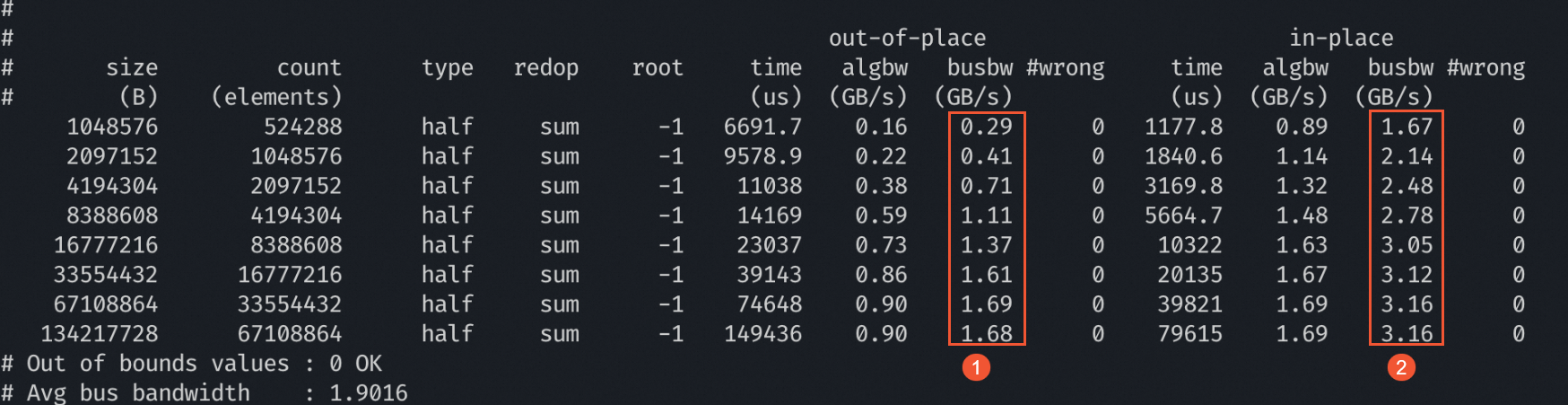

Compared with the baseline performance of NCCL, DeepNCCL significantly improves distributed optimization performance when you use the allreduce communication algorithm on a setup that consists of two V100 instances and 16 GPUs. The busbw values are shown in the following figure:

①: The busbw value for distributed optimization using NCCL (Baseline).
②: The busbw value for distributed optimization using DeepNCCL.

Uninstall DeepNCCL

If you no longer need the optimization capabilities of DeepNCCL, you can uninstall it.

Ubuntu operating system

If you installed DeepNCCL using PyPI, run the following command to uninstall it.
```
pip uninstall deepnccl
```
If you installed DeepNCCL using a .deb package, run the following command to uninstall it.
```
dpkg -r deep-nccl
```

CentOS operating system

If you installed DeepNCCL using PyPI, run the following command to uninstall it.
```
pip uninstall deepnccl
```
If you installed DeepNCCL using an .rpm package, run the following command to uninstall it.
```
rpm -e deep-nccl
```
