Compile and deploy a code package

Prerequisites

Before you begin, ensure that you have:

• Java installed (Java official website)

• Maven installed (Installing Apache Maven)

Steps

1. Create a Java project. Place your handler at src/main/java/example/App.java:

   package example;

   import com.aliyun.fc.runtime.Context;
   import com.aliyun.fc.runtime.StreamRequestHandler;

   import java.io.IOException;
   import java.io.InputStream;
   import java.io.OutputStream;

   public class App implements StreamRequestHandler {

       @Override
       public void handleRequest(InputStream inputStream, OutputStream outputStream, Context context) throws IOException {
           outputStream.write(new String("hello world").getBytes());
       }
   }

   For more handler examples, see Handlers and Context.

2. In pom.xml, add the maven-shade-plugin to the <build> section. This plugin bundles your dependencies into a single JAR file suitable for deployment.

   You can also use Apache Maven Assembly instead of Apache Maven Shade.

   <build>
       <plugins>
           <plugin>
               <groupId>org.apache.maven.plugins</groupId>
               <artifactId>maven-shade-plugin</artifactId>
               <version>3.2.1</version>
               <executions>
                   <execution>
                       <phase>package</phase>
                       <goals>
                           <goal>shade</goal>
                       </goals>
                       <configuration>
                           <filters>
                               <filter>
                                   <artifact>*:*</artifact>
                                   <excludes>
                                       <exclude>META-INF/*.SF</exclude>
                                       <exclude>META-INF/*.DSA</exclude>
                                       <exclude>META-INF/*.RSA</exclude>
                                   </excludes>
                               </filter>
                           </filters>
                       </configuration>
                   </execution>
               </executions>
           </plugin>
       </plugins>
   </build>

   <details> <summary>Complete example pom.xml</summary>

   <project xmlns="http://maven.apache.org/POM/4.0.0"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
     <modelVersion>4.0.0</modelVersion>
     <groupId>example</groupId>
     <artifactId>HelloFCJava</artifactId>
     <packaging>jar</packaging>
     <version>1.0-SNAPSHOT</version>
     <name>HelloFCJava</name>

     <dependencies>
       <dependency>
         <groupId>junit</groupId>
         <artifactId>junit</artifactId>
         <version>3.8.1</version>
         <scope>test</scope>
       </dependency>
       <dependency>
         <groupId>com.aliyun.fc.runtime</groupId>
         <artifactId>fc-java-core</artifactId>
         <version>1.4.1</version>
       </dependency>
     </dependencies>

     <build>
       <plugins>
           <plugin>
             <groupId>org.apache.maven.plugins</groupId>
             <artifactId>maven-shade-plugin</artifactId>
             <version>3.2.1</version>
             <executions>
               <execution>
                 <phase>package</phase>
                 <goals>
                   <goal>shade</goal>
                 </goals>
                 <configuration>
                   <filters>
                     <filter>
                       <artifact>*:*</artifact>
                       <excludes>
                         <exclude>META-INF/*.SF</exclude>
                         <exclude>META-INF/*.DSA</exclude>
                         <exclude>META-INF/*.RSA</exclude>
                       </excludes>
                     </filter>
                   </filters>
                 </configuration>
               </execution>
             </executions>
           </plugin>
       </plugins>
     </build>

     <properties>
       <maven.compiler.target>1.8</maven.compiler.target>
       <maven.compiler.source>1.8</maven.compiler.source>
       <maven.test.skip>true</maven.test.skip>
     </properties>
   </project>

   </details>

3. From the project root directory, run:

   Important

   On macOS and Linux, make sure the code file is readable and executable before compressing it.

   mvn clean package

   A successful build ends with:

   [INFO] BUILD SUCCESS
   [INFO] ------------------------------------------------------------------------
   [INFO] Total time:  11.681 s
   [INFO] Finished at: 2020-03-26T15:55:05+08:00
   [INFO] ------------------------------------------------------------------------

   The output JAR is named after the artifactId and version fields in pom.xml. For the example above, the file is target/HelloFCJava-1.0-SNAPSHOT.jar. If the build fails, check the error message and fix the code before retrying.

4. Log in to the Function Compute console and upload the JAR file.



5. On the Function Details page, go to the Configuration tab and verify the Handler value. The handler must follow the format [Package name].[Class name]::[Method name]. For the example above, the handler is example.App::handleRequest. If needed, click Modify in the Basic Configurations section to update it.



6. On the Code tab, click Test Function to verify the deployment.



Prerequisites

Before you begin, ensure that you have:

• Serverless Devs and its dependencies installed. See Install Serverless Devs and dependencies.

• Serverless Devs configured. See Configure Serverless Devs.

• Java Development Kit (JDK) installed. Download from Java Downloads.

• Maven installed. Download from Apache Maven Downloads.

Steps

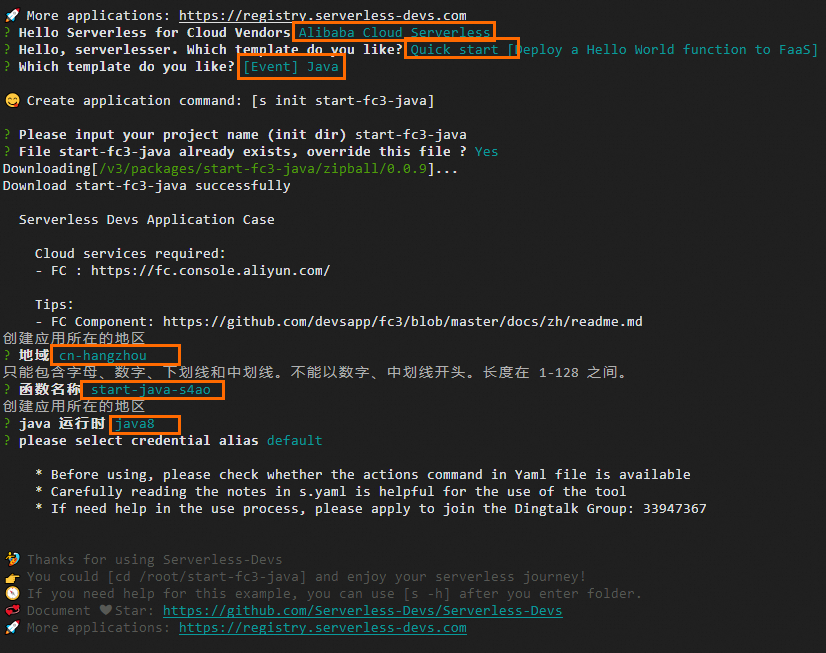

1. Initialize a project:

   s init

   When prompted, select Alibaba Cloud as the vendor and choose a Java template, runtime, region, and function name.



2. Go to the project directory:

   cd start-fc-event-java8

   The project structure looks like this:

   start-fc-event-java8
   ├── src
   │   └── main
   │       └── java
   │           └── example
   │               └── App.java
   ├── pom.xml
   ├── readme
   └── s.yaml

3. Deploy the project:

   s deploy

   Serverless Devs runs mvn package first (the pre-deploy hook), then uploads and deploys the JAR. A successful deployment ends with output similar to:

   [2022-04-07 12:00:09] [INFO] [S-CORE] - Start the pre-action
   [2022-04-07 12:00:09] [INFO] [S-CORE] - Action: mvn package
   [INFO] Scanning for projects...
   [INFO] ------------------------< example:HelloFCJava >-------------------------
   [INFO] Building HelloFCJava 1.0-SNAPSHOT
   [INFO] --------------------------------[ jar ]---------------------------------
   ......
   [INFO] BUILD SUCCESS
   [INFO] ------------------------------------------------------------------------
   [INFO] Total time:  3.617 s
   [INFO] Finished at: 2022-04-07T20:00:14+08:00
   [INFO] ------------------------------------------------------------------------
   [2022-04-07 12:00:14] [INFO] [S-CORE] - End the pre-action

    Checking Service, Function (0.64s)
    Creating Service, Function (0.71s)

   Tips for next step
   ======================
   * Display information of the deployed resource: s info
   * Display metrics: s metrics
   * Display logs: s logs
   * Invoke remote function: s invoke
   * Remove Service: s remove service
   * Remove Function: s remove function
   * Remove Trigger: s remove trigger
   * Remove CustomDomain: s remove domain

   helloworld:
     region:   cn-hangzhou
     service:
       name: hello-world-service
     function:
       name:       start-fc-event-java8
       runtime:    java8
       handler:    example.App::handleRequest
       memorySize: 128
       timeout:    60

4. Invoke the function to verify it runs correctly:

   s invoke

   Expected output:

   ========= FC invoke Logs begin =========
   FC Initialize Start RequestId: b246c3bf-06bc-49e5-92b8-xxxxxxxx
   FC Initialize End RequestId: b246c3bf-06bc-49e5-92b8-xxxxxxxx
   FC Invoke Start RequestId: b246c3bf-06bc-49e5-92b8-xxxxxxxx
   FC Invoke End RequestId: b246c3bf-06bc-49e5-92b8-xxxxxxxx

   Duration: 7.27 ms, Billed Duration: 8 ms, Memory Size: 128 MB, Max Memory Used: 65.75 MB
   ========= FC invoke Logs end =========

   FC Invoke Result:
   hello world
