Send an email with a Function Compute node

Limitations

The Function Compute feature is available only in workspaces that reside in the following regions: China (Hangzhou), China (Shanghai), China (Beijing), China (Zhangjiakou), China (Shenzhen), China (Chengdu), China (Hong Kong), Singapore, Malaysia (Kuala Lumpur), Indonesia (Jakarta), Germany (Frankfurt), UK (London), US (Silicon Valley), and US (Virginia).

Step 1: Create an event function

1. Log on to the Function Compute console. In the left-side navigation pane, click Functions. In the top navigation bar, select the target region. On the Functions page, click Create Function.

2. Select Event Function and click Create Event Function. In the Function Code section, set Runtime to built-in runtime > Python > Python 3.10 and set Code Upload Method to Use sample code. Then, click Create.

   For more information about function configuration, see Create an event function.

3. On the function details page, on the Code tab, edit the index.py file and enter the following sample code for sending an email:

   Important

   • In the sample code, replace the values of the mail_host, mail_port, mail_username, mail_password, mail_sender, and mail_receivers parameters with their actual values.

   • The SMTP service must be enabled for your email account. Some email service providers do not enable this service by default. You need to check and enable it manually. For example, the SMTP service is disabled by default for 163 Mail accounts.

   • For security reasons, some email service providers may require a dedicated authorization code instead of your account password for third-party email clients to log in. In this case, set the mail_password parameter to the authorization code, not the account password. For example, 163 Mail uses an authorization code that must be used as the password for third-party logins.

   # -*- coding: utf-8 -*-
   import logging
   import json
   import smtplib
   from email.mime.text import MIMEText

   def handler(event, context):
     evts = json.loads(event)

     logger = logging.getLogger()
     logger.info('event: %s', evts)
     mail_host = 'smtp.163.com'                 ## Email server address
     mail_port = '465';                         ## SMTP port number
     mail_username = 'sender_****@163.com'      ## Login username
     mail_password = 'EWEL******KRU'            ## Login password
     mail_sender = 'sender_****@163.com'        ## Sender email address
     mail_receivers = ['receiver_****@163.com'] ## Recipient email address

     mail_content=generate_mail_content(evts)
     message = MIMEText(mail_content,'plain','utf-8')
     message['Subject'] = 'mail test'
     message['From'] = mail_sender
     message['To'] = mail_receivers[0]
     smtpObj = smtplib.SMTP_SSL(mail_host + ':' + mail_port)
     smtpObj.login(mail_username,mail_password)
     smtpObj.sendmail(mail_sender,mail_receivers,message.as_string())
     smtpObj.quit()
     return 'mail send success'

   def generate_mail_content(evt):
     mail_content=''
     if 'msg' in evt.keys():
         mail_content=evt['msg']
     else:
         logger = logging.getLogger()
         logger.error('msg not present in event')
     '''
     You can add logic here to process the email content.
     '''
     return mail_content

4. Click Deploy Code.

Step 2: (Optional) Test the function

You can simulate a test by configuring the parameters for Create New Test Event.

1. On the function details page, on the Code tab, click the icon to the right of Test Function and select Configure Test Parameters from the drop-down list.

   In the Configure Test Parameters panel, select Create New Test Event or Edit Existing Test Event, enter the parameters, and click OK.

   Event content:

   {
       "msg": "This is a test message"
   }

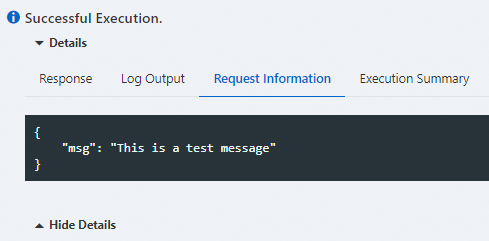

2. Click Test Function to run the test.



3. Check if the recipient received the email.

   Note

   Some email servers might mark emails from unknown senders as spam. If you do not find the test email in your inbox, check your spam or junk folder.

Step 3: Create and configure a Function Compute node

1. Log on to the DataWorks console. In the left-side navigation pane, click Workspaces.

2. In the top navigation bar, switch to the same region that you specified in Step 1.

3. On the Workspace List page, click the name of the target workspace to go to its details page. If you do not have a workspace in the current region, create one. For more information, see Create a workspace.

4. In the left-side navigation pane, navigate to Data Development and O&M > DataStudio.

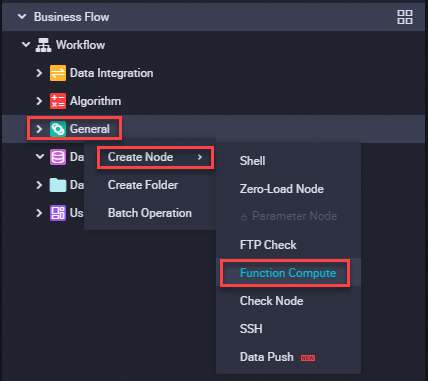

5. Click the name of the target workflow. Right-click the General node and choose Function Compute. In the dialog box that appears, enter a name for the node and click Confirm to create the Function Compute node.



6. Configure the parameters for the Function Compute node.

   Parameter	Description
   Select function	Select the function that you created in Step 1.
   Select version or alias	Select the version or alias to use when you invoke the function. The default version is LATEST. For more information, see Version management and Alias management.
   Invocation method	Select Synchronous. For more information about invocation methods, see Synchronous invocation and Asynchronous invocation.
   Variables	The parameters that you pass to the function. An example is provided below: { "msg": "This is a test message from dataworks!" }

7. (Optional) Debug the Function Compute node. After you configure the node, you can click the icon to assign constant values to variables for a debug run.

8. Configure the scheduling properties of the node. You can use DataWorks scheduling parameters to dynamically pass parameters to your code in scheduled runs. On the right side of the canvas, configure the scheduling configuration. For more information about scheduling parameters, see Supported formats of scheduling parameters. For more information about scheduling properties, see Configure task scheduling properties.
