Migrate image blind watermark to the new version

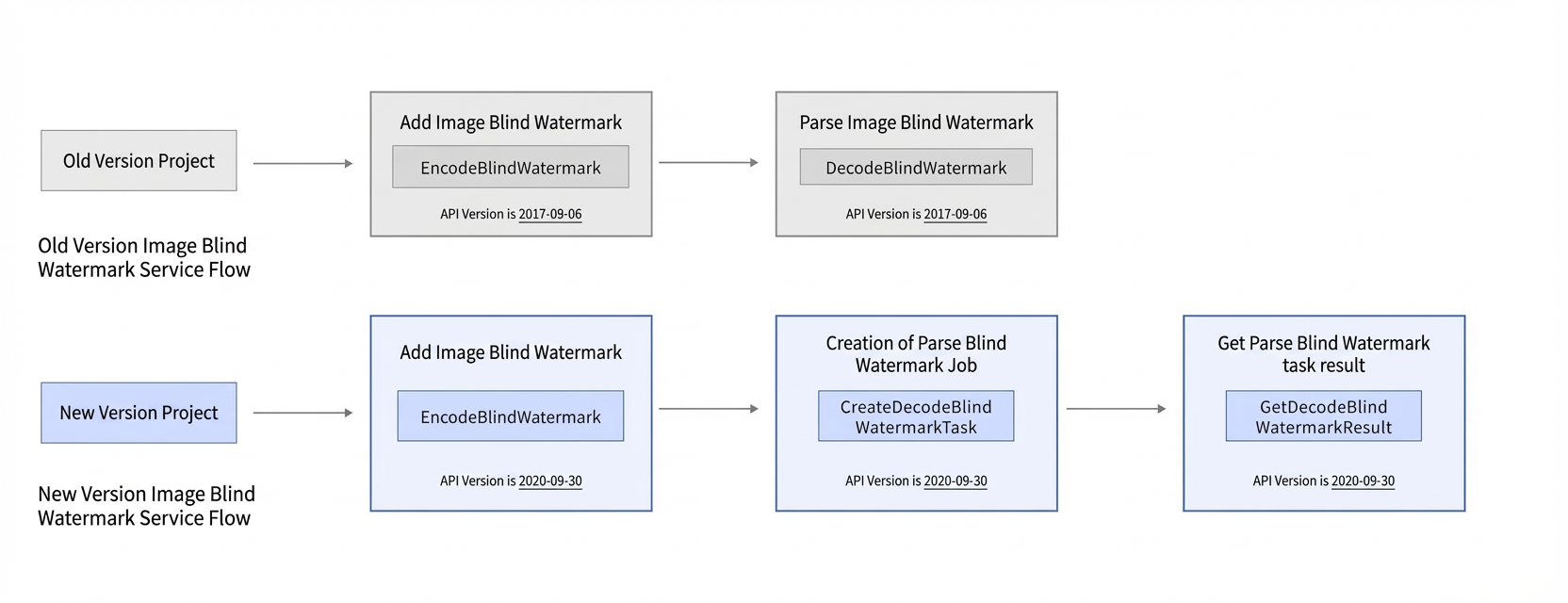

The following table describes the API mapping between the new and old versions.

Create a new-version project in the console

1. Log on to the Intelligent Media Management console.

2. The console provides a switch in the lower-left corner to toggle between the new and old versions. If you are redirected to the old-version console after logging on, click Try New Version in the lower-left corner to switch to the new console.

3. On the Project List page, select the same region as your old-version project.

   The region selector is located in the top navigation bar, to the right of the Workbench entry.

4. On the Project List page, click Create Project. In the Create Project panel that appears, enter the project information and create the project.

   Note

   When you create the project, you must select the same service role as the old-version project and set the workflow template to Official:ImageManagement. No other configuration is required.

   The project name must be 1 to 128 characters in length and can contain only letters, digits, hyphens (-), and underscores (_). It must start with a letter or an underscore. The default service role is AliyunIMMDefaultRole.

Migrate the API for adding watermarks

Call the new API operation EncodeBlindWatermark.

• SDK/API version

  • The new version uses the new SDK, with API version 2020-09-30.

  • The old version uses the old SDK, with API version 2017-09-06.

• SDK installation command

  pip install alibabacloud_imm20200930==4.6.1

• Sample code:

  # -*- coding: utf-8 -*-
  # This file is auto-generated, don't edit it. Thanks.
  import os
  import sys
  from typing import List
  from alibabacloud_imm20200930.client import Client as imm20200930Client
  from alibabacloud_tea_openapi import models as open_api_models
  from alibabacloud_imm20200930 import models as imm_20200930_models
  from alibabacloud_tea_util import models as util_models
  from alibabacloud_tea_util.client import Client as UtilClient
  class Sample:
      def __init__(self):
          pass
      @staticmethod
      def create_client() -> imm20200930Client:
          """
          Initializes a client by using an access key pair.
          @return: Client
          @throws Exception
          """
          # Leaking project code may compromise the security of all resources in your account by exposing your access key.
          # We recommend that you use a more secure method, such as Security Token Service (STS), for authentication.
          config = open_api_models.Config(
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
              access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
              access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
          )
          # For more information about endpoints, see https://api.aliyun.com/product/imm.
          config.endpoint = f'imm.cn-hangzhou.aliyuncs.com'
          return imm20200930Client(config)
      @staticmethod
      def main(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          encode_blind_watermark_request = imm_20200930_models.EncodeBlindWatermarkRequest(
              project_name='TestProject',
              source_uri='oss://test/watermark.jpg',
              target_uri='oss://test/target/watermark.jpg',
              content='test'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              client.encode_blind_watermark_with_options(encode_blind_watermark_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
      @staticmethod
      async def main_async(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          encode_blind_watermark_request = imm_20200930_models.EncodeBlindWatermarkRequest(
              project_name='TestProject',
              source_uri='oss://test/watermark.jpg',
              target_uri='oss://test/target/watermark.jpg',
              content='test'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              await client.encode_blind_watermark_with_options_async(encode_blind_watermark_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
  if __name__ == '__main__':
      Sample.main(sys.argv[1:])

Create a watermark decoding task

Call the new API operation CreateDecodeBlindWatermarkTask.

• SDK/API version

  • The new version uses the new SDK, with API version 2020-09-30.

  • The old version uses the old SDK, with API version 2017-09-06.

• SDK installation command

  pip install alibabacloud_imm20200930==4.6.1

• Sample code:

  # -*- coding: utf-8 -*-
  # This file is auto-generated, don't edit it. Thanks.
  import os
  import sys
  from typing import List
  from alibabacloud_imm20200930.client import Client as imm20200930Client
  from alibabacloud_tea_openapi import models as open_api_models
  from alibabacloud_imm20200930 import models as imm_20200930_models
  from alibabacloud_tea_util import models as util_models
  from alibabacloud_tea_util.client import Client as UtilClient
  class Sample:
      def __init__(self):
          pass
      @staticmethod
      def create_client() -> imm20200930Client:
          """
          Initializes a client by using an access key pair.
          @return: Client
          @throws Exception
          """
          # Leaking project code may compromise the security of all resources in your account by exposing your access key.
          # We recommend that you use a more secure method, such as Security Token Service (STS). For more information about authentication, see https://help.aliyun.com/document_detail/378659.html.
          config = open_api_models.Config(
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
              access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
              access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
          )
          # For more information about endpoints, see https://api.aliyun.com/product/imm.
          config.endpoint = f'imm.cn-hangzhou.aliyuncs.com'
          return imm20200930Client(config)
      @staticmethod
      def main(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          create_decode_blind_watermark_task_request = imm_20200930_models.CreateDecodeBlindWatermarkTaskRequest(
              project_name='TestProject',
              source_uri='oss://test/target/watermark.jpg'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              client.create_decode_blind_watermark_task_with_options(create_decode_blind_watermark_task_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
      @staticmethod
      async def main_async(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          create_decode_blind_watermark_task_request = imm_20200930_models.CreateDecodeBlindWatermarkTaskRequest(
              project_name='TestProject',
              source_uri='oss://test/target/watermark.jpg'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              await client.create_decode_blind_watermark_task_with_options_async(create_decode_blind_watermark_task_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
  if __name__ == '__main__':
      Sample.main(sys.argv[1:])

Getting the watermark decoding result

Call the new API operation GetDecodeBlindWatermarkResult.

• SDK/API version

  • The new version uses the new SDK, with API version 2020-09-30.

• Sample code:

  # -*- coding: utf-8 -*-
  # This file is auto-generated, don't edit it. Thanks.
  import os
  import sys
  from typing import List
  from alibabacloud_imm20200930.client import Client as imm20200930Client
  from alibabacloud_tea_openapi import models as open_api_models
  from alibabacloud_imm20200930 import models as imm_20200930_models
  from alibabacloud_tea_util import models as util_models
  from alibabacloud_tea_util.client import Client as UtilClient
  class Sample:
      def __init__(self):
          pass
      @staticmethod
      def create_client() -> imm20200930Client:
          """
          Initializes a client by using an access key pair.
          @return: Client
          @throws Exception
          """
          # Leaking project code may compromise the security of all resources in your account by exposing your access key.
          # We recommend that you use a more secure method, such as Security Token Service (STS). For more information about authentication, see https://help.aliyun.com/document_detail/378659.html.
          config = open_api_models.Config(
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_ID environment variable is set.
              access_key_id=os.environ['ALIBABA_CLOUD_ACCESS_KEY_ID'],
              # Required. Make sure that the ALIBABA_CLOUD_ACCESS_KEY_SECRET environment variable is set.
              access_key_secret=os.environ['ALIBABA_CLOUD_ACCESS_KEY_SECRET']
          )
          # For more information about endpoints, see https://api.aliyun.com/product/imm.
          config.endpoint = f'imm.cn-hangzhou.aliyuncs.com'
          return imm20200930Client(config)
      @staticmethod
      def main(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          get_decode_blind_watermark_result_request = imm_20200930_models.GetDecodeBlindWatermarkResultRequest(
              project_name='TestProject',
              task_type='DecodeBlindWatermark',
              task_id='DecodeBlindWatermark-78ac8f3b-59e0-45a6-9b67-32168c3*****'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              client.get_decode_blind_watermark_result_with_options(get_decode_blind_watermark_result_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
      @staticmethod
      async def main_async(
          args: List[str],
      ) -> None:
          client = Sample.create_client()
          get_decode_blind_watermark_result_request = imm_20200930_models.GetDecodeBlindWatermarkResultRequest(
              project_name='TestProject',
              task_type='DecodeBlindWatermark',
              task_id='DecodeBlindWatermark-78ac8f3b-59e0-45a6-9b67-32168c3*****'
          )
          runtime = util_models.RuntimeOptions()
          try:
              # When you run the sample code, print the return value of the API operation.
              await client.get_decode_blind_watermark_result_with_options_async(get_decode_blind_watermark_result_request, runtime)
          except Exception as error:
              # The following code is for demonstration only. We recommend that you handle exceptions with care in your production code.
              # Error message
              print(error.message)
              # Diagnostic URL
              print(error.data.get("Recommend"))
              UtilClient.assert_as_string(error.message)
  if __name__ == '__main__':
      Sample.main(sys.argv[1:])

Image blind watermark billable items

• For information about billing for the new version of image blind watermark, see Pricing of billable items.

• For information about billing for the old version of image blind watermark, see Billable Items.
