Add a service source

Usage notes

• If a configured service source becomes invalid, remove it manually. Otherwise, you may experience stability issues, such as failures to synchronize service information from other sources.

• You can add services with DNS domains or fixed IP addresses without configuring a service source. For more information, see Create a service.

• If your gateway instance does not support listening to Kubernetes Ingress, you must upgrade the gateway. For more information, see Upgrade a Cloud Native Gateway.

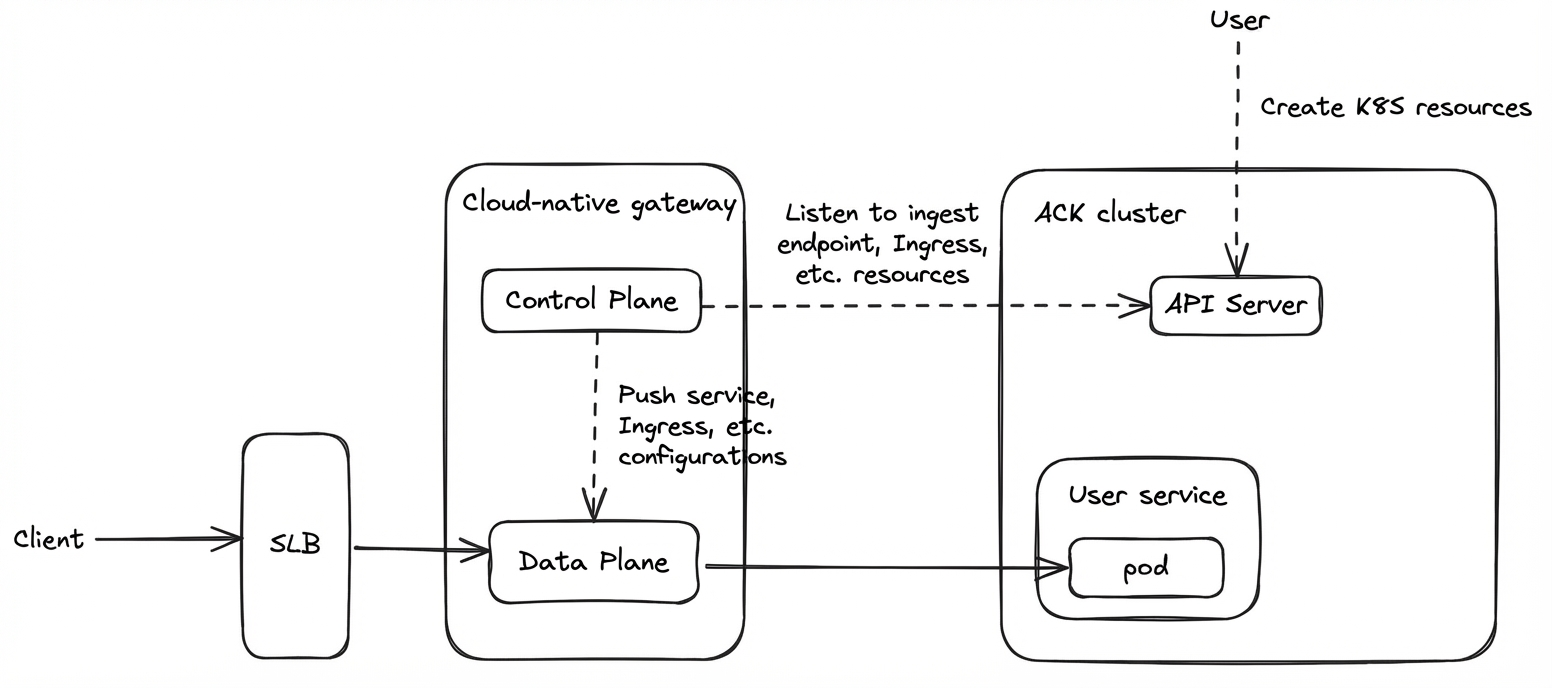

• When you add an ACK container service, the gateway listens to the ACK cluster's Service and Endpoints resources to discover services and their endpoints. If you configure HTTPS requests on the gateway by using Kubernetes Ingress, the gateway also needs to listen to the cluster's Secret resources to obtain certificate information for HTTPS.

• If you have configured access control policies for the API Server in your ACK cluster, ensure that the gateway has permission to access the API Server.



Procedure

1. Log on to the MSE console. In the top navigation bar, select a region.

2. In the left-side navigation pane, choose Cloud-native Gateway > Gateways. On the Gateways page, click the ID of the gateway.

3. In the left-side navigation pane, click Routes. Then, click the Source tab.

4. Click Add Source. In the Add Source panel, configure the parameters and click OK.

   The supported service sources are Container Service, MSE Nacos, MSE ZooKeeper (only for standard gateway instances), SAE Built-in Registry, and EDAS Built-in Registry.

   Container Service

   Parameter	Description
   ACK/ACK Serverless Cluster	Select the cluster where your backend service is deployed. Note Create the gateway in the same VPC as your backend cluster. This allows the gateway to automatically discover clusters within that VPC when you add a service source. Important The ACK cluster version must be 1.18 or later. If the cluster version is earlier than 1.18, upgrade the cluster before associating it as a service source. Version 1.28 or later is recommended.
   Listen to Kubernetes Ingress	If you enable this option, the Cloud Native Gateway automatically monitors Ingress resources for changes and applies the corresponding domain and route configurations. If you disable this option, the gateway stops monitoring Ingress resources, and all previously applied configurations from Ingress become invalid. Use this option with caution. Important Domain and route configurations that you set manually on the console have a higher priority than those from Ingress resources.
   Ingress Class	Specifies the IngressClass that the gateway uses to filter Ingress resources. If you leave this field blank, the gateway listens to all Ingress resources in the cluster. If you specify a value, the gateway listens to Ingress resources where the value of the kubernetes.io/ingress.class annotation or the spec.ingressClassName field matches the specified value. Only a single value is supported. For example, if you set this parameter to nginx, the gateway monitors Ingress resources whose IngressClass is nginx or is unspecified.
   Namespace	Specifies the namespace in which to listen for Ingress resources. If you leave this field blank, the gateway listens to Ingress resources in all namespaces. If you specify a value, the gateway listens to Ingress resources only in that specific namespace. Only a single value is supported.
   Update Ingress Status	If you enable this option, the gateway updates the status field of the monitored Ingress resources with the IP address of the SLB instance associated with the Cloud Native Gateway. Note This feature is available only for gateway instances of version 1.2.9 or later.
   Security Group Authorization	The node pool of the container cluster is protected by a security group. For external components to access services within the cluster, you must open the required service ports in the security group rules. You can modify the security group rules. For more information, see Set security group rules.

   MSE Nacos

   Parameter	Description
   Nacos Instance	Select an instance. Note Only MSE Nacos instances with MCPEnabled set to true are displayed. You can change this in your MSE Nacos instance's parameter settings.

   MSE ZooKeeper

   Note

   This option is supported only by standard Cloud Native Gateway instances. Serverless gateway instances cannot use MSE ZooKeeper as a service source.

   Parameter	Description
   Cluster Name	Select a cluster.

   SAE Built-in Registry

   Parameter	Description
   Namespace	Select the namespace where the service is deployed in SAE.
   Service Group	If your service uses a specific service group, click Add Service Group to add it.

   EDAS Built-in Registry

   Parameter	Description
   Microservices Space	Select the microservice space where the service is deployed in EDAS.
   Service Group	If your service uses a specific service group, click Add Service Group to add it.

   SAE Kubernetes

   Parameter	Description
   Namespace	Select the namespace where the service is deployed in SAE Kubernetes.

Verify the result

Navigate back to the Routes page and select the Source tab. Verify that your new service source appears in the list.
