You can upload a custom plug-in to the Plug-in Marketplace page in the Microservices Engine (MSE) console. Only your Alibaba Cloud account or RAM users that have permissions on the cloud-native gateway can view and use the uploaded plug-in. Custom plug-ins and built-in plug-ins are enabled in the same way.
Procedure
-
Log on to the MSE console. In the top navigation bar, select a region.
-
In the left-side navigation pane, choose Cloud-native Gateway > Gateways. On the Gateways page, click the ID of the gateway.
-
In the left-side navigation pane, click Plug-in Marketplace.
-
On the Plug-in Marketplace page, click the Custom tab, and then click Add Plug-in.
-
In the Add Plug-in panel, configure the parameters, click OK, and wait for the plug-in to be published. This process can take about 30 seconds.
Parameter
Description
Plug-in Name
Enter the name of the plug-in. The name must be unique.
Plug-in Description
Enter a description of the plug-in. The description is displayed on the plug-in card.
WebAssembly Language
Select the programming language used to develop the WebAssembly plug-in.
WebAssembly File
Upload the compiled plug-in binary file from your on-premises machine. The file extension must be .wasm and the file size cannot exceed 50 MB.
Plug-in Execution Stage
The stages are processed in the following order: Authorization > Authentication > Statistics > Default. If the plug-in's execution does not depend on other plug-ins, select the Default stage.
Plug-in Execution Priority
The execution priority of the plug-in in the specified stage. A larger value indicates a higher priority. If the plug-in does not depend on the execution order of other plug-ins, keep the default value. We recommend that you set the value to a multiple of 10.
Execution order of plug-ins
The relative execution order of plug-ins is determined by the execution stage and priority of each plug-in. The execution order for client requests is the reverse of the order for backend responses. The first plug-in to process a request is the last to process the corresponding response.

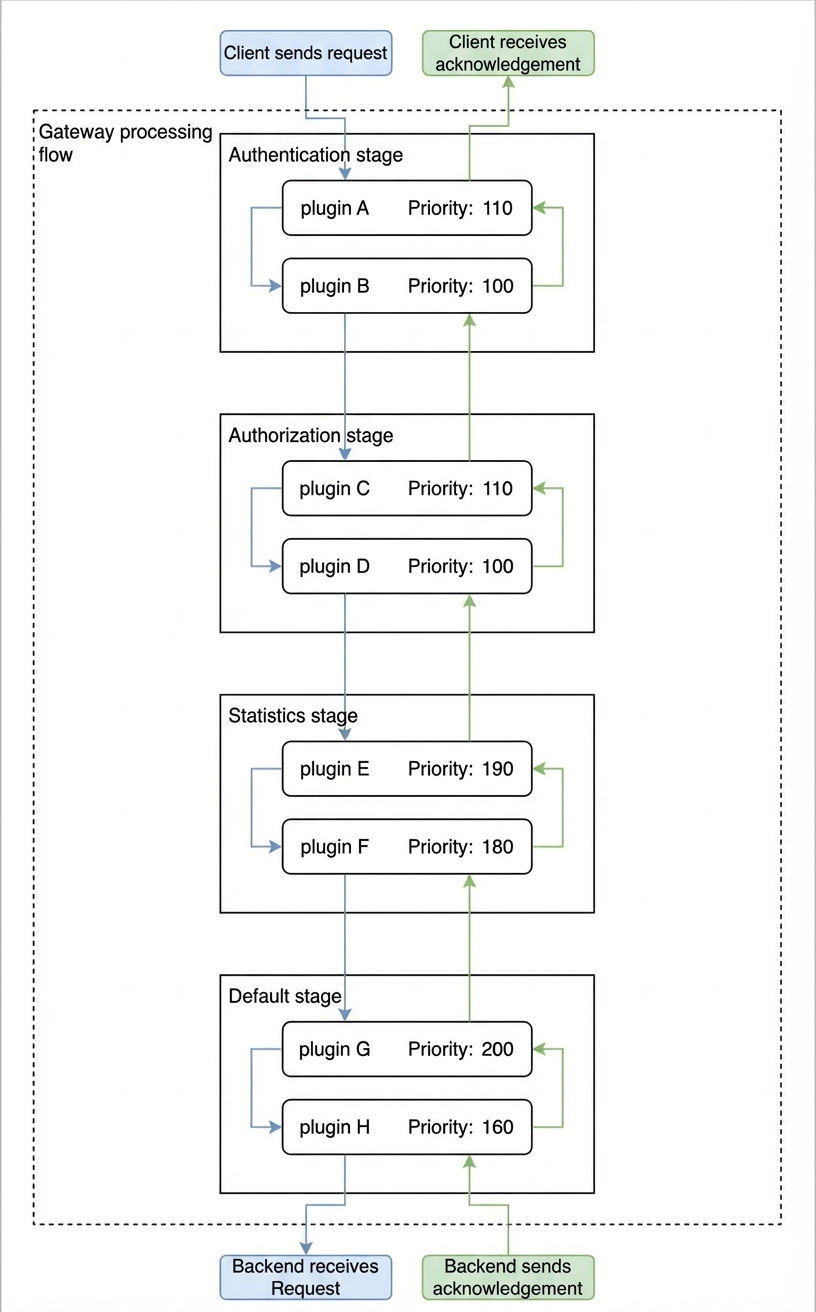

The execution order of plug-ins is determined by the Plug-in Execution Stage and Plug-in Execution Priority parameters. The following figure shows how plug-ins process requests and responses.
You can view the execution stage and priority in the details of a built-in plug-in. To execute a custom plug-in before or after a built-in plug-in, configure the Plug-in Execution Stage and Plug-in Execution Priority parameters for the custom plug-in.
FAQ
How do I update the .wasm file of a plug-in?
-
To update the .wasm file of a plug-in, make sure that the plug-in is disabled first.
-
On the plug-in card, click
> Edit, and upload a new Wasm file.
You can edit or delete a custom plug-in if it is disabled. You cannot edit or delete the built-in plug-ins of MSE.
What are the possible causes of plug-in release failures?
In most cases, plug-in releases fail because the .wasm file has an invalid binary format. For a demo on loading the .wasm file to your on-premises environment, see Develop gateway plugins in Go.
